Product Introduction

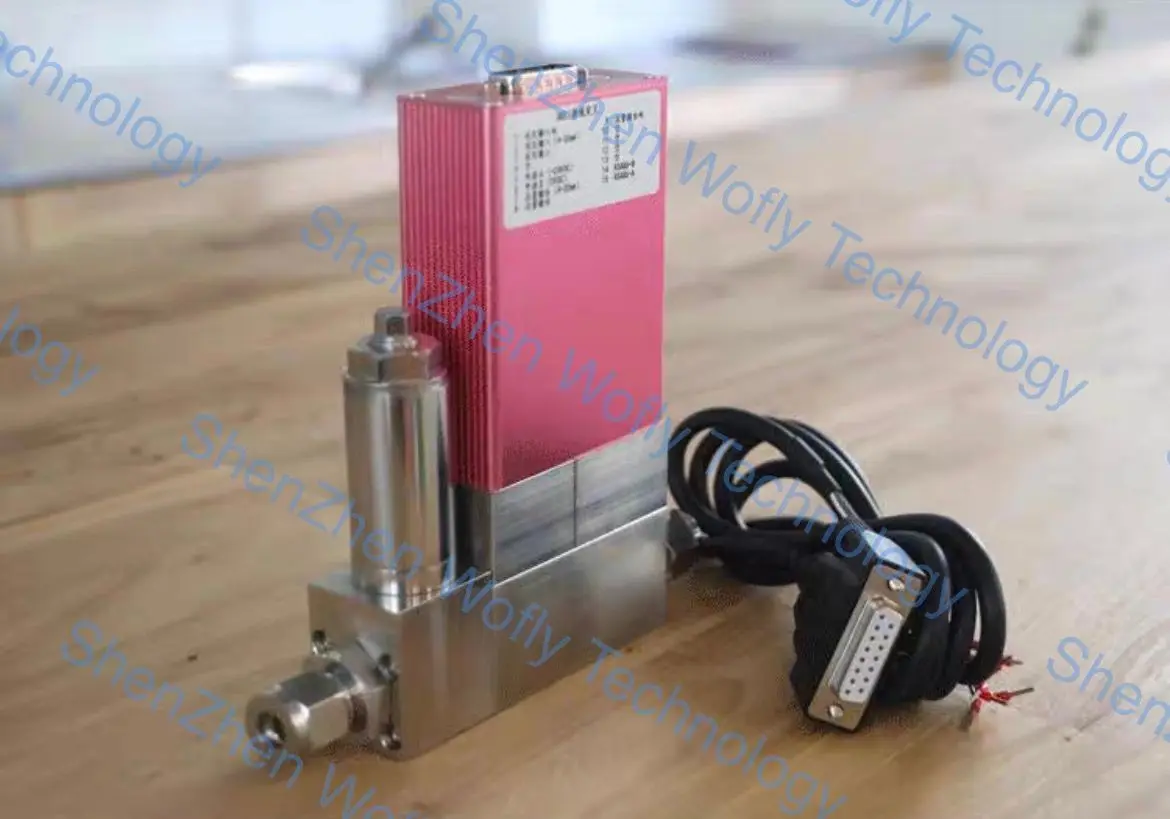

MFC SERIES Flow Controller/Meter

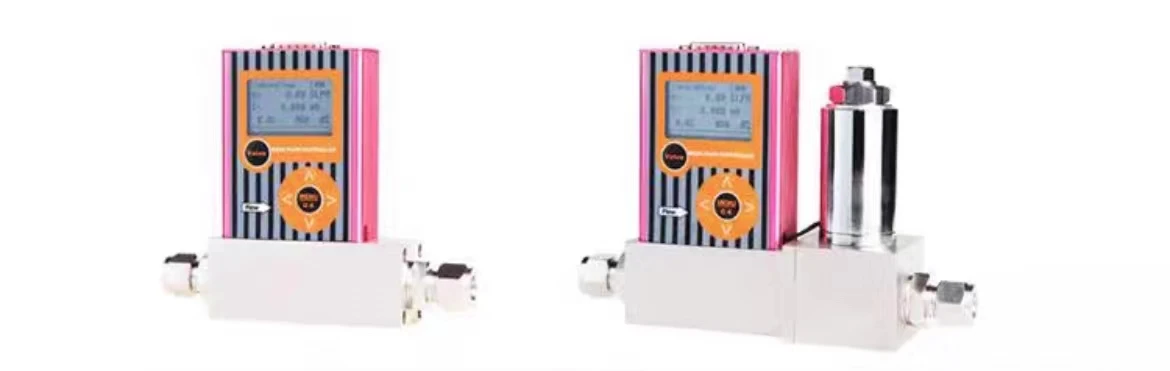

Gas mass flowmeter main function is to measure a variety of single gas or mixed gas, no control function, divided into digital type with display (left), analog type without display (right), digital type mainly has RS485 communication can be connected to a computer or PLC can be field panel adjustment: analog type output 0-5V or 4-20MA can not be field adjustment, can be connected to PLC or flow control instrument.
Specification
Gas flow meter parameters | ||||
1 | Flow range | （0~5，10,20,30,50,100,200,300,500...）SCCM （0~1,2,3,5,10,50,100,200,500...） SLM | ||
2 | Accuracy: | ±1%F.S ±0.5%F.S | ||
3 | Linearity | ±0.5~1.5%F.S | ||
4 | Repeatability | ±0.2%F.S | ||
5 | Responding time | Electrical characteristics:10sec gas characteristics ： （1~4）sec | ||
6 | Differential pressure range | 0.1~0.5MPa | ||
7 | Max pressure | 3MPa | ||
8 | Working temperature | 0~70℃ | ||
9 | Digital value | RS485 MODBUS | ||
10 | Analog value | DC 0~5V ，4~20mA | ||
11 | Power supply | DC +15V/24V，flow meter＜400mA，flow controller＜ 600mA | ||

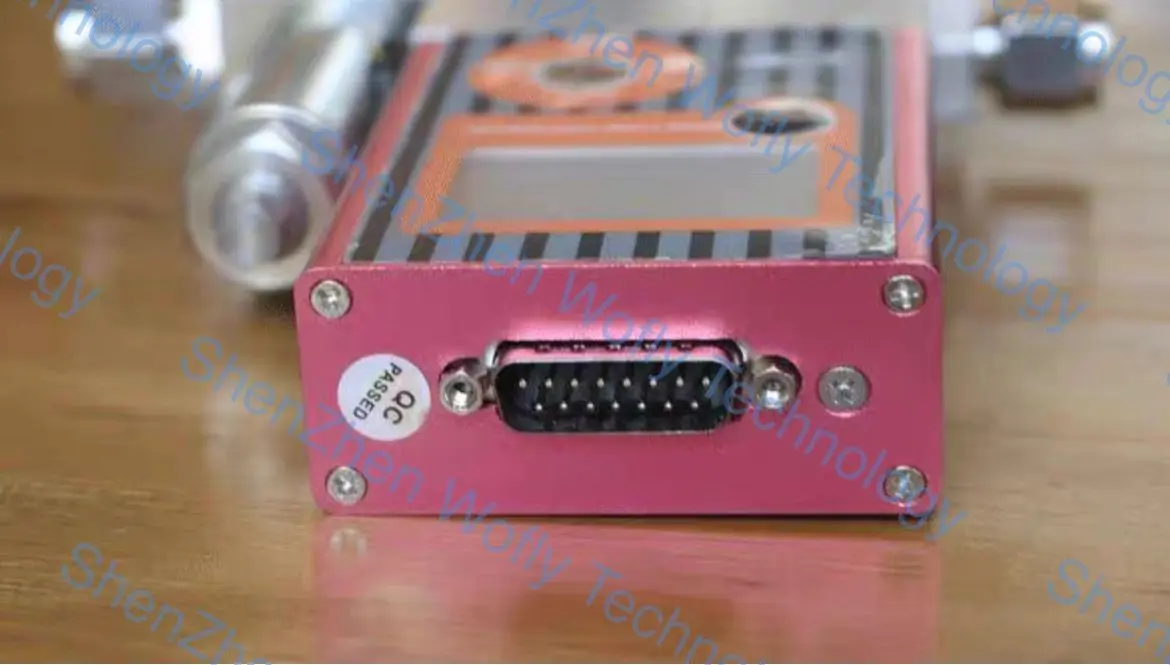

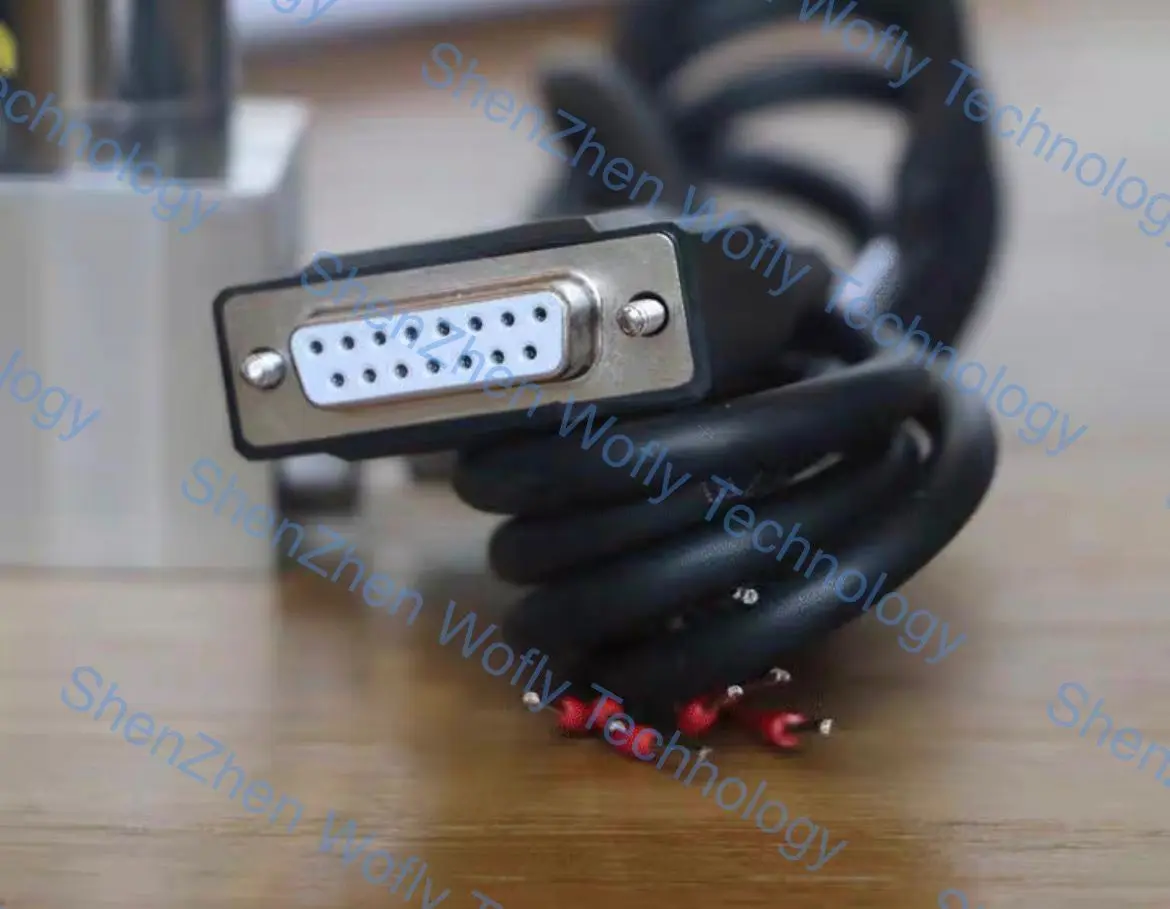

12 | Electrical connection | DB15 | ||
13 | Leakage rate | 1×10-8SCCSHe | ||
14 | Material of base | 316L Stainless steel | ||
15 | Seal material | FKM，nitrile butadiene rubber，chloroprene rubber | ||

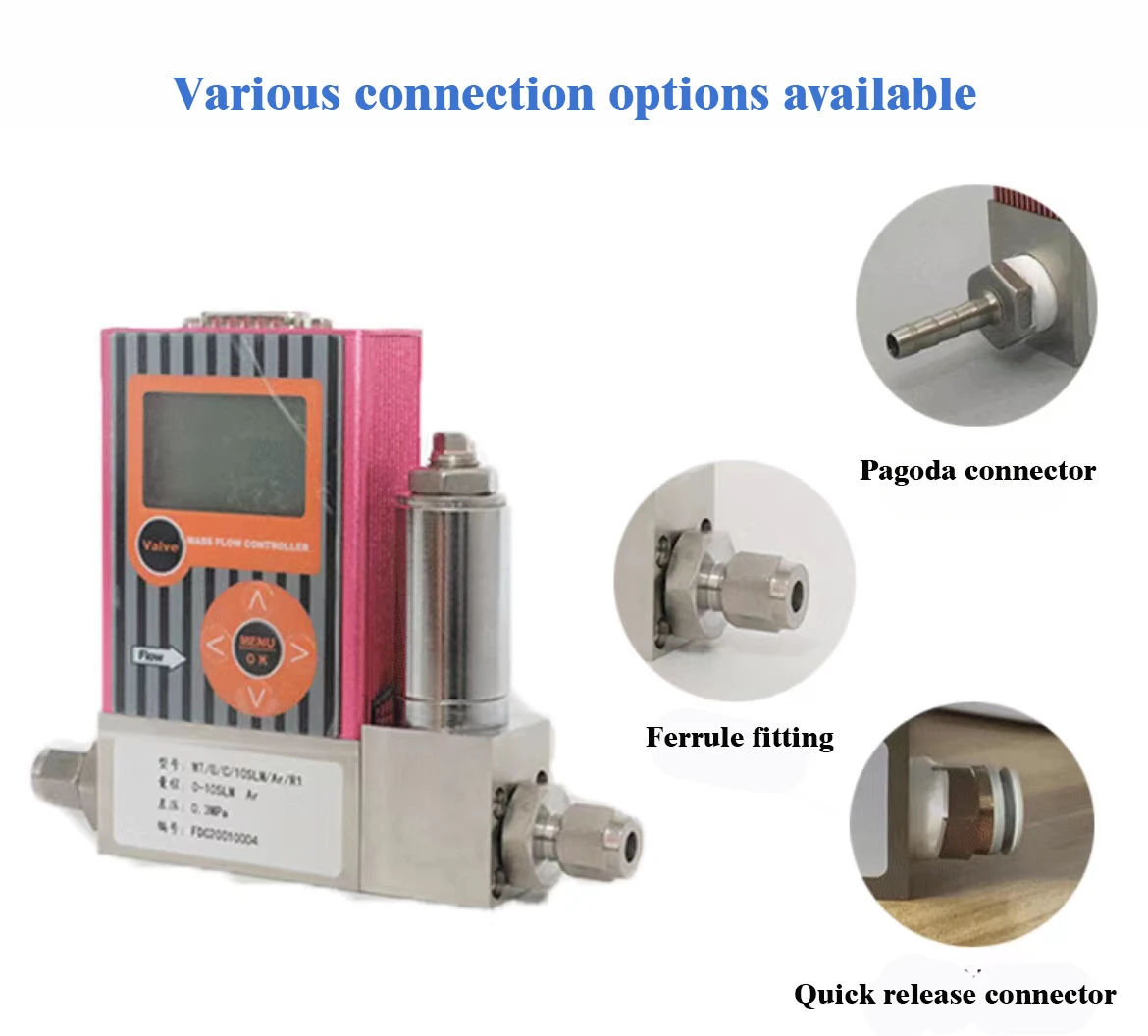

16 | Glad hand | Φ3，Φ6，Φ10，1/8〞,1/4〞，3/8〞 | ||
Product Description
SS316L MATERIAL
The base material of the flow meter controller is S316L,and the material that contacts the gas is also SS316L.It can measure some weak corrosive gases. When measuring other sfrong corrosive gases and organic solvent gases, it should be declared when ordering.
0.5%HIGHPRECISION
The standard accuracy of gas mass flowmeters is 0.5%. 1.0% of reading,and the repeatability of 0.5% full scale accuracy is 0.2%.The accuracy of the
controller is 1.0%(full scale accuracy)
controller is 1.0%(full scale accuracy)
FLOW CONTROLLER
The flow range of the miniature gas massflowcontroller is the same as that of the flowmeterthe valve control range ratio is 50:1and the
proportional control valve accuracy is 1.0%.
proportional control valve accuracy is 1.0%.

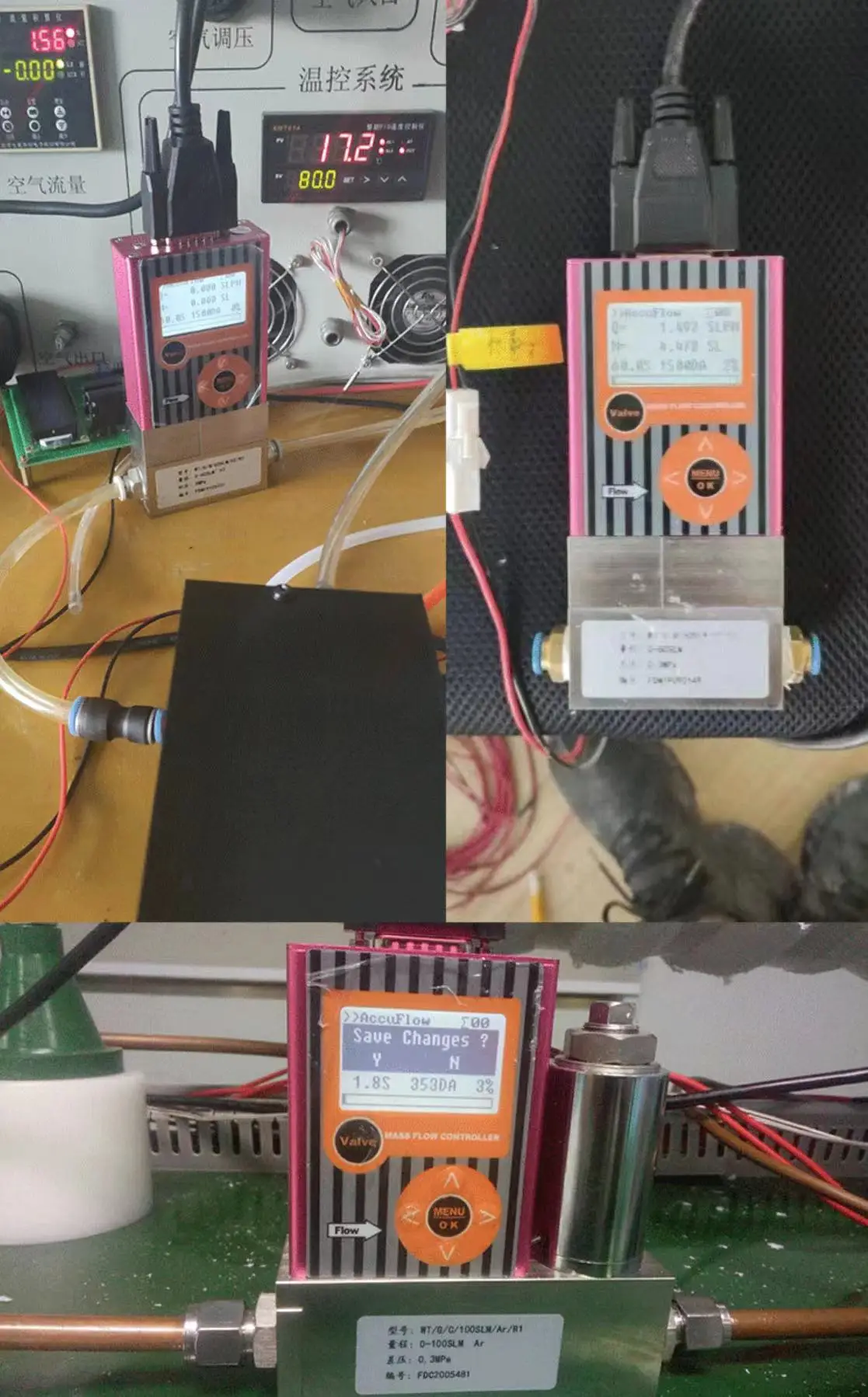

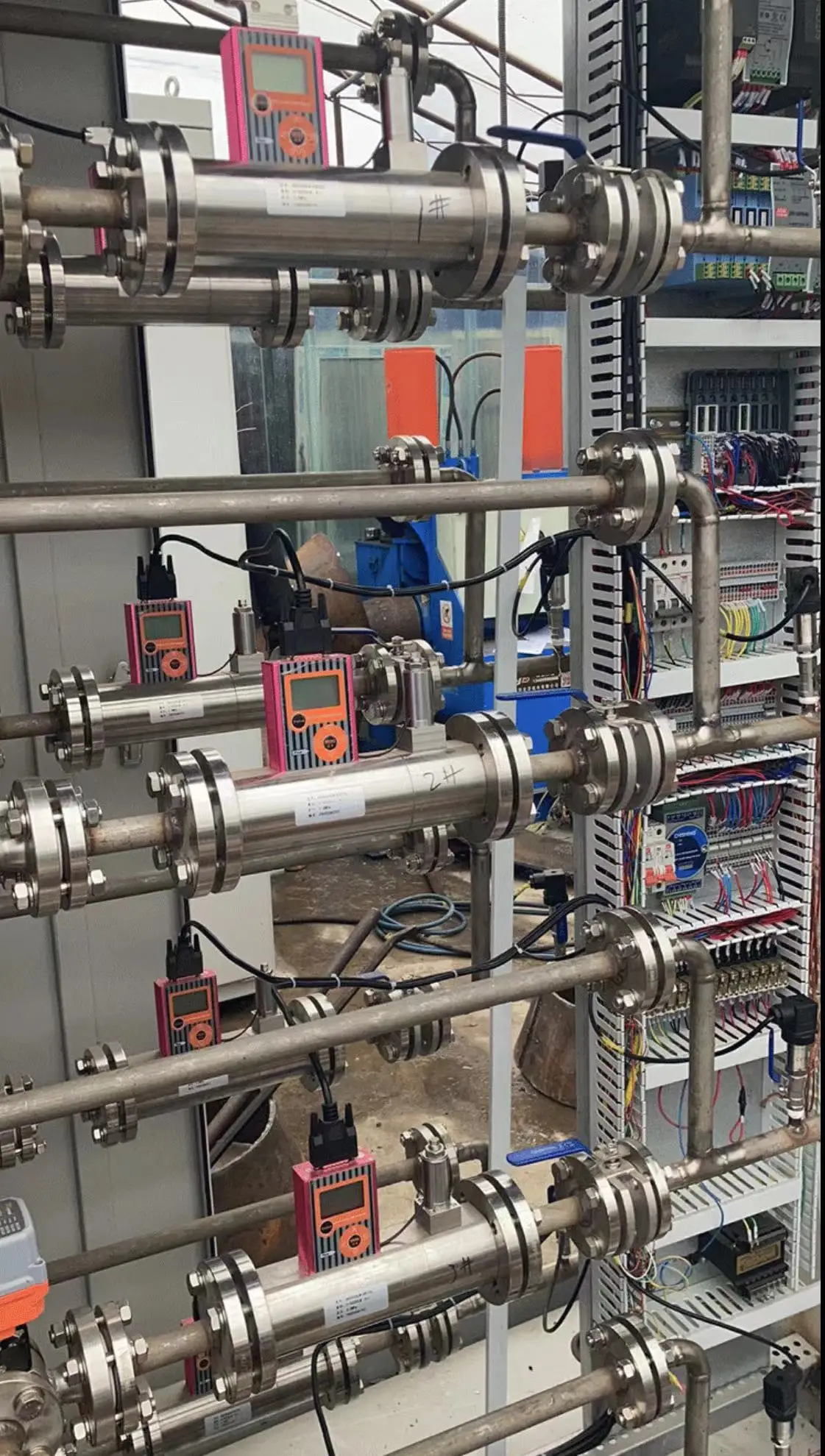

Application
Company Profile
SHENZHEN WOFLY TECHNOLOGY CO,.Ltd. is one of the pioneer suppliers for gas pressure regulators, gas full/semi-automatic switching devices, Flow meter, valve instruments, pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service.
WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019. 150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers.
We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.
FAQ
1.What’s the MOQ?
3. If any question when I got the product,how to solve it?
A: , All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how
many we can accept.
many we can accept.
2.Do you test all goods before delivery?
A: We have the stric QC process and offer you the videos of all step.
3. If any question when I got the product,how to solve it?
A: The product have warranty and we will offer you the online or video technical support.
4. Do you accept OEM order? （Can I make in my brand or any sticker? )
A: Yes, MOQ is 100 piece.
5. How long will the shipment take?
A: .If it's express, it will take 3~7days. If it by sea,it will take about 20~20days
6.What kinds of payment do you accept?
A: T/T,Western Union, Paypal, credit card and trade assurance on Alibaba.
