Product Description

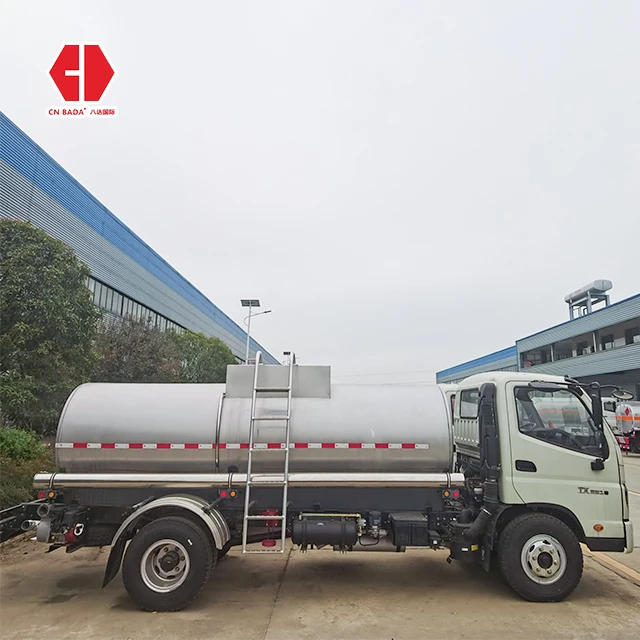

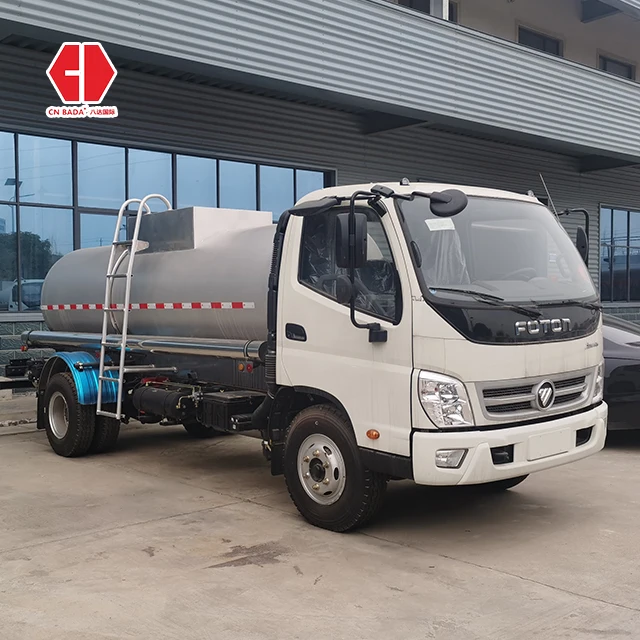

Foton brand new used tanker truck price 4x2 food grade stainless steel 1000 litres water tank truck for sale
Who we are
1：We are a quality China truck supplier certified by Ali (sgs)
2：Our company is located in China National Heavy Duty Truck near Jinan and has the unique advantage of acquiring vehicles
3：our company has both new and used trucks, also trucks of Foton, Shaanxi Auto, FAW Jiefang and other brands.
Advantages
Advantages
1：we guarantee the longest service life at the same price
2：we have professional dump truck design and assembly team, we can design and produce all kinds of cargo compartment structure according to your requirements
3：We also have the advantage of unique import and export service with higher efficiency in customs clearance.
Here's what you need to do
Here's what you need to do
Just contact our sales representative and tell her your transportation needs, and we will customize your tractor truck with different loading weights and volumes as well as colors.
A good truck will help you work smoothly!
A good truck will help you work smoothly!
Vehicle model | AUMARK-E33 | ||
Cabin | Single row/W1880/left rudder | ||
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5965×1960×2225 | |
Wheel base(mm) | 3360 | ||
Weight data | Curb weight(kg) | 2300 | |
Gross vehicle weight（kg） | 7500 | ||
Persons in cab | 3 | ||
Whole vehicle main performance | Max. speed（km/h） | 100 | |
ENGINE | Model | BJ493ZLQV1 | |
Emissions standards | EuroⅢ | ||
Displacement（L） | 2.771 | ||
Rated Power（kw/rpm） | 80 | ||
Max torque （N.m/rpm） | 280 | ||
Gearbox | Model | 5S368 | |
Front axle | Type/Mainreducetion ratio | 2.4T | |
Rear axle | Type/Mainreducetion ratio | 4.5T/5.714 | |
Suspension | Front suspension/Leaf spring number | 3 | |
Rear suspension/Leaf spring number | 8+6 | ||
Brake system | Service brake | Drum pneumatic braking | |
Parking brake | Brake gas brake | ||
Auxiliary brake | Engine exhaust brake | ||
Wheels and tyre size | 6+1/( 7.00R16) | ||
tank | volume | 4m³ | |
Tank shape | Sectional shape: oval | ||
Tank materialand thickness | Part of the tank material、thickness：3042B food grade stainless steel, 4mm Head material and thickness: 304 stainless steel, 4mm | ||
Wave breaker | Quantity: 1 (not divided into warehouses) Material thickness: 3042B food grade stainless steel, thickness 4mm | ||
Manhole cover | Material: 304 stainless steel Quantity: 1 Diameter: 500mm | ||
Discharge port | 1 pressure drain on the passenger side of the tank 1 self-flowing tank tail Material: 304 stainless steel Specification: DN65 | ||
Climb theladder | Welded independent climbing ladder at the tail of the tank | ||
Top guard | Protective handrails are installed on both sides of the tank top Anti-skid plate installed on the top of the tank | ||
Water level indicator | Quantity: 1 Material: organic glass | ||
Water pipe | Quantity: 2 Material: transparent steel wire hose with 304 stainless steel male and female end joints | ||
Tube box | Number: 2 Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, the cross-section is square, and the height is 200mm. The length of the tube box is ≥200mm according to the size of the tank body, which is coordinated and beautiful. Water diversion pipe: each pipe box has a built-in water diversion pipe, with male and female end joints, the joint model is DN65 | ||
Subframe | Q345 material | ||
Water pump | Pump model | Hangzhou Weilong self-priming sprinkler pump: 65QZ-40/45N-FDX | |
Limited Data | 40m³/h | ||
Maximum lift | 45m | ||
Glue requirements | The tank body, mudguard, sub-frame break welds and side lights need to be treated with sealant | ||
Lamps and signs | Side lights: 4 side marker lights are installed on the bottom edge of one side of the tank, and the wiring harness of the lights is sealed and fixed, and shall not be exposed; Reflective strip: Pasted on the side and rear of the tank, it is composed of 300mm×50mm red and white logos. The reflective strips should be able to fit the width and length of the box, and comply with the local national standard-3M reflective logo. | ||
