30 кубических метров бензиновый дизельный топливный бак для грузовика масляный размер транспортного средства FAW 8x4 доставка топлива
- Категории: Tanker Trucks >>>
- Поставщик: Hubei,Chenyang,Special,Vehicles,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Item | Unit | Description | |
Model | FAW 30CBM oil tank Truck | ||
Dimension | mm | 11600X2540X3440 | |
tank body dimension | mm | 8800×2300×1600 | |
materail | aluminium alloy | ||
Curb Weight | kg | 10805 | |
Loading Weight | kg | 21000,21065 | |
G.V.W | kg | 32000 | |
Wheel Base | mm | 1995+4350+1350 | |
F/R track base | mm | 1400/2505 | |
F/R Axle-load | Kg | 6500/6500/19000 | |
suspension | Steel Spring+Air suspension | ||
Approach/Departure angle | . | 14/10 | |
Traction system | Type | 8*4 | |
Tire Specification/Number | Type | 295/80R22.5 18PR 12 Units+1 Spare Unit | |
Max speed | Km/h | 80 | |
Engine | Model | CA6DK1-28E61 | |
Emission/Kw | 7146cc, 209Kw / 2300 r | ||
Horse Power | 209 Hp | ||
Power | 1200 N.m - 1200~1500 r/min | ||
Type | Diesel, 6cylinder, turbocharge, water cooling | ||
Brand | China First Automobile Group Co., Ltd | ||
Standard | Euro VI | ||
Gearbox | Model | Manual | |
Brand | Wanliyang | ||
Fuel Tank | Liter | 400 | |
Electronic | V | 24 | |
Cab | Person | 3 | |
Type | Reversible, Manual | ||
Steer | Powering , LHD or RHD | ||
Air Conditioner | Hot Wind / Cold Wind | ||
Installing | Radio , Mp3 | ||
Up Body | Optional equipment: All tankers can be designed into chemical trucks, different kinds of heating and insulation series tank; all tankers can be equipped with computer and flow-meter. | ||

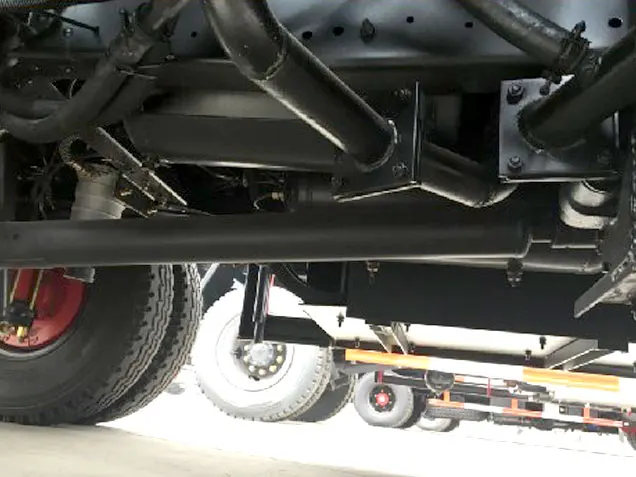

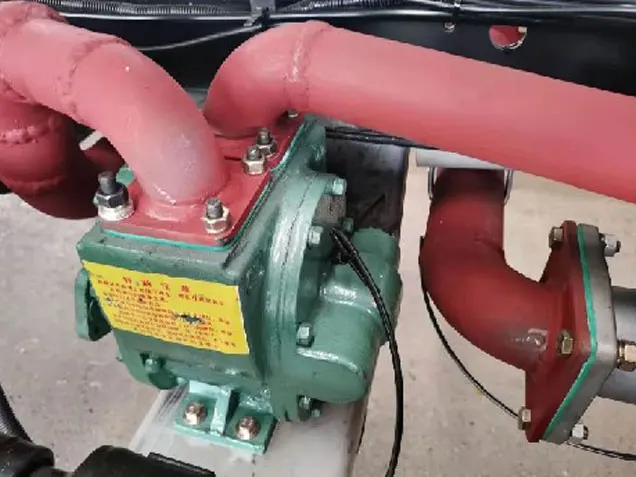

Bottom pipe and oil pump.
The oil pump is a gear pump, which is mainly used to transport the oil in the tank (both in and out). Its power comes from the engine power and is input through the power take-off and transmission shaft.

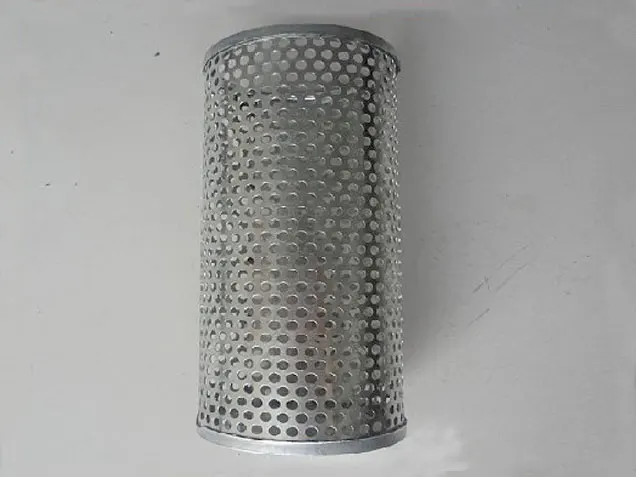

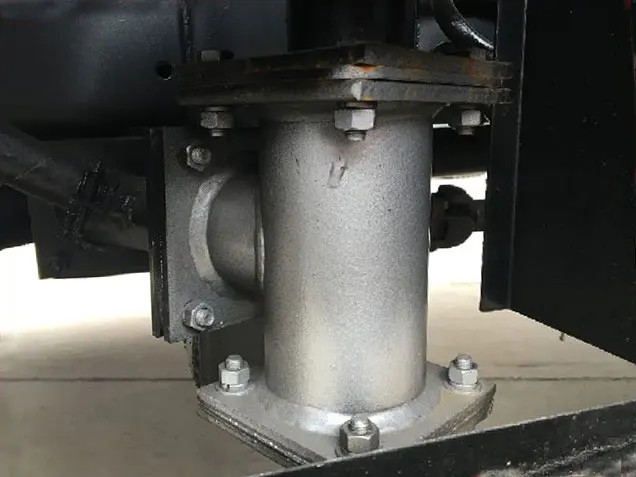

Strainer tee.
The filter screen tee is used to filter the solid impurities passing through the pump, so as to avoid damage to the oil pump and ensure the oil quality. The main body of the filter screen tee is made of aluminum alloy. Clean the filter element regularly during use.

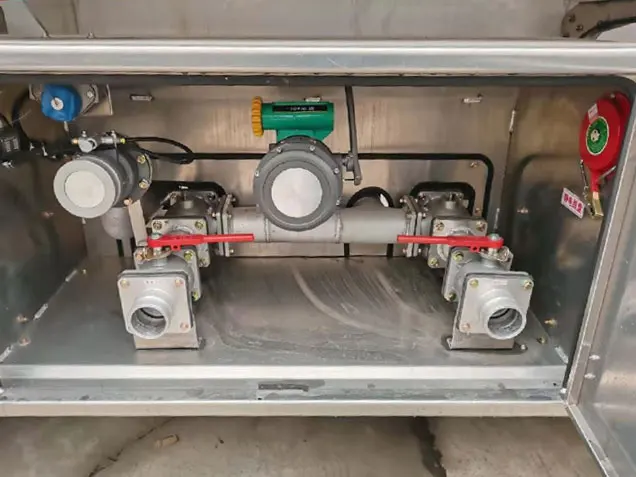

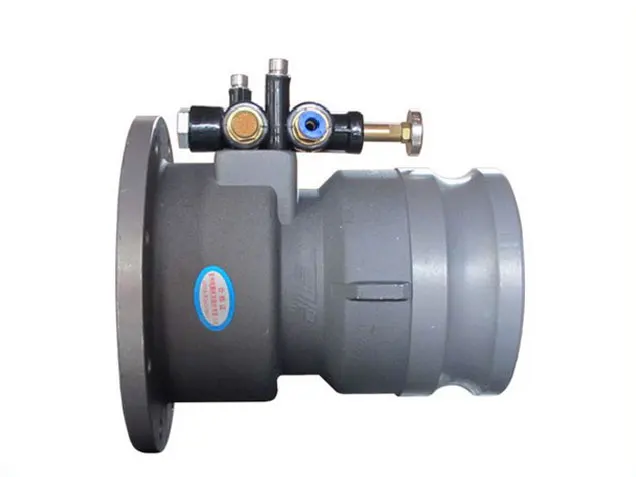

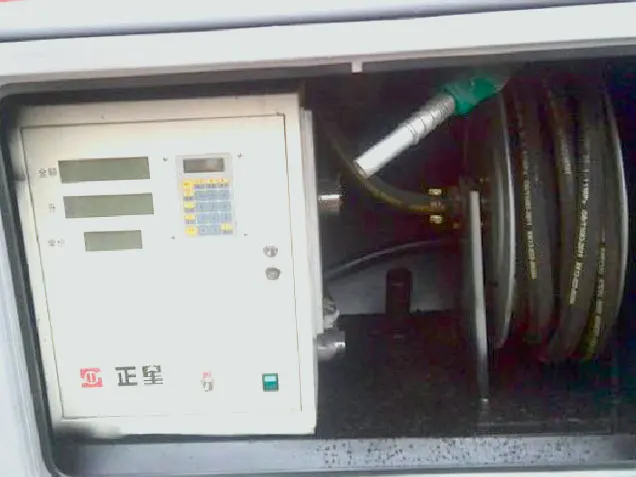

Fuel dispenser and unloading valve.
The vehicle mounted fuel dispenser device is a device used to facilitate the flow of fuel to motor vehicles or equipment.
The lower oil port is also called the oil unloading valve, which is installed under the side of the oil tank truck for quick oil unloading; At the same time, oil can be delivered to the tank through the lower oil port.

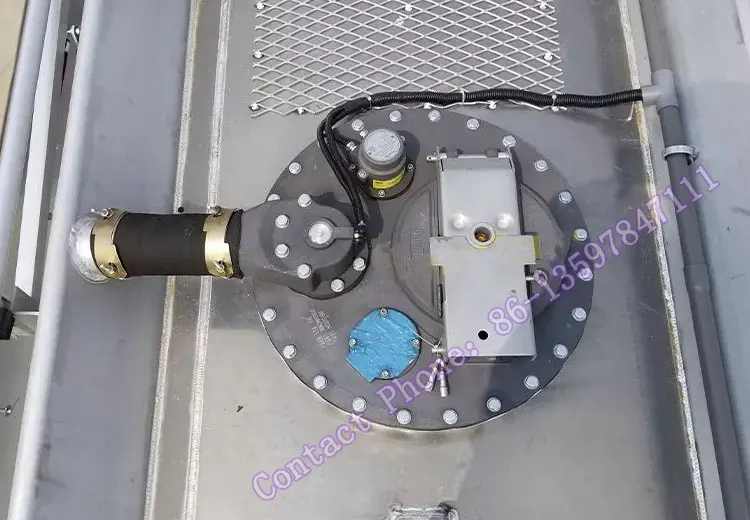

Upper tank mouth (European standard tank mouth).
The upper tank mouth is made of Φ 500mm tank mouth neck and large (small) tank cover. The large tank cover is fastened on the tank mouth neck by sixteen bolts for maintenance and access to the tank body. The small cover plate is connected with the large cover plate by a support pin and an ear plate, which can be opened, and the oil pipe can refuel through it. A breather valve is installed on the small tank cover to keep the pressure inside and outside the tank basically consistent.

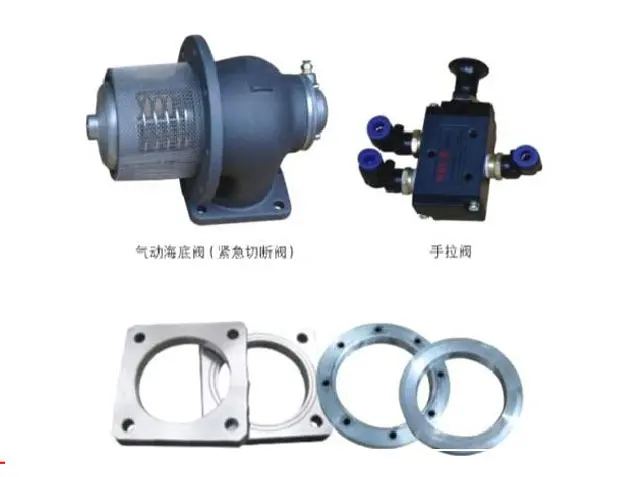

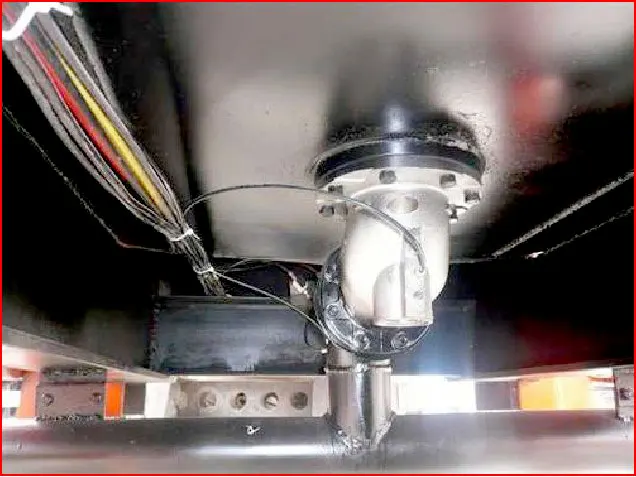

Emergency shut-off valve device.
Emergency shut-off valve is also called safety shut-off valve and submarine valve. In case of emergency, the valve will quickly close or open to avoid accidents.

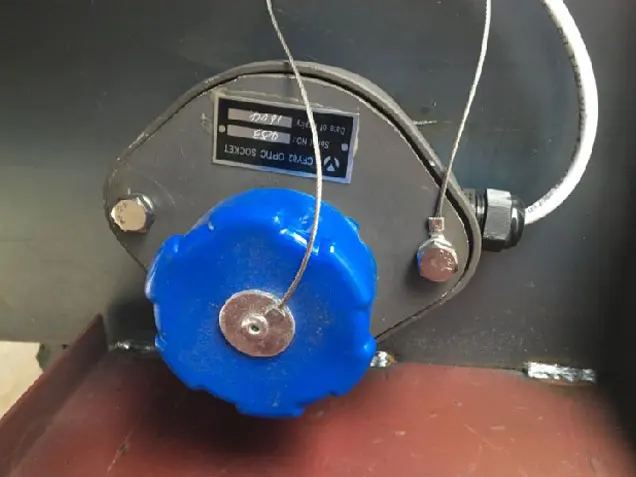

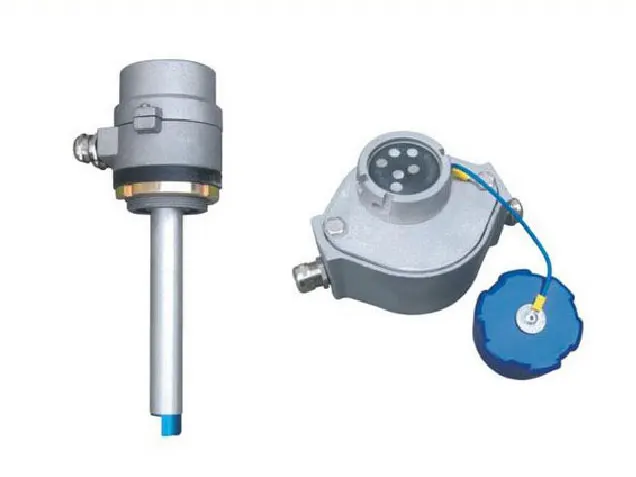

Anti overflow probe rod and base
It is an anti overflow device for oil storage and liquid storage used in petroleum industry or chemical liquid, which is installed on oil or chemical liquid storage tanks to prevent oil or chemical liquid from overflowing, protect the environment and prevent accidents

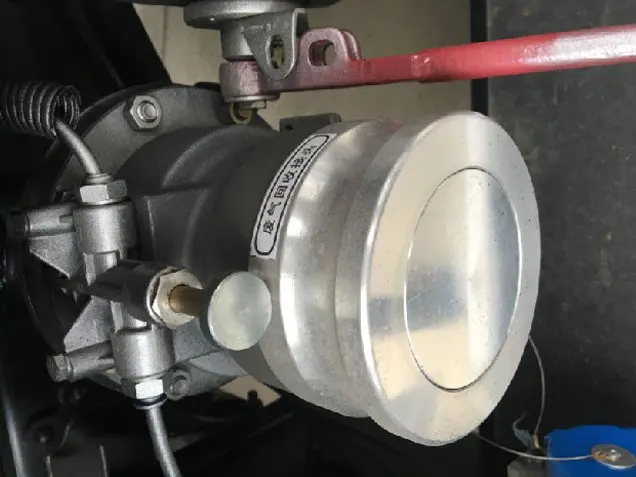

Oil and gas recovery system.
Oil and gas recovery refers to the process of collecting volatile gasoline oil and gas during gasoline loading and unloading and refueling vehicles. Through absorption, adsorption or condensation, the oil and gas can be changed from gaseous to liquid gasoline to reduce pollution and recycle.
Packing & Delivery
bulk, Roll on roll off, container
