Патрон токарного станка с пневматическим патроном и
- Категории: Machine Tools Accessories >>>
- Поставщик: Shanghai,Thinkfon,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The world's competence leader for gripping systems and clamping technology and leading technology supplier of robots and production machines.
The world's largest product portfolio of gripping systems and clamping technology with more than 11,000 standard components
All the leading large and medium-sized companies in the automotive, machine building, robotics, assembly and handling, aviation, metal cutting industries and many more.
Description
SCHUNK offers the best solutions for the best results - for over 50 years. Using the best clamping technology available for your tools and workpieces is the key for ensuring the safety, efficiency, and high- precision of your processes in chip removal machining.
We develop, manufacture, and optimize powerful, economical products and solutions for the machine and machine room that are
tailored to the individual needs of each customer and application. The standard of our work raises the bar for such products and
sets new benchmarks in the ongoing development of clamping technology - and has been doing so for more than 50 years.
tailored to the individual needs of each customer and application. The standard of our work raises the bar for such products and
sets new benchmarks in the ongoing development of clamping technology - and has been doing so for more than 50 years.
Advantages
By flexibly combining our standard components, we can solve pneumatic, hydraulic or mechanical clamping tasks efficiently and at low cost. Our VERO-S quick-change pallet system for workpieces, pallets, clamping stations, and tombstones can reduce your set-up times by up to 90 percent.On top of that, our comprehensive Total Tooling range of easy-to-use, precision toolholders ensures longer tool service life and optimal machining results and workpiece surfaces. Special tasks require special solutions, especially for workpieces that present new challenges in terms of precision or output.
Together with the world's most extensive range of standard chuck jaws - over 1,200 different types - we act as an all-in-one supplier for effective, economical solutions of the highest quality.
Special tasks require special solutions. We have been developing and producing customized clamping solutions for more than 35 years. An enlarged jaw stroke, modified base jaw interfaces, lathe chucks with reduced clamping force - these are just a few examples of our custom modifications. We can modify products from our standard range or build 100% customized solutions - whatever you require

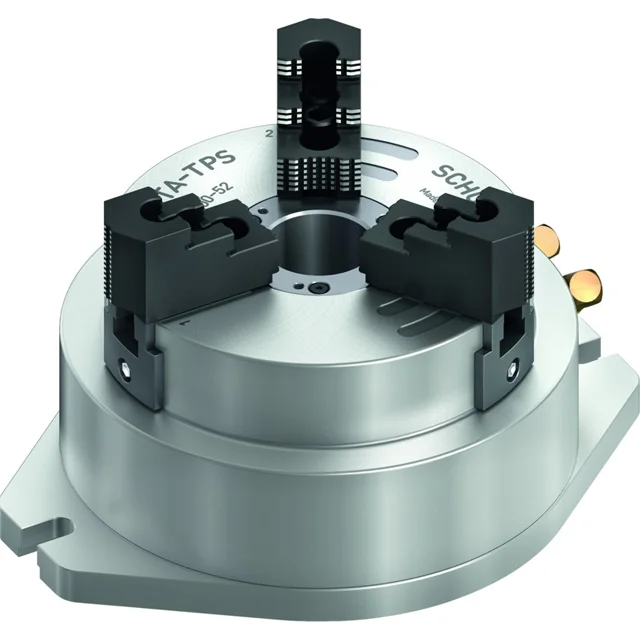

Pneumatically actuated 3-jaw power chuck with a large through hole
Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.
Advantages
Precision wedge hook power chuck for highest quality requirements
Allows excellent machining processes
High efficiency of the wedge hook system
Process-reliable clamping due to high clamping forces
Optimized lubrication system
Consistently high clamping forces are ensured
Pneumatic cylinder integrated in the chuck
No additional backside cylinder is necessary
Allows excellent machining processes
High efficiency of the wedge hook system
Process-reliable clamping due to high clamping forces
Optimized lubrication system
Consistently high clamping forces are ensured
Pneumatic cylinder integrated in the chuck
No additional backside cylinder is necessary
Field of application
3-axis standard machining centers 4-axis vertical machining centers 4-axis horizontal machining centers 5-axis machining centers
Clamping force
Additional shank diameters can be clamped using intermediate sleeves
Height tolerance of the vise
±0.04 mm. Clamping force blocks with the same height are available on request.
Repeat accuracy
Results from the end position spread after 100 consecutive strokes
Scope of delivery
Clamping module, mounting screws, cover caps, connecting cable, operating manual; without clamping pins
Spindle type | - |
Spindle size | Z155 |
Serration | 1/16" x 90° |
Opening/closing time [s] | 2 |
Max. RPM 1 [1/min] | 3500 |
Max. RPM 2 [1/min] | 4200 |
Max. clamping force (at 6 bar) [kN] | 39 |
Min. operating pressure [bar] | 3 |
Max. operating pressure [bar] | 8 |
Stroke/jaw [mm] | 4.2 |
Air consumption/jaw stroke at 6 bar [l] | 3.2 |
Moment of inertia [kgm²] | 0.13 |
Weight [kg] | 23 |
Fully automatic sorting of curtain clips | ||
Workpiece Plastic curtain hooks | Task Sorting, testing, and depositing curtain clips on a conveying belt. | |
Solution Two SCHUNK MPG-plus grippers for small components grip two curtain clips each and deposit them on the conveying belt. If the optical test is negative, the information is sent to the gripper, and the faulty clip is deposited in a reject container. | Customer benefits The cycle times are significantly shortened and the parts are precisely handled. | |
