80 Вт 100 130 150 180 1610 двойная лазерная головка резка древесины машина
2 590,00-3 800,00 $
Автоматическая Система помощи при воздуха лазерный гравировальный станок для дерева кожи металла акрила Sculpfun S30 PRO Max 20
- Категории: >>>
- Поставщик: Guangzhou,Leo,Cleaning,Product,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Recommend Products
Products Description

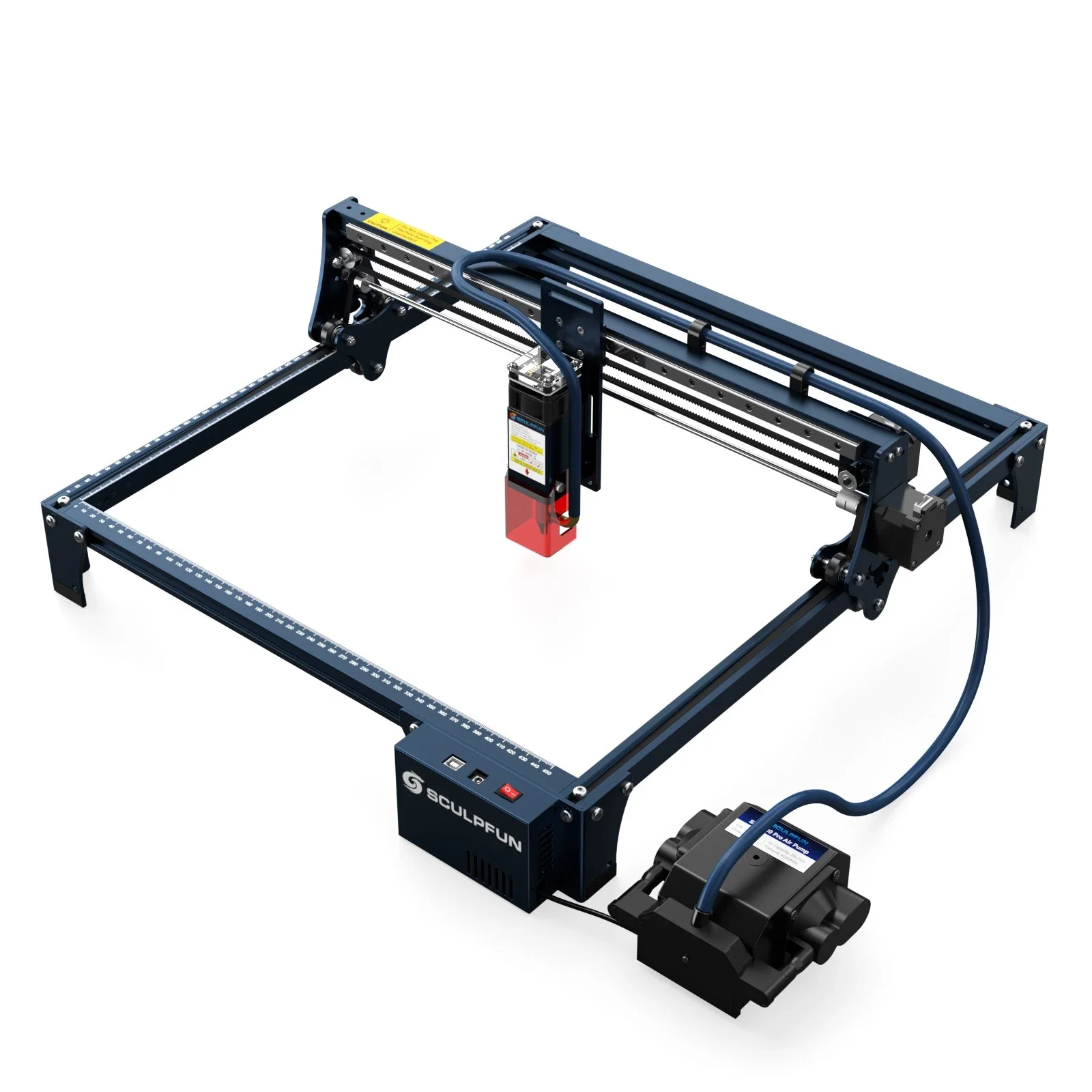

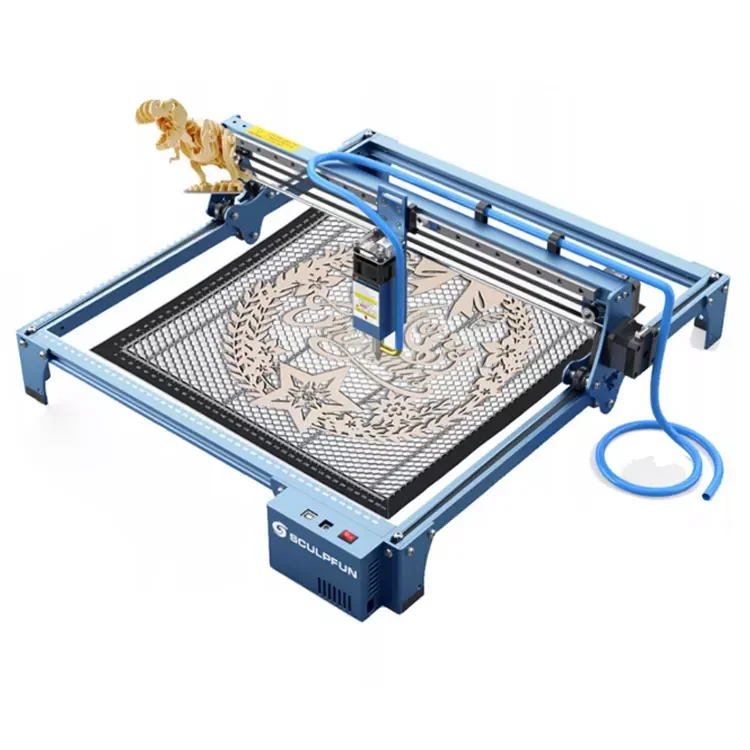

Product Model | SCULPFUN S30 | SCULPFUN S30 Pro | SCULPFUN S30 Pro Max | |||
Laser Information | ||||||
Diode laser output power | 5W (note that this is light energy not electrical energy) | 10W (note that this is light energy not electrical energy) | 20W (note that this is light energy not electrical energy) | |||
Laser focus | 0.06x0.06mm | 0.06x0.08mm | 0.08x0.1mm | |||
Laser wavelength | 455±5nm | 455±5nm | 455±5nm | |||
Focusing method | fixed focus column + sliding device | fixed focus column + sliding device | fixed focus column + sliding device | |||
Laser protection cover | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. | |||
Machine Information | ||||||
Engraving accuracy | 0.005mm | 0.005mm | 0.005mm | |||
Engraving area size | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm | |||
Machine power | about 60W | about 84W | about 120W | |||
Air pump | ||||||

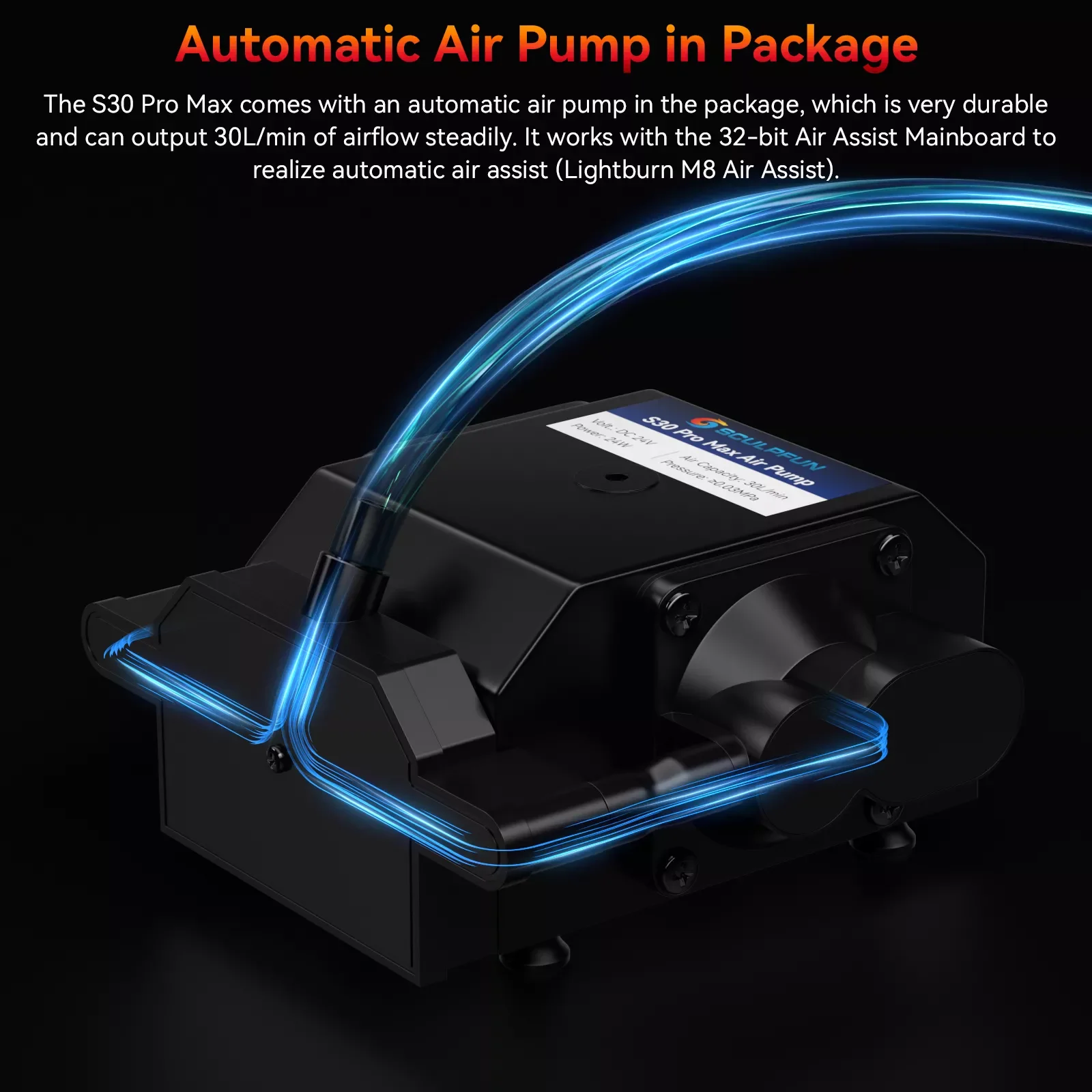

Air pump Type | mainboard-controlled air pump, voltage 12V, flow 30L/min | mainboard-controlled air pump, voltage 12V, flow 30L/min | mainboard-controlled air pump, voltage 12V, flow 30L/min | |||
Air hose inner diameter | 7.5mm | 7.5mm | 7.5mm | |||
Motherboard | ||||||

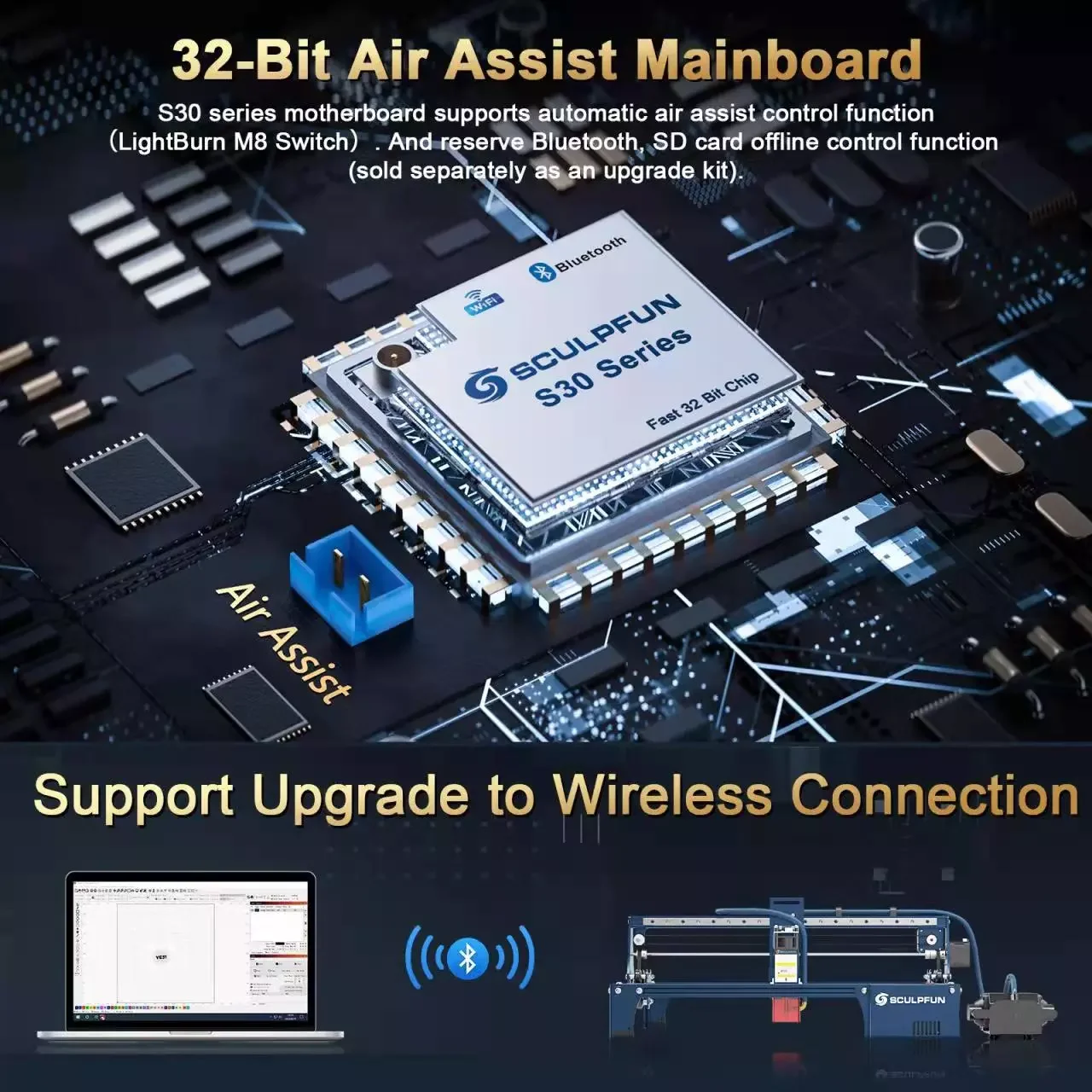

Motherboard | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) | |||
Engraving/cutting materials | ||||||
Engraving/cutting materials | Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards | Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards | Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards | |||
Operating software | ||||||
Operating software | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection | |||
Power supply | ||||||
Power Input | 100-240V AC, 50/60HZ Output: 12V 5A | 100-240V AC, 50/60HZ Output: 12V 7A | 100-240V AC, 50/60HZ Output: 24V 5A | |||
Packing weight | 6.7kg | 6.85kg | 7.53kg | |||
Packing size | 62.3*24*22.5cm | 62.3*24*22.5cm | 62.3*24*22.5cm | |||
packing list | ||||||
packing list | 1×S30 laser 1× Laser Repair Kit 1×12V automatic air pump 3 x A4 size 3mm wooden board 2×Limit Switch 1×12V 5A power adapter 1 x power cord 1×USB cable 1× Air tube 1× Installation tool Kit 1× Laser Goggles 1 x A4 metal backing plate Step 1-6 Install the package 1× Manual 1 x X-axis assembly 2 x X profiles 2 × Y profiles 1×Control Box Assembly 3 x support feet | 1×S30 Pro laser 1× Laser Repair Kit 1×12V automatic air pump 3 x A4 size 3mm wooden board 2×Limit Switch 1×12V 5A power adapter 1x power cord 1×USB cable 1× Air tube 1× Installation Tool Kit 1× Laser Goggles 1 x A4 metal backing plate Step 1-6 Install the package 1× Manual 1 x X-axis assembly 2 x X profiles 2 × Y profiles 1×Control Box Assembly 3 x support feet | 1×S30 Po Max laser 1× Laser Repair Kit 1×12V automatic air pump 3 x A4 size 3mm wooden board 2×Limit Switch 1×24V 5A power adapter 1 x power cord 1×USB cable 1× Air tube 1× Installation Tool Kit 1× Laser Goggles 1 x A4 metal backing plate Step 1-6 Install the package 1× Manual 1 x X-axis assembly 2 x X profiles 2 × Y profiles 1×Control Box Assembly 3 x support feet | |||
Details Images
Specification
Features:
▶ Upgraded Laser Engraving with Air Assist System: The S30 series is equipped with an airassist 32-bit motherboard and a
control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8
button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

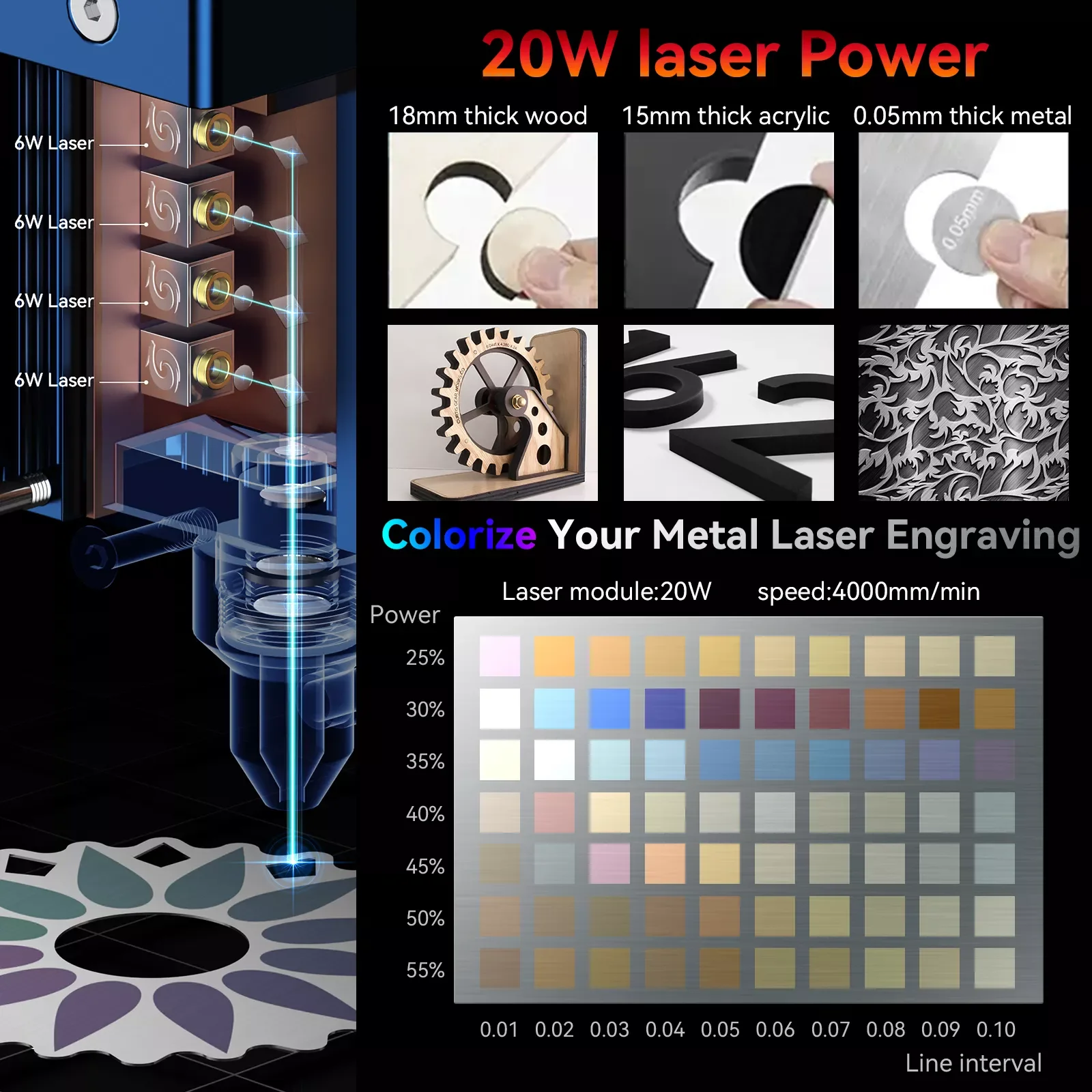

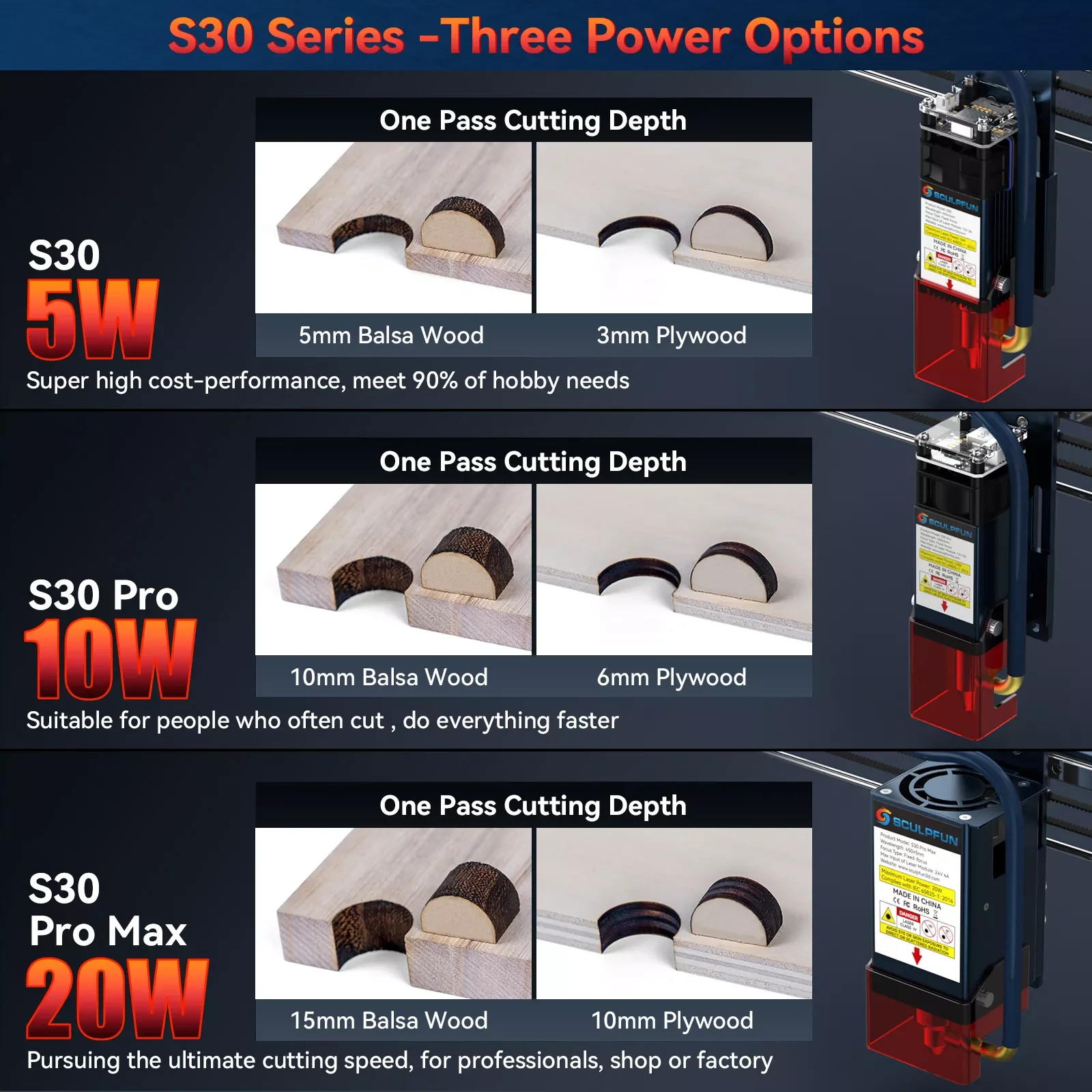

▶ Excellent Engraving Performance: S30 PRO MAX 20W laser pursues the ultimate cutting speed, suitable for professionals, shops or
factoriy; It can cut 15mm balsa wood and 10cm plywood at one time. And making it reach industrial-grade engraving accuracy with
extremely solid and high-precision linear slide rail X-axis, no e wavy pattern in carving small items. 410*400mm large-area
engraving range can meet your various engraving needs.
▶ Built-in high pressure air assist nozzle: S30 series is equipped with advanced high-pressure air-assisted metal nozzle, which
can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more
than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very
clean.
▶ Replaceable protective lens: Adopts innovative replaceable lens, greatly improves the service life of the laser, which is more
than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to
restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from SCULPFUN.

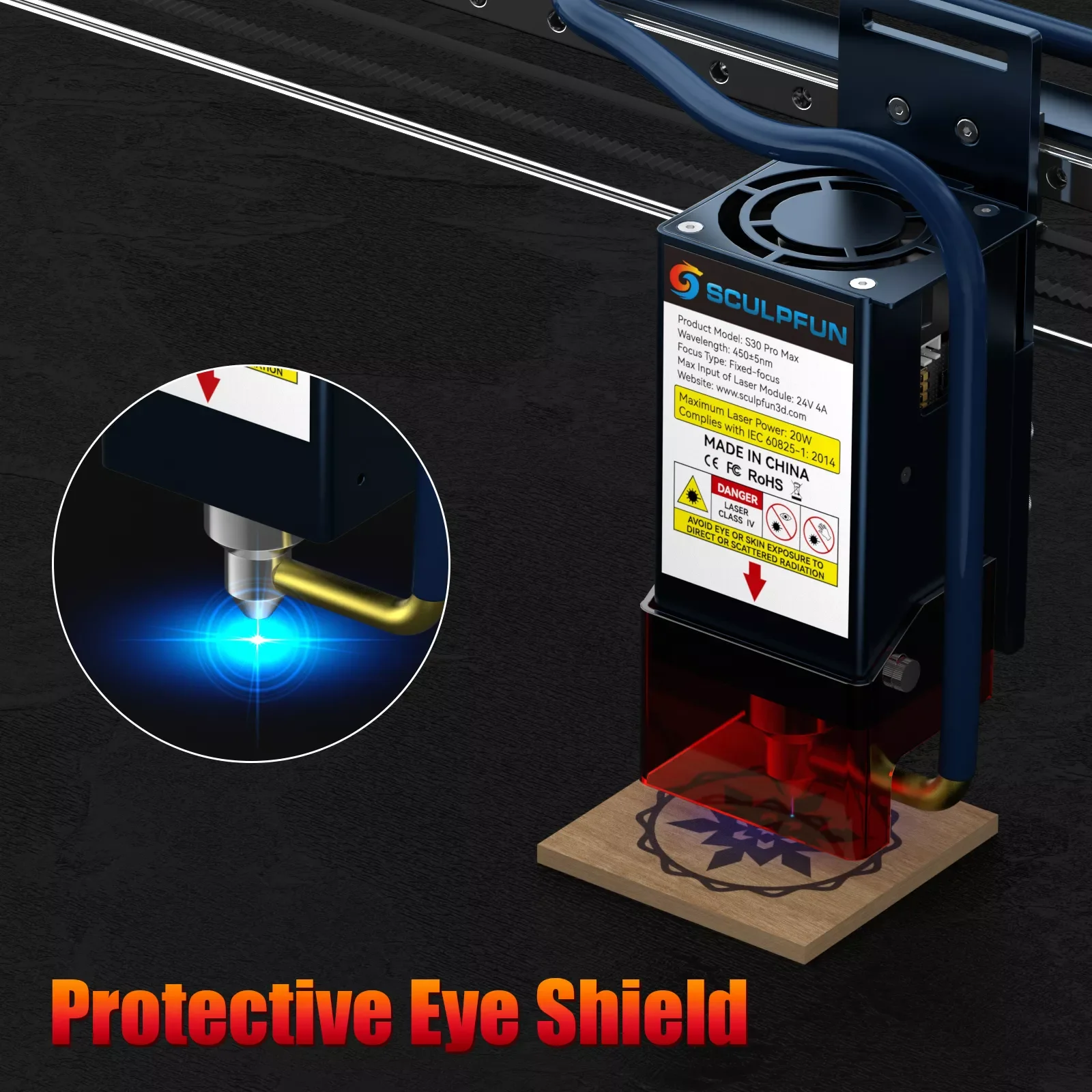

▶ Eye Protection and Safety Design: Equipped with a detachable eye shield, which will not dazzle even without glasses. If you
don't need it, you can easily disassemble it. The presented A4 size steel pad can well protect the table from laser damage.
Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the
power in an emergency.
▶ Sturdy and Durable Frame: The S30 series is made of high-strength aluminum alloy, its frame can bear up to 50KG weight without
damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest
laser when the machine needs to be upgraded.

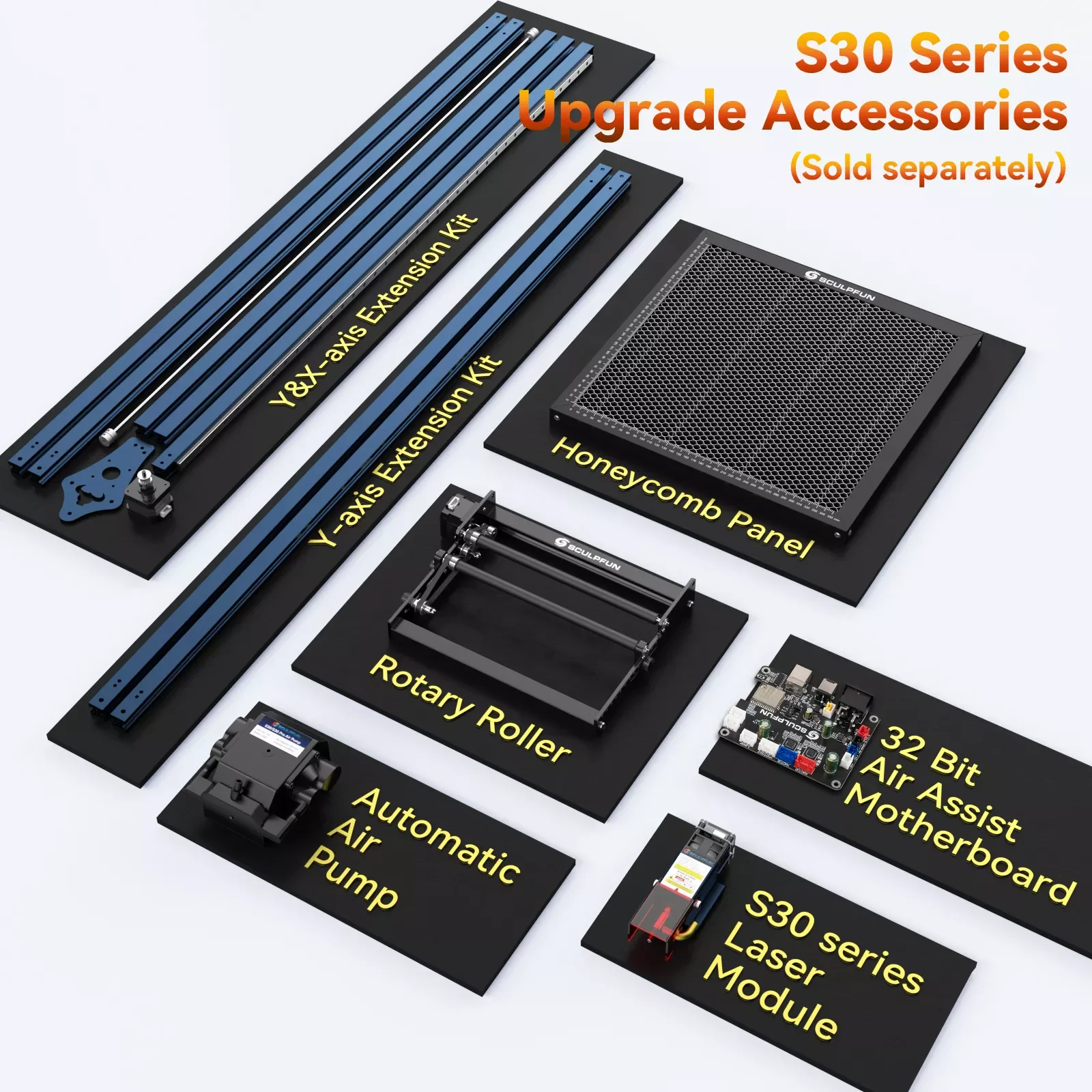

▶ Innovative XY Axis Expandable Design: you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm;
purchase an XY-axis expansion kit to upgrade Up to 935x905mm engraving area to better handle large engraving or cutting work. And
there are precise scale lines on the X-axis and Y-axis which is convenient for you to quickly measure the size of the engraved
object.
Specification:
Model: SCULPFUN S30 PRO MAX
Power Input: 100-240V AC, 50/60HZ Output: 24V 5A
Engraving accuracy: 0.005mm
Engraving area size: 410*400mm
Machine power: about 120W
Diode laser output power: 20W (note that this is light energy not electrical energy)
Laser focus: 0.08x0.1mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or
remove the goggles.
Air pump:
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic,
leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard,
non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support
Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection or BT wireless connection
Package Size: 62.3x24x22.5cm/24.5x9.4x8.8in
Package Weight: 7530g/16.6lb
Precautions:
●Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you're
not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear
goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
Packing List:
1 x S30 Po Max laser
1 x Laser Repair Kit
1 x 12V automatic air pump
3 x A4 size 3mm wooden board

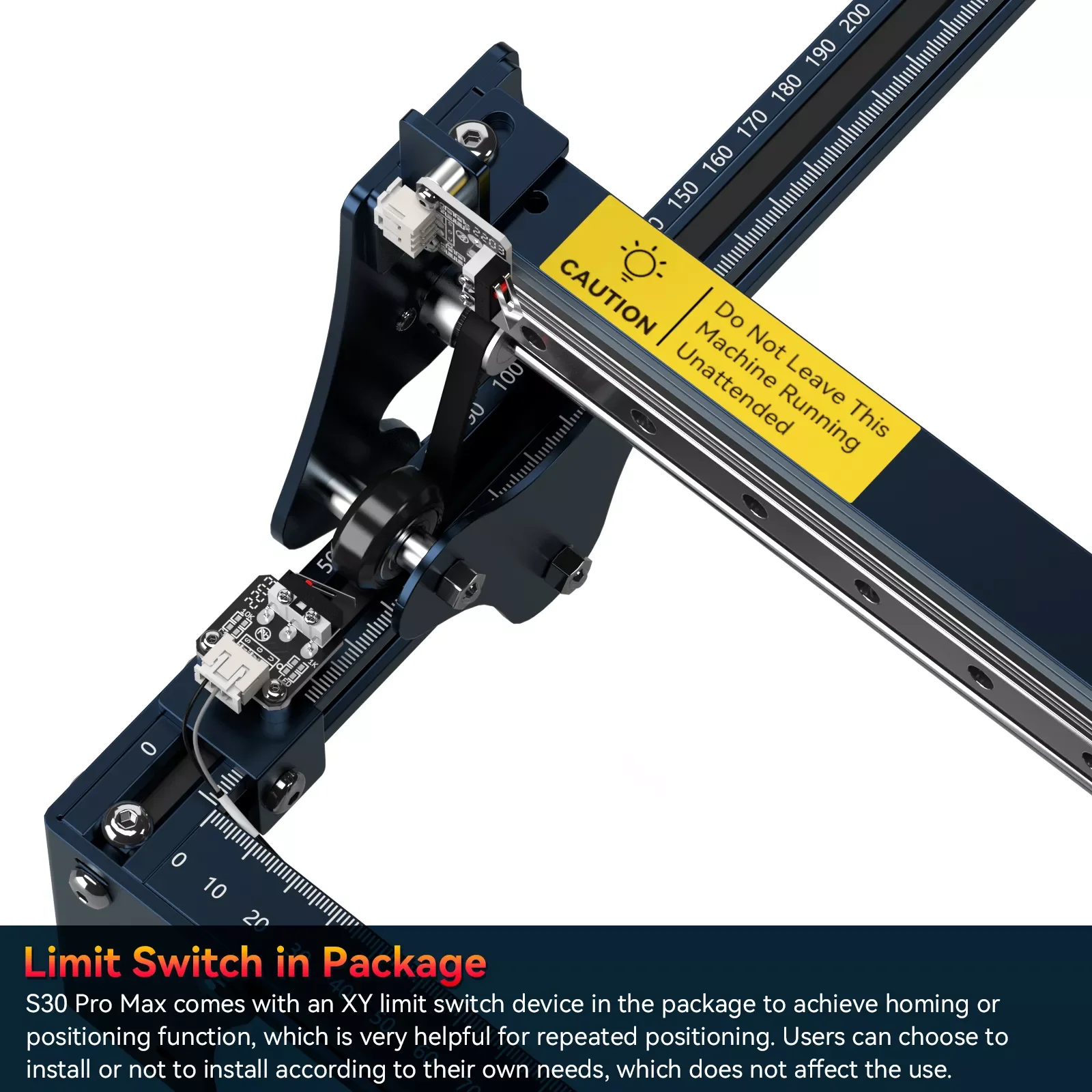

2 x Limit Switch
1 x 24V 5A power adapter
1 x power cord
1 x USB cable
1 x Air tube
1 x Installation tool Kit
1 x Laser Goggles
1 x A4 metal backing plate
Step 1-6 Install the package
1 x Manual
1 x X-axis assembly
2 x X profiles
2 x Y profiles
1 x Control Box Assembly
3 x support feet
▶ Upgraded Laser Engraving with Air Assist System: The S30 series is equipped with an airassist 32-bit motherboard and a
control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8
button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
▶ Excellent Engraving Performance: S30 PRO MAX 20W laser pursues the ultimate cutting speed, suitable for professionals, shops or
factoriy; It can cut 15mm balsa wood and 10cm plywood at one time. And making it reach industrial-grade engraving accuracy with
extremely solid and high-precision linear slide rail X-axis, no e wavy pattern in carving small items. 410*400mm large-area
engraving range can meet your various engraving needs.
▶ Built-in high pressure air assist nozzle: S30 series is equipped with advanced high-pressure air-assisted metal nozzle, which
can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more
than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very
clean.
▶ Replaceable protective lens: Adopts innovative replaceable lens, greatly improves the service life of the laser, which is more
than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to
restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from SCULPFUN.
▶ Eye Protection and Safety Design: Equipped with a detachable eye shield, which will not dazzle even without glasses. If you
don't need it, you can easily disassemble it. The presented A4 size steel pad can well protect the table from laser damage.
Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the
power in an emergency.
▶ Sturdy and Durable Frame: The S30 series is made of high-strength aluminum alloy, its frame can bear up to 50KG weight without
damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest
laser when the machine needs to be upgraded.
▶ Innovative XY Axis Expandable Design: you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm;
purchase an XY-axis expansion kit to upgrade Up to 935x905mm engraving area to better handle large engraving or cutting work. And
there are precise scale lines on the X-axis and Y-axis which is convenient for you to quickly measure the size of the engraved
object.
Specification:
Model: SCULPFUN S30 PRO MAX
Power Input: 100-240V AC, 50/60HZ Output: 24V 5A
Engraving accuracy: 0.005mm
Engraving area size: 410*400mm
Machine power: about 120W
Diode laser output power: 20W (note that this is light energy not electrical energy)
Laser focus: 0.08x0.1mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or
remove the goggles.
Air pump:
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic,
leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard,
non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support
Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection or BT wireless connection
Package Size: 62.3x24x22.5cm/24.5x9.4x8.8in
Package Weight: 7530g/16.6lb
Precautions:
●Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you're
not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear
goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
Packing List:
1 x S30 Po Max laser
1 x Laser Repair Kit
1 x 12V automatic air pump
3 x A4 size 3mm wooden board
2 x Limit Switch
1 x 24V 5A power adapter
1 x power cord
1 x USB cable
1 x Air tube
1 x Installation tool Kit
1 x Laser Goggles
1 x A4 metal backing plate
Step 1-6 Install the package
1 x Manual
1 x X-axis assembly
2 x X profiles
2 x Y profiles
1 x Control Box Assembly
3 x support feet

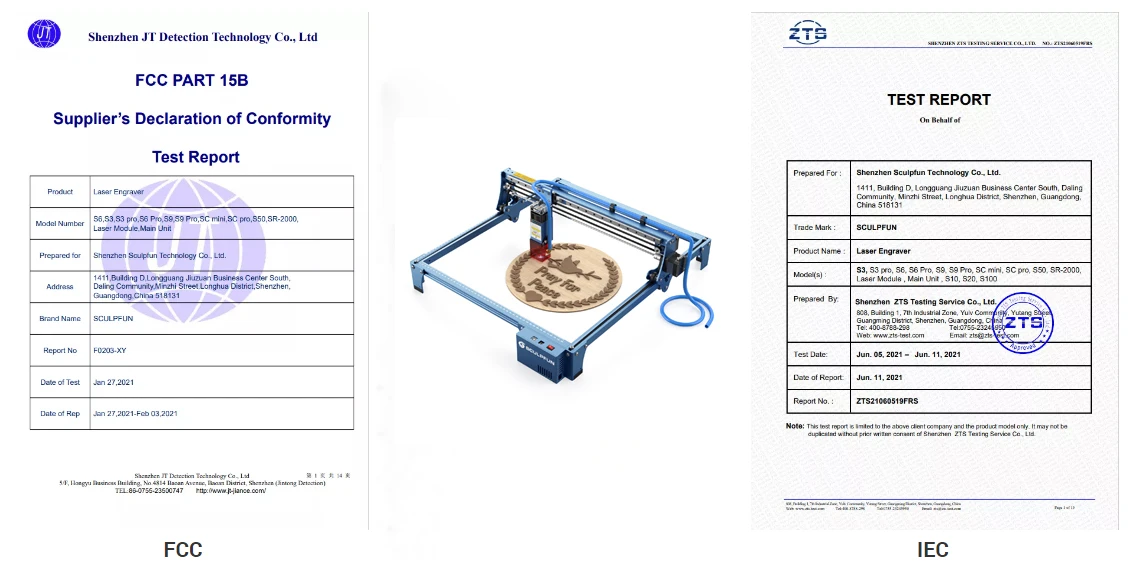

Certifications
SCULPFUN S9 high quality laser metal engraving machine
SCULPFUN S9 laser diode laser engraving machine
SCULPFUN S9 laser and cutting engraving machine
FAQ
Q: What payment methods do you accept?
A:T/T,L/C,Western Union,Money Gram,Paypal,Secure Payment,Trade Assurance.

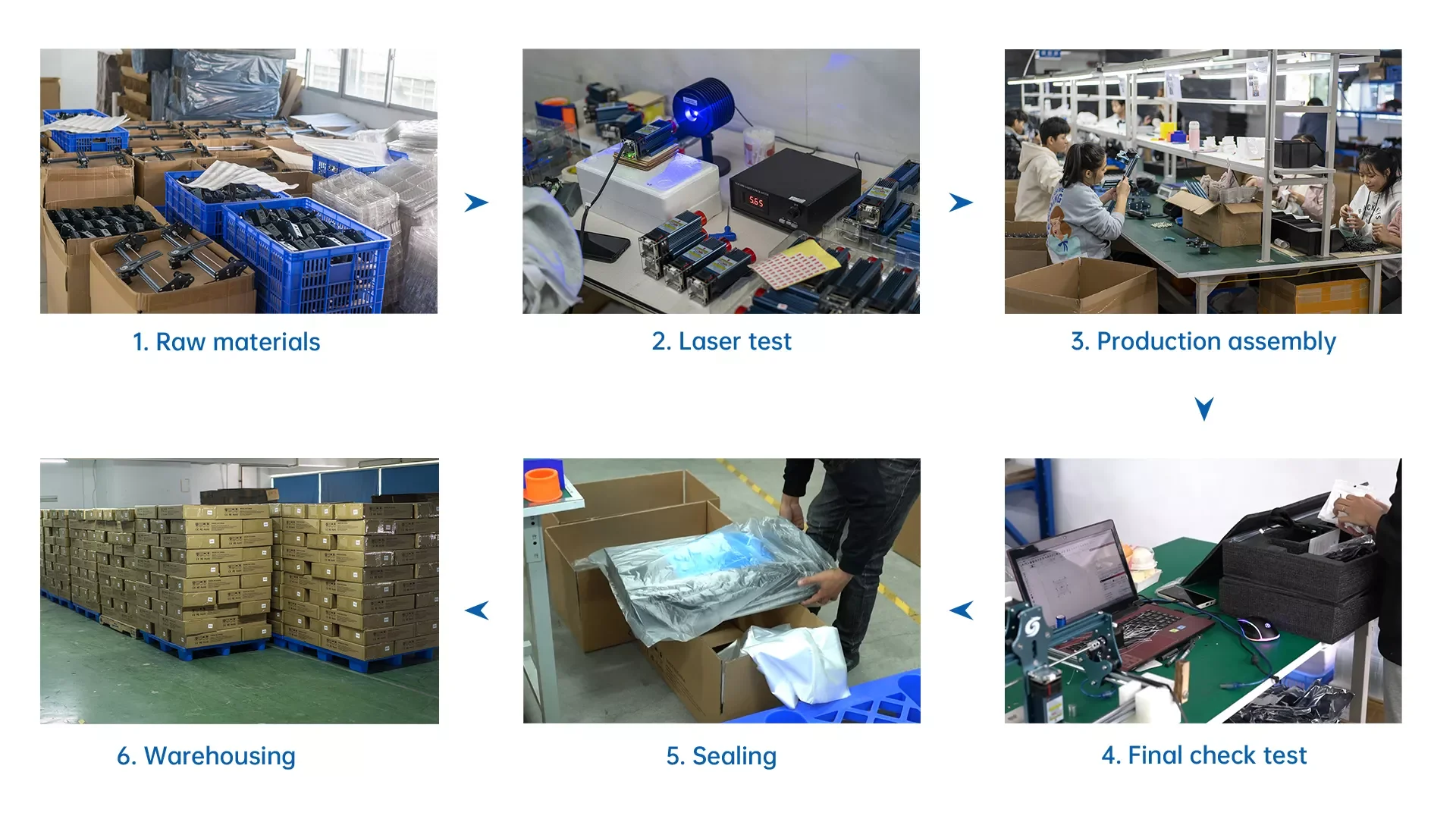

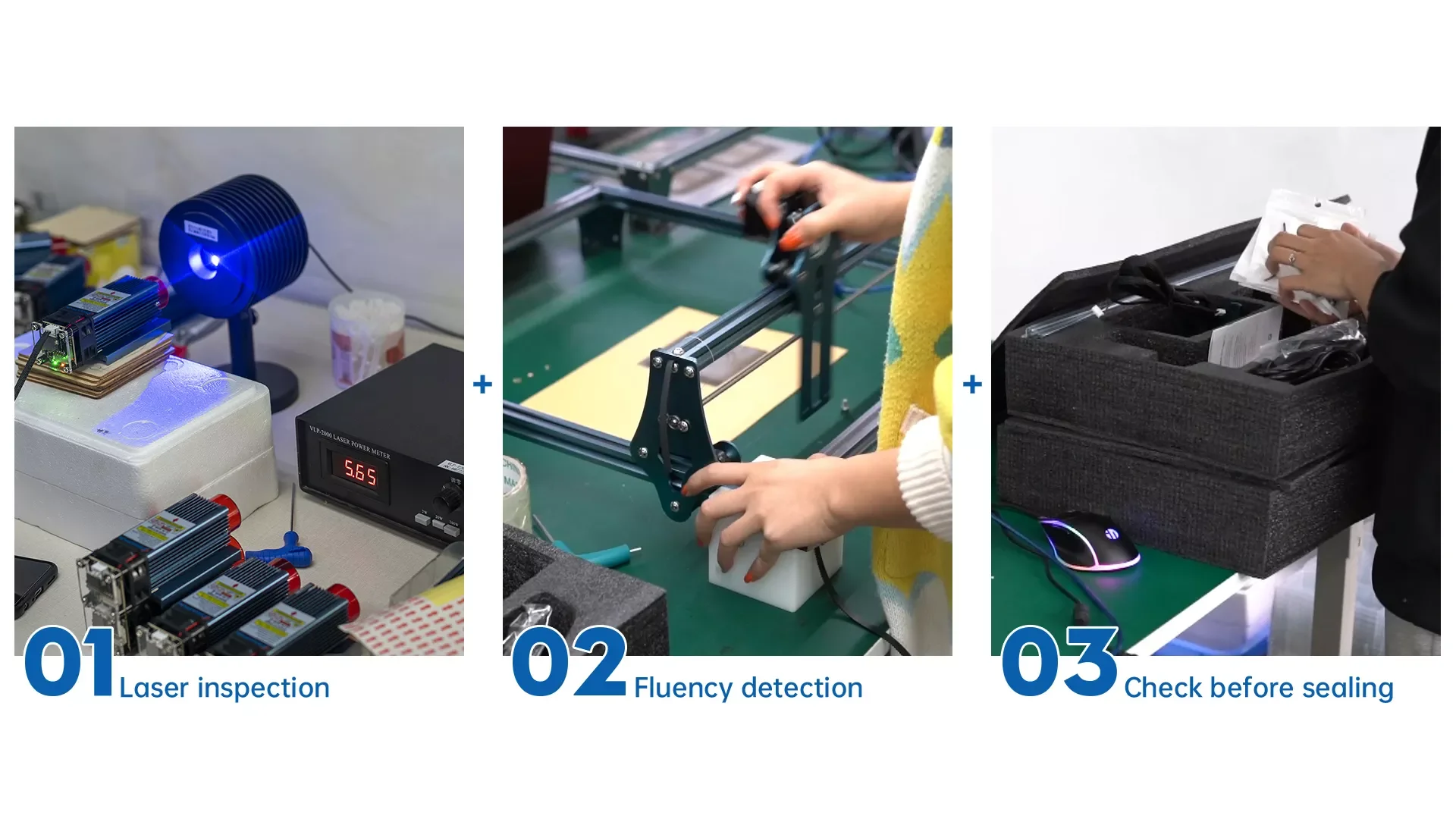

Q:How does your factory do regarding quality control?
