Горячеоцинкованная 2x2 сварная сетчатая панель забора 6 мм проволочная
- Категории: Wire Mesh >>>
- Поставщик: Heibei,Aofu,Wiremesh,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Welded Mesh Panels
Product Overview
Economical and durable, welded wire mesh is manufactured on state-of-the-art, automated, grid welding equipment. Line and cross wires lay flat at each intersection and are resistance welded for maximum cross-sectional strength. Ideal for industrial use as well as architectural applications.
Electrical Welded Wire Mesh, Galvanized Stainless Steel Welded Wire Mesh
The finished Welded Wire Mesh offer a flat and uniform surface, firm structure, and good integrity. The welded wire mesh is the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.
Materials Available: plain steel, Galfan®, pre-galvanized, stainless steel
Wire diameters: .035” to .375”
Square or rectangular mesh
Stock panels or rolls
Specialty products available on request
Economical and durable, welded wire mesh is manufactured on state-of-the-art, automated, grid welding equipment. Line and cross wires lay flat at each intersection and are resistance welded for maximum cross-sectional strength. Ideal for industrial use as well as architectural applications.
Electrical Welded Wire Mesh, Galvanized Stainless Steel Welded Wire Mesh
The finished Welded Wire Mesh offer a flat and uniform surface, firm structure, and good integrity. The welded wire mesh is the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.
Materials Available: plain steel, Galfan®, pre-galvanized, stainless steel
Wire diameters: .035” to .375”
Square or rectangular mesh
Stock panels or rolls
Specialty products available on request
Welded Mesh Panels
Galvanized or PVC coating surface treatment makes it good in corrosion and rust resistance and more durable life
smooth surface and solid weld point.
Wide ranges of mesh openings, wire diameters and height selections.

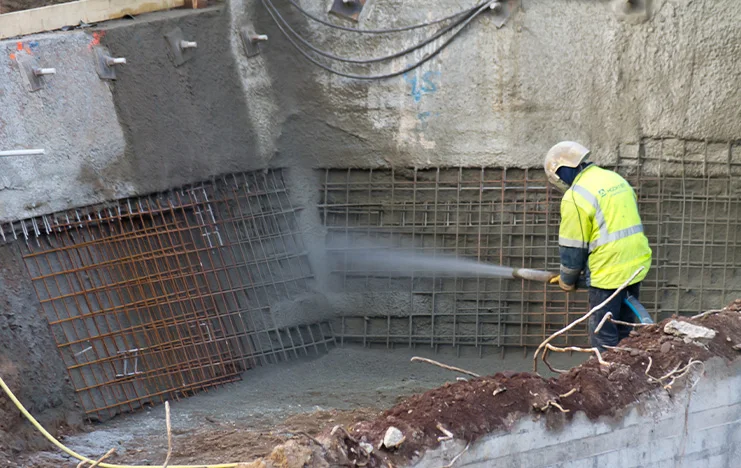

Great for agriculture, aquaculture, and construction use.
Strong structure can keep pests and animals away.
Welded Mesh Panels
The strength and versatility created by all-welded construction make welded wire panels a preferred choice. This rigid product can be sheared, formed, fabricated, and finished to the most demanding specifications.

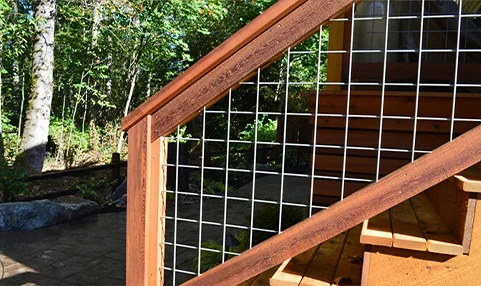

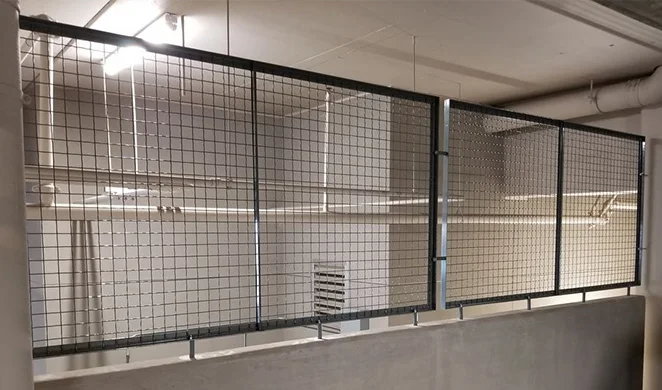

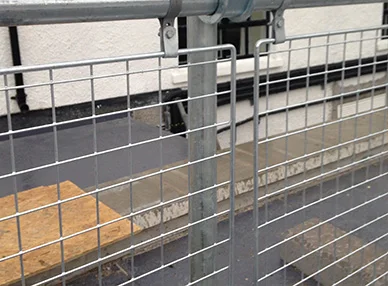

Ideal for handrail infill panels, security applications, and as an economical screening option. Popular sizes range from 1” to 4” square or rectangular mesh with wire diameters ranging from .120” to .250”. Custom openings and panel sizes can be manufactured to match your design creativity. View Sizes & Options for readily available products.
Ideal for handrail infill panels, security applications, and as an economical screening option. Popular sizes range from 1” to 4” square or rectangular mesh with wire diameters ranging from .120” to .250”. Custom openings and panel sizes can be manufactured to match your design creativity. View Sizes & Options for readily available products.
Specification
Product Name | Welded Mesh Panels |
Keywords | Welded Wire Mesh Panel |
Surface Treatment | PVC Coated, Hot Dipped Galvanized |
Wire Gauge | 2.0 - 4.0mm or Customized |
Materials | Low-Carbon Iron Wire, Plastic Coated Iron Wire |
Shape | Square |
Standard Length | 1 - 8 M |
Width | 0.5 - 3 M |
Wire Diameter(mm) | Aperture (mm) | Width(m) | Length | ||
Inch | MM | ||||
2.0mm-3.2mm | 1" | 25.4 | 0.914m-1.83m | The length does not limit | |
2.0mm-4.5mm | 2" | 50.8 | 0.914m-2.75m | ||
2.0mm-6.0mm | 3" | 70.2 | 0.914m-2.75m | ||
2.0mm-6.0mm | 4" | 101.6 | 0.914m-2.75m | ||
2.0mm-6.0mm | 5" | 127 | 0.914m-2.75m | ||
2.0mm-6.0mm | 6" | 152.4 | 0.914m-2.75m | ||
2.0mm-6.0mm | 7" | 177.8 | 0.914m-2.75m | ||
2.0mm-6.0mm | 8" | 203.2 | 0.914m-2.75m | ||
Specification Of Welded Wire Mesh Panel | ||||||
Opening | Wire diameter | |||||
Inch | mm | BWG | mm | |||
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm | |||
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm | |||
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm | |||
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm | |||
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm | |||
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm | |||
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm | |||
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm | |||
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm | |||
Material: Low carbon steel wire | ||||||
Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated | ||||||
Note: Special size and specifications can be made according to customers requires. | ||||||
Product Details
FAQ
1. Who Are We?
We Are Based In Hebei, China, and Start In 2014, and Sell To Southeast Asia(35.00%), North America(30.00%), Mid East(15.00%), South Asia(5.00%), Africa(5.00%), Eastern Asia(2.00%). There Are a Total of About 11-50 People In Our Office.
2. How Can We Guarantee Quality?
Always A Pre-Production Sample Before Mass Production;
Always Final Inspection Before Shipment;
3. What Can You Buy From Us?
Fence Panel/Welded Wire Panels/Stainless Steel Wire Mesh/Welded Wire Mesh/Perforated Metal Mesh
4. Why Should You Buy From Us Not From Other Suppliers?
Our Company Has Strong Technical Force, Complete Equipment, Professional Management Personnel, Technical Personnel, And Professional Equipment Construction Team, A Price Advantage, And A Complete Quality Inspection System.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken: English, Chinese
We Are Based In Hebei, China, and Start In 2014, and Sell To Southeast Asia(35.00%), North America(30.00%), Mid East(15.00%), South Asia(5.00%), Africa(5.00%), Eastern Asia(2.00%). There Are a Total of About 11-50 People In Our Office.
2. How Can We Guarantee Quality?
Always A Pre-Production Sample Before Mass Production;
Always Final Inspection Before Shipment;
3. What Can You Buy From Us?
Fence Panel/Welded Wire Panels/Stainless Steel Wire Mesh/Welded Wire Mesh/Perforated Metal Mesh
4. Why Should You Buy From Us Not From Other Suppliers?
Our Company Has Strong Technical Force, Complete Equipment, Professional Management Personnel, Technical Personnel, And Professional Equipment Construction Team, A Price Advantage, And A Complete Quality Inspection System.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken: English, Chinese
