Product Description
1. Product Description:
Gabion basket can be used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.
Specification
2. Specifications:
Material:245-260g galvanized
Surface Treatment:hot dip galvanized

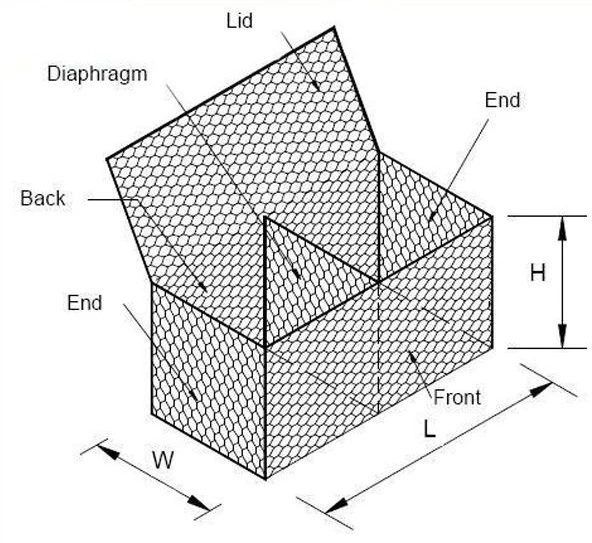

2.1 Dimensions and Capacity
L x W xH (m) | Capacity(m3) |
1x1x1 | |
2x1x1 | 11 |
3x1x1 | 16 |
4x1x1 | 21 |
1.5x1x1 | 8 |
2x1x0.5 | 7.5 |
3x4x0.5 | 35.5 |
Other sizes also can be customized.

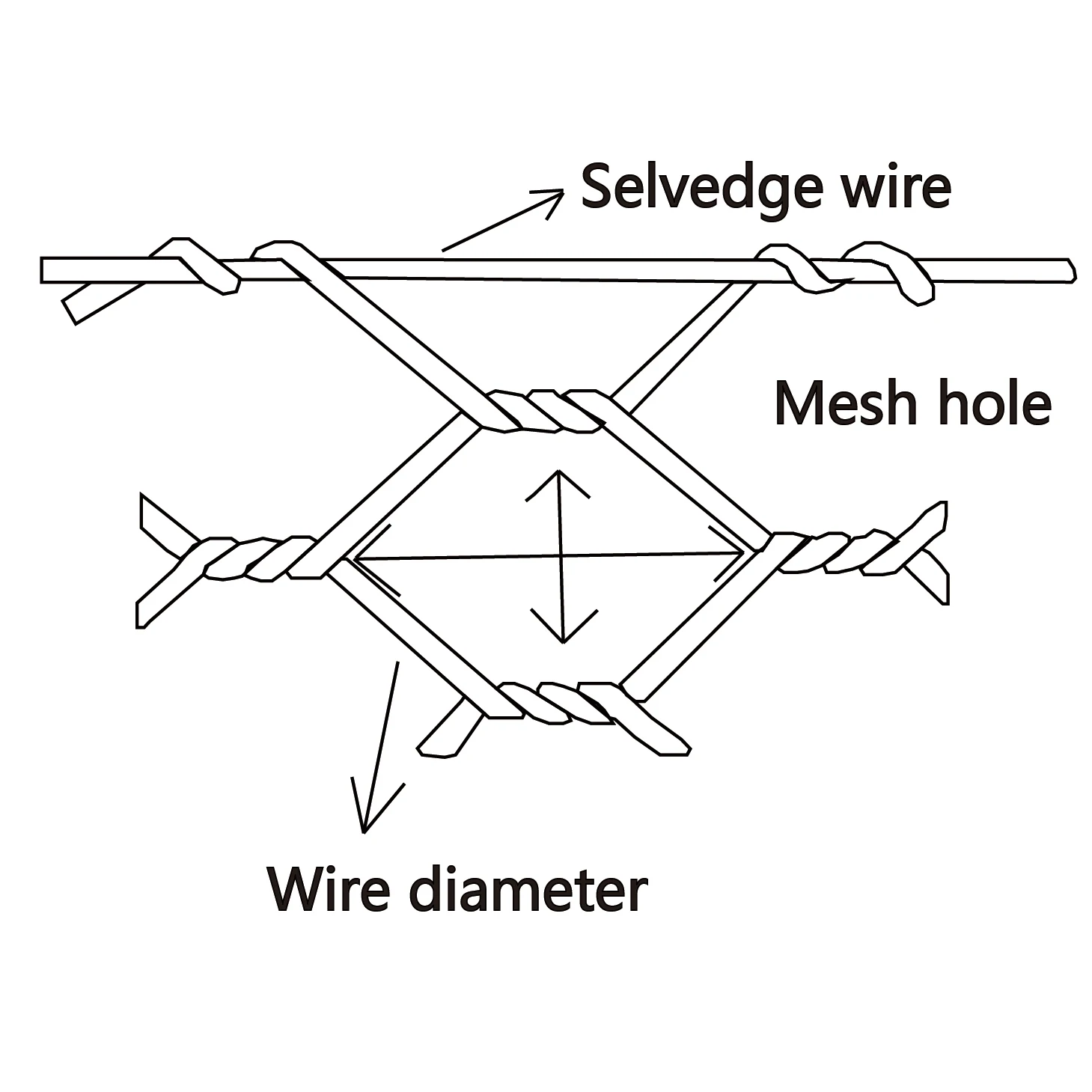

2. 2 Mesh Size
Size(mm) |
|
60x80 | |
80x100 | |
100x120 | |
110x150 | |
220x240 |
Other sizes also can be customized.
2.3 Wire Diameter
Mesh Wire(mm) | Selvedge Wire(mm) | Binding Wire(mm) |
2.0 | 2.4 | 2.2 |
2.2 | 2.7 | 2.2 |
2.4 | 3.0 | 2.2 |
2.7 | 3.4 | 2.2 |
2.75 | 3.4 | 2.2 |
3.0 | 3.9 | 2.2 |
3.4 | 4.4 | 2.2 |
Other sizes also can be customized.
Advantages
3. Advantages:
1. Soft structure is exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.
2. Strong capacity of Anti-scour even reach to 6m/s.
3. The structure has permeability essentially, which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.
Package
4. Package:
Related Products
We produce different standards of geotextile,rockfall barrier netting and barbed wire.

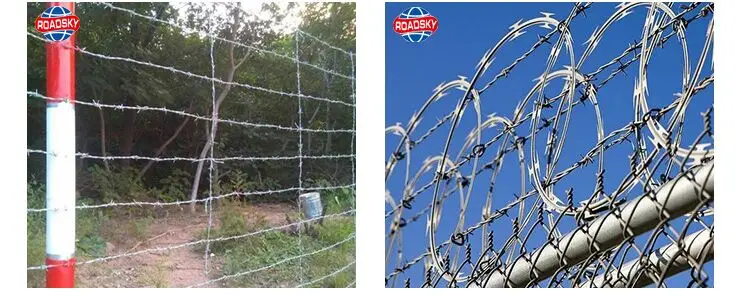

Barbed Wire
Barbed Wire is a new kind of protective fencing with such advantages as beautiful appearance,economical cost and practicality,and convenient construction.It plays the role of protection in mines,gardens and apartments,frontier,defence,and enclosure of prisons.
Cement Blanket
The composite material cement blanket is a kind of composite structure that adopts special Woven fabric,the internal immersion is made of high ductility nano composite special ingredients, and the bottom is covered with anti- seepage lining.

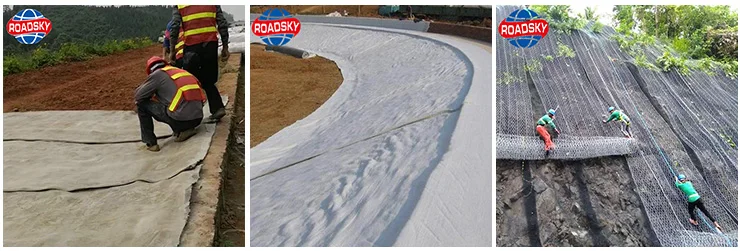

Geotextile
Character: Anti-aging,Acid and alkali resistance,durable,pliable and tough,convenient construction.
Usage: Reinforcement, filtration, isolation and drainage of the construction on highway,railway,dams and coastal beach.
Rockfall Barrier Netting.
The rockfall netting is made of high-quality low-carbon steel wire, which has a strong structure and a flat surface. Widely used in slope support, roadbed reinforcement, shotcrete hanging net, founda-tion pit support, mountain rock surface hanging net shotcreto. side slope vegetation (greening), ag-ricultural construction and construction industry. for rcinforccmcnt, protction, Floor concrcto rcin-forcement, also used to make poultry fences, fish pond fences, children's playground fences and home decorations, etc.
Packing and shipping
Workshop

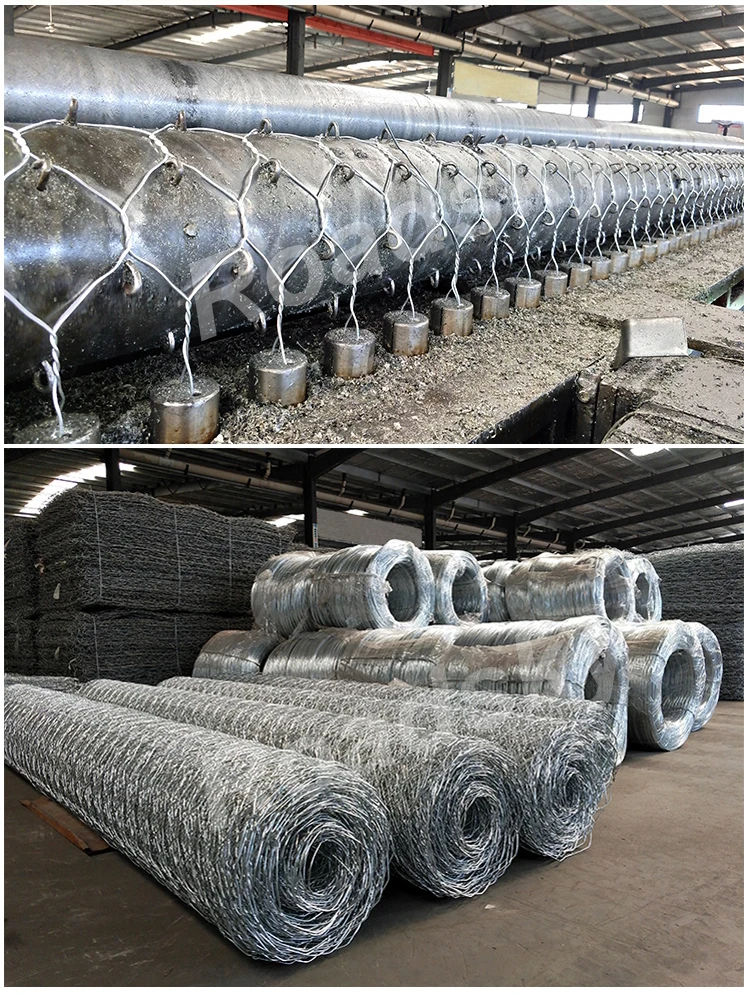

5. Our Factory:
Application

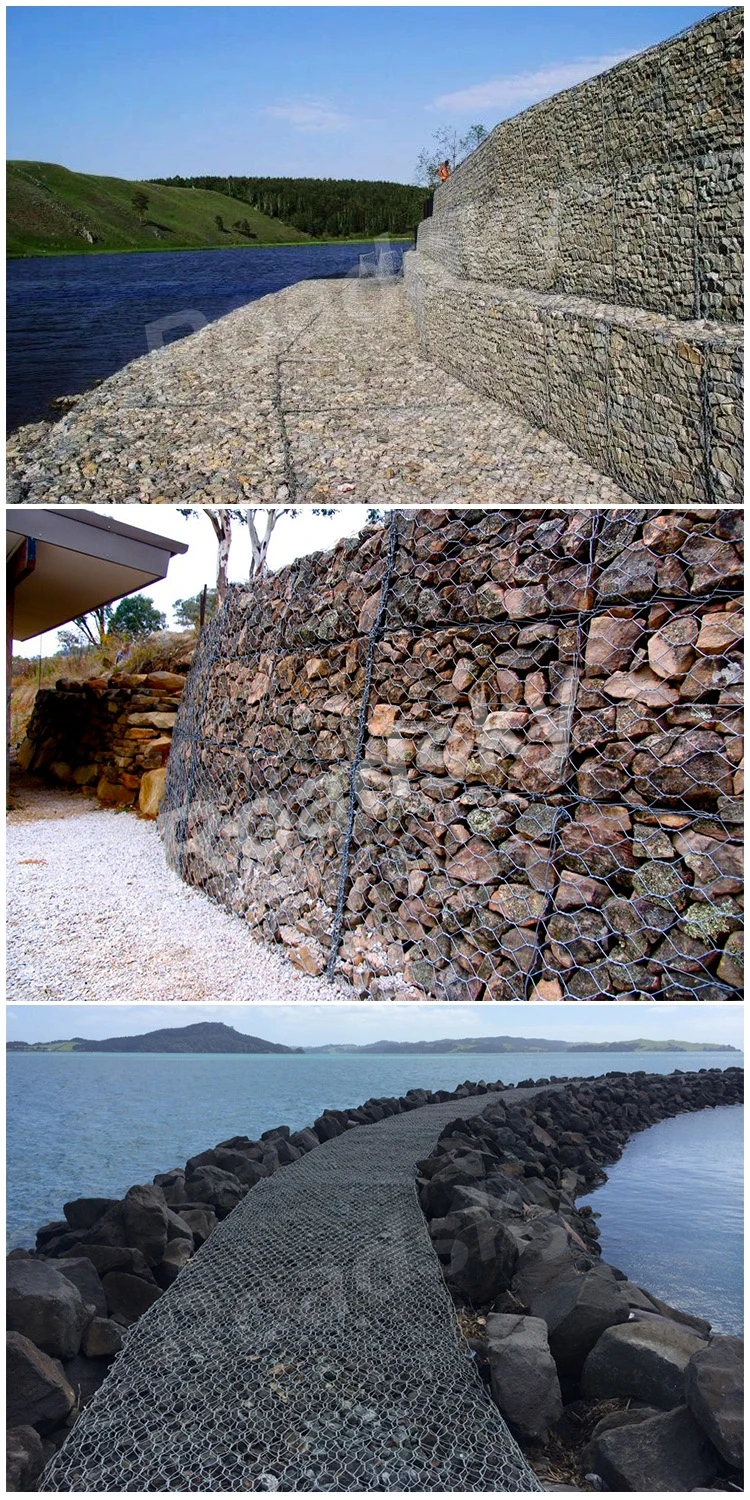

6. Applications
7. Shipping
For a small quantity of orders or sample order, we will generally choose to transport by air (DHL, TNT, etc)
Large orders we generally use the ocean shipping.
The shipping time is as follows:
Type of shipping | Area | Shipping time |
By express | All around the world | 1-7 days |
By air | All around the world | 7-14 days |
By sea | North America | 20-30 days |
South America | 40-50 days | |
Africa | 40-50 days | |
Europe | 20-30 days | |
Oceania | 20-30 days |
8. Warranty
Considered the differences in the using environment, our products generally warranty 5-10 years.

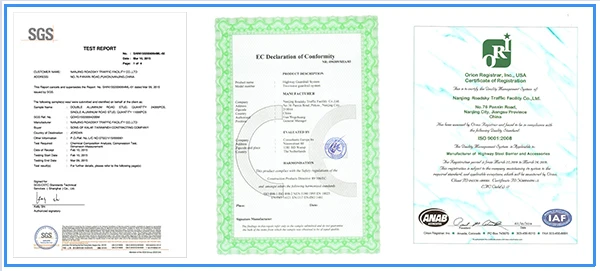

Before delivery, we will provide third party inspection(SGS, CE, ISO, etc.).
9. Why Us?
* Professional engineers team and Rich manufacturing experience
* Prompt reply and Timely delivery
* High quality & Competitive price
Any interests about our reflective film, please feel free to send us inquiry or call us directly, we will be there to serve your needs timely.
Sincerely hope to establish good business relations with you, our distinguished client !
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which in this field for more than 10 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nanjing City, Jiangsu Province, China, about 1.5 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.Pls send sample inquiry and leave us your email ,then we will send you more information about the samples for your reference.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. All staffs always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
