Introduction
What Is A Geiger Counter ?
Geiger counter is a device that can detect radioactive radiation. It works by passing radioactive elements through an inert gas
inside the machine, which ionizes the gas. The resulting ions can be easily detected relative to radioactivity itself. This is the
working principle of the device.
inside the machine, which ionizes the gas. The resulting ions can be easily detected relative to radioactivity itself. This is the
working principle of the device.

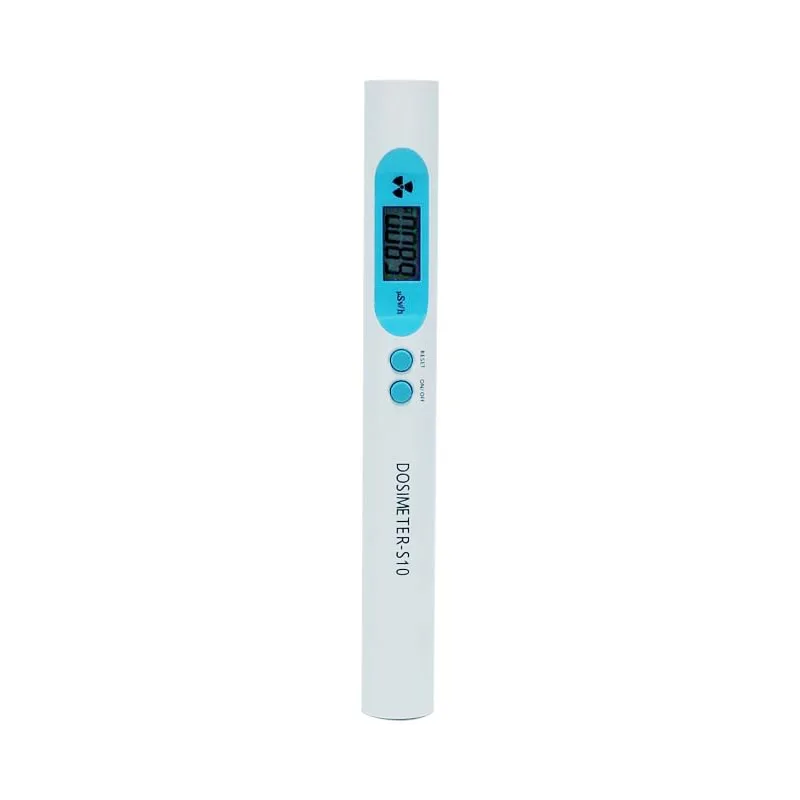

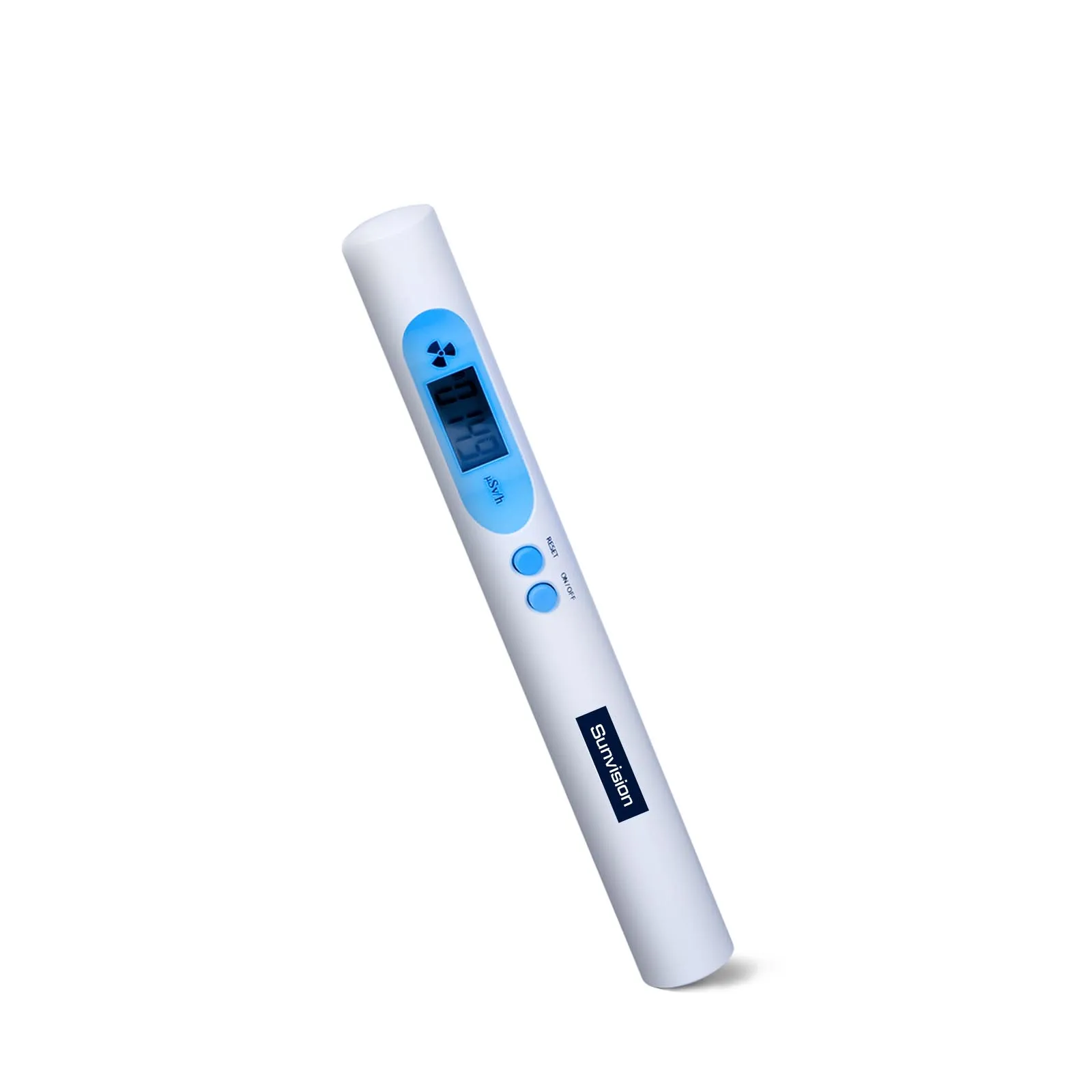

Radiation detector household seafood marble water quality food radiation detection Portable Geiger counter
What is the Geiger counter Operating principle?

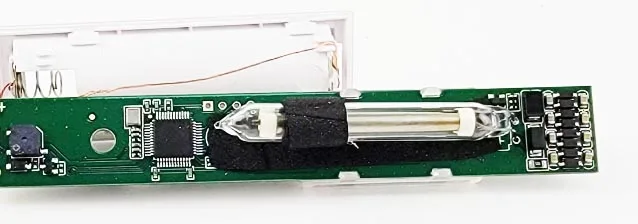

The Geiger counter is built-in a Geiger Muller tube.(GM tube_the tube is the sensor of the counter.(detector)
In summary then, here's what happens when a Geiger counter detects some radiation:
1. Radiation is moving about randomly outside the detector tube.
2. Some of the radiation penetrates the plastic shell, enters the GM tube
3. When radiation collides with gas molecules in the tube, it causes ionization: some of the gas molecules are turned into positive ions and electrons.
4. The positive ions are attracted to the outside of the tube.
5. The electrons are attracted to a metal wire running down the inside of the tube maintained at a high positive voltage. As the
electrons head for the wire, some of them collide with other gas molecules, splitting them into ions and more electrons.
So we get a kind of chain reaction in which even a single particle of radiation can produce avalanches of electrons in rapid succession; this process is known as a Geiger discharge. Many electrons travel down the wire making a burst of current in a circuit connected to it. The electrons make a meter needle deflect and, if a loudspeaker is connected, you can hear a loud click every time particles are detected. The number of clicks you hear gives a rough indication of how much radiation is present (the meter gives you a much more accurate idea). Before the counter can detect any more radiation, it needs to be restored to its original state through a process called quenching, which cancels out the effects of the Geiger discharge. That's achieved by having a second gas (halogen) inside the tube.
In summary then, here's what happens when a Geiger counter detects some radiation:
1. Radiation is moving about randomly outside the detector tube.
2. Some of the radiation penetrates the plastic shell, enters the GM tube
3. When radiation collides with gas molecules in the tube, it causes ionization: some of the gas molecules are turned into positive ions and electrons.
4. The positive ions are attracted to the outside of the tube.
5. The electrons are attracted to a metal wire running down the inside of the tube maintained at a high positive voltage. As the
electrons head for the wire, some of them collide with other gas molecules, splitting them into ions and more electrons.
So we get a kind of chain reaction in which even a single particle of radiation can produce avalanches of electrons in rapid succession; this process is known as a Geiger discharge. Many electrons travel down the wire making a burst of current in a circuit connected to it. The electrons make a meter needle deflect and, if a loudspeaker is connected, you can hear a loud click every time particles are detected. The number of clicks you hear gives a rough indication of how much radiation is present (the meter gives you a much more accurate idea). Before the counter can detect any more radiation, it needs to be restored to its original state through a process called quenching, which cancels out the effects of the Geiger discharge. That's achieved by having a second gas (halogen) inside the tube.
User manual
1. Inset 1 AA battery
2. Press and hold the ⑤ switch button for 3 seconds and then
turn it on
3. The predicted value will be displayed 30 seconds after
booting
4、 The value is updated every 1 second after measured
5、 Short press the ④ to restart the measurement and count
down 30 seconds
6、 After power on, press and hold the switch button for 3
seconds and then power off
turn it on
3. The predicted value will be displayed 30 seconds after
booting
4、 The value is updated every 1 second after measured
5、 Short press the ④ to restart the measurement and count
down 30 seconds
6、 After power on, press and hold the switch button for 3
seconds and then power off
Product size | 187* 22mm |
Working power | 1* AA battery |
Detectable type | Gamma |
Energy range | 20kev ~ 3.0mev≤±30%（137Cs-） |
Test accuracy | 0.01μSv/hr |
Real-range | 0-99.99μSv/hr |
Cumulative range | 0-99.999mSv |
Real- error | ≤10% |
Mean error | ≤3% |
Measurement period | 30 seconds |
battery | One No.5 dry cell (AA) 1.5V |
Certificated | CE ROHS & Shenzhen Academy of metrology & quality inspection report |

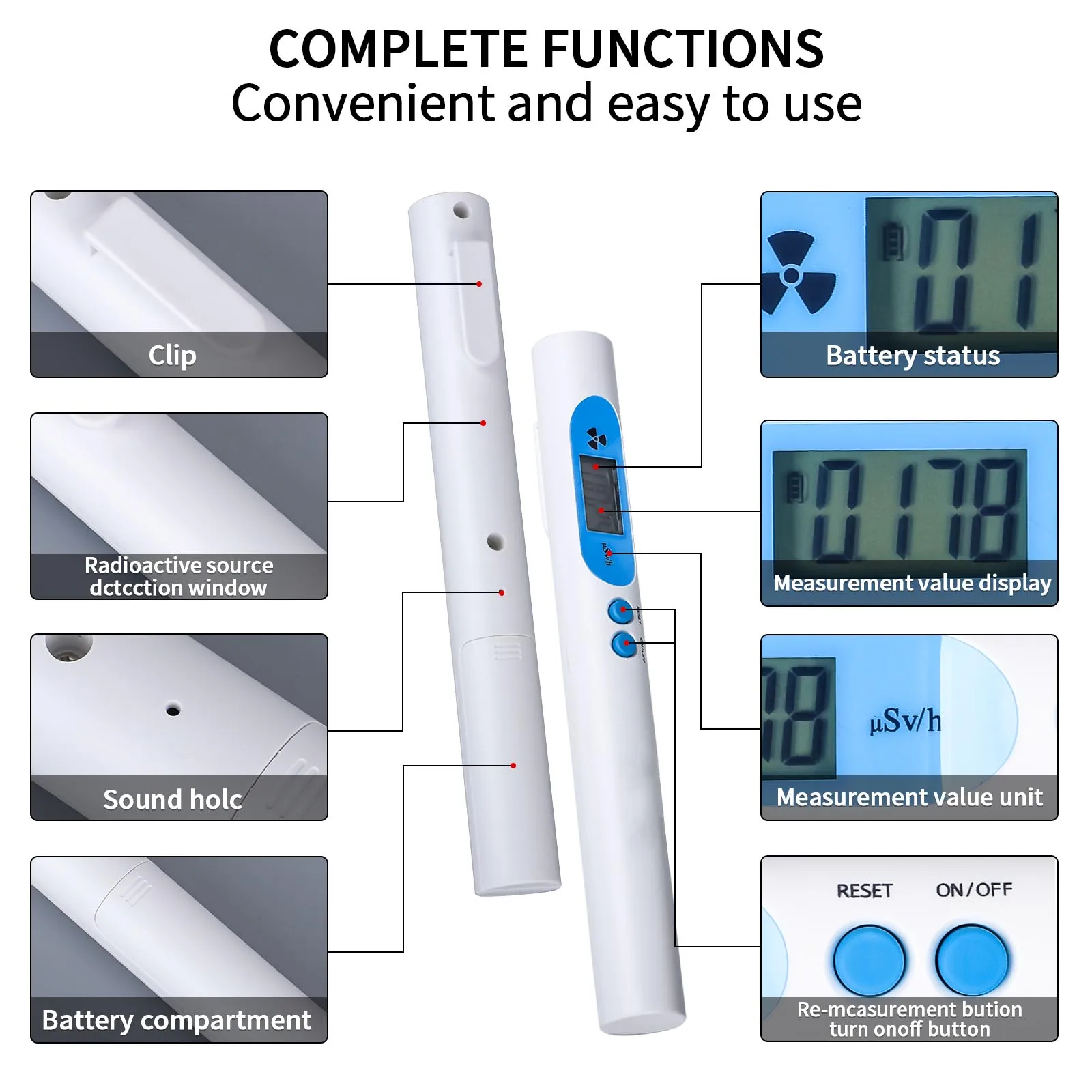

Functions overview
There is a large error in the data from start test to finish measurement, especially at the beginning of the measurement, which time the gamma rays are first detected. The data are averaged with the passage of measurement time.So please do not move the equipment during the measurement. After the prediction
measurement is completed, if there is no operation for more than half an hour, there will be a buzzer alarm sound and “OFF” will
be displayed on the LCD screen. At this moment, short press the power button to cancel the shutdown. If there is no operation, it
will be automatically shutdown after 5 seconds. If you want more accurate data, please take multiple measurements and use the average as your measurement.
When the radiation dose exceeds 0.5μsv/h, the instrument emits a beeping sound alarm; When the radiation dose of more than 1μ
Sv /h is detected, the instrument emits a rapid beeping alarm Actual dose: The detection time is 30 seconds, and then it is updated every second. The characteristic of rapid update is that the fluctuation in the measured environment is highly consistent with the sensor detection result. After the boot,the equipment will automatically test and display the measured value,unit: μsv/h.
Press the reset button to clear the easurement data and start recalculation.
measurement is completed, if there is no operation for more than half an hour, there will be a buzzer alarm sound and “OFF” will
be displayed on the LCD screen. At this moment, short press the power button to cancel the shutdown. If there is no operation, it
will be automatically shutdown after 5 seconds. If you want more accurate data, please take multiple measurements and use the average as your measurement.
When the radiation dose exceeds 0.5μsv/h, the instrument emits a beeping sound alarm; When the radiation dose of more than 1μ
Sv /h is detected, the instrument emits a rapid beeping alarm Actual dose: The detection time is 30 seconds, and then it is updated every second. The characteristic of rapid update is that the fluctuation in the measured environment is highly consistent with the sensor detection result. After the boot,the equipment will automatically test and display the measured value,unit: μsv/h.
Press the reset button to clear the easurement data and start recalculation.
Attention items
Attention item
The dosimeter is a precision instrument, please protect it. The following suggestions will help to maintain the instrument andprolong the service life.
1、 Keep as dry as possible during storage and use process .Excessive humidity will cause damage to the instrument.
2、 Do not drop, knock or vibrate violently, otherwise the instrument will be damaged.
3、 If you will not use it for a long time, please take out the battery.
4、 The company reserves the rights to improve product performance or modify this manual without prior notice.
Ⅳ:Basic knowledge Nuclear radiation: also known as ionizing radiation or radioactive radiation, is the flow of microscopic particles released during the transformation of atomic nuclei from one structure or energy state to another structure or energy state. Nuclear radiation can ionize or stimulate substances which can damage the DNA strands of
biological cells. Radiation existed on the earth long before human beings were born. Living creatures on earth have been affected by a lot of radiation.Many common foods also contain potassium 40 and other radioactive substances. Radon is the general term for natural radioactive gas. Needless to say, the elements that make up the earth -- soil, rock, concrete -- also release radon into the air. The case of exposure from outside the body is called external exposure. The radiation from the body when radioactive materials enter the body is called internal radiation. It is generally believed that the internal exposure has a greater impact on the human body. However, both internal and external radiation are affected by the radiation dose.
The dosimeter is a precision instrument, please protect it. The following suggestions will help to maintain the instrument andprolong the service life.
1、 Keep as dry as possible during storage and use process .Excessive humidity will cause damage to the instrument.
2、 Do not drop, knock or vibrate violently, otherwise the instrument will be damaged.
3、 If you will not use it for a long time, please take out the battery.
4、 The company reserves the rights to improve product performance or modify this manual without prior notice.
Ⅳ:Basic knowledge Nuclear radiation: also known as ionizing radiation or radioactive radiation, is the flow of microscopic particles released during the transformation of atomic nuclei from one structure or energy state to another structure or energy state. Nuclear radiation can ionize or stimulate substances which can damage the DNA strands of
biological cells. Radiation existed on the earth long before human beings were born. Living creatures on earth have been affected by a lot of radiation.Many common foods also contain potassium 40 and other radioactive substances. Radon is the general term for natural radioactive gas. Needless to say, the elements that make up the earth -- soil, rock, concrete -- also release radon into the air. The case of exposure from outside the body is called external exposure. The radiation from the body when radioactive materials enter the body is called internal radiation. It is generally believed that the internal exposure has a greater impact on the human body. However, both internal and external radiation are affected by the radiation dose.
