OEM USB RS232 Fixed Mount Price 2D QR PDF417 Factory Mini Kiosk Imager Cheap Barcode Reader
Feature and advantage
1. 32-bits high performance CPU
2. Decoding min barcode density:4mil(752*480)
3. Support 1D/2D barcode on paper and screen
4. Manual, Motion detective, Continuous, Host mode(programmable)
5. Interface USB(HID,COM),RS232(open wire)
6. Small size, fast and convenient installation
Detailed Parameters
Item | Parameter name | Parameter value |
Product | Product name | OEM Fixed Mount Automatic Programmable QR Code Scanner 2D Rugged Auto Scan Barcode Scanner Reader Module For IOT Machine |
Model number | HW-1880S | |
Application | Self-service machine,locker cabinate,logistics etc. | |
Scanning Performance | Light Source | 620nm Visible red light diode,white light |
Imaging Sensor | CMOS | |
Resolution | 640*480Pixels | |
Error Rate | 1/8million | |
Barcode Density | ≥5mil | |
Scanning Speed | 300times/s | |
Scanning Angle | Tilt ±55°,Deflection ±55°,Rotation :360° | |
Minimum Contrast | 25% | |
Trigger Mode | Auto-sensing,Manual,Continuous,Host mode | |
Typical DOF | 50-200mm (13mil) EAN-13 40-90mm (5mil) Code39 5-240mm (20mil) QR Code 50-90mm (10mil)Data Matrix 30-130mm (6.67mil) PDF 417 Performance may be impacted by bar code quality and environmental conditions | |
Decoding Capacity | Support paper and screen barcodes 2D: QR,PDF417,Data Matrix, Aztec, Matrix code etc. 1D: EAN, UPC, Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 etc. | |
Mechanical and electrical | Indicator | Buzzer&LED |
Client interface | USB,USB-COM,RS232(open wire) | |
Language | Support multi-languages | |
Power | 750mW | |
Input Voltage | 5V | |
Operating Current | 170mA | |
standby Current | 2mA | |
Shell Material | ABS+PC | |
Color | Black | |

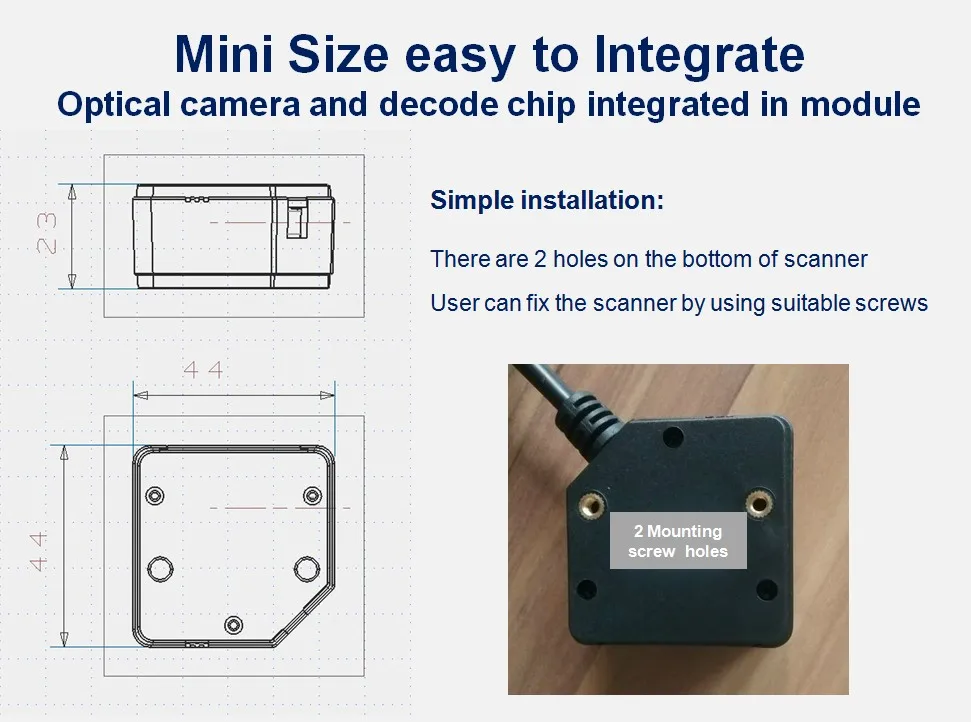

Scanner Size | 44*44*23mm | |
Weight | 70-100g | |
Cable Length | 1.35M | |
Reliability | Shock Resistance | 1.5M |
Waterproof | IP52 | |
Operating Temperature | -20℃~50℃ | |
Storage Temperature | -40℃~70℃ | |
Operating Humidity | 5%~95% | |
Storage Humidity | 5%~95% | |
Certificate | CE,FCC,ROHS |
