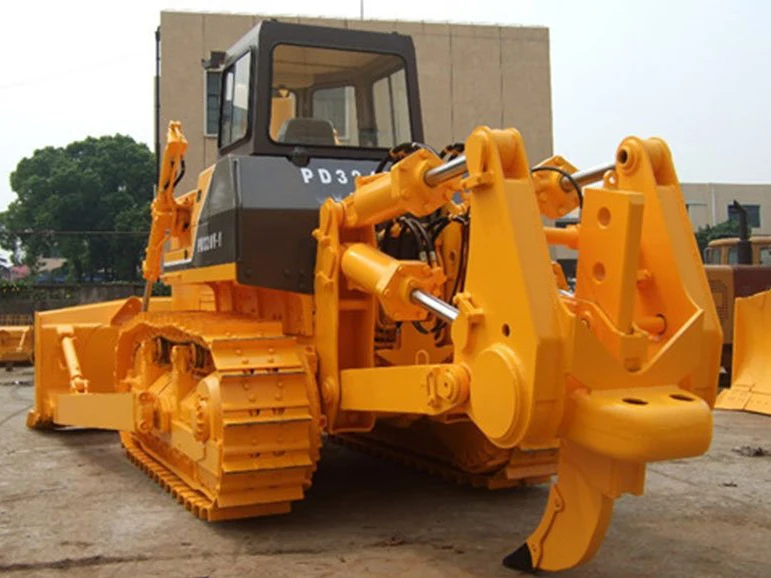

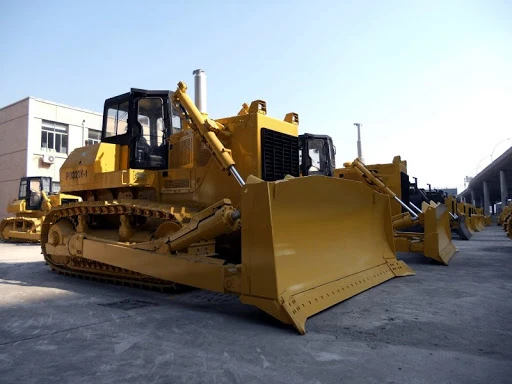

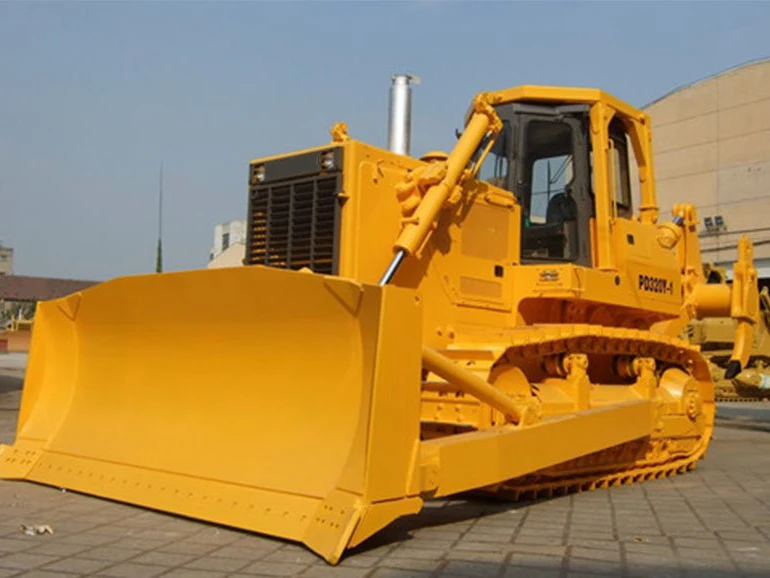

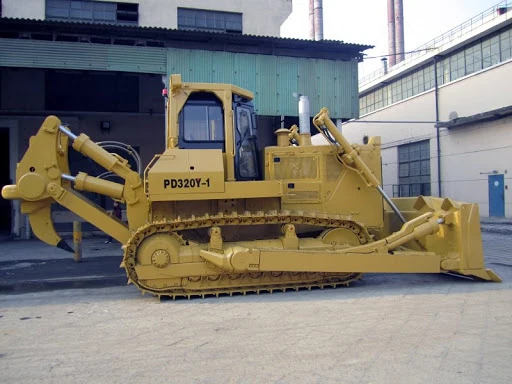

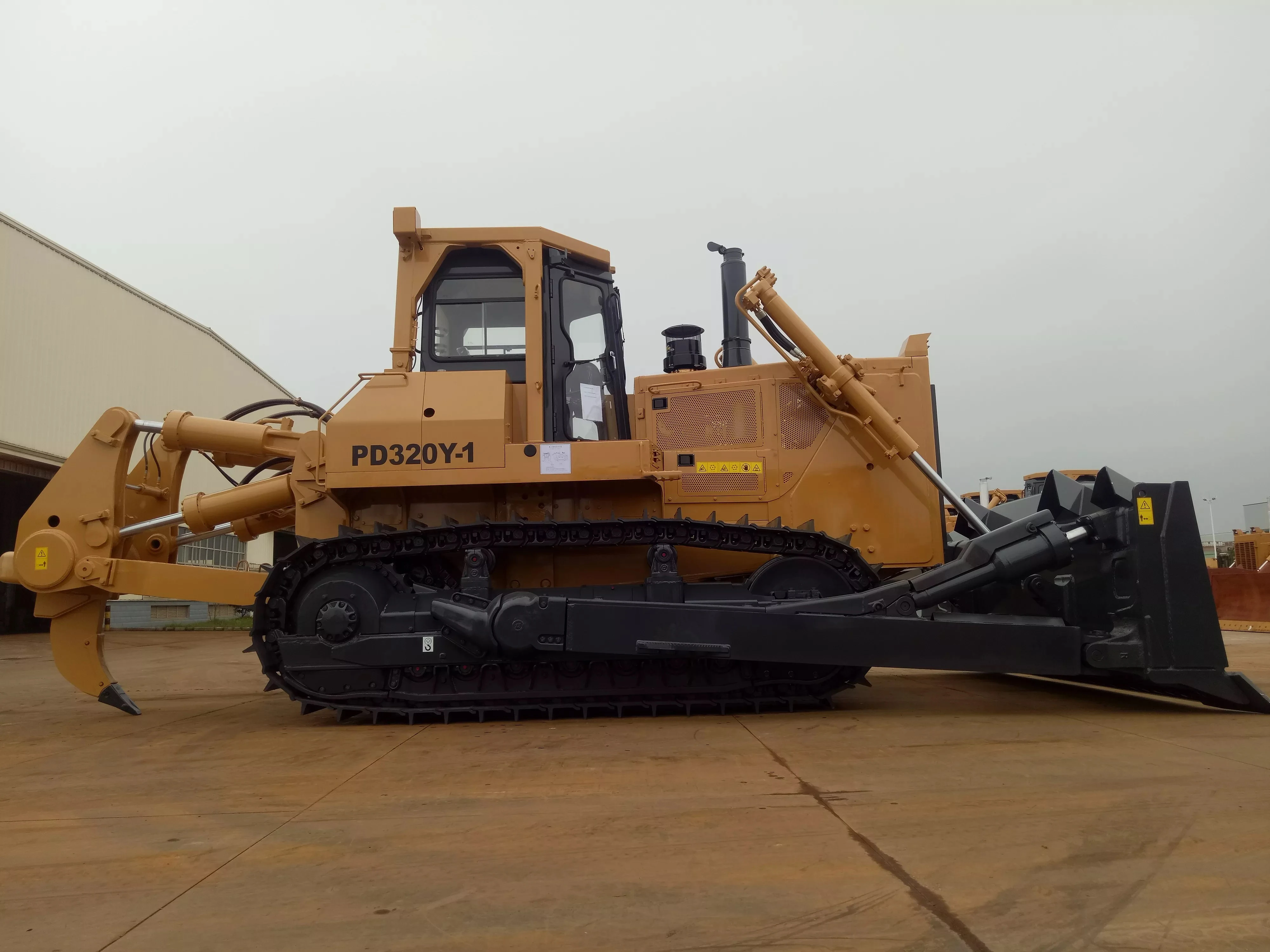

Полный гидравлический бульдозер PD320Y-1Shangchai двигатель мощностью 320hp с лезвием 10cbm по
- Категории: Bulldozers >>>
- Поставщик: Acntruck,Vehicle,&,Machinery,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview
Product Features.
1. Brand engine means strong power, high torque and excellent reliability.
2. Main clutch is of dry, single-disc, non-constantly engaged type, stable, reliable and easy in maintenance.
3. Gearbox is of stationary shaft type, speed shift is realized by teeth mesh by moving the sliding gear.
4. Steering clutch is dry, multiple-disc, actuated with hydraulic booster.
5. The gear with big module for heavier load.
6. Working equipment is reliable, easy to control and maintain. It is also adaptable to work in various conditions.
7. The machine features reasonable layout and structure, super traction and high productivity.
Specifiction
Work equipment | ||||
Blade type | Semi-U blade | Angle blade | ||
Dimensions, Length x Width x Height, mm | 6880 x 4130 x 3640 | 6880 x 4850 x 3640 | ||
Weight, kg | 35900 | |||
Blade dimensions, Width x Height, mm | 4130 x 1590 | 4850 x 1140 | ||
Max. lift above ground, mm | 1560 | |||
Max. drop below ground, mm | 560 | |||
Pitch adjustment, ° | 55±2 | |||
Max. tilt, mm | 1000 | |||
Ripper | ||||
Type | 1 shank | |||
Max. dig below ground, mm | 1250 | |||
