Наружный CATV магистральный падение усилитель сигнала 4 порта
- Категории: Radio & TV Broadcasting Equipment >>>
- Поставщик: Hangzhou,Hengchi,Electronic,Equipments,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Profile
Products Description

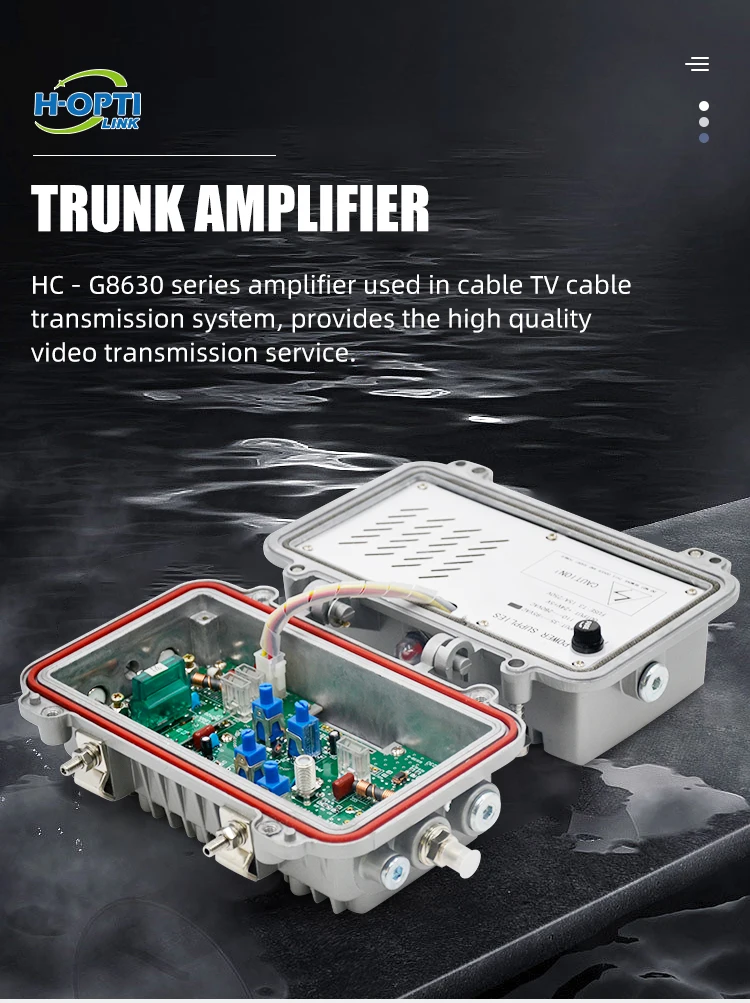

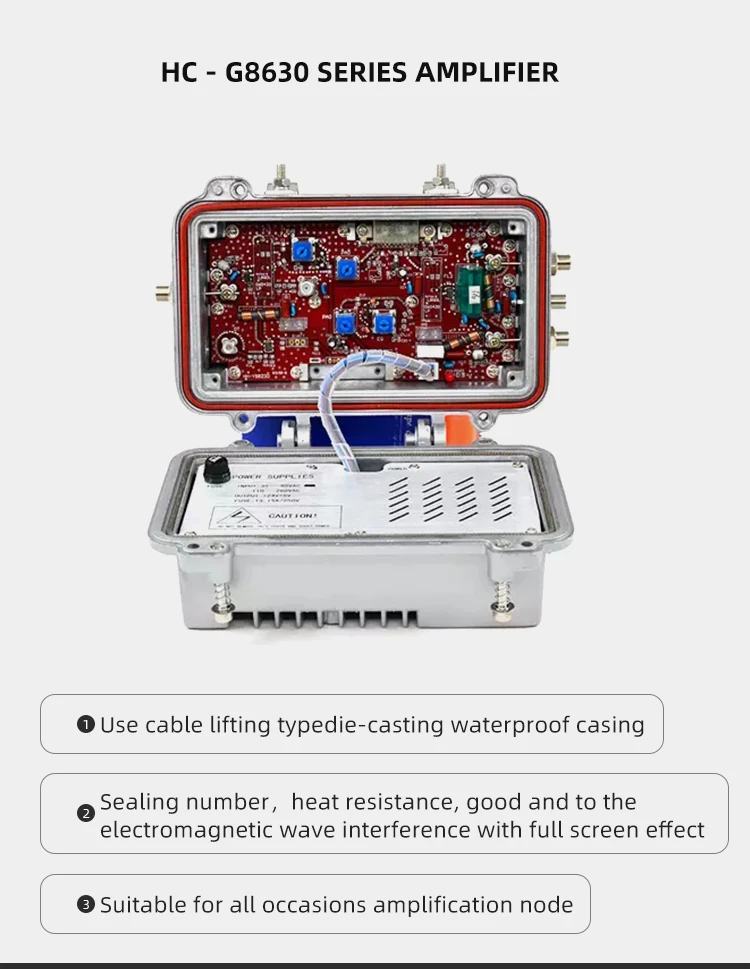

Trunk amplifier, is a signal amplification equipment when the power becomes low and cannot meet the coverage requirements. When the power of signal source equipment is difficult to meet the coverage requirements, the equipment can amplify the power of signal source (generally microcellular) to cover more areas.
Product Paramenters
Performance | Index |
Frequency range(Mhz) | 45~860 |
Nominal gain(dB) | 30 |
Nominal output level | ≥105 |
Flatness(dB) | ±1 |
Rated Input Level | 72 |
Gain Adjustable Range | 0-20 |
Noise Figure | ≤10 |
Composite Triplee Beat (84PAL-D | 71 |
Composite Second Order (84PAL-D | 68 |
Thunder Stroke Immunity | 5 (10/700μS) |
Power voltage(V) | 220VAC or -48VDC |
Operating Temperature(℃) | -40~60 |
Size(mm) | 30*30*25 |
About us
Why Choose Us
Product packaging
FAQ
Q:What is the payment way for the order?
A:We accept T/T,L/C at sight,Escrow,western union,paypal(TT 30% deposit,balanced before delivery).
Q:What’s the MOQ?
A: Our MOQ is one piece.
Q:How about your after service?
A: We will send you the component for free to replace the demaged one during the warranty time.
Q:Can I have my own customized products?
A: Yes,OEM and ODM order are very welcomed.
Q:How about the warranty?
A:3 year
Q:Why choose us?
A:We are professional manufacturers with more than 13 years experience,we have our own production factory and raw material .So our products have very stable quality and competitive price and best service.
