Product Description




Specification


item
value
Place of Origin
China
Model Number
RYT-800K
Input Voltage
10V~ 36V
Output Voltage
ATX 5 group output
Output Power
600-800W
Output Frequency
Output Current
28A


DC-ATX power supply for vehicle, 10V~36V DC input,+5V,+12V,+3.3V, - 12V,+5VSB and PG output
Input current: 28A, load: 600W
Input surge current: 60A
Operating environment: operating temperature - 40 ° to 65 °
Relative humidity: 40 to 90% RH non-condensing
ACC is connected to on-board ignition signal, and MB is connected to ON/OFF signal pin of main board

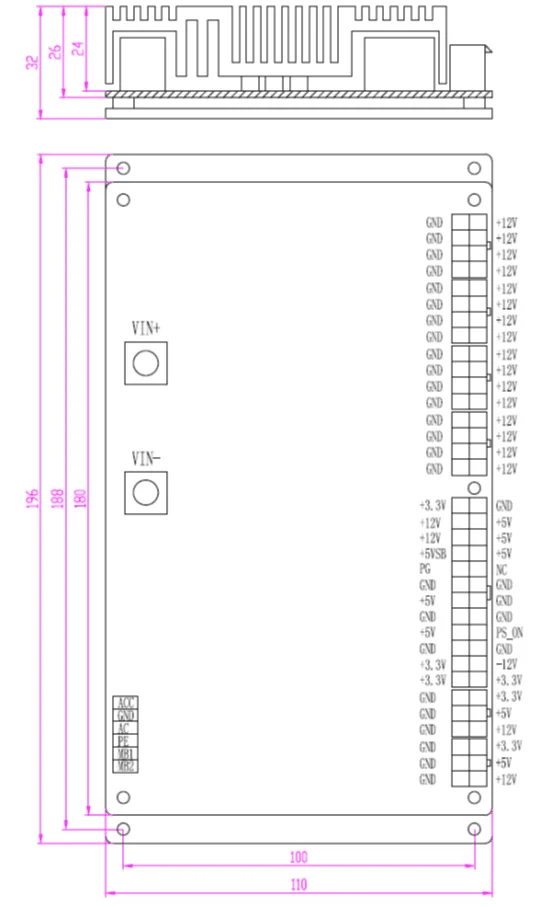

Size:L*W*H=196*110*32MM

Output adjustment rate characteristics：

output voltage Output voltage minimum current Maximum current Maximum current

Peak current output voltage range output voltage range output voltage range ripple (peak to peak) (rated load, bandwidth limit 20MHz) * Ripple

+5V 0A 20A 23A 4.75~5.25V 100mV

+12V 0A 40A 50A 11.40~12.60V 200mV

+3.3V 0A 20A 23A 3.14~3.47V 100mV

-12V 0A 0.2A 0.3A -11.0~-13.2V 200mV

+5VSB 0A 2.0A 3.0A 4.75~5.25V 100mV
Ripple measurement requires adding 47 at the output μ/ 16V tantalum capacitor and 0.1 μ F High frequency capacitor

Other output characteristics
Typical maximum
Output power: 600W 800W DC output power,

Output efficiency: 88% rated load

Switching on/off overshoot: 10%

Output rise time: 10ms (Output voltage rises from 10% to 90%, rated load)

Protection function: input reverse protection (external fuse required)
Output overvoltage (for+5V output) 5.8-6.8V, locked, recovered after restart
Output overvoltage (for+12V output) 13.2-15.6V, locked, recovered after restart
Output overvoltage (for+3.3V output) 3.9-4.3V, locked, recovered after restart
Output over-power protection (each output) 150%
Short-circuit protection (+5V,+12V,+3.3V) is locked and restored after restarting
MTBF: the mean time between failures under 80% load at 25 ℃ is more than 60000 hours
