Светодиодное освещение 2 3-контактный сетевой 10A 1 0 мм провод быстрый фиксатор ip67 ip68 водонепроницаемый мужской и
- Категории: Electrical Equipment & Supplies >>>
- Поставщик: Shenzhen,Aohua,Electric,Corporation,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

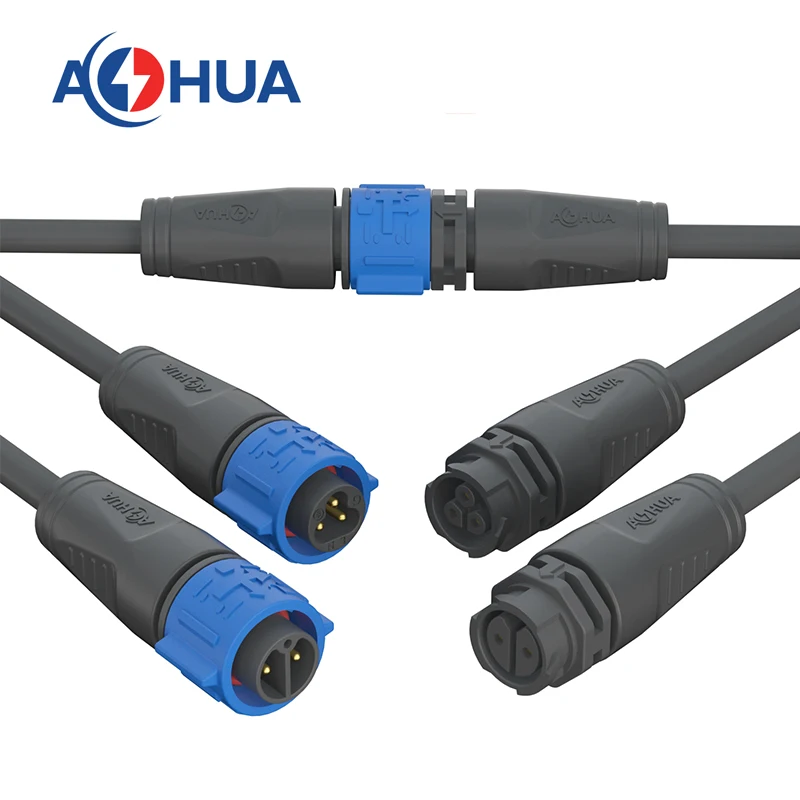

AOHUA Nylon Over-mold Cable Connector
1. Threaded butt assembly, simple to use and easy to install .
2. Nylon material, stable electrical performance, high strength pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
3.The pin is made of gold-plated parts, which ensures the product's continuity and stability, and is safe and reliable.
4.Small volume, appearance, high performance plug socket assembly is very convenient, robust explosion-proof housing, waterproof.

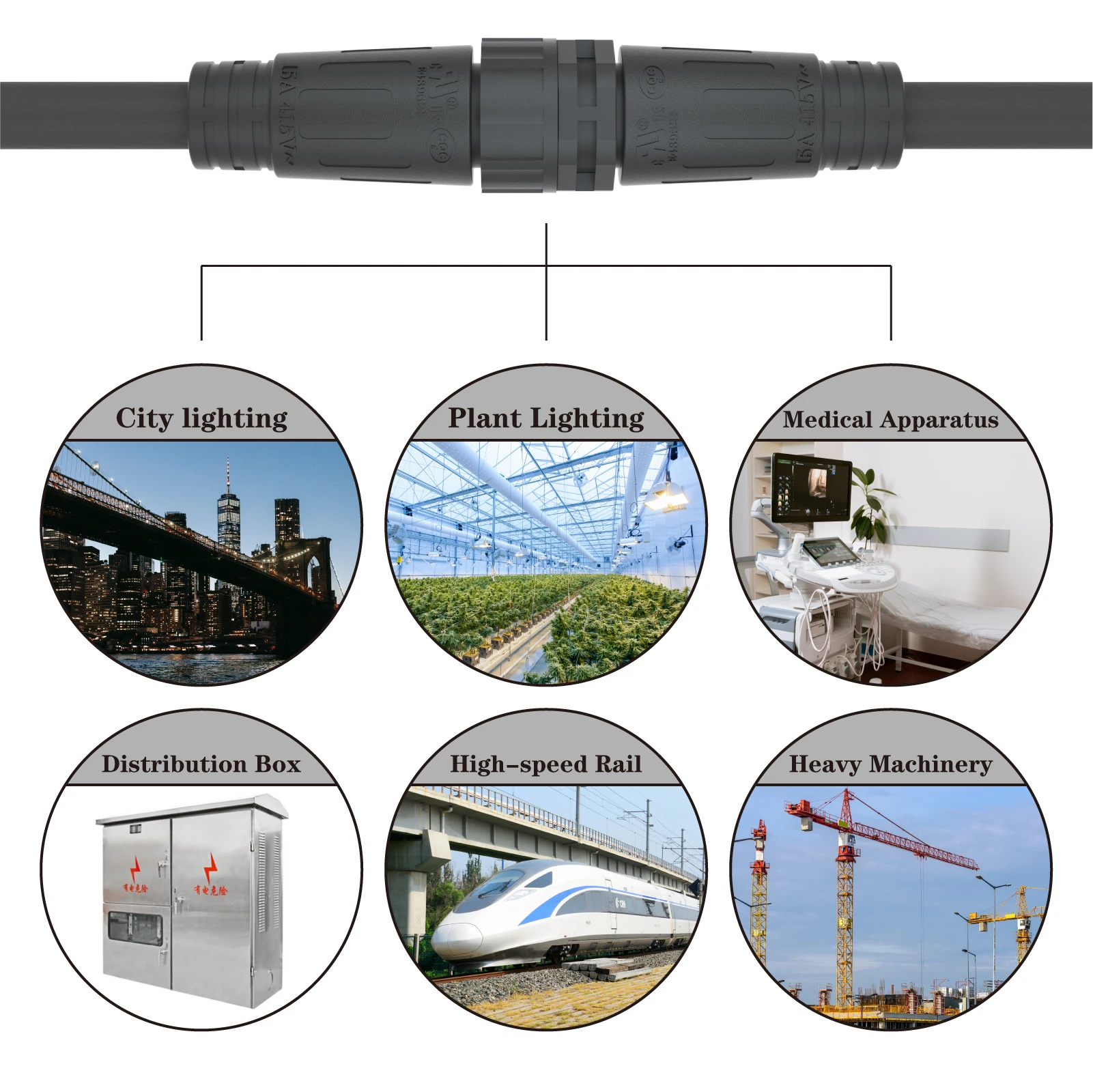

5.Widely used in: LED light bars, LED spotlighting, LED wall washer landscape lighting, outdoor spotlights, bridge tunnel lights, street lights, field exploration equipment, outdoor displays, etc.
2. Nylon material, stable electrical performance, high strength pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
3.The pin is made of gold-plated parts, which ensures the product's continuity and stability, and is safe and reliable.
4.Small volume, appearance, high performance plug socket assembly is very convenient, robust explosion-proof housing, waterproof.
5.Widely used in: LED light bars, LED spotlighting, LED wall washer landscape lighting, outdoor spotlights, bridge tunnel lights, street lights, field exploration equipment, outdoor displays, etc.
Product Specifications | ||||||||
Brand Name | AHUA | |||||||
Waterproof Level | IP67/IP68 | |||||||
Operating Rating | -40℃~+105℃ | |||||||
Interface Type | AC/DC | |||||||
Material | Nylon+Nylon injection molding/Nylon+PVC injection molding | |||||||
Pins Material | Brass | |||||||
Mechanical Life | 1000 mating cycles | |||||||
Features | Outdoor waterproof and moisture-proof | |||||||

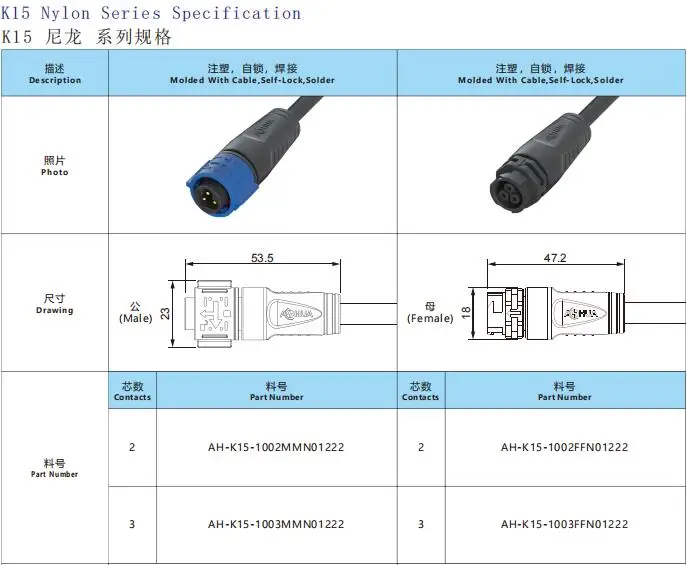

K15 (2pin/3pin 300V) | ||||||||
K20 (2pin/3pin 300V) | ||||||||
K25 (2pin/3pin 300V) | ||||||||
Contacts Numbers | 2 | 3 | |
Voltage Rating | 300V | 300V | |
Current Rating | 10A | 10A | |
Wire Gauge | ≤1.0mm² | ≤1.0mm² | |
Cable OD | 5.5mm~10mm | ||
Mechanical Life | 1000 mating cycles | ||
Operating Rating | -40℃~ +105℃ | ||
Waterproof Level | IP67/IP68 | ||

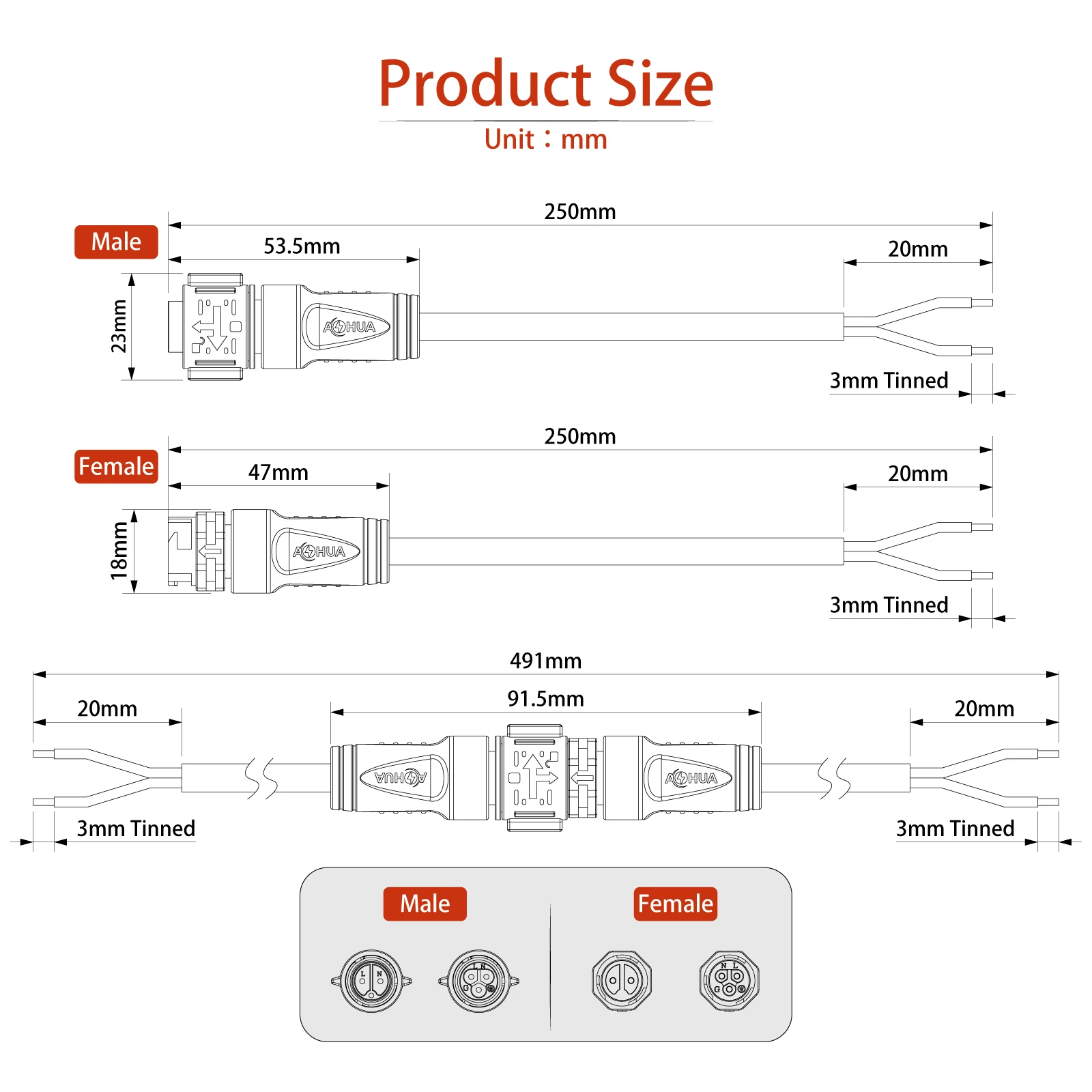

For the K15 over molded cable connector, there are some normal wire sizes for choosing from:
2*0.75mm² 2*1.0mm²
3*0.75mm² 3*1.0mm
3*0.75mm² 3*1.0mm
1. Current rating, such as: 10A...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 2*0.75mm²...
4. Cable outer diameter(OD), such as: 5.5mm.
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 2*0.75mm²...
4. Cable outer diameter(OD), such as: 5.5mm.
5. Each cable length, such as : 300mm.
Details Pictures

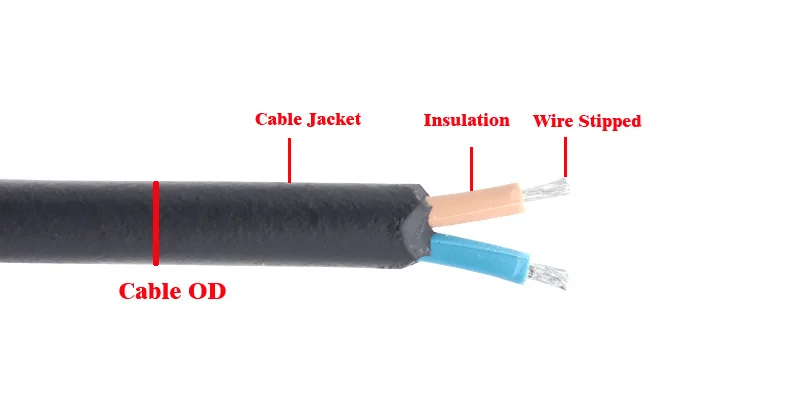

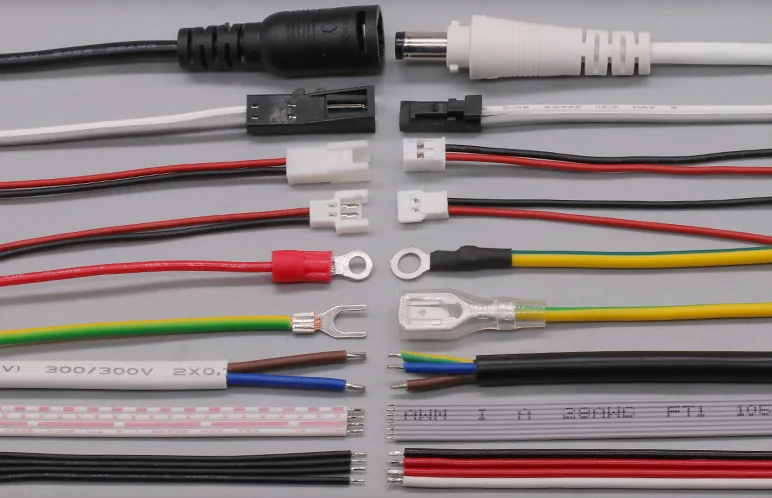

Customer cable tail treatment cases
Your drawing is also welcome.

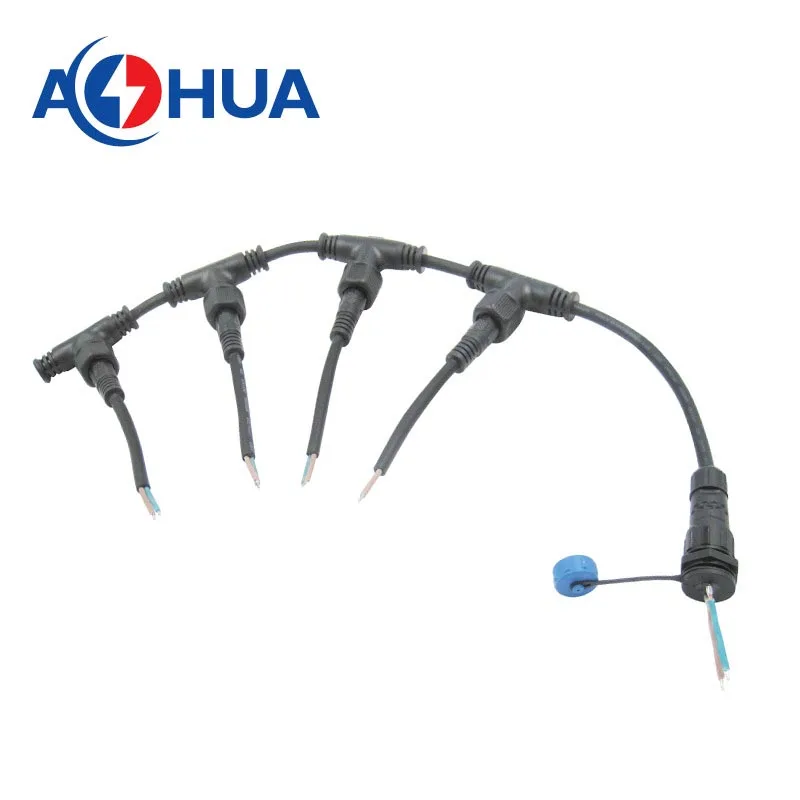

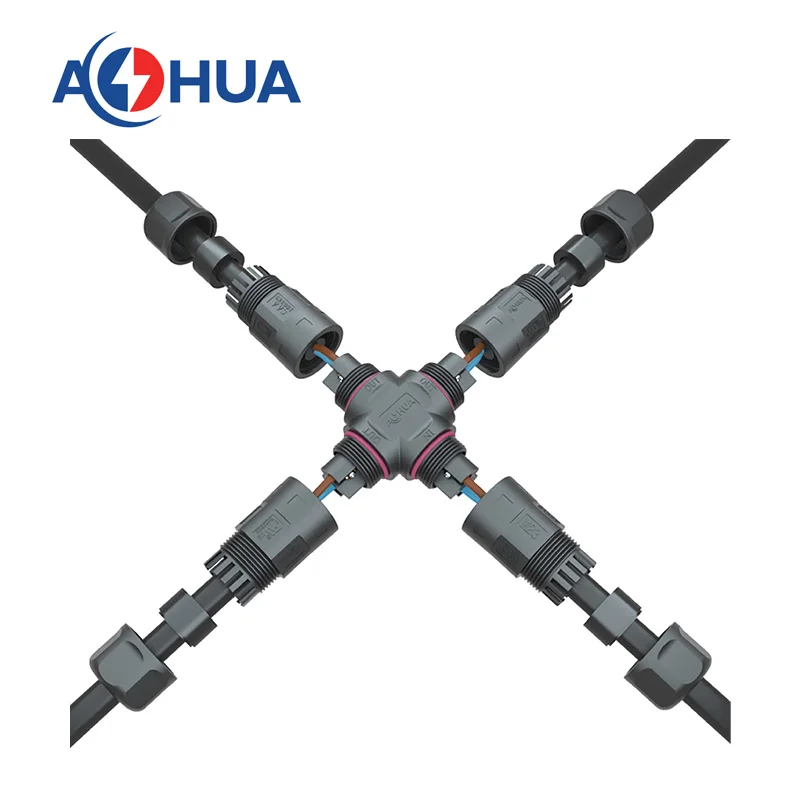

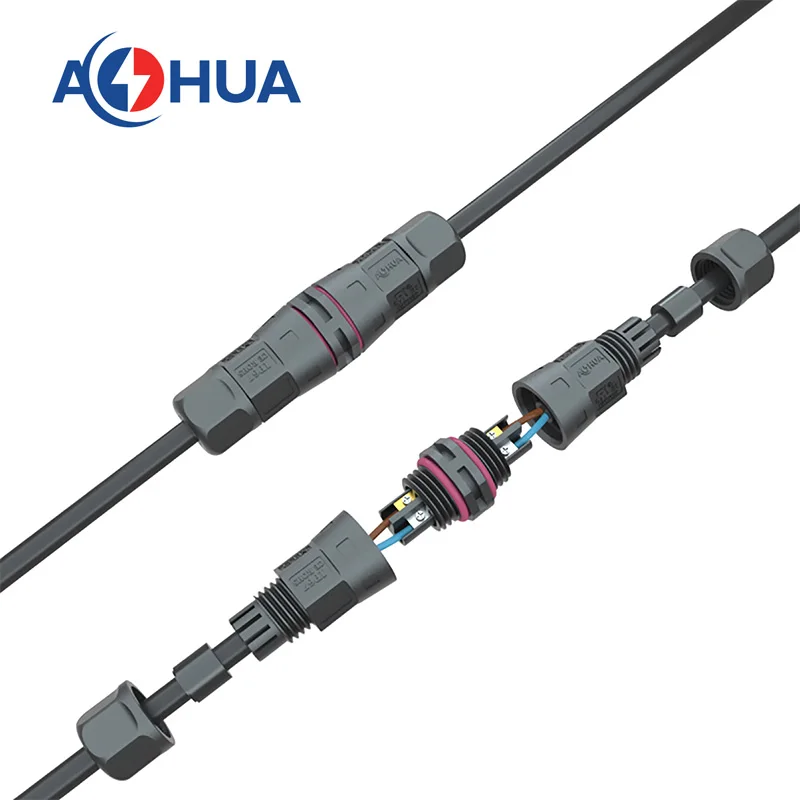

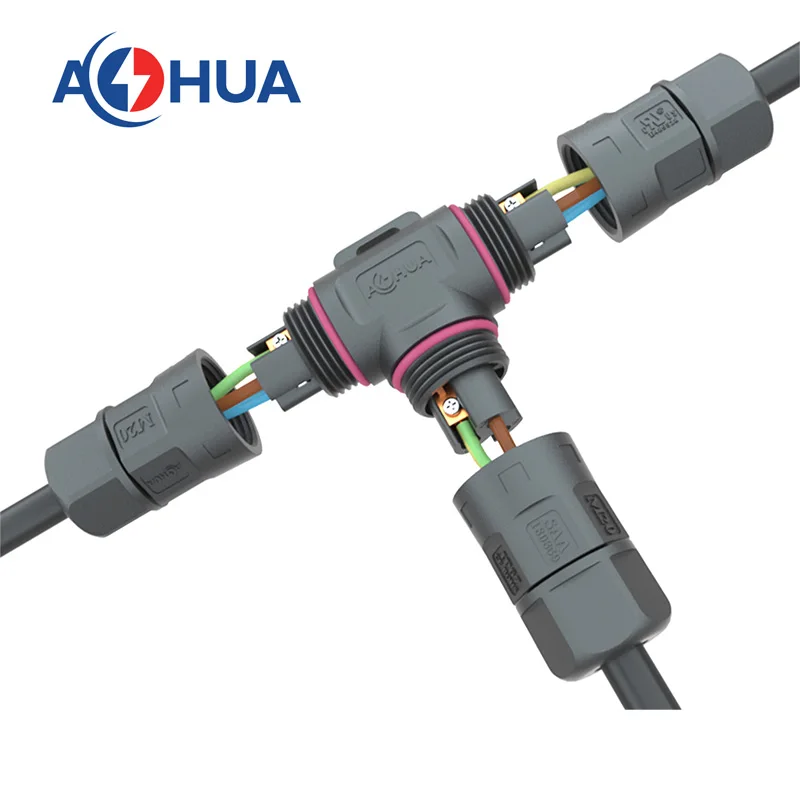

Related Products

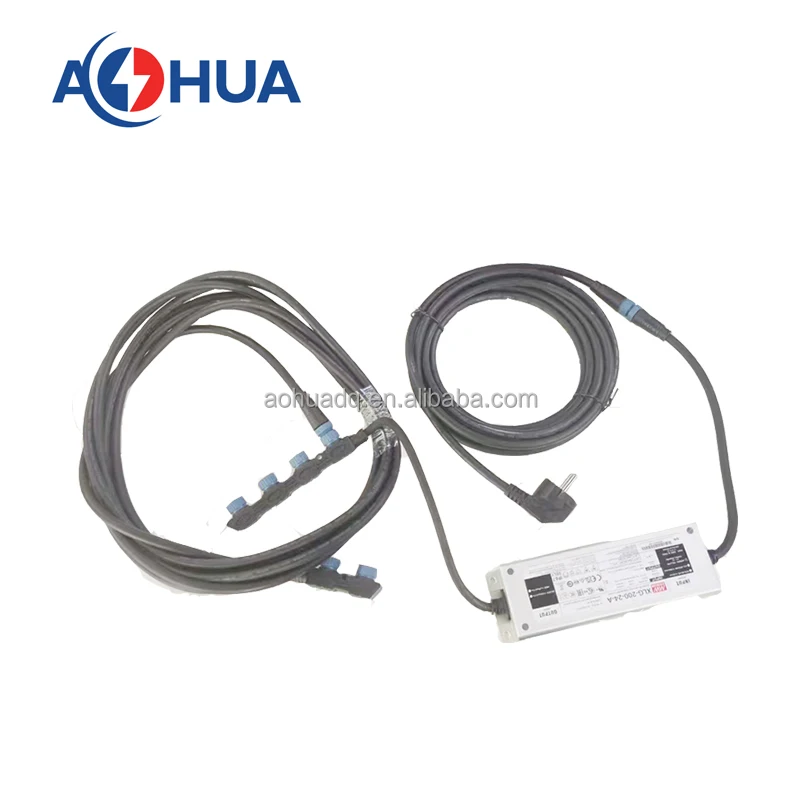

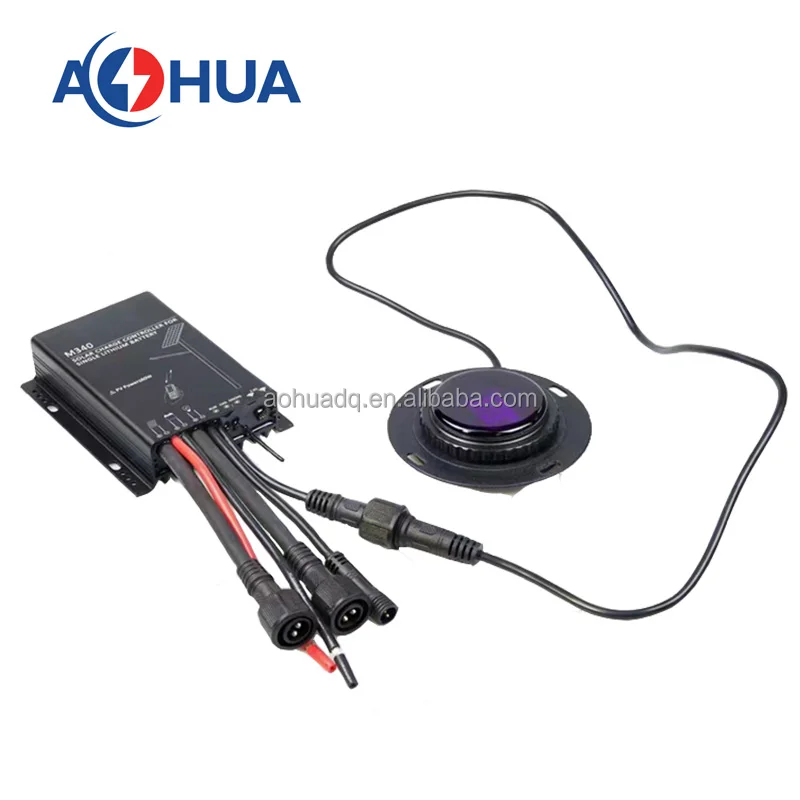

Application
Certifications

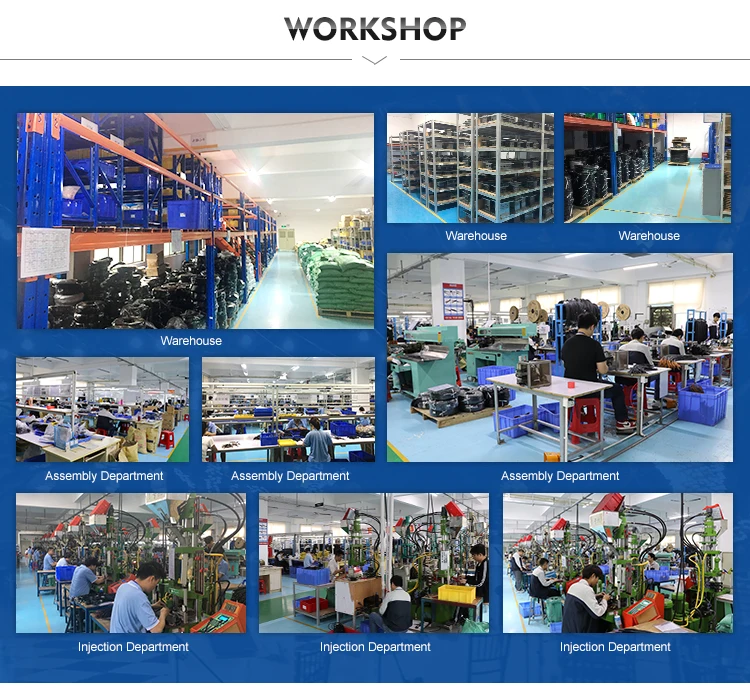

Company Profile
