Products Description


Application
Rated Voltage: DC1000V
Protection degree: lP66
Connection Type: MC4,M20,M25Working
Temperature:-5℃-+60℃
Standard: IEC 60947-3


Functions
Compact and suitable where space is limited;
DIN rail mounting for easy installation;
Load-breaking up to 8 times rated current making it ideal for motor isolation; Doublebreak with silver superior performance, reliability and long lasting;Padlockable handld- tamerproof;
Highly visible red/yellow handle;Easy to install and operate;




Name
Unit
SNISO-32
Rated current
A
16
25
32-50
lsolation voltage
V
1000
1000
1000
Rated operating currentDC21B



Series connection
750V
A
16
25
32
Parallel connection
750V
A
29
45
50
1125V
A
13
16
20
Series connection
1500V
A
9
11
13
Series connection
750V
A
16
25
32
1125V
A
16
25
32
750V
A
16
25
32
4p Series connection
1125V
A
16
25
32
1500V
A
16
25
32
Protection level
IP66
Mechanical life
10
10
10
Rated short circuit current(1s)1 2,4/2+2H
A
800/1300
900/1500
1000/1700
Breaking capacity
Lcm
800/1300
900/1500
1000/1700
Using ambient temperature
-40℃～+70℃
Height above sea leval
<2000m,≥2000The above capacity reduction is used

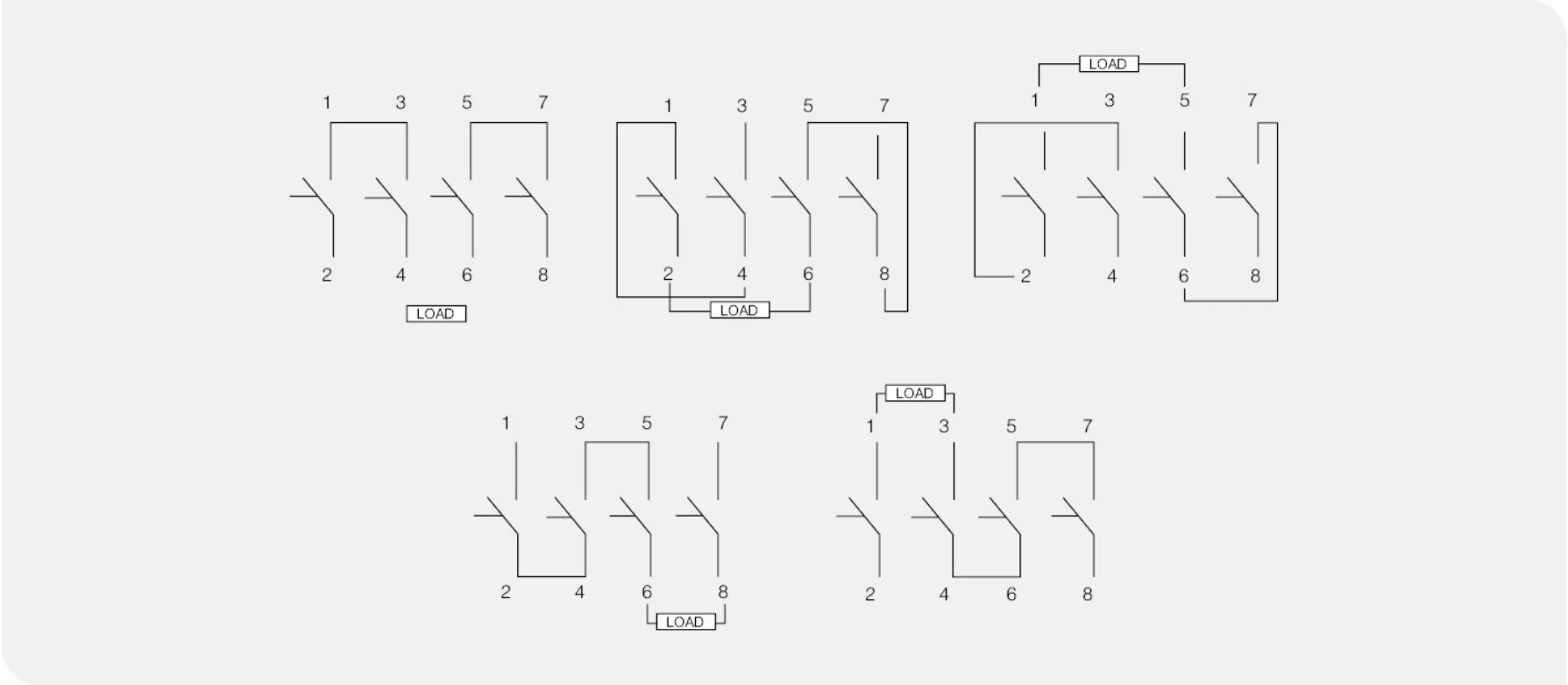

Connection




Characteristic Curve

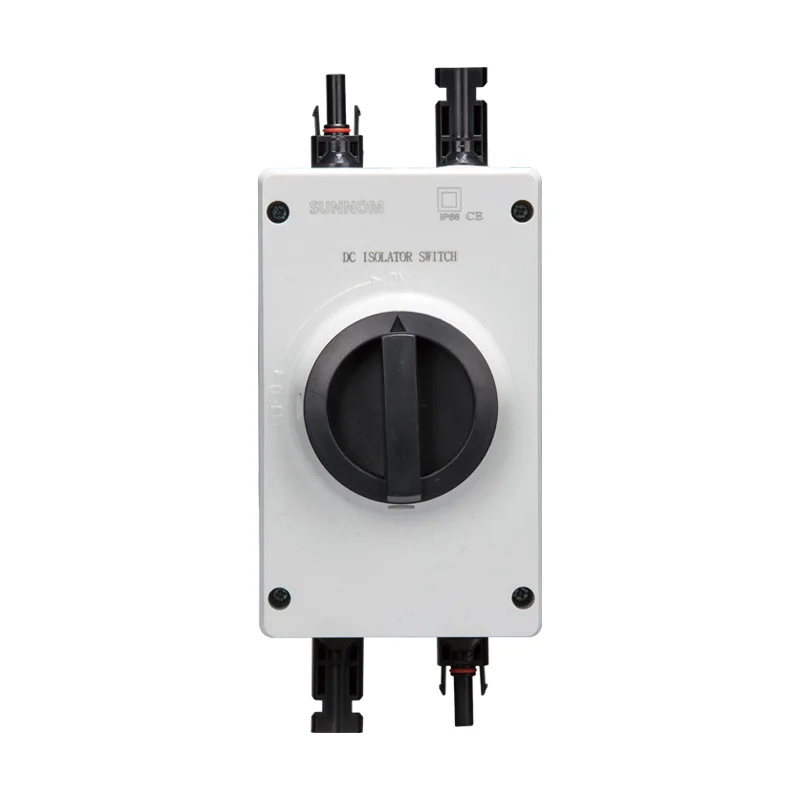

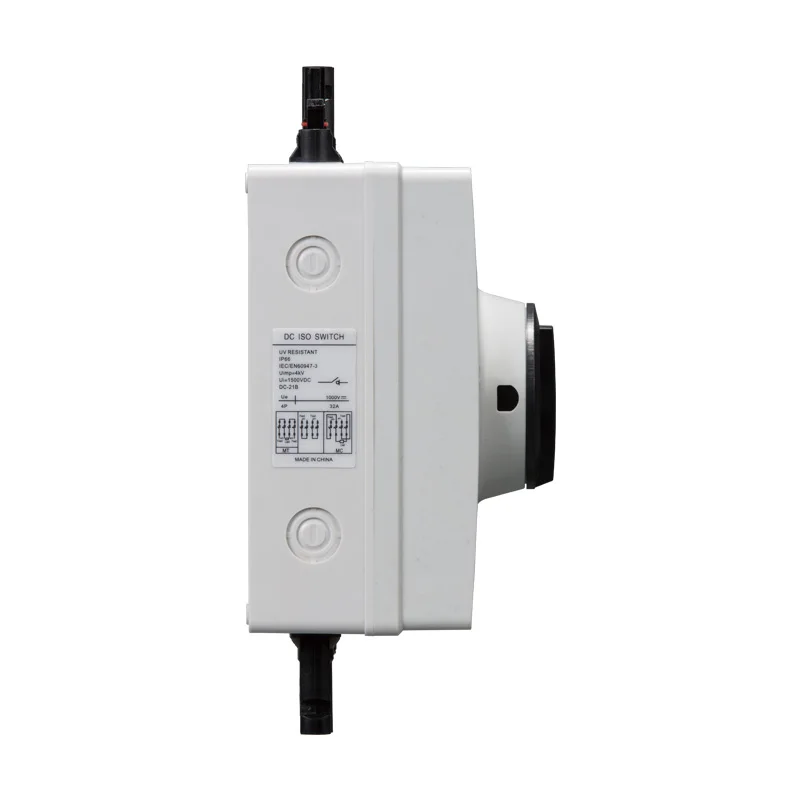

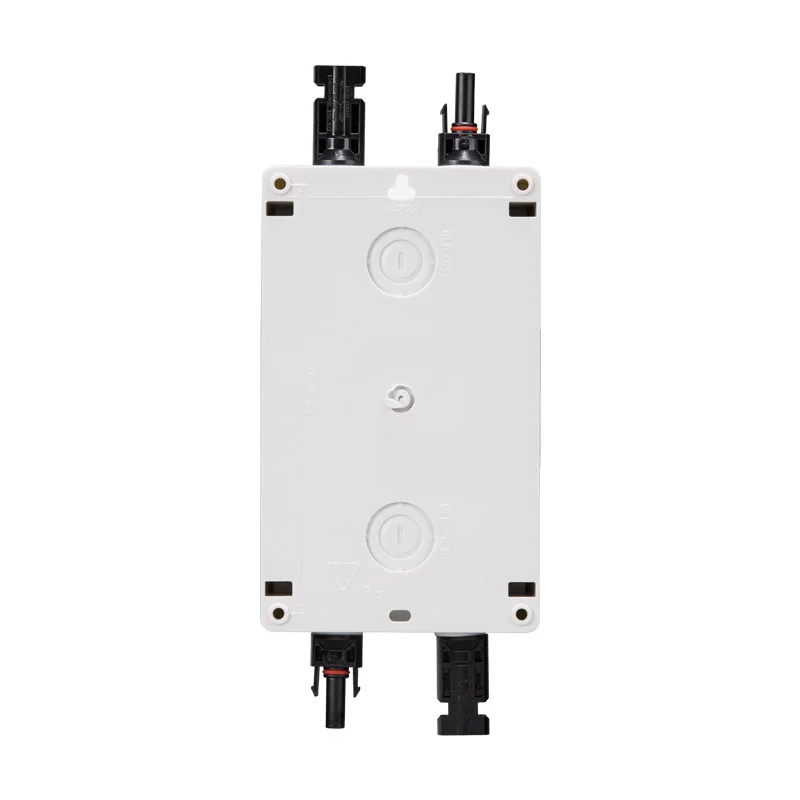

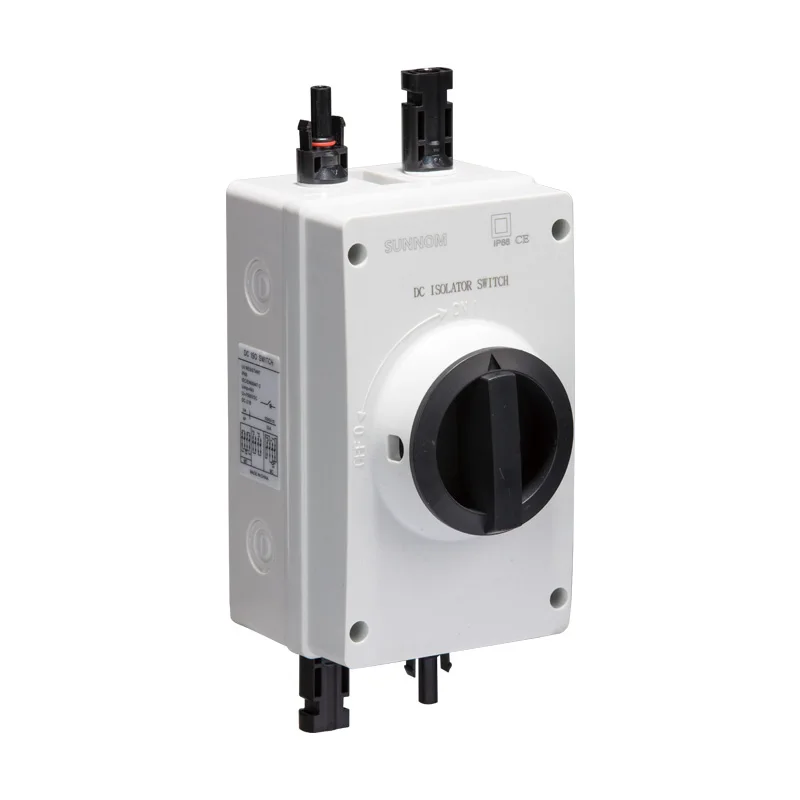

Details Images






FAQ


Q: If I'm interested in your DC Isolator Switch when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24 hours.

Q:Your DC Isolator Switch seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from
others!
A: Our DC Isolator Switch is special for Solar system all the parts in the DC Isolator Switch are high quality customized.Not all the DC Isolator Switchare DC Isolator Switch!

Q:Can I get a sample before the order because I really don't how is your DC Isolator Switch quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please
send the enquiry to us and get the free sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your DC Isolator Switch?
A:We offer two year warranty for our customer.


Shipment




DC Isolator Switch Packing Details
20 PCS PER CARTON/ 41cmx36cmx12cm/ 12.6kg

DC Isolator Switch Delivery Time:
1-10days after confirming order,detail delivery date should be decided according to production season and order quantity.

DC Isolator Switch Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
