Adjustable Table Leg Screw Plastic Head Thumb Hand Knob Screw M2 M3 M4 M5 M6
Product Paramenters

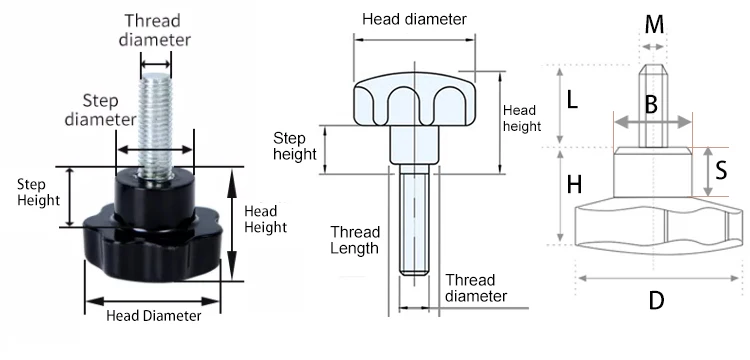

Model | Base Diameter (mm) D | Thread Diameter (mm) M | Thread Length (mm) L | Step Diameter (mm) B | Step Height (mm) S | Head Height (mm) H | ||||||
D25*M4 | 25 | 4 | 10/12/16/20/25/30 | 16 | 10 | 18 | ||||||
D25*M5 | 25 | 5 | 10/16/20/25/30/35/40 | |||||||||
D25*M6 | 25 | 6 | 12/16/20/25/30/35/40 | |||||||||
D31*M6 | 31 | 6 | 12/16/20/25/30/35/40/50/60 | 21 | 15 | 25 | ||||||
D31*M8 | 31 | 8 | 10/12/16/20/25/30/35/40/50/60 | |||||||||
D38*M8 | 38 | 8 | 16/20/25/30/40/50/60 | 24 | 12 | 26 | ||||||
D38*M10 | 38 | 10 | 20/25/30/35/40/50/60/70/80 | |||||||||
D50*M8 | 50 | 8 | 25/30/40/50 | 27 | 16 | 30 | ||||||
D50*M10 | 50 | 10 | 25/30/35/40/50/60/65/70/80/100 | |||||||||
D50*M12 | 50 | 12 | 25/30/35/40/50/60/70/80/100 | |||||||||
Specification composition: head diameter * thread diameter * thread length, such as D25 * M4 * L10, Note: the above data are single batch of manual measurement results exist positive and negative tolerance, the specific data please prevail in kind.OEM is available，We can customize according to customer's requirements unit(mm) | ||||||||||||
Products Description
Product Name | Material | Base Material | Thread Material | Surface Treatment | |||
Plum Handle Screw | ZINC-plated | Bakelite | Carbon Steel | Galvanizing process or other | |||
Stainless Steel:304/201 | Stainless Steel | / | |||||
Product Features | Seven star knob head | ||||||
Handle Screw/Thumb Screw
1. From the process of all-round control of the precision of the nut, the minimum tolerance range of the nut can be controlled within 0.1mm.
2. Each batch of screws will be tested with measuring equipment to ensure that the nut will not break.
3. We use brand quality raw materials, and execute quality control at the source of production, with high precision and stable processing performance.
4. Our products are triple hand-picked finely assembled to ensure qualified, each without gross times, quality assurance.

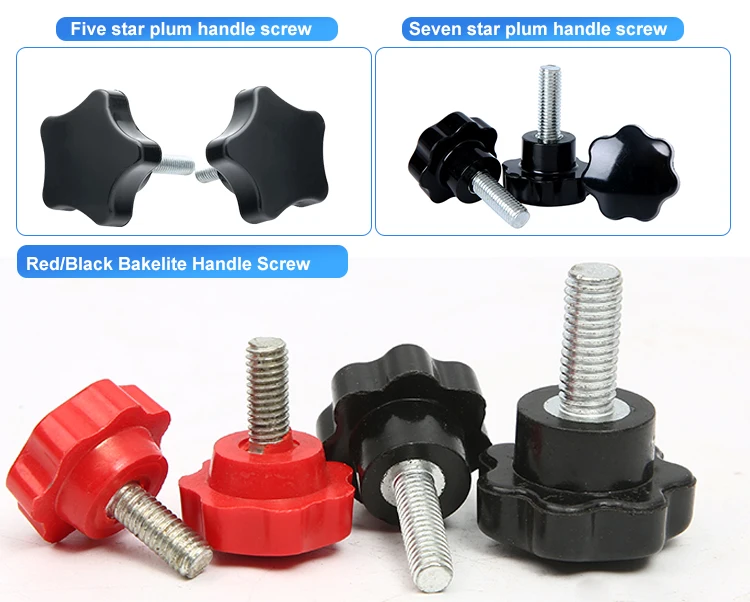

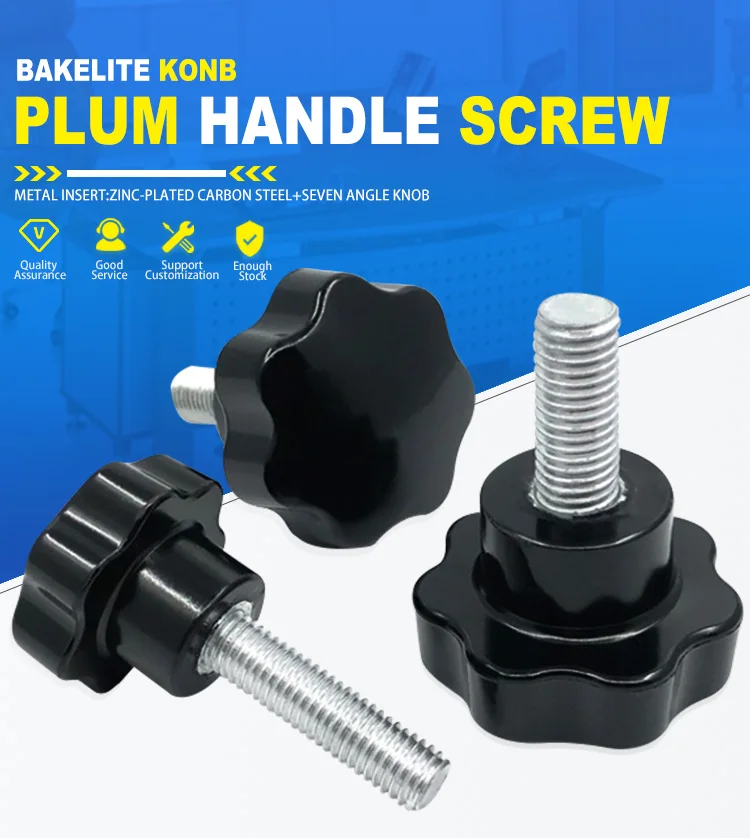

Plum Handle Screw/Thumb Screw
1.Bakelite plum handle+Screw
2.screw material in addition to carbon steel, stainless steel 304 or 316 is OK
2.Except for the dimensions in the table, the other lengths of the screw can be customized
3.thread diameter can be done in imperial standard
5.Bakelite handle, black and red models, Handle is seven stars or five stars Bakelite plum handle,smooth surface, environmental health, beautiful and practical
6.Formal inspection, neat threads, product threads are up to the international standard
requirements.
6.Formal inspection, neat threads, product threads are up to the international standard
requirements.
7.Injection molding process, the bottom of the handle arc design, bright and neat, do not
scratch the hand, easy to use
scratch the hand, easy to use
8. Complete specifications, a variety of models can be selected

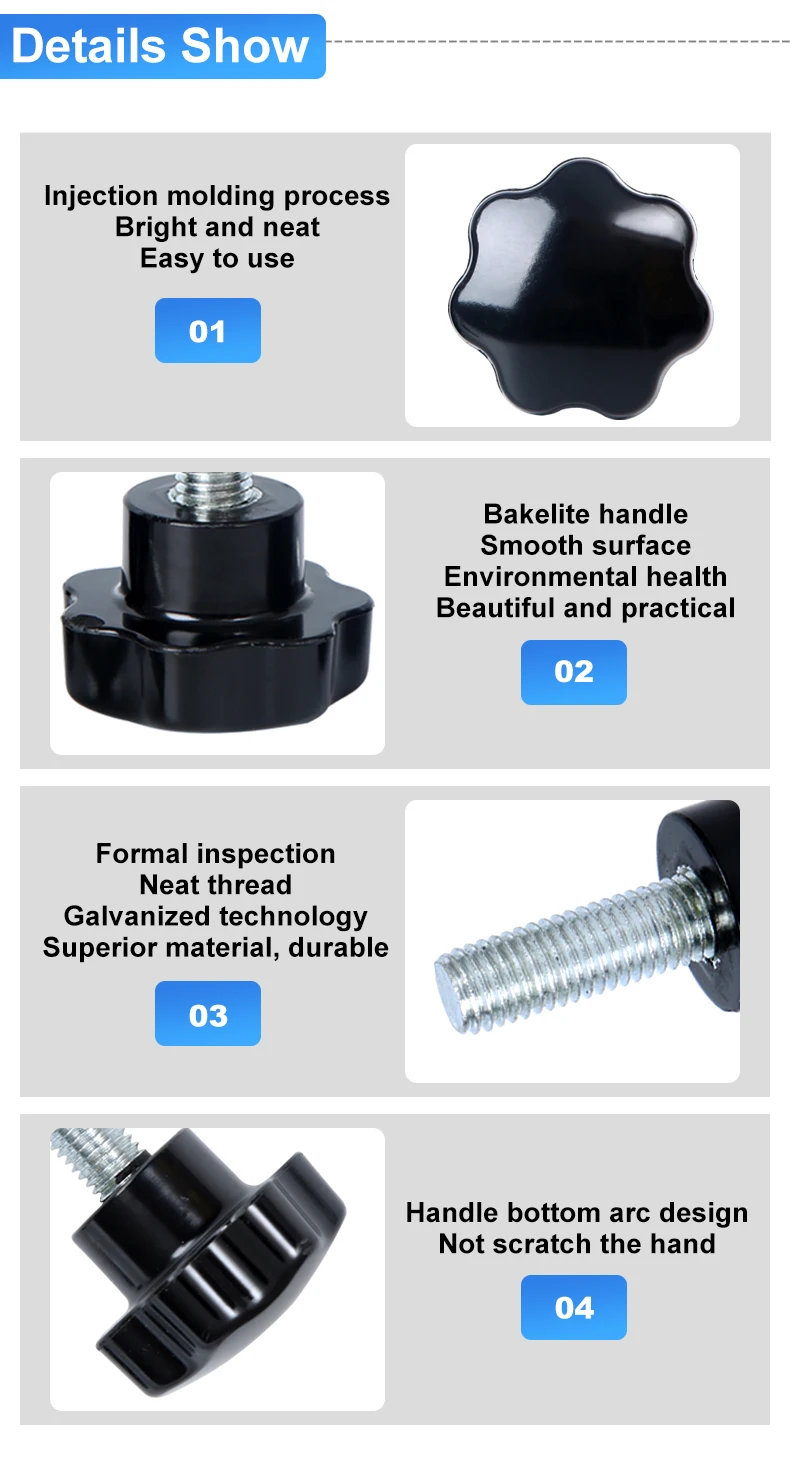

Details Images
Applications
Field of application of leveling feet
Our company products are widely used in general equipment,automobile, building, communication, electron, energy, printing machinery, textile machinery, packaging machinery, medical equipment, petroleum and petrochemical equipment,electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.
