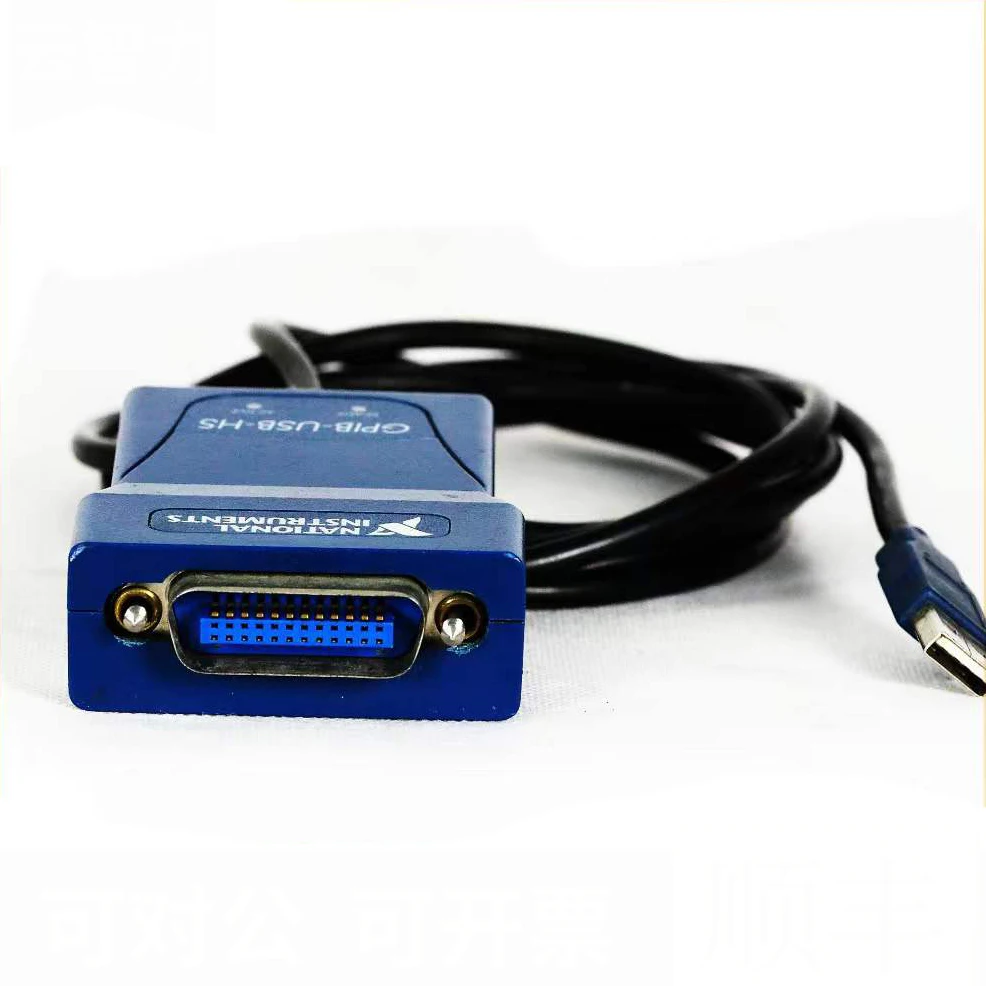

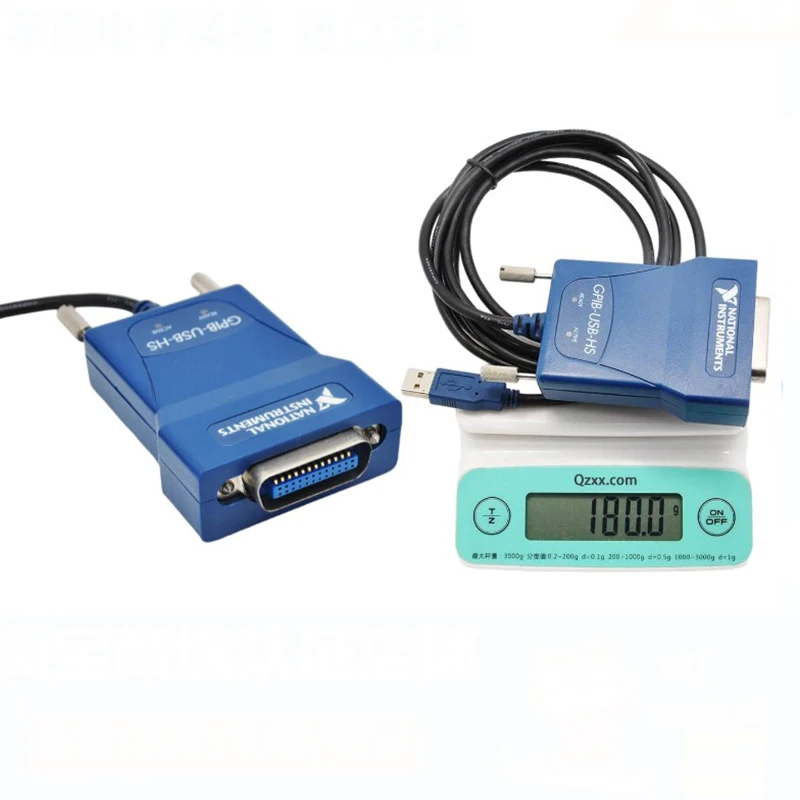

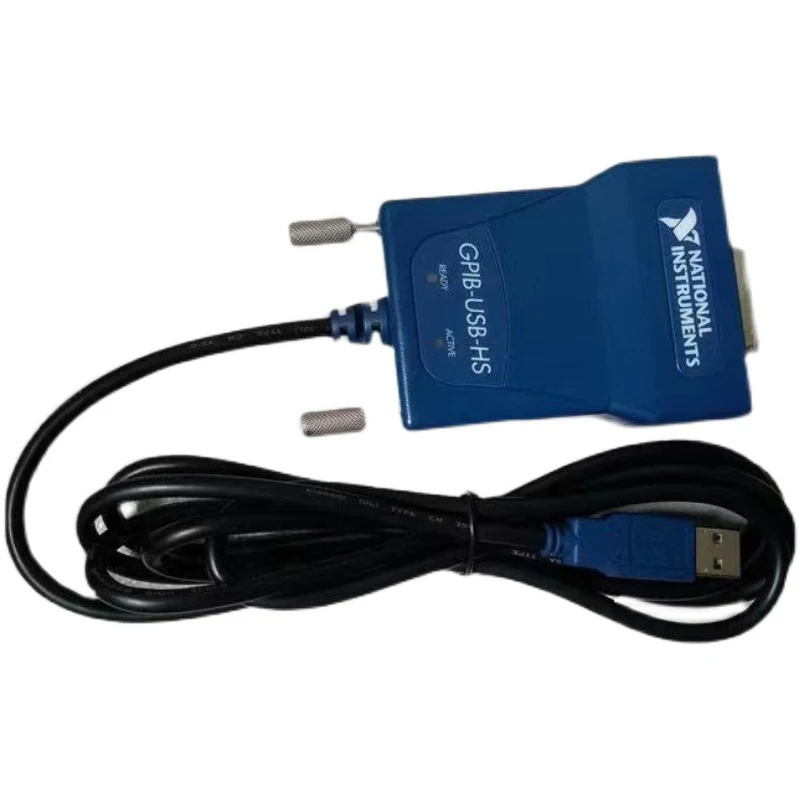

NI GPIB-USB-HS card 778927-01

GPIB controller for Hi-Speed USB IEEE 488.1 transfer rate up to 1.8 MB/s (standard) or 7.7 MB/s (HS488) Hi-Speed USB Compliant; Compatible with USB 1.x Full-Speed Ports No GPIB cables required for instrument connection; plug-and-play installation and configuration NI-488.2 for Windows, Mac OS X, and Linux® Compliant with RoHS Directive; fully compliant with IEEE 488.2 Overview Product GPIB-USB-HS Product Family GPIB Bus type USB Part No. 779704-01 , 778927-01 OS / Object Linux , Windows LabVIEW RT support No Voltage 5 VDC Current 500 mA Power supply Internal power supply Comply with GPIB standard HS488 , IEEE 488.1 , IEEE 488 , IEEE 488.2 Onboard GPIB analyzer No Onboard GPIB ASIC chip TNT5004 port information Number of ports 1 Max Baud Rate (IEEE 488.1) 1.8 MB/s Maximum baud rate (HS488) 7.2 MB/s Maximum cable length 4 m I/O FIFO buffer size 64 B , 32 B Up to device connections/ports 14 physical standard Length 10.7 cm Width 6.6 cm Height 2.6 cm I/O Connector 24-pin IEEE 488 Operating temperature 0 °C Operating temperature 55 °C
