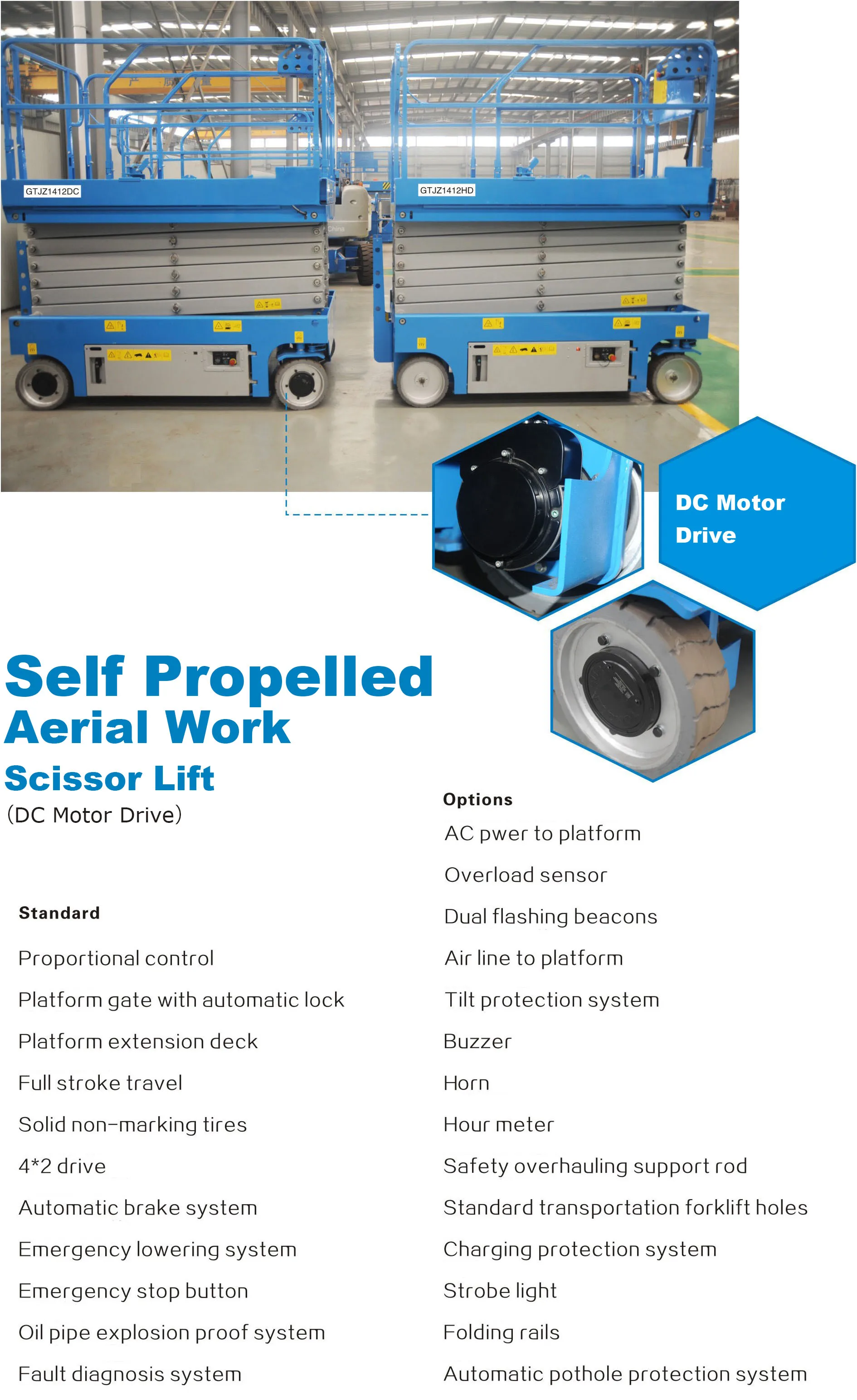

Электрическая подъемная платформа на батарейках 220 вольт ножничный подъемник 16 м
- Категории: Work Platforms >>>
- Поставщик: Henan,Crane,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Battery operated electric lifting platform 220 volts scissor lift 16m 18mBattery operated electric lifting platform 220 volts scissor lift 16m 18m Electric lifting platform 220 volts scissor lift battery operated electric lifts with scissors exte

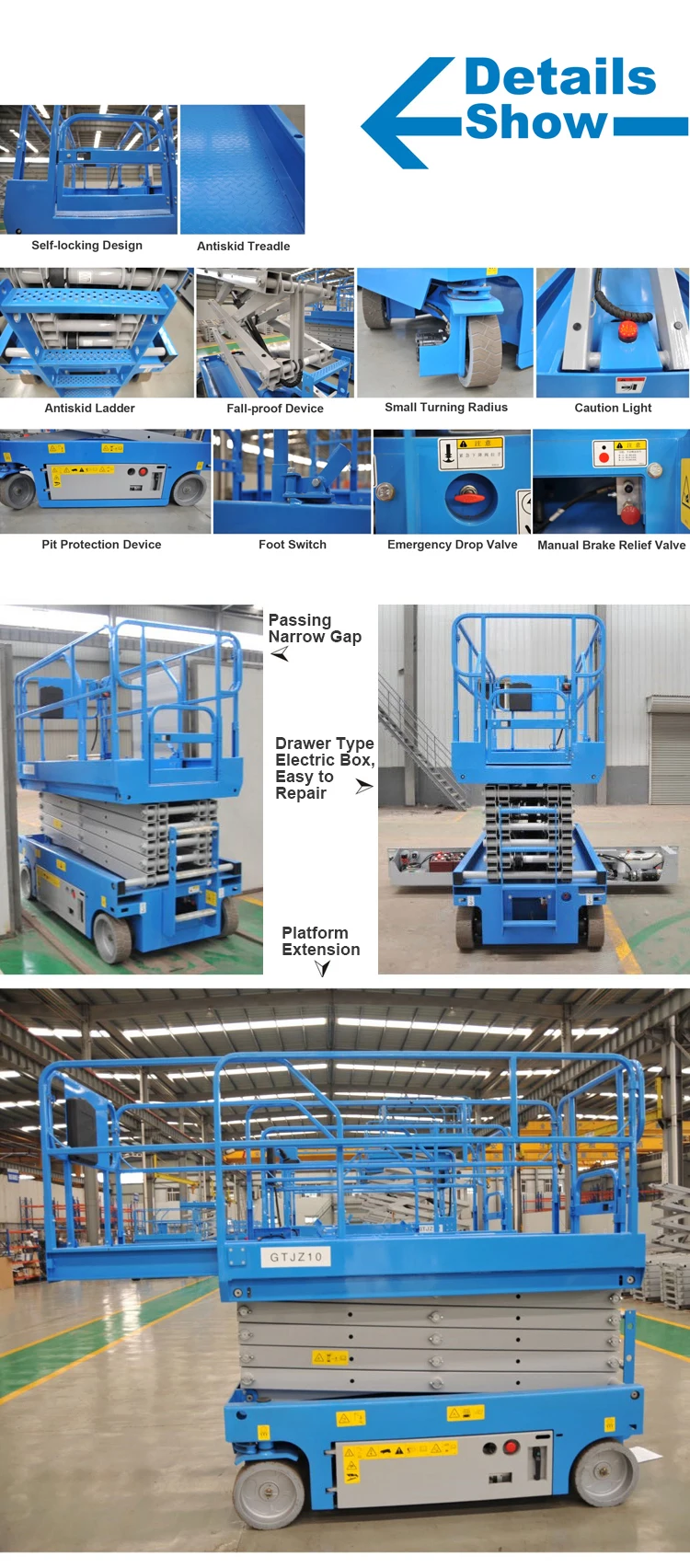

Product Details
| items | 07series | 08series | 12series | 14series | ||||
| models | GTJZ | |||||||
| 0807DC | 0808DC | 1008DC | 1012DC | 1212DC | 1412DC | 1414DC | 1614DC | |
| capacity | 230kg | 380kg | 230kg | 450kg | 320kg | 320kg | 450kg | 200kg |
| Capacity-extension deck | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max occupancy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Max working height-A | 7.80m | 8.20m | 10.10m | 10.10m | 12.00m | 13.80m | 13.50m | 15.70m |
Max platform height-B | 5.80m | 6.20m | 8.10m | 8.10m | 10.00m | 11.80m | 11.50m | 13.70m |
| Length-C | 1.86m | 2.42m | 2.42m | 2.42m | 2.42m | 2.42m | 2.79m | 2.79m |
| Width-D | 0.76m | 0.83m | 0.83m | 1.17m | 1.17m | 1.17m | 1.27m | 1.27m |
Height(raillings unfolded) | 2.19m | 2.24m | 2.37m | 2.36m | 2.49m | 2.62m | 2.49m | 2.62m |
Height-E (railling folded) | 1.85m | 1.94m | 2.07m | 1.80m | 1.93m | 2.06m | 1.93m | 2.06m |
Platform size (L×w-F) | 1.67m× 0.74m | 2.27m× 0.83m | 2.27m× 0.83m | 2.27m× 1.14m | 2.27m× 1.14m | 2.27m× 1.14m | 2.64m× 1.14m | 2.64m× 1.14 m |
Extension deck size -G | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
Ground clearance (stowed) | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
Ground clearance (elevated) | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m |
| wheelbase | 1.40m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m | 2.24m | 2.24m |
Min turning radius (inside) | 0m | 0m | 0m | 0m | 0m | 0m | 0m | 0m |
Min turning radius (outside) | 1.60m | 2.25m | 2.25m | 2.23m | 2.23m | 2.23m | 2.25m | 2.25m |
| Driving motor | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw |
| Lifting motor | 24V/2.0kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
Driving speed (stowed) | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h |
Driving speed (elevated) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
Lifting/lowering speed | 18/22sec | 24/34sec | 28/40sec | 28/40sec | 45/36sec | 50/38sec | 60/45sec | 80/60sec |
| batter | 4×6V/ 225Ah | 4×6V/ 225Ah | 4×6V/ 225Ah | 4×6V/ 225Ah | 4×6V/ 240Ah | 4×6V/ 260Ah | 4×12V/ 300Ah | 4×12V/ 300Ah |
| charger | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A |
Max gradeability | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Max tilt | 3°/1.5° | 3°/2° | 3°/1.5° | 3°/2° | 3°/2° | 3°/1.5° | 3°/2° | 3°/1.5° |
| tires | Φ323× 100mm | Φ381× 127mm | Φ381× 127mm | Φ381× 127mm | Φ381× 127mm | Φ381× 127mm | Φ381× 127mm | Φ381× 127mm |
| Weight | 1260kg | 2020kg | 2140kg | 2270kg | 2520kg | 3140kg | 3060kg | 3220kg |
