20KN 20000N универсальная вертикальная электрическая стойка для испытания
- Категории: Gauges >>>
- Поставщик: Decca,Precision,Measuring,Instrument,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
this price including the test stand and force gauge whole set
Function:

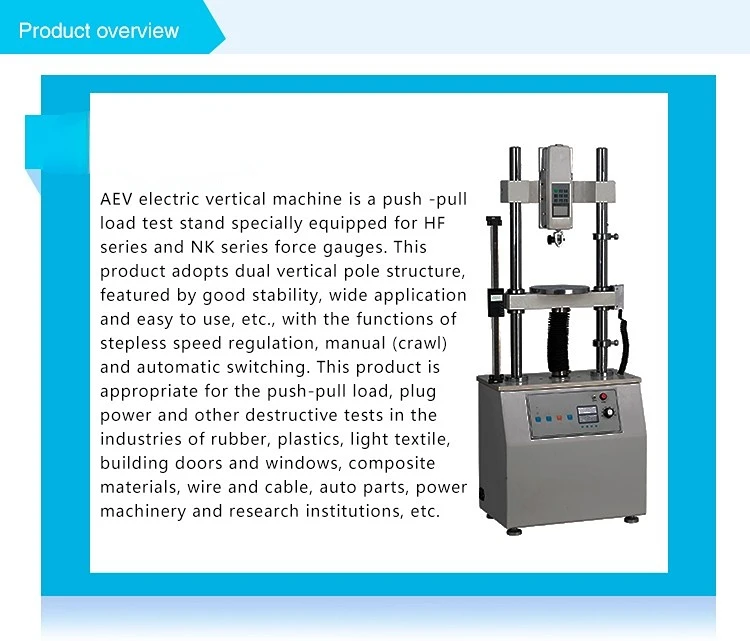

AEV electric vertical machine is a push -pull load test stand specially equipped for HF series and NK series force gauges.
This product adopts dual vertical pole structure, featured by good stability, wide application and easy to use, etc., with the functions of stepless speed regulation, manual (crawl) and automatic switching.
This product is appropriate for the push pull load, plug power and other destructive tests in the industries of rubber, plastics, light textile, building doors and windows, composite materials, wire and cable, auto parts, power machinery and research institutions, etc.

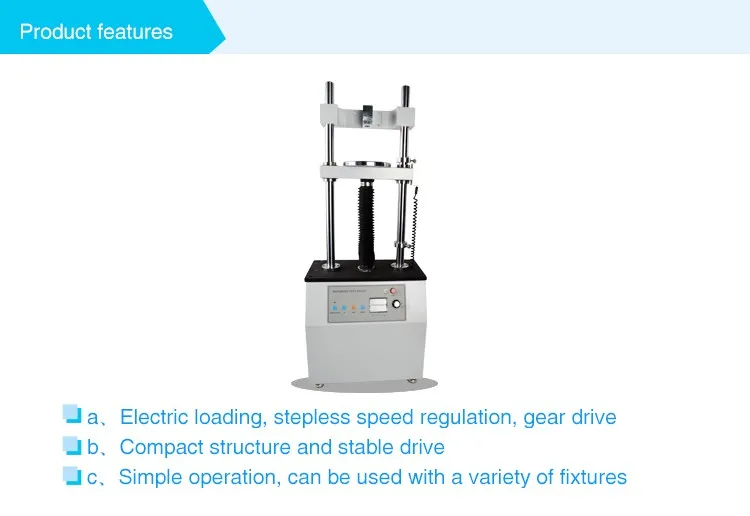

Features:
- Electric loading, stepless speed regulation, gear drive
- Compact structure and stable drive
- Simple operation, can be used with a variety of fixtures
Universal Push Pull Testing Electric Double Column Vertical Compression Test Stand

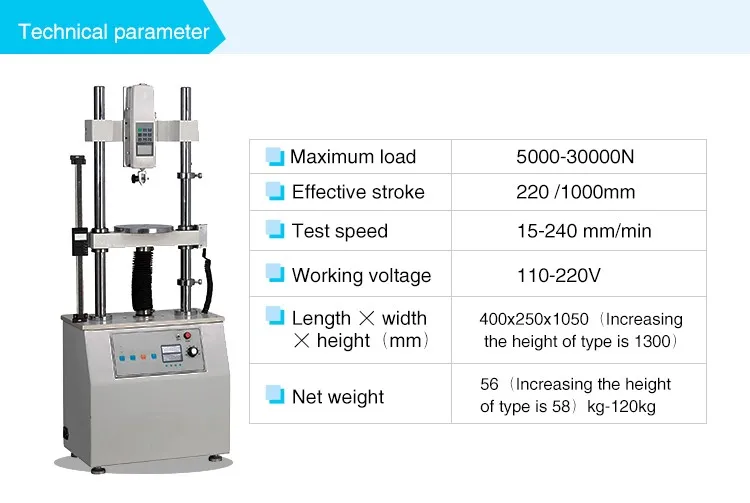

| Model | DC-AEV-5000 | DC-AEV-5000(HIGHTEN) | DC-AEV-10000N | DC-AEV-20000N | DC-AEV-30000N |
| MAX LOAD | 5000N | 10000N | 20000N | 30000N | |

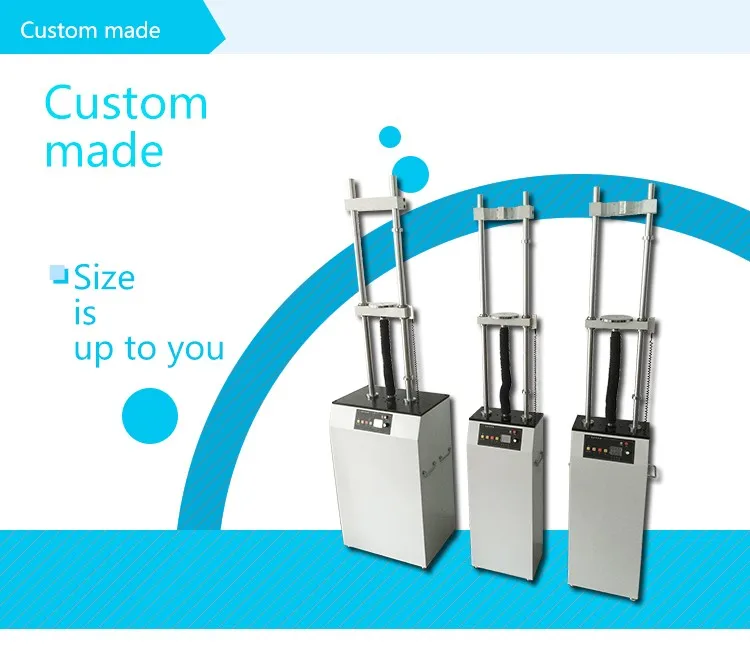

| Stroke | 220mm ( custom made 220-1000mm) | ||||
| Speed | 60-220mm/min | 50-180mm/min | |||
| Voltage | 110V OR 220V | ||||
| Net weight | 56kg | 60kg | 65kg | 85kg | 85kg |
