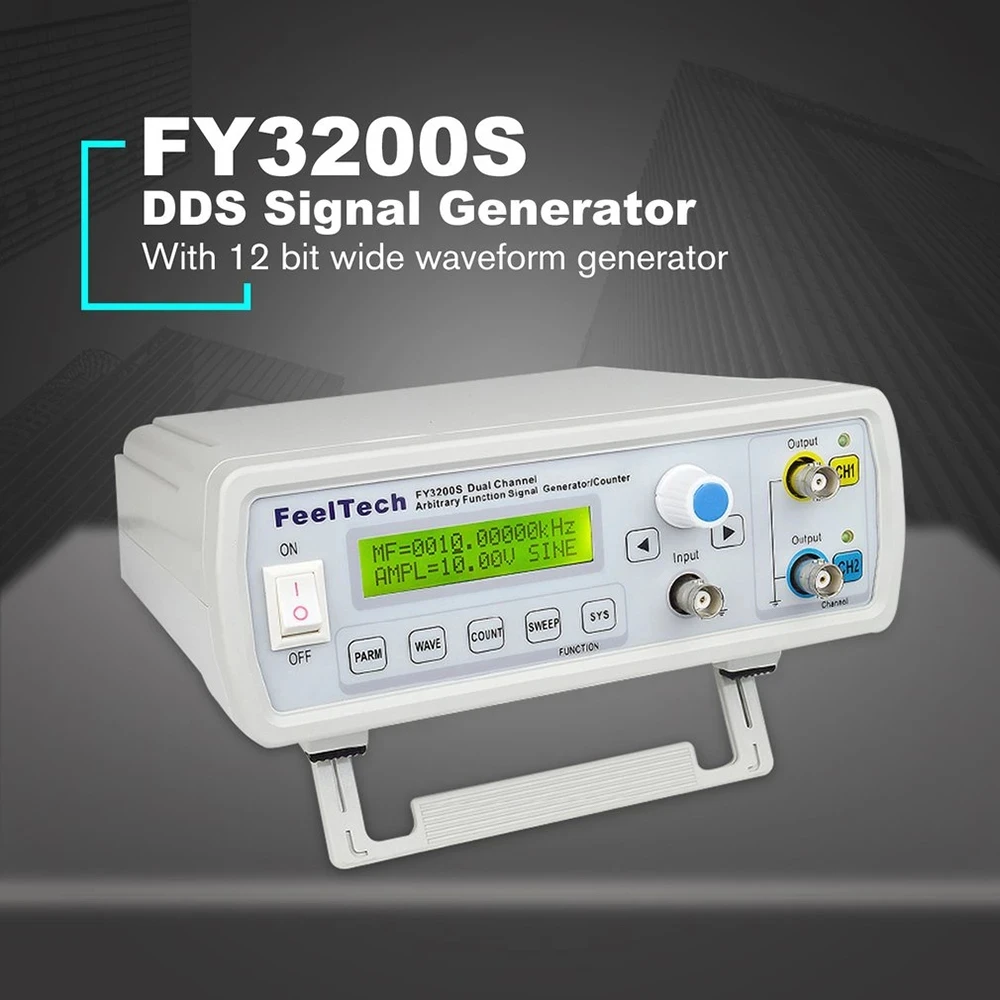

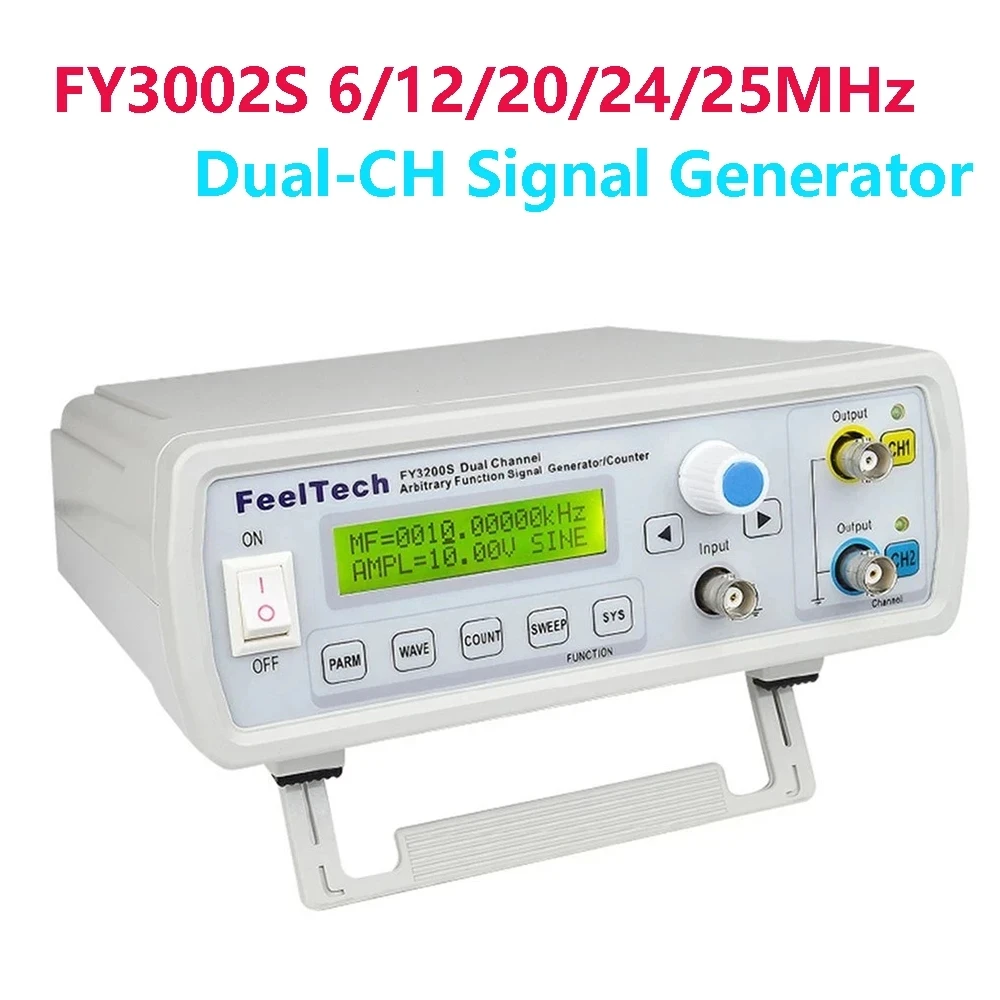

FY3200S 6/12/20/24/25 МГц цифровой DDS двухканальный генератор источника сигнала произвольная форма/измеритель

Product Introduction:

FY3200S series dual-channel function/arbitrary waveform generator is a portable, high-performance, cost-effective and multi-function signal generator that integrates the functions of function signal generator, arbitrary waveform generator, pulse signal generator, frequency sweeper, counter and 100MHz frequency meter. The instrument adopts large-scale FPGA integrated circuit and high-speed MCU microprocessor, and the internal circuit uses high-precision active crystal oscillator as the benchmark, with high signal stability. Surface mounting technology greatly improves the anti-interference and service life of the instrument. The one-button operation of common functions greatly improves the operability and practicability of the instrument!

The instrument has dual function/arbitrary waveform signal output, which can generate sine wave, square wave, triangular wave, sawtooth wave, pulse wave (the pulse width can be accurately set, and the same pulse width can be maintained at different frequencies), Lorentz pulse, multi-tone, irregular noise, ECG, trapezoidal pulse, Cinke pulse, narrow pulse, Gaussian white noise, amplitude modulation waveform, frequency modulation waveform, dual TTL output FSK frequency shift keying and ASK amplitude shift keying signal output and user-defined waveform. The product also has linear frequency sweep and logarithmic frequency sweep functions, and can set the scanning frequency range and scanning time at will.

The CH1 and CH2 channels are completely symmetrical, the phase difference is adjustable, and the parameters of each channel can be set independently. The maximum output signal amplitude can reach 20Vpp, and the maximum output amplitude of the matched dual-channel power amplifier can reach 80VPP. Both FY3225S output signals can reach up to 25MHz. The frequency, amplitude, offset and phase of the output signal can be controlled by program (the instrument can display the amplitude, phase, waveform and other parameter information of the output signal, making your operation more intuitive and convenient). It is an ideal equipment for electronic engineers, laboratories, production lines, teaching and scientific research!

Features:

1.Sampling rate up to 250 MSa/s.

2.Built-in arbitrary waveform with 250 MSa/s sampling rate.

3.4 downloadable 2048 dots arbitrary waveform memories.

4.With 12 bit wide waveform generator, the output waveform can be more delicate with low distortion.

5.Fully numerical control. It can display and numerical control amplitude, offset, frequency, duty cycle of current signal output and phase difference of two channels. And dual-channel arbitrary integer multiples of the frequency output when no phase error signal phase drift.

6.Each function can be adjusted by host computer.

7.Preinstalled 17 common waveforms.

8.High frequency accuracy: magnitude 10-6.

9.High resolution: Full range frequency resolution can be 10 mHz.

10.Both main and subsidiary wave duty cycle are adjustable separately (0.1%~99.9%).

11.All range continuously adjustable, digital directly setting.

12.High waveform accuracy: The output waveform synthesized by function calculation is of high accuracy and low distortion.

13.Arbitrary waveform: User can load arbitrary waveform according to the need.

14.Sweep Function:Linear sweep and Logarithmic sweep. Starting and stop points can be set optionally.

15.Save function: 20 sets of parameters defined by the users can be saved and loaded anytime.

16.Operation mode: Button and knob controlled with LCD1602 display, digital set directly or knob adjusted continuously.

17.Highly reliable:Large scale integrated circuit, Surface mounting technology, reliable and durable.

18.Frequency measurement:Frequency of internal / external signal can be measured through built-in 100MHz frequency meter.

19.Follow function: Built-in parameter follow function covering frequency, amplitude, offset, duty cycle, waveform etc. for user’s convenience.

20.Trigger output function: User can choose manual trigger, external trigger or CH2 trigger to control the main output to output waveforms of specified periodicity. This periodicity can also be defined by the user.

21.FSK frequency shift keying and ASK amplitude shift keying signal output.

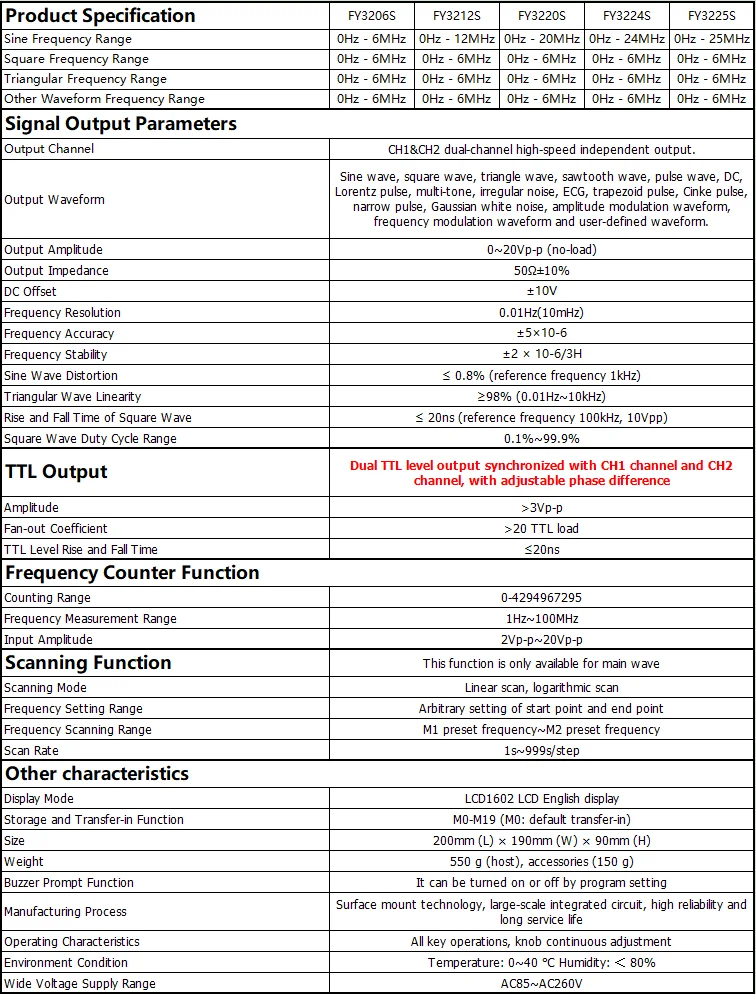

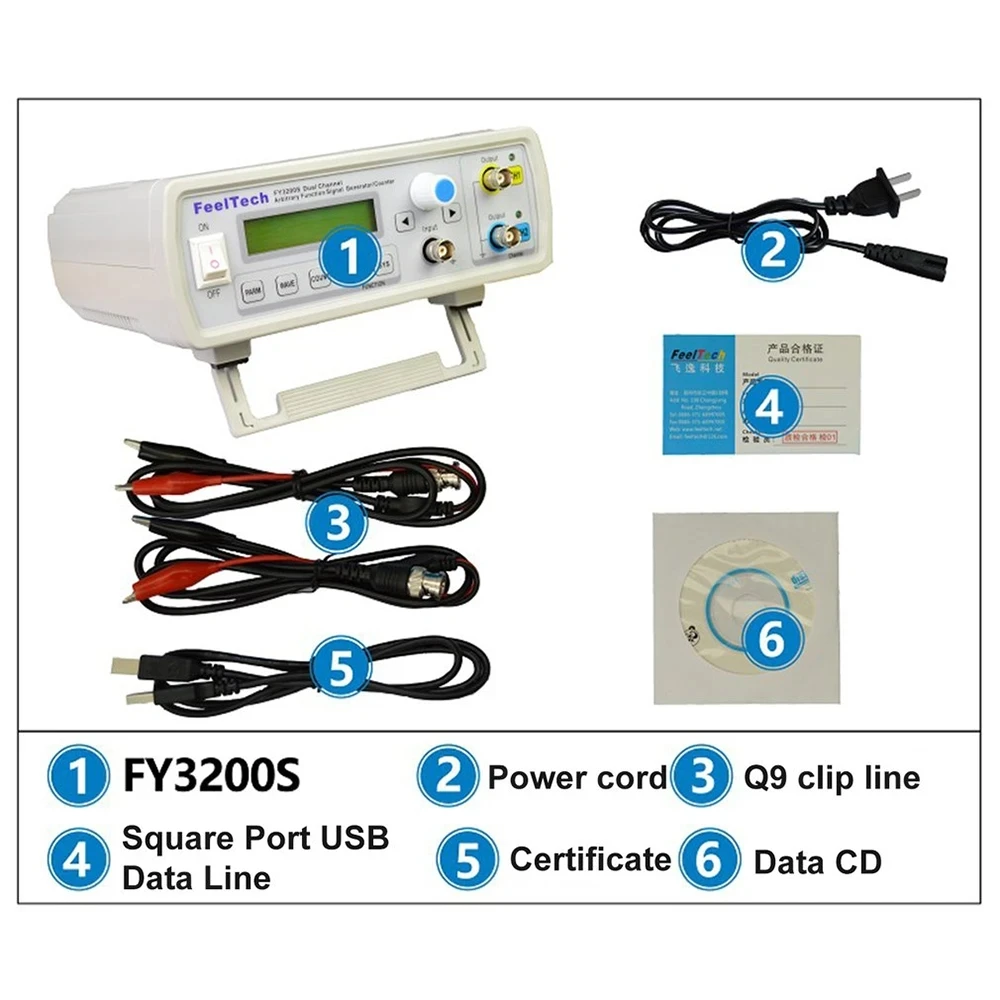

Technical Parameter:
