Прямая продажа с завода первый немодулированный синусоидальный солнечный инвертор гибридный тип Параллельная работа доступна для
- Категории: Electrical Equipment & Supplies >>>
- Поставщик: Huizhou,Sanhua,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

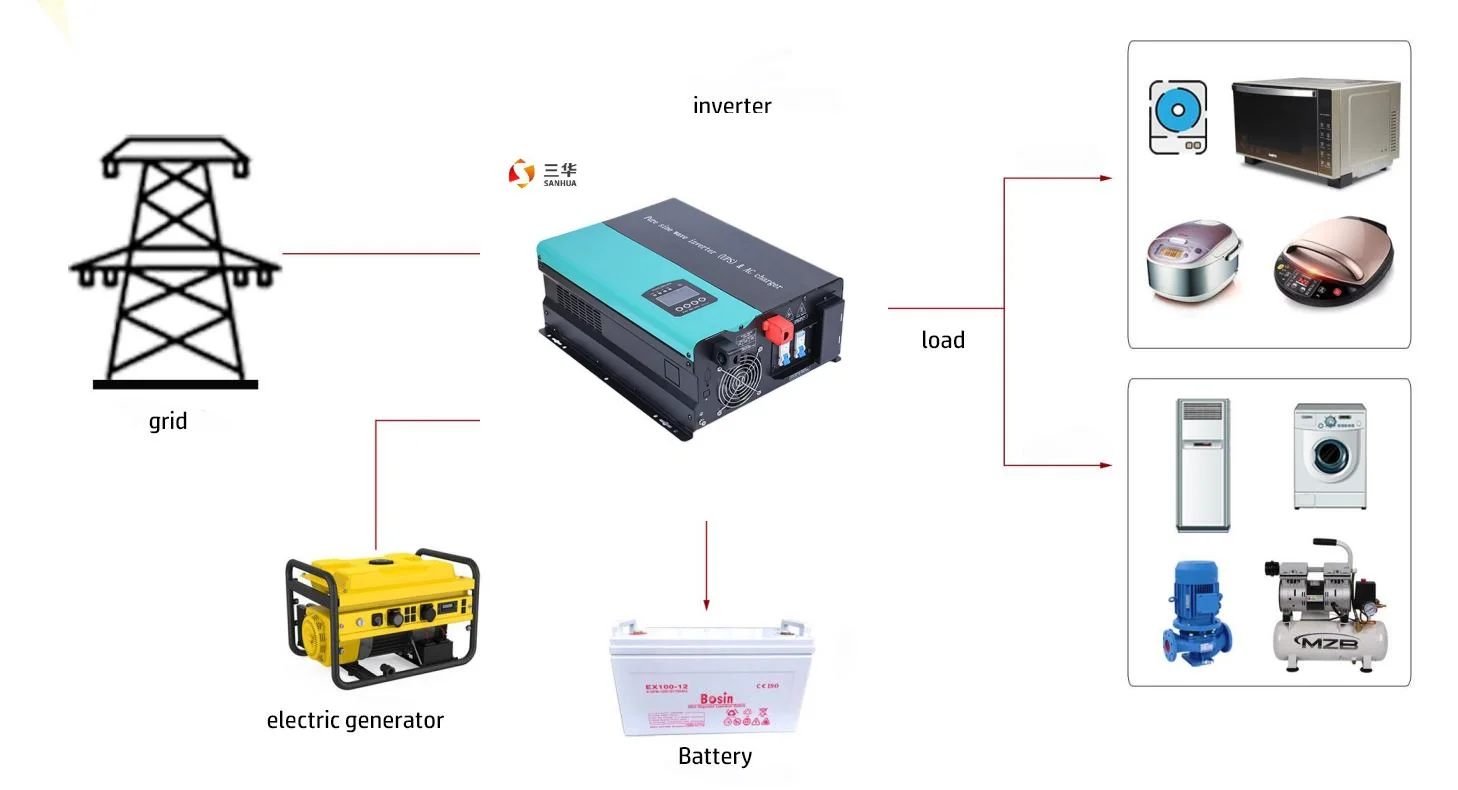

Product Connection

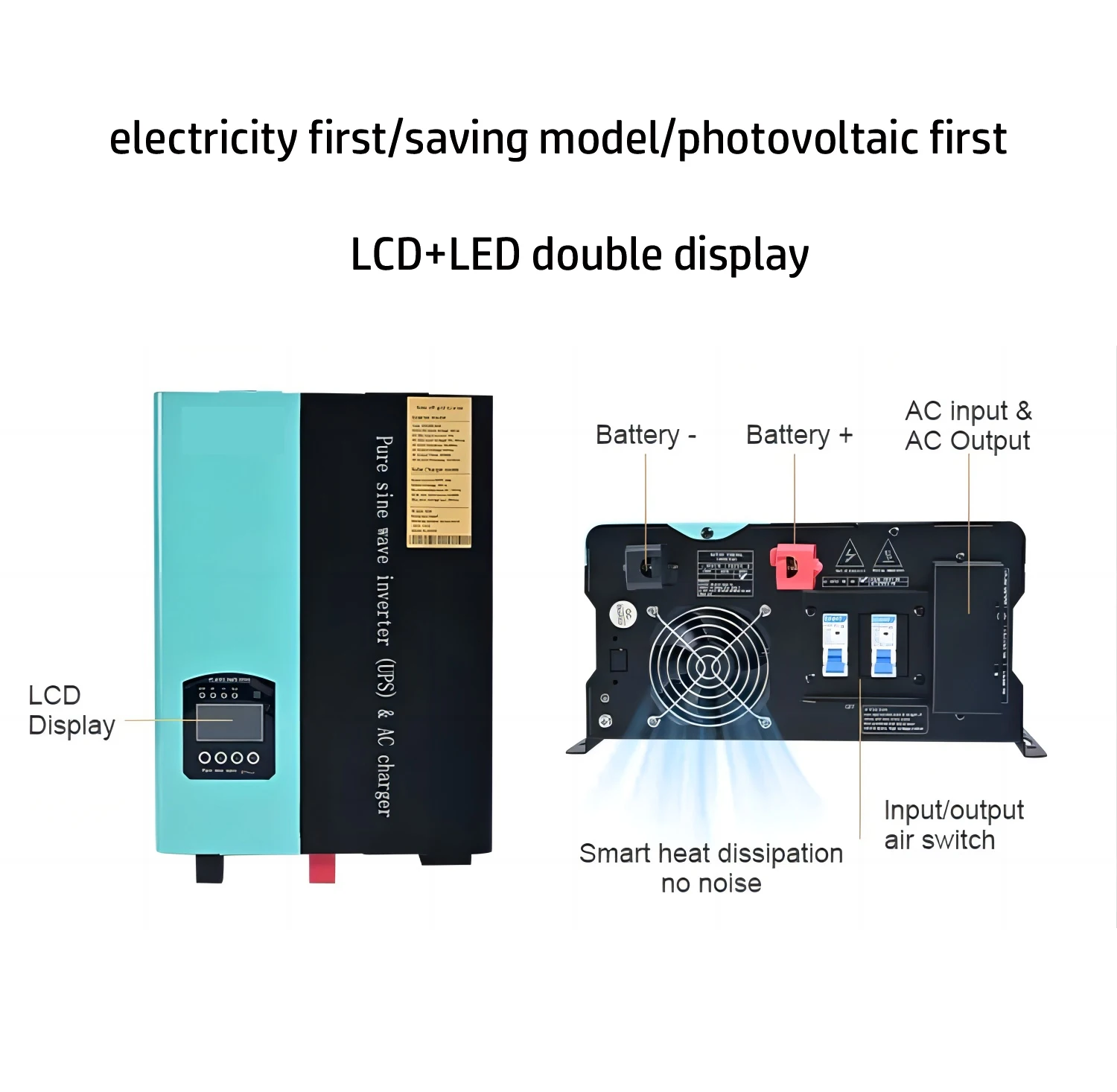

Product Features
1. Apply low frequency energy-saving inverter, pure sine output, high efficiency
2. Three models available, mains electricity first/saving model/photovoltaic first, flexible application
3. High efficient CPU controlling, strong reliability, no need human monitoring
4. Two working models: mains electricity bypass and inverting output, with UPS function
5. LCD+LED double display, available to understand operating status at any time, clear data displaying
6. Multiple protecting functions, 360 degree protection
7. Available to embed off-grid solar inverter, MPPT/PWM available, flexible application
8. With AVR function, 85-135Vac/165-275Vac catering to instable power supply and engine inserting
2. Three models available, mains electricity first/saving model/photovoltaic first, flexible application
3. High efficient CPU controlling, strong reliability, no need human monitoring
4. Two working models: mains electricity bypass and inverting output, with UPS function
5. LCD+LED double display, available to understand operating status at any time, clear data displaying
6. Multiple protecting functions, 360 degree protection
7. Available to embed off-grid solar inverter, MPPT/PWM available, flexible application
8. With AVR function, 85-135Vac/165-275Vac catering to instable power supply and engine inserting
Technical specifications
model | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||
Rated power(W) | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||
peak value(W)ms | 4.5kw | 6kw | 9kw | 12kw | 15kw | 18kw | |||||||
start motor(HP) | 1HP | 1.5HP | 2HP | 3HP | 4HP | 4HP | |||||||
battery voltage(Vdc) | 12v/24v/48vdc or lithium battery | 24v/48v/96v or lithium battery | |||||||||||
host size(L*W*Hmm) | 465*355*170mm | 530*355*170mm | |||||||||||
packing size(L*W*Hmm) | 535*395*240mm | 605*395*240mm | |||||||||||
Net weight(kg) | 17kg | 18.5kg | 22kg | 25kg | 30kg | 33kg | |||||||
gross weight(kg) | 17.5kg | 19kg | 22.5kg | 26kg | 31kg | 34kg | |||||||
AC input | Phase sequence | L+N+PE | |||||||||||
Voltage frequency | 85VAC-135VAC/165VAC-275VAC 38-65HZ Automatic tracking | ||||||||||||
Low voltage range | 85VAC/165VAC土5% | ||||||||||||
Low voltage range | 95VAC/175VAC土5% | ||||||||||||
Hig voltage range | 135VAC/275VAC土5% | ||||||||||||
Hig voltage range | 125VAC/265VAC土5% | ||||||||||||
AC output | Phase sequence | L+N+PE | |||||||||||
AC voltage | 110V/120v/220v/240vac土5%（inverter mode） | ||||||||||||
AC frequency | 50HZ/60HZ(inerter mode,mains synchronization) | ||||||||||||
Output waveform | pure sine wave | ||||||||||||
Inverter no-load loss | ≤20W | ||||||||||||
conversion time | ≤4ms（typical load） | ||||||||||||
harmonic distortion | THD≤3%(Resistive load) | ||||||||||||
Conversion efficiency | >90%(88%Resistive load) | ||||||||||||
Built-in solar controller (optional) | charging type | MPPT or PWM | |||||||||||
controller current | 20A/30A/40A/50A/60A | ||||||||||||
input voltage range | MPPT:12V system:18-150V(36v);24V system:36-150V(60-72v); 48V system:60-150V(90-120v);96V system:120v-180v;(optimum value) PWM:12V system18V;24V system:30-50V(36V);48v system:60-100v(72v);96V system:120-170V(150V); | ||||||||||||
charging efficiency | MPPT>99%;PWM>80% | ||||||||||||
Max solar power | 12Vsystem:280w/420w/570w/700w/900w;24Vsystem:550w/840w/1130w/1400w/1700w 48Vsystem:1100w/1650w/2270w/2800w/3400w;96Vsystem:50A-5600W/60A-6800w; | ||||||||||||
Working mode | Grid first | The State Grid power supply is preferred,and the power grid fault isautomatically switched to inverter(battery)mode | |||||||||||
ECO | No load detected in battery mode,automatically goes into hibernation mode. | ||||||||||||
Solar first | Preferential use of photovoltaic power generation,photovoltaic power generation is not enough,automatic switch into the power grid complementary,photovoltaic recovery automatic switch back to photovoltaic priority power supply | ||||||||||||
Protection | overload;short circuit;overvoltage;undervoltage;overtemperature;overcurrent;surge and so on | ||||||||||||
Panel indication | LED+LCD | ||||||||||||
Heat dissipation mode | Intelligent fan control | ||||||||||||
Communication | RS232/RS485-WIFI/GPRS(optional) | ||||||||||||
Enviroment | -15℃ +50℃ 0-90% without condensation | ||||||||||||

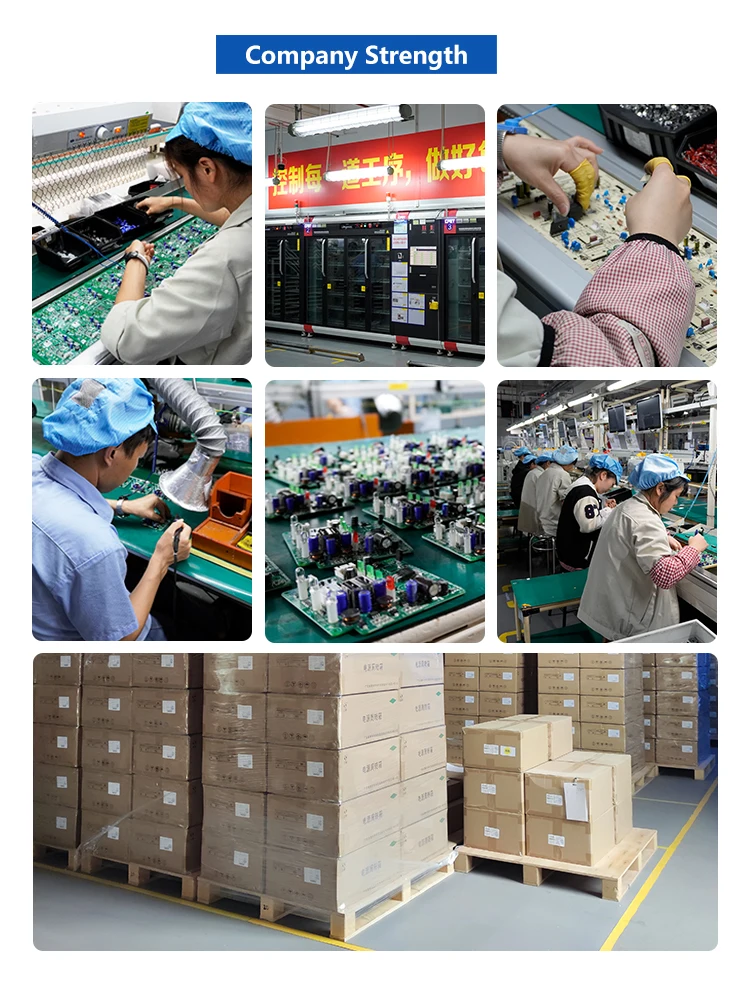

Company Profile
Huizhou Sanhua Industrial CO.,Ltd was established as a National High-tech Enterprises in 1998,and since then has become world-renowned for its power system and inverter research,manufacture and sales. All power supply range including 3 major fields:intelligent consumer&home application power supply,office application power supply,new energy and industrial customized power supply, and the inverter range including 3 major fields:energy storage for home application & energy storage for industrial, car inverter and outdoor portable inverter. These products are used in LED/LCD TV and display,intelligent home application,intelligent office application,wind & solar power system,industrial manufacturing,outdoor activities power tools,new energy vehicle,marine and medical devices etc.
As a national high-tech enterprise,we put lots of focus in creating advance power supply and inverter technology.We have 4 R&D center with 158+ engineers in worldwide which including 1 province-level engineering center and 1 province-level technology center.We have comprehensive laboratories and also had mastered core technology that it is cutting edge technology in fields of power supply and inverter.
In past years,we owned three industrial parks in Guangdong,Shandong and Jiangsu province with total 100,000㎡ and keep stable yearly revenue increasing.With an advance and innovative design mission,reliable and traceable quality system management,efficient and convenient delivery system,we have established trust and created win-win cooperation relationship with our valuable customers in worldwide.
As a national high-tech enterprise,we put lots of focus in creating advance power supply and inverter technology.We have 4 R&D center with 158+ engineers in worldwide which including 1 province-level engineering center and 1 province-level technology center.We have comprehensive laboratories and also had mastered core technology that it is cutting edge technology in fields of power supply and inverter.
In past years,we owned three industrial parks in Guangdong,Shandong and Jiangsu province with total 100,000㎡ and keep stable yearly revenue increasing.With an advance and innovative design mission,reliable and traceable quality system management,efficient and convenient delivery system,we have established trust and created win-win cooperation relationship with our valuable customers in worldwide.

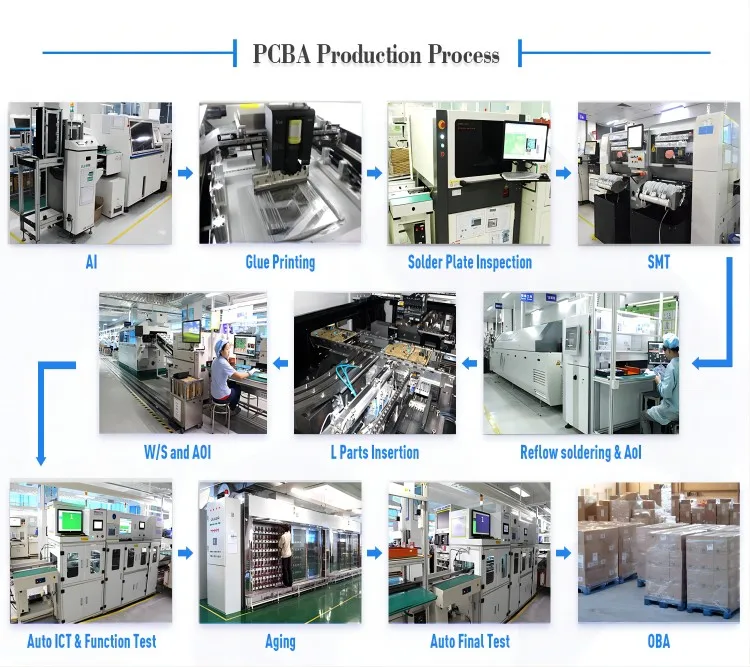

Production Process
FAQ
Q1:ARE YOU A FACTORY OR TRADING COMPANY?
A1:We are factory and owned 2 different factories with 2000 workers in total.
Q2: WHAT IS YOUR HOT ITEMS?
A2: We do have 158 professional engineers and our main products are power adaptoriprinter powersupply/high voltage power supply/charger ect.
Q3:HOW ABOUT THE SHIPPING METHOD?
Q4: HOW ABOUT THE DELIVERY DATE?
A4: In General, the delivery date will be 30 working days for normal buy quantity. But if bigger order,please check us further
Q6: HOW ABOUT THE MOQ ?
A6: Lower MoQ of 2000PCS per style. please check us further.
A1:We are factory and owned 2 different factories with 2000 workers in total.
Q2: WHAT IS YOUR HOT ITEMS?
A2: We do have 158 professional engineers and our main products are power adaptoriprinter powersupply/high voltage power supply/charger ect.
Q3:HOW ABOUT THE SHIPPING METHOD?
A3: DHLIUPS/Fedex and other air shipments and sea shipments are all workable. In one words, wecould do any shipments you wanted.
Q4: HOW ABOUT THE DELIVERY DATE?
A4: In General, the delivery date will be 30 working days for normal buy quantity. But if bigger order,please check us further
.
Q5: HOW ABOUT THE LABEL AND THE LOGo?
Q5: HOW ABOUT THE LABEL AND THE LOGo?
A5:Customize label and logo is workable.
Q6: HOW ABOUT THE MOQ ?
A6: Lower MoQ of 2000PCS per style. please check us further.
