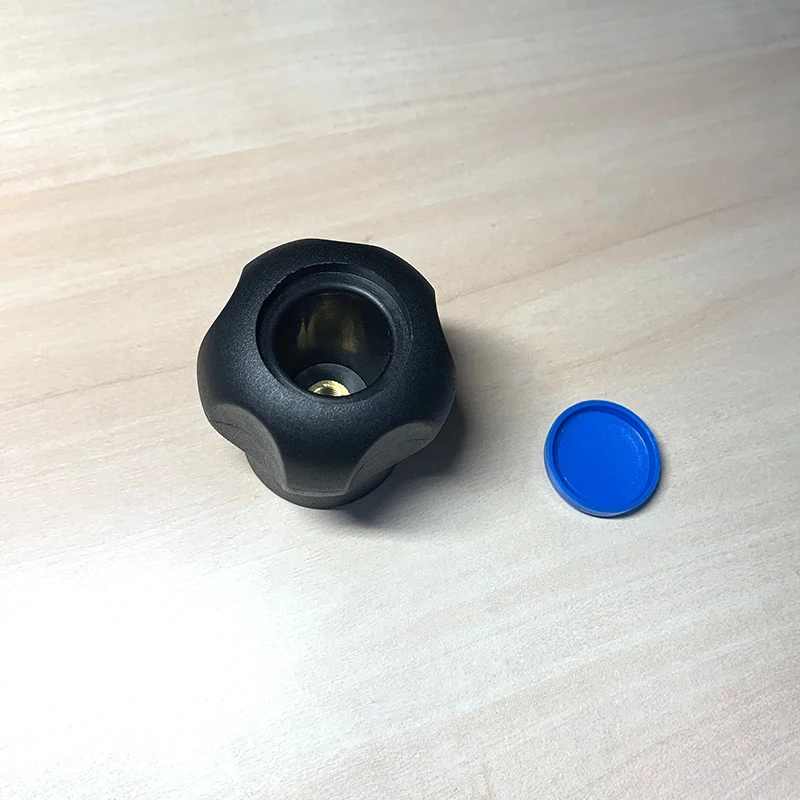

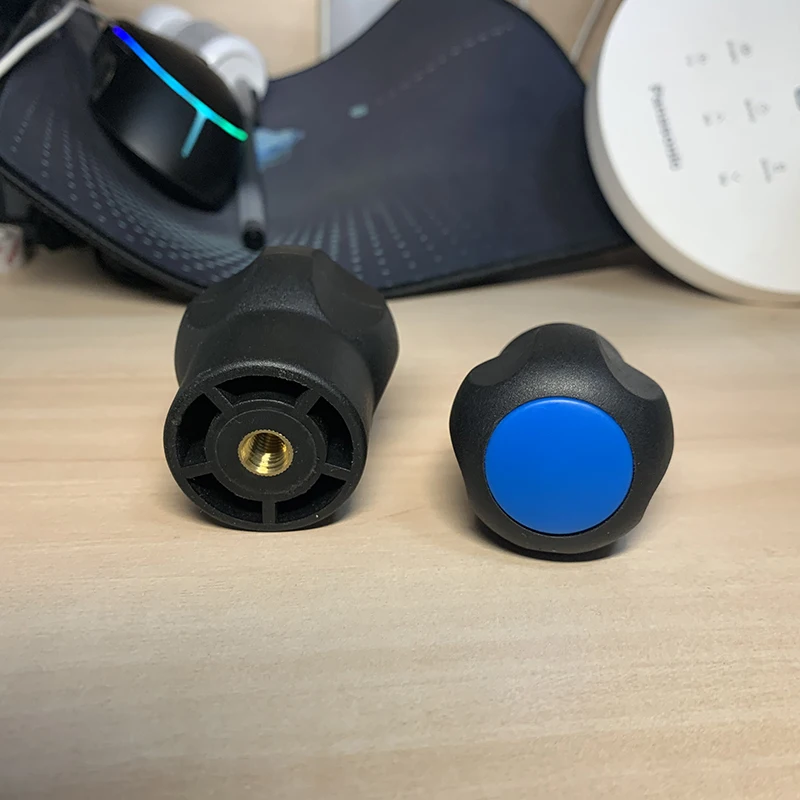

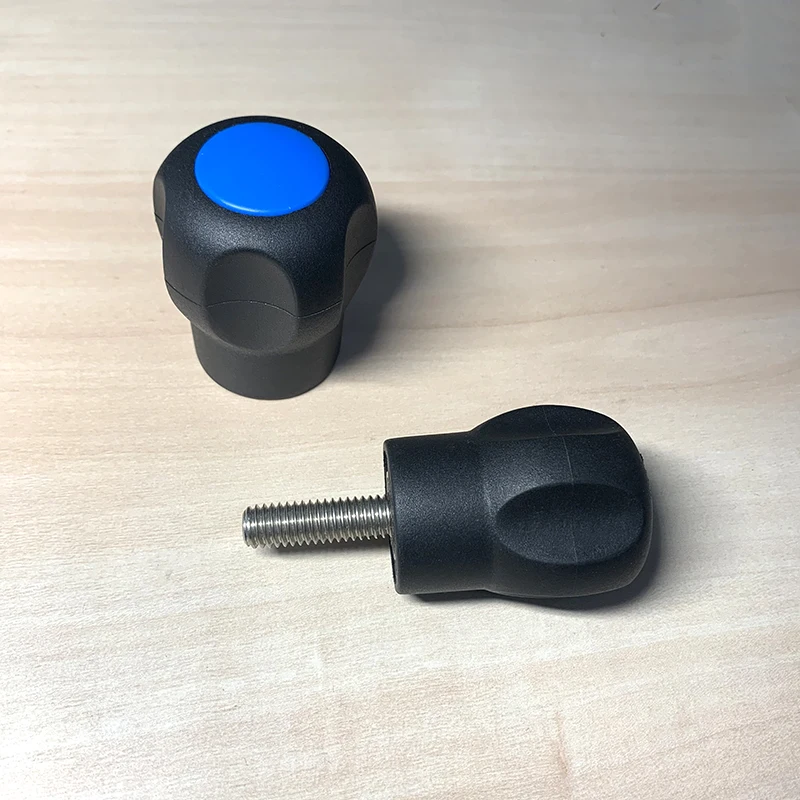

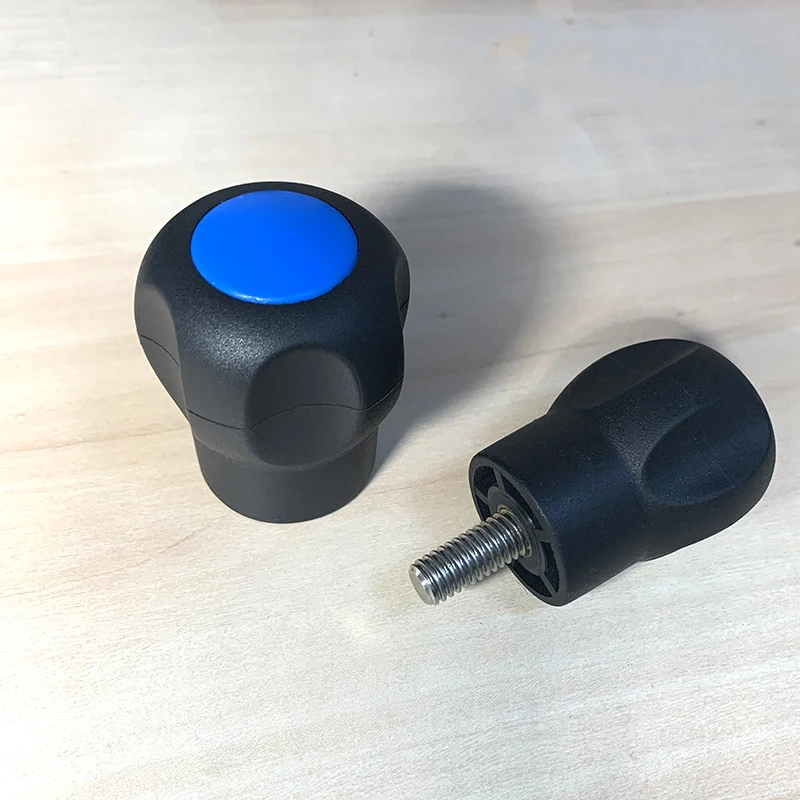

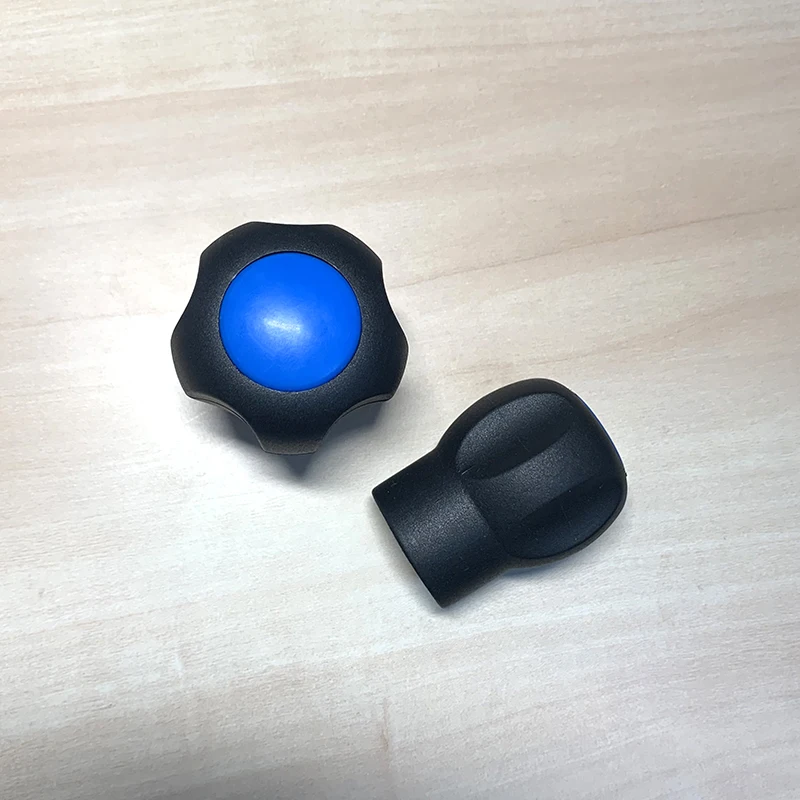

Hz102020 нейлоновая сферическая ручка с сквозным отверстием Грибовидная пластиковая для станка
- Категории: Furniture Hardware >>>
- Поставщик: Hebei,Huaze,Machinery,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Our Services
In addition to the specifications available from stock, different internal or external threads can be customized for different outside diameter knobs. For example, 40 outside diameter knobs are standard for M8 and M10 threads. You can customize M6 internal threads or any length of external threads. Can be customized American standard thread inch thread without threaded hole. Can also be customized special-shaped screws, head with card groove screws, pointed head screws
Spot knob is ABS material, can be customized reinforced nylon material. Internal thread can be customized stainless steel material external thread can be customized stainless steel screw, can be customized 8.8, 10.9 12.9 grade screw
Product Information
product name | Plastic star Handle |
Material | ABS or Nylon |
Apply to |
|
Surface treatmentl | Grind arenaceous black |
outside diameter | 25 32 40 50 63 |
The screw thread | M6 M8 M10 M12 M16 Can be customized |
| D | H | D1 | h | d | h | d2 |
HZ.102011 25 | 25 | 20 | 15 | 9 | M6 | 12 | 8 |
HZ.102011 32 | 32 | 26 | 18 | 13 | M8 | 20 | 9 |
HZ.102011 40 | 40 | 30 | 22 | 15 | M10 | 20 | 11 |
HZ.102011 50 | 50 | 32 | 29 | 16 | M12 | 25 | 15 |
HZ.102011 63 | 63 | 38 | 31 | 18 | M16 | 28 | 18 |
