Model | 6130 Diesel powered | 6145 Diesel powered |
Production capacity | 1-2T/h | 46T/h |
Dimensions | L2300W1300*H1800mm | L3200*W1700*H2400mm |
Power | 25//32/40/55hp diesel engine | 82/102hp diesel engin |
Start-up method | Electric start | Electric start |
Rotation speed of mainmachine | 2900r/min | 2200r/min |
Diameter of feed rollers | 280mm | 500mm |
Feeding roller power | Hydraulic motor | Hydraulic motor |
Diameter of knife roller | 300mm | 500mm |
Number of blades | Movable knife 3 pieces Staticknife 1 piece | Movable knife 4 pieces Static knife 1piece |
Blade length | 300mm | 230mm |
cell specification | 12V 105aH | 24V 105aH |
Generator power | 800W | 800W |
Diesel tank volume | 20L | 300A power switch |
Hydraulic oil tank volume | 25L | 95L |
Feeding gear | In-Reverse-Stop 3-speed manual control | In-Reverse-Stop 3-speed manual control |
Inlet size | 700*500mm | 1000*740mm |
Feed size | 300*250mm | 450*380mm |

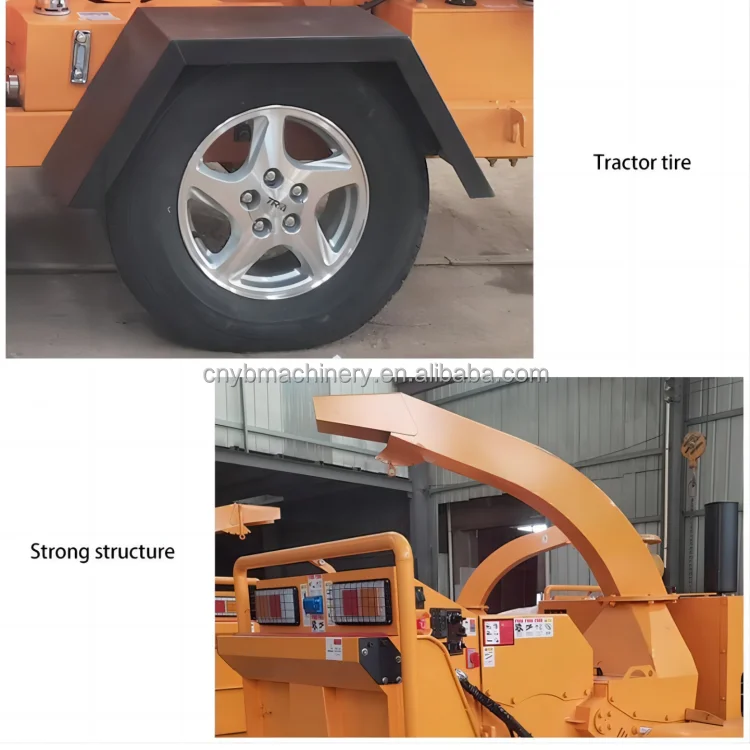

Wheel size | 13" aluminium alloy wheels | 15" aluminium alloy wheels |
Tyre size | 165/70r13 | 215/75r15 |
Throttle adjustment | Integrated throttle-stop operating handle | Integrated throttle-stop operating handle |
Discharge opening direction | 360 degree quick adjustment device, height adjustment of discharge nozzle | Tail light, feed light, foldable hand jack, adjustable towing height |
