Product Description


  • 10.1 Inch Embedded Wall Mount Android 11 Tablet With Inwall Mount Bracket:

-Android OS, rooted right.
-IPS touch screen, resolution:1280X800
-POE, IEEE802.3af, 48V
-RS232
-RS485
-GPIO
-Relay
-Support source code to integrate with your software
-Brackets for installation
-Custom boot up logo
-Run your app in kiosk mode




Product Name
Android 11 POE Tablet With RS485
Material
Indusrtial standard material
Main Function
POE, Serial port, GPIO, Relay
Other function
WIFI, bluet-ooth, camera, proximity & ambient light sensor, NFC reader, LED light bar
Installation
Vertical onwall, 23 degree onwall, on glass wall


Details Images


SIBO POE tablet pc is a functional tablet and made of industrial standard material to ensure working in a stable way. Q8919 has option of RS232, RS485, GPIO for remote control. Also this tablet has poe function which just needs one cable to supplier ethernet and power at the same time. Meanwhile, this tablet has three kinds of bracket for installation.


Custom tablet according to you requirements:
1.Support small quantity and sample order.
2.Lead time is 5-7 days.

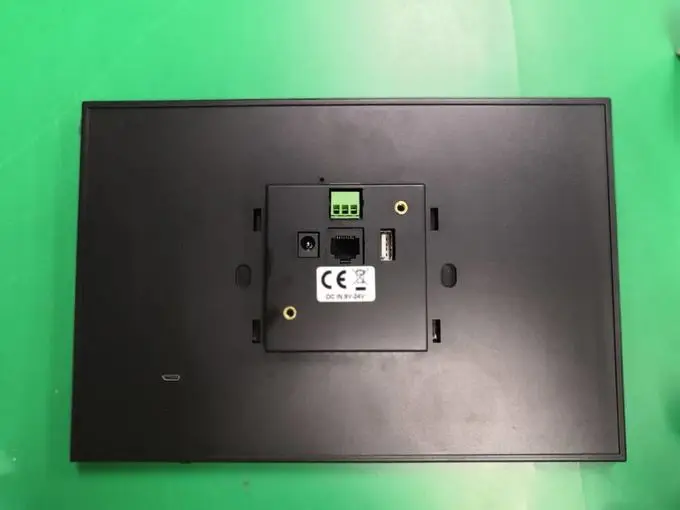

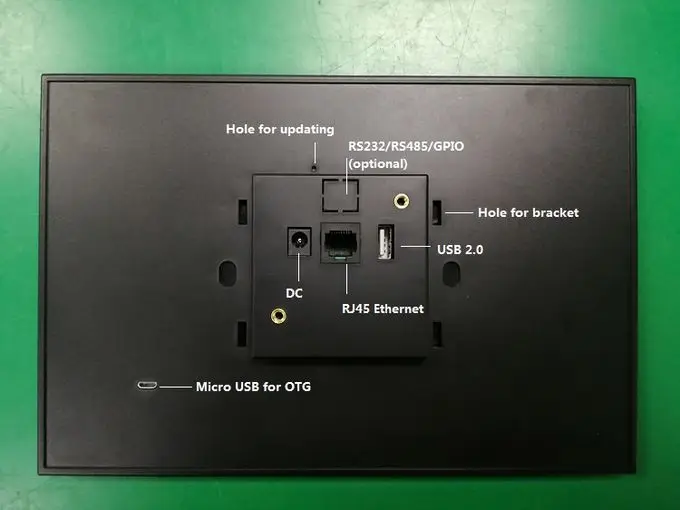

Interfaces:
-DC-in, 12V/1500mA
-Lan port RJ45, IEEE802.3AF 48V
-USB2.0, host
-Micro mini SUB for OTG
-One option from RS232, RS485, GPIO


1. IPS touch screen, resolution 1280X800, 350 nits
2.Optional proximity & ambient light sensor on front.



Specification


Model Number
Q101S



Hardware Specs
Processor
Rockchip RK3566
CPU
Quad-core ARM Cortex-A55 CPU, 1.8Ghz
Display
10 Inch IPS Display, Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
RAM
2GB
Nand Flash
8GB




Software Feature
System
Goo-gle Android 11
Video
H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio
One Speaker X 1 Watt, With Speaker Tunnel
Language
Support multi-languages



Interfaces
Front
Camera, and Optional Proximity Sensor
Back
USB Port 2.0, MICRO USB(OTG), DC JACK
Ethernet Interface(RJ45)
Optional:RS232,RS485, GPIO
Bottom
Power On/Off Button, Pin Hole For Reboot

Network
WIFI+BLUET-OOTH
WIFI (802.11b/g/n), Bluet-ooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
LAN Port
Ethernet RJ45
Power Supply
PoE OR DC IN
IEEE802.3AF 48V, 12V/1500mA
Boot Up
Auto Boot
Auto Boot Up When Power Supplies


Custom details, please feel free to contact us ！


Installation Instructions

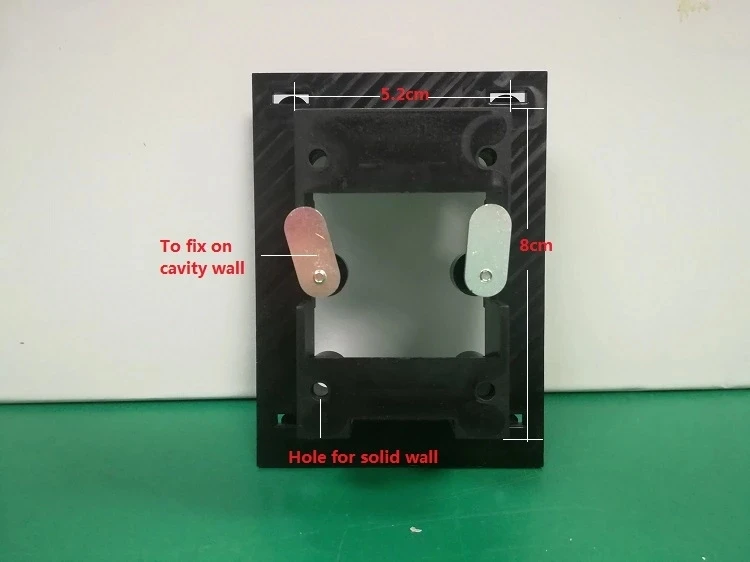

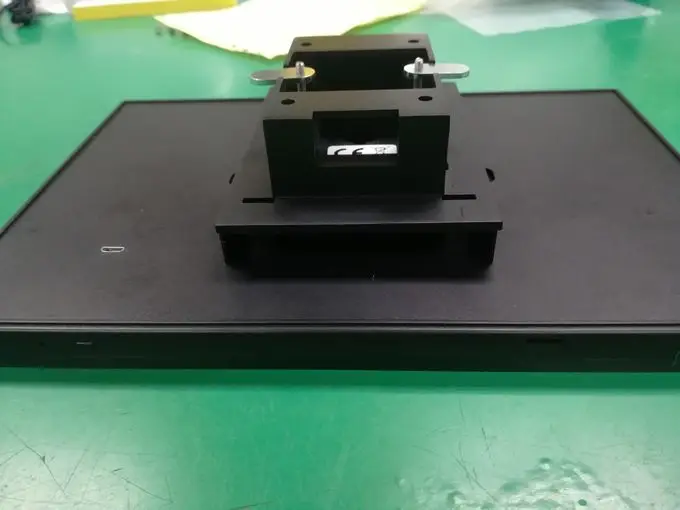

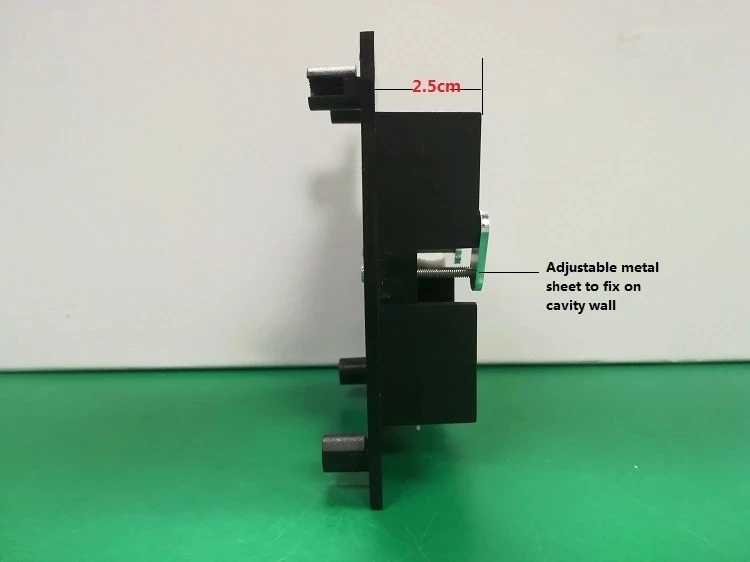

Vertical  inwall mount:

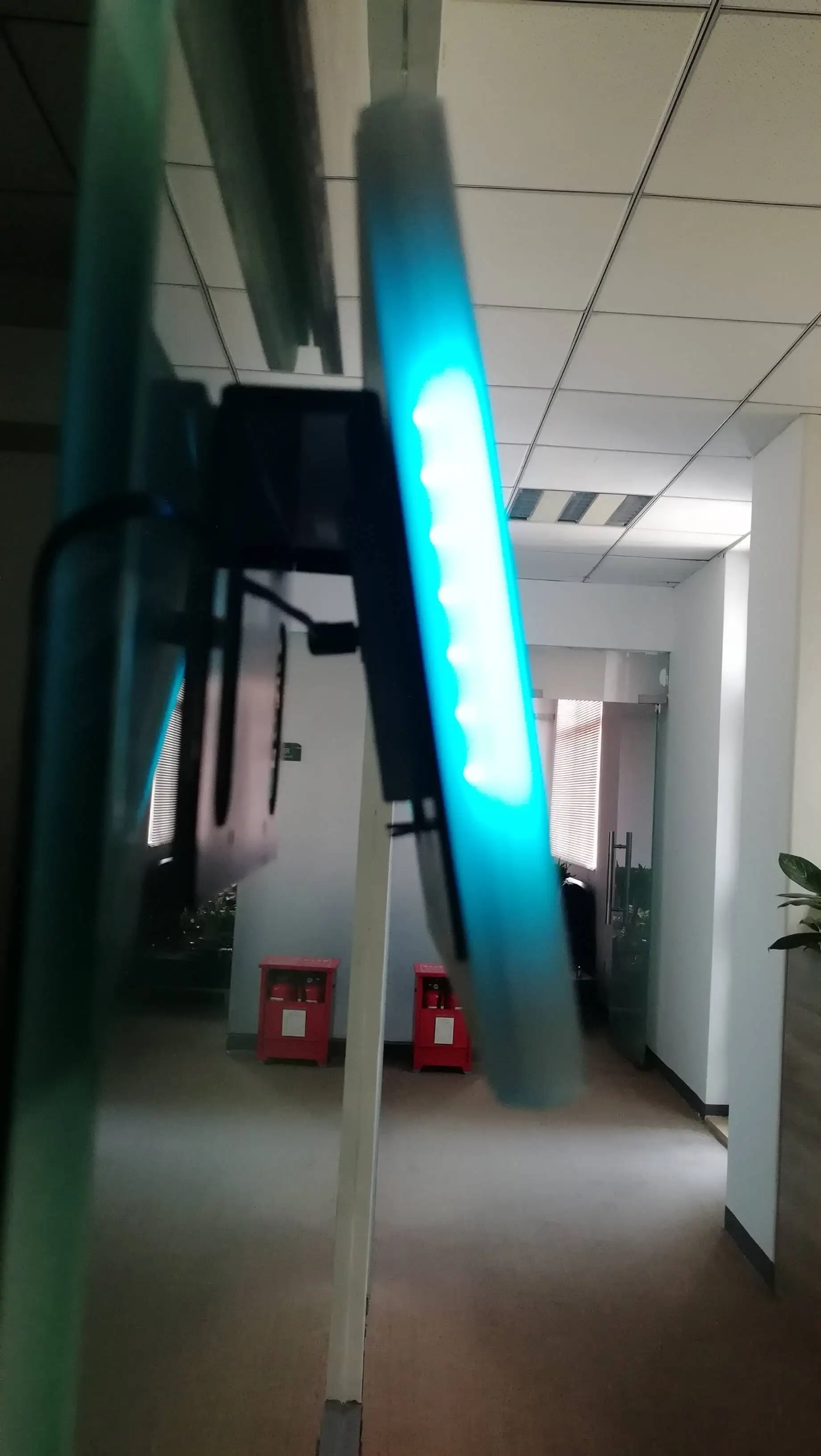

23 degree onwall mount:




On glass wall mount:




Packaging & Shipping


Packaging
10 units/ctn
Carton dimension
38.5x34.5x27.5cm
Weight
14kg/ctn
Shipping
Fedex/DHL/UPS/TNT or your option
Delivery day
Sample:5-7 days, batch goods:20-25 days
Warranty
12 months


Company Introduction




About us:
Shenzhen Sibo Industrial and Development Company limited, established in 2001 own all plastic moulds of our tablets, has strong ability on plastic casing design and pcb board development with in house engineers. SIBO produces according to the standard of ISO9001, and execute strict raw material and final product inspection. SIBO tablets have passed CE, FCC, ROHS test. All production data are uploaded to our server for history tracking, this data will be stored for 3 years.


Our Services & Strength
* 18 Years Experiences in Tablet PC for Automation
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery




FAQ


Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.

Question: What is your company mainly products?
Answer: Our mainly products are 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital
signage, access & security control, home automation, industrial control, energy & power management...

Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.

Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)

Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT
to enable our customers to get their goods rapidly.

Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.

Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.

Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)

Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we
repair you without labor charge collection.

Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
