Высокотемпературный экранированный кабель AFPF Многоядерные

Описание и отзывы

Характеристики

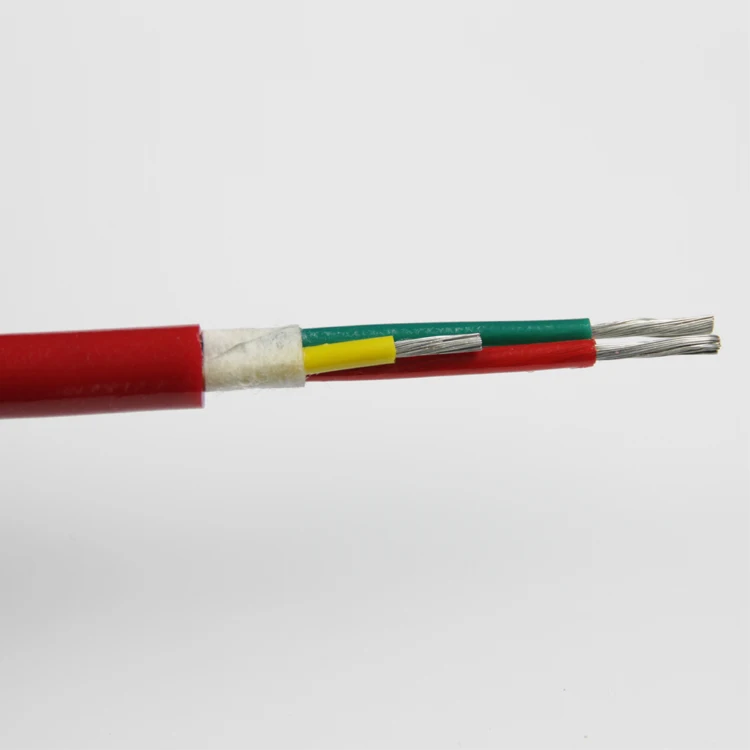

1) Product: AFPFmulti-core high temperature shielded cable
2) Style No.: AFPF
3) Size: 0.1sqmm~40sqmm;
4) Rated Voltage: 300/500V
5) Rated Temperature:-60°C~+200°C/250°C
6) Conductor: Stranded tinned or silver copper
7) Insulation: FEP/PFA

8) Coated: FEP/PFA

9) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc





Product features
*excellent resistance to high temperature

*low temperature resistance

*electrical properties and waterproof

*mildew superior performance

*aging resistance

*Excellent bending performance

*long service life

Applications
*mobile motors

*aviation

*power plants

*petrochemical and other high temperature environment

Section Area  mm2	Conductor construction NO.×mm	Insulation thickness mm	Number of cores	m/coil
0.2	7×0.20	0.4	below         37 cores	200
0.3	16×0.15	0.5		200
0.5	28×0.15	0.6		200
0.75	24×0.20	0.6		100
1	32×0.20	0.6		100
1.5	48×0.20	0.6		100
2.5	49×0.25	0.7		100
