Сертифицированный высокотемпературный многожильный кабель с силиконовым покрытием термостойкий 200C

Описание и отзывы

Характеристики

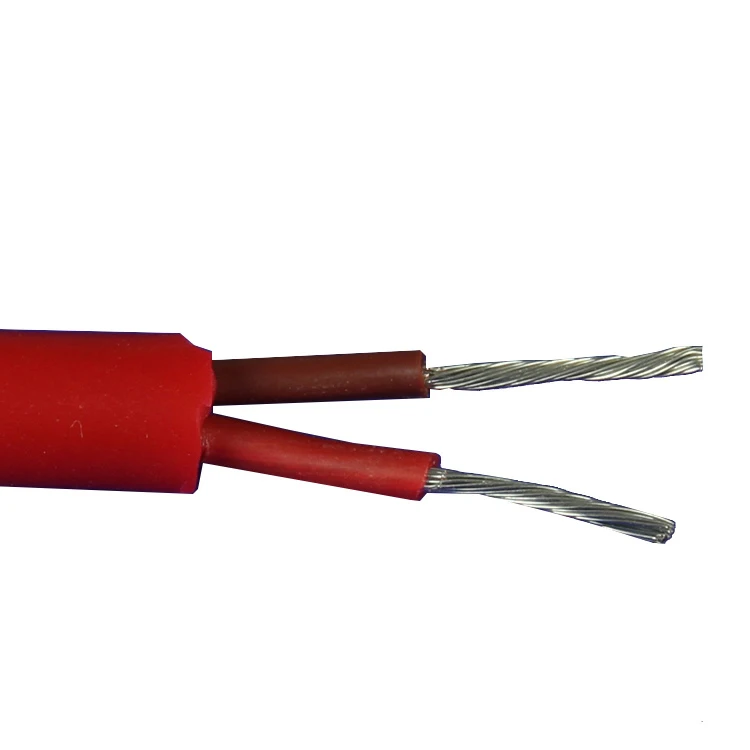

1) Product Name: Multi-core high temperature electric wiring cables shielded copper wire
2) Style No.: AWM4600
3) Size: 0.1sqmm~240sqmm;
4) Rated Voltage: 600V
5) Rated Temperature:-60°C~+200°C
6) Conductor: Stranded Tinned plated copper
7) Insulation: silicone rubber or FFA/FEP

8) Coated: Silicone rubber

9) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc





Product features
*excellent resistance to high temperature

*low temperature resistance

*electrical properties and waterproof

*mildew superior performance

*aging resistance

*Excellent bending performance

*long service life

Applications
*mobile motors

*aviation

*power plants

*petrochemical and other high temperature environment



AWG	Cores	Jacket material	Number of cores	m/coil
10	37×0.43	Silicone rubber         180OC	below         37 cores	100
12	19×0.49			100
14	19×0.37			100
16	19×0.30			100
18	19×0.23			100
20	19×0.18			100
22	19×0.16			100
24	7×0.20			100
26	1×0.40			100
28	1×0.32			100
30	1×0.254			100
