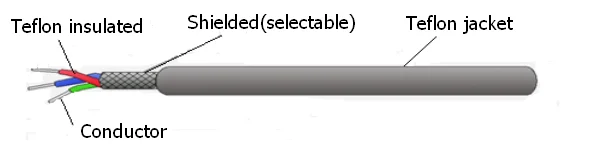

1) Product: Multicore copper electrical wires FEP/PFA heat resistant braided shielded wire
2) Rated voltage: 600V
3) Temperature range: -60 ~ +200 °C.
4) Conductor: tinned, silver plated copper stranded wire
5) Color: red yellow blue white black green brown
6)Product performance: It can be used in long-term humid environment, with excellent electrical properties, waterproof and mildew resistance, and excellent bending performance.
7) Product application: It is used in high-temperature environment such as mobile motor, steel, aviation, power plant and petrochemical with AC rated voltage of 600V and below.
Product features
*excellent resistance to high temperature
*low temperature resistance
*electrical properties and waterproof
*mildew superior performance
*aging resistance
*Excellent bending performance
*long service life
Applications
*mobile motors
*aviation
*power plants
*petrochemical and other high temperature environment
AWG | Cores | Jacket material | Number of cores | m/coil |
10 | 37×0.43 | FEP 200OC | below 37 cores | 100 |
12 | 19×0.49 | 100 | ||
14 | 19×0.37 | 100 | ||
16 | 19×0.30 | 100 | ||
18 | 19×0.23 | 100 | ||
20 | 19×0.18 | 100 | ||
22 | 19×0.16 | 100 | ||
24 | 7×0.20 | 100 | ||
26 | 1×0.40 | 100 | ||
28 | 1×0.32 | 100 | ||
30 | 1×0.254 | 100 |
