Product Description


TEM H51 concrete floor slab thickness gauge/non-metal board thickness test system
TEM H51 Non-metallic plate thickness tester (also called floor meter) is used to automatically measure the thickness of non-metallic plates (such as concrete, rock soil, glass plates, etc.). It has the functions of thickness measurement, data analysis, data storage and output, etc. A portable, easy-to-use, and accurate intelligent thickness measuring instrument.




Feature
1, Long test distance. Test distance can up to 800mm.
2, High precision and stability. Interpreting the board thickness Intelligently can avoid man-made errors and reduce labor
intensity.
3, Fast and efficient . Test 3~5 point thickness within 3 minutes.
4, Long service life of sensor. Improve the service life by paste abrasion resistance allowance on the bottom of sensor.
5, The special clasp between extend bar and transmitting sensor can prevent its falling.
6, Internal data storage. This function is convenient for laborer data management.
7, Powerful data process and analysis software in Windows.


Specification


Place of Origin
Liaoning, China
Item
TEM H51 Board Thickness Tester
Type
Concrete Floor Slab Thickness Detector
Test scope
40mm~800mm
Permissible error
20 ~ 200 mm      ±1mm
Permissible error high range
201~ 4500 mm  ±2mm
Data storage capacity
32000 test points
Power supply
Intergrated Batteries can work more than 30hrs
USB cable
Yes


Packing & Delivery

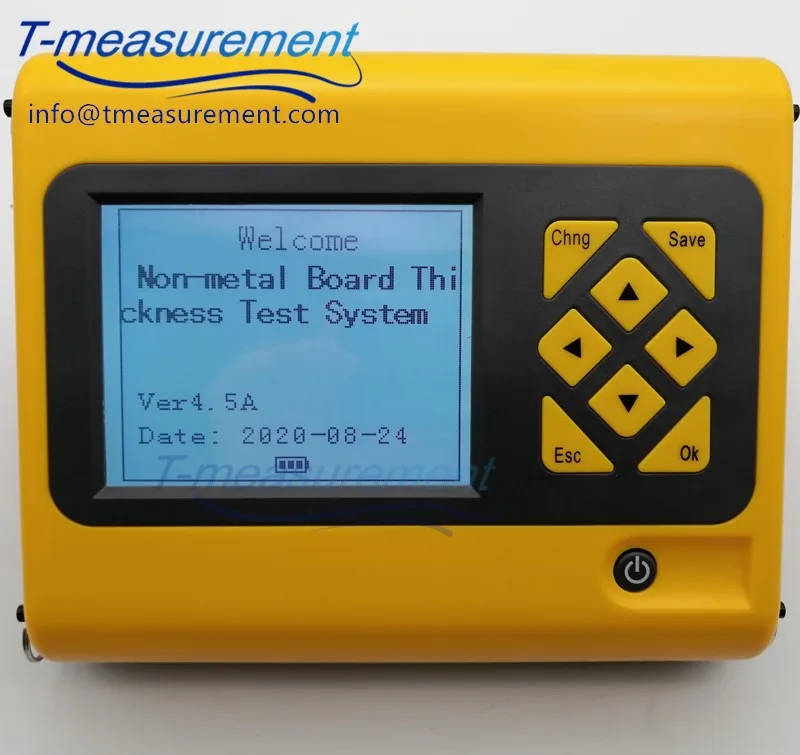

1. Main Unit
x 1 Unit

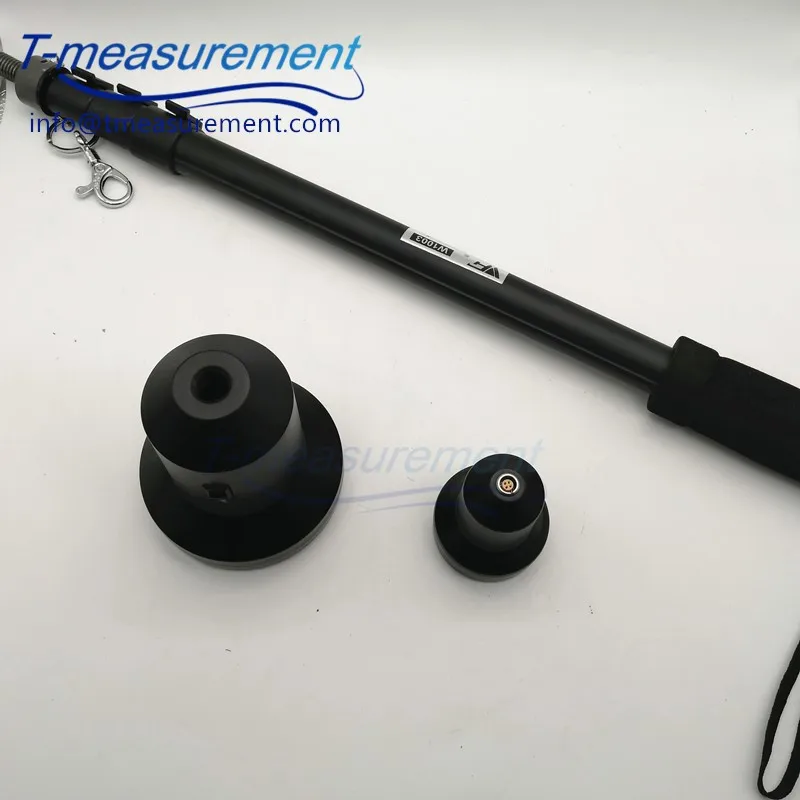

2. Sensor
x 2 Units
3. Singal cable
x 1 Unit
4. USB cable
x 1 Unit

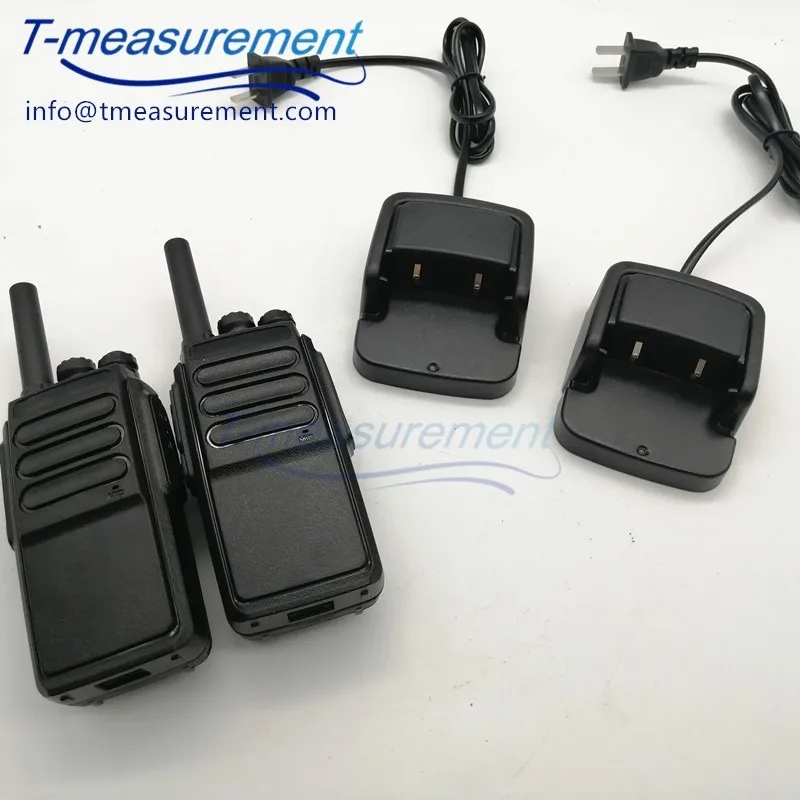

5. Wireless Intercom
x 2 Units
6. Extend bar
x 1 Unit
7. Software
x 1 Unit

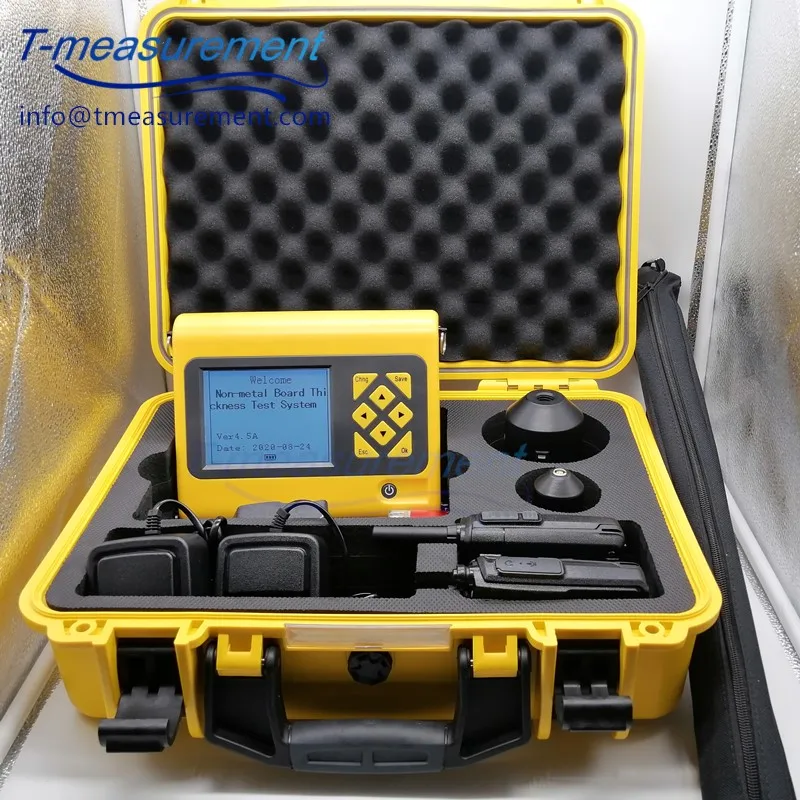

8. Carrying case
x 1 Unit
9. Manual
x 1 Unit
10. Packing list
x 1 Unit
11. Warranty card
x 1 Unit


Company Profile




Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.


Related Products


Crack integrated detector is mainly used for crack width and crack depth measurement of bridges, tunnels, buildings, roads and so on.
Inspection of concrete defects by ultrasonic method, such as uncompacted, cellular, hole area. Detecting defects of one hole by one trigger two receive. Testing dynam performance of geotechnical investigation,rock, concrete etc.
TEM 912 digital concrete test hammer automatically record, save, calculate and process data. It automatically record rebound value, DM (Carbonation depth) input, and component strength calculate.
