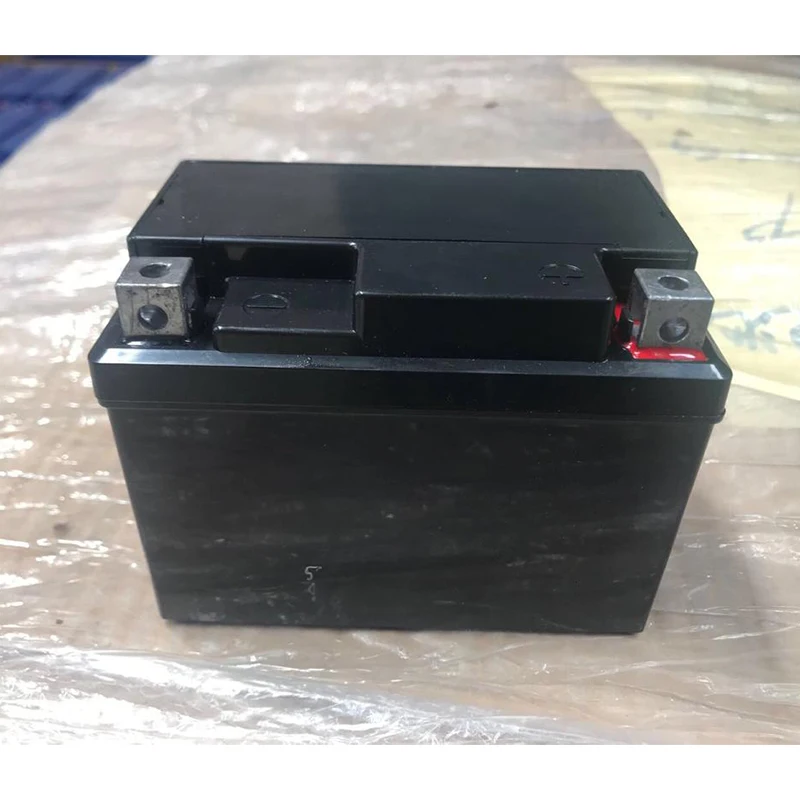

NTX 4L 12V 4AH 6mf4l клапан регулируемый герметичный свинцово-кислотный аккумулятор для электрического

Nominal Voltage (V)

12

Nominal Capacity (10 hour rate)(Ah)

4

Internal Resistance

(mΩ)

Full Charged Battery

25℃(77°F)

≤30

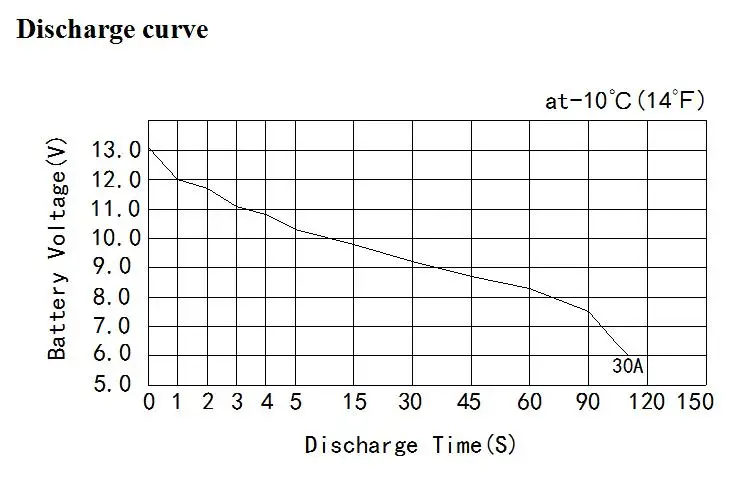

High Rate Discharge Characteristics -10℃(14°F)

Discharging Current(A)

30

5S Voltage(V)

10.0

Cut-off Voltage 6.0V

Discharging time(min)

1.8

 Deep Cycle Endurance

20%(C₁₀) Depth of discharge

275times

Shallow Cycle Endurance

10%(C₁₀) Depth of discharge

4000times

Water  loss rate

Capacity test

Less than 0.9g/Ah

Storage Characteristics

Full charged storage, 40±2℃(104°F)

After 49 days standing, discharge on current 30A, Voltage of 30 seconds discharged

≥7.20V

Self-Discharge

25℃(77°F)

Capacity after 3 month storage

90%

Capacity after 6 month storage

80%

Capacity after 12 month storage

62%

Charge Way 25℃(77°F)

Float

Initial Charging Current Less than 4A

Constant Voltage 13.8-14.4V

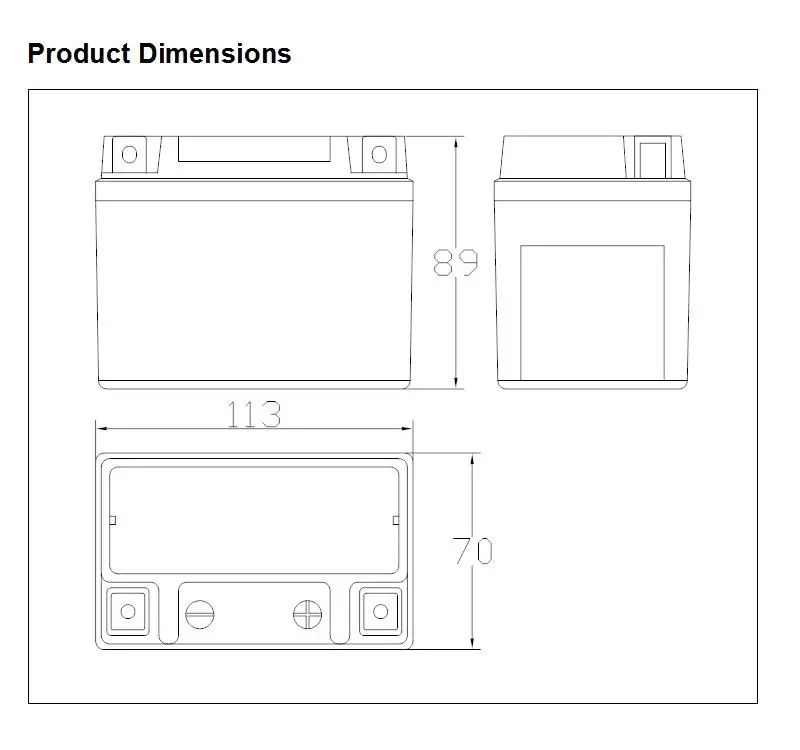

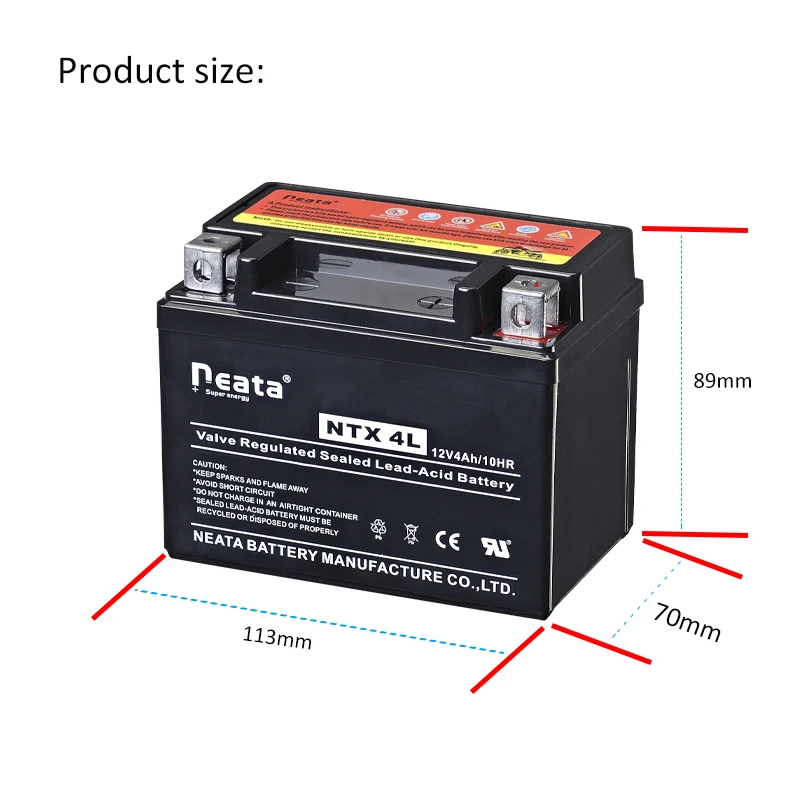

Battery
(L×W×H)

mm±2

113*70*89

inch

4.45*2.76*3.5

Carton
(L×W×H)

mm±5

260*395*115

inch

10.2*15.6*3.7

Quantity Per CNT

10 PCS

Net weight Per Battery

1.42Kg±30g

Net weight Per CNT

14.2Kg

Gross Weight Per CNT

14.5Kg
