Item | Parameter name | Parameter value |
Performance | Light Source | White and red LED |

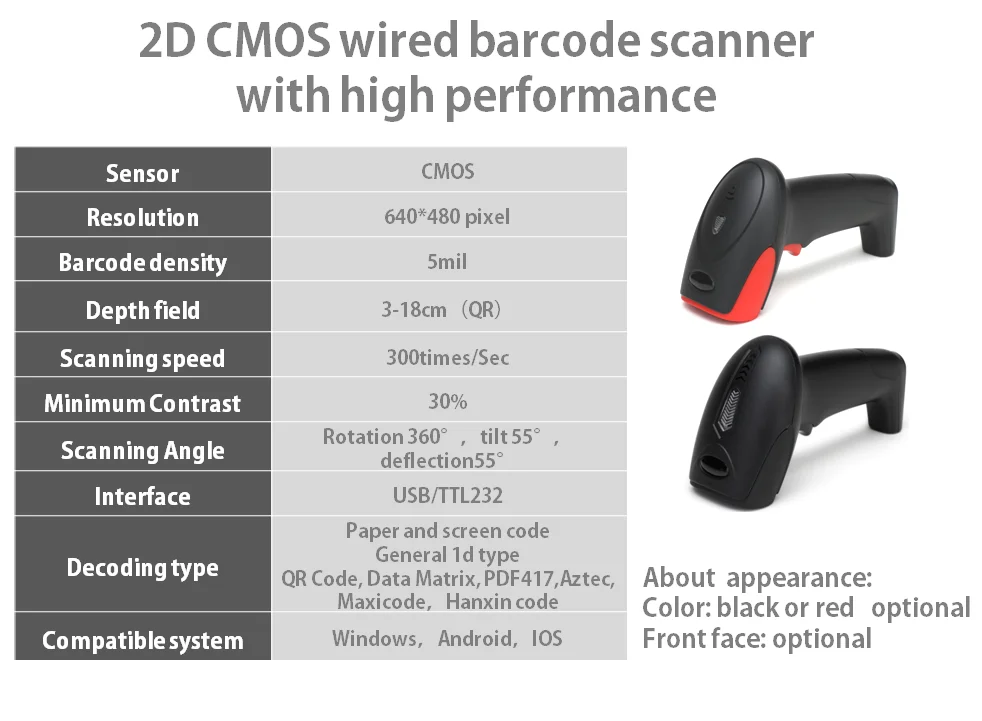

Imaging Sensor | CMOS | |
Resolution | 640*480pixel | |
Error Rate | 1/8million | |
Barcode density | ≥5mil | |
Depth of Scanning Field | EAN-13 60mm-160mm (13mil) Code39 50mm-80mm (5mil) QR Code 30mm-180mm (20mil) Data Marix 40mm-80mm (10mil) PDF 417 40mm-90mm (6.67mil) | |
Scanning Speed | 300 | |
Scanning Angle | Rotation 360°,skew ±55°,pitch ±55° | |
Minimum Contrast | 30% | |

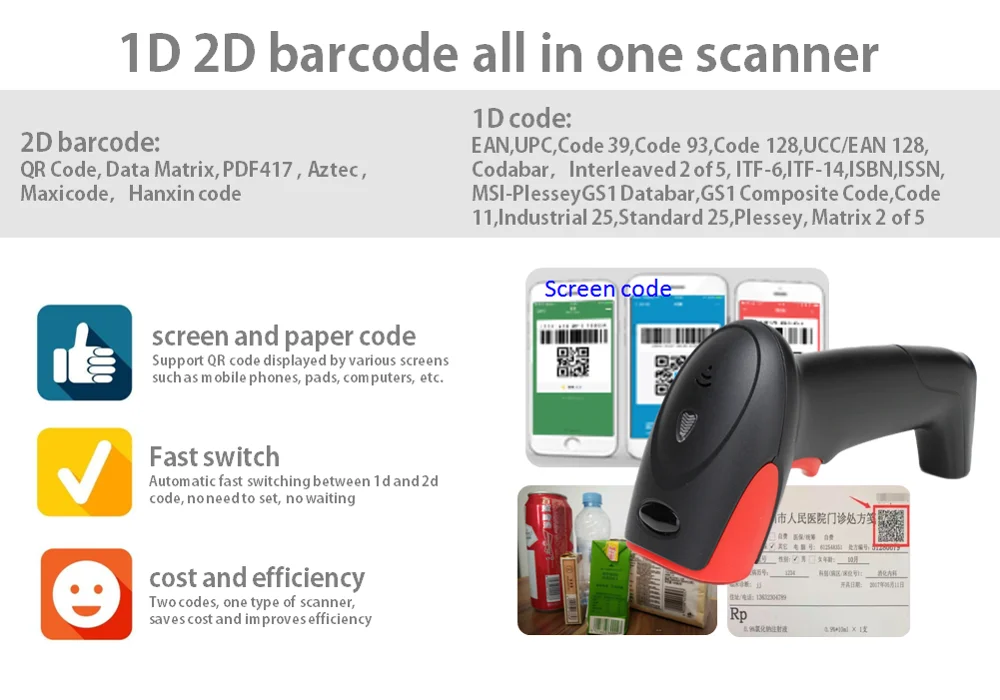

Barcode Type | 2D: QR Code, Data Matrix, PDF417 1D: EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-PlesseyGS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5 | |
Communication | Trigger Mode | Auto,Manual,Continuous |
Indicator | Buzzer and LED light | |
Interface | USB | |
Communication | Blue tooth+USB | |
Compatible system | Windows,Android,Mac etc. | |
Language | Support multi-languages | |
Electronic | Power | 560mW |
Input Voltage | 3.3V | |
Operating Current | 170mA | |
Standby Current | 25mA | |

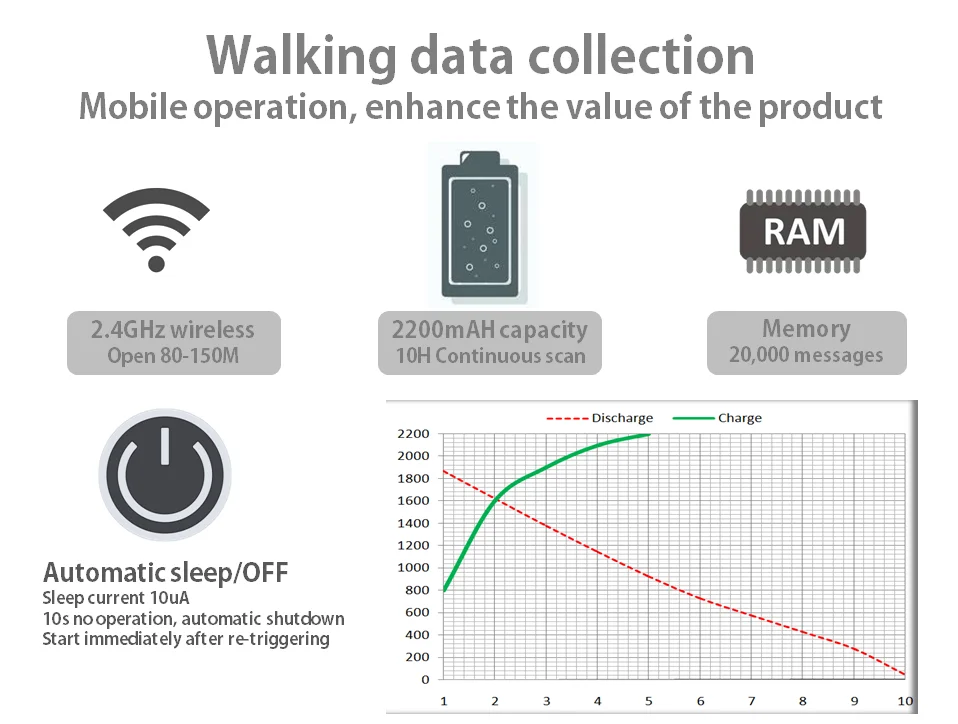

Battery capacity | 2200mAH | |
Charging time | 4-5Hours | |
Structure | Shell Material | ABS+rubber |

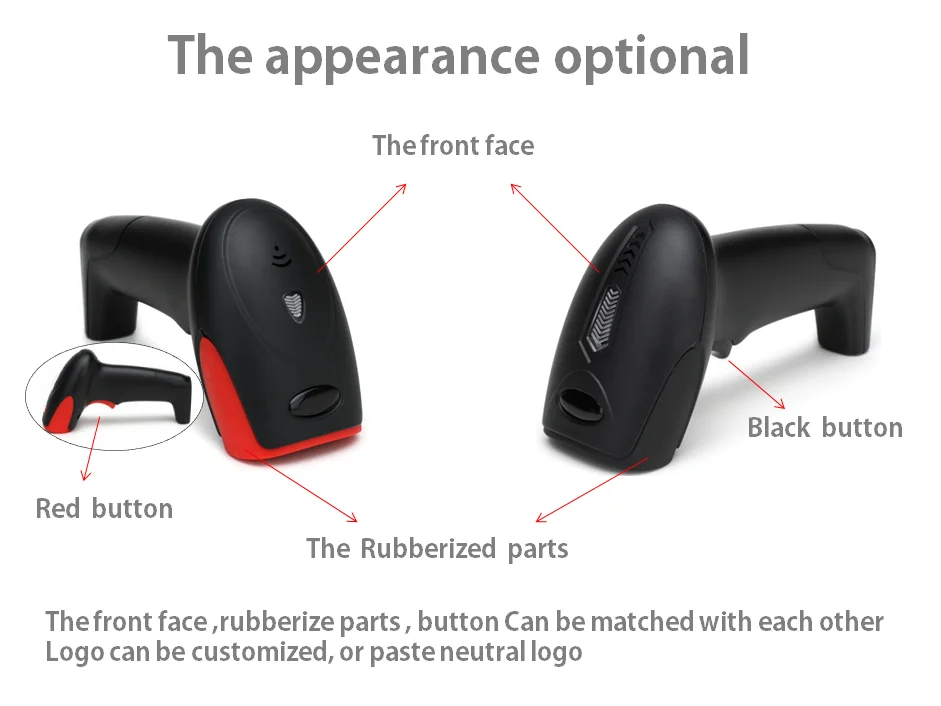

Color | Black or black + red | |
Scanner Size | 170*64*98mm | |
Weight | 180g(without cable) | |
Cable Length | 1.8M | |
Reliability | Shock Resistance | 1.2M |
Waterproof | IP52 | |
Operating Temperature | -20℃~50℃ | |
Storage Temperature | -40℃~70℃ | |
Operating Humidity | 5%~95% | |
Storage Humidity | 5%~95% | |
Static Protection | 4KV (contact discharge) 10KV (air discharge) |
Our service and commitment
1. The MOQ can be 1pcs,customer can test it firstly.
2. Product warranty—24 months
3. Welcome customer OEM, like assembly, test, even we can help customer to find good resource in China.
4. ODM--customize hardware and appearance structure according to customer requirements
5. If you encounter any problems during the use of the product, you can directly contact us by email or telephone.
6. About the package, We will pack the smallest package for you, saving your shipping costs.
7. We have cooperated with many logistics companies so that we can choose the cheapest shipping for you.
8. How to deal with after-sales quality problems, if the product is not intentionally damaged, please send pictures
and videos that can be confirmed as product problems, we will analyze and confirm the compensation method
(for products only), we can re-send the product for free.
9. We are a legal and formal Chinese enterprise under the supervision of the China Industrial and Commercial Bureau,
the Taxation Bureau, the Customs and the Foreign Exchange Administration.We have operation rights of import and
export,and we will comply with national and international trade regulations and do legal export trade.
10. We will not arbitrarily offer high prices, deceive customers, and always hold the attitude of long-term cooperation
with customers to bring customers cost-effective products and high quality services.
