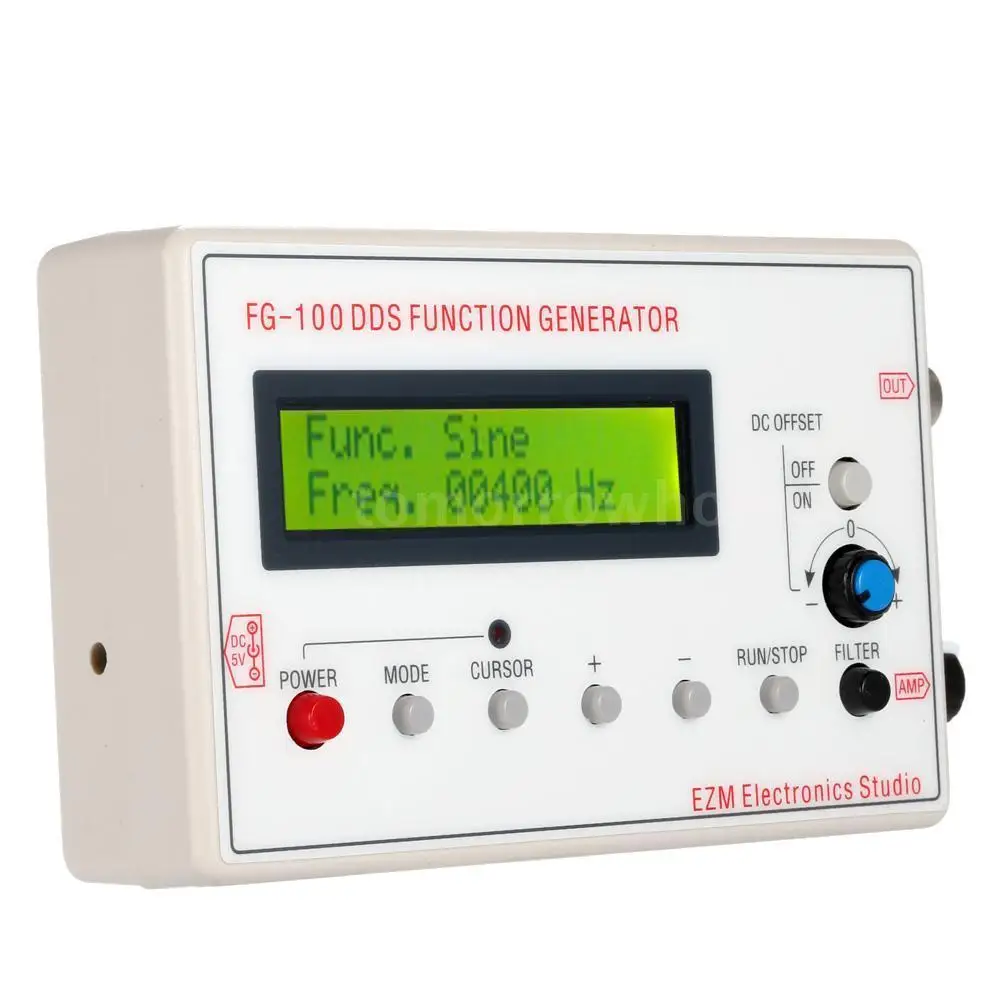

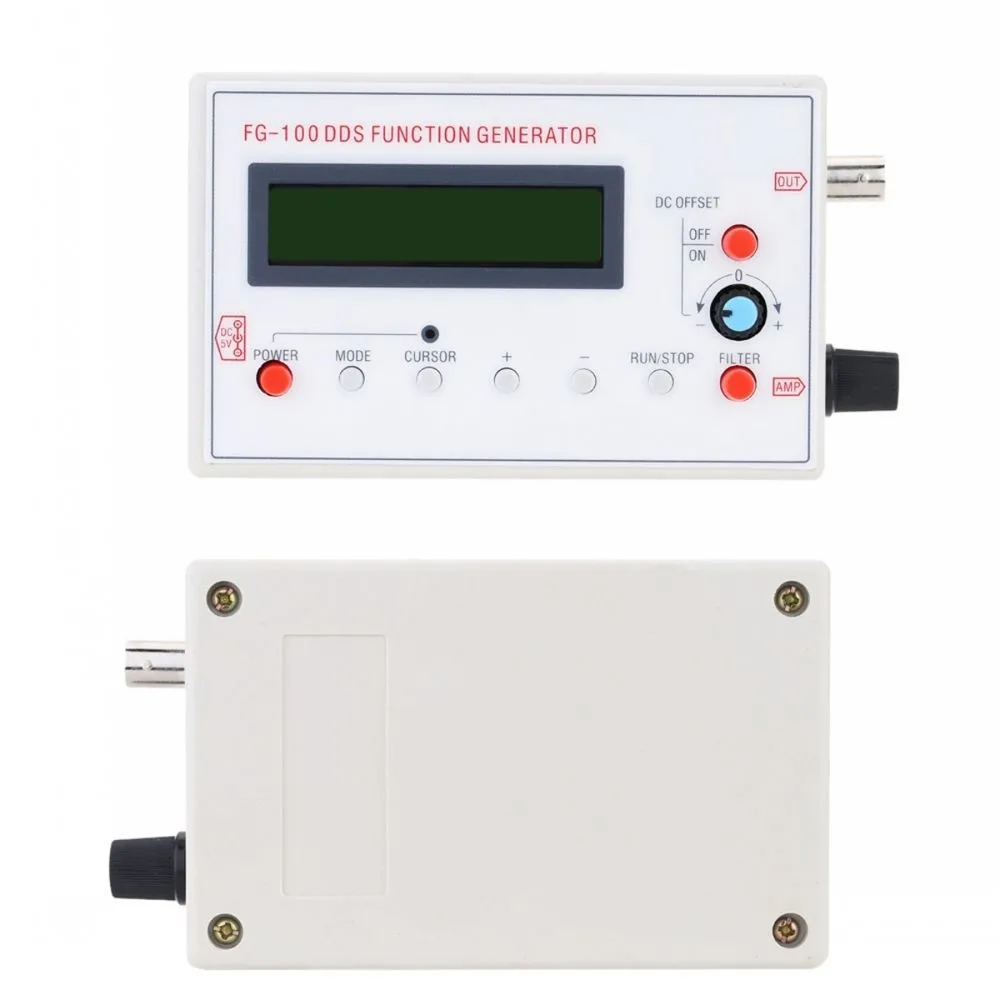

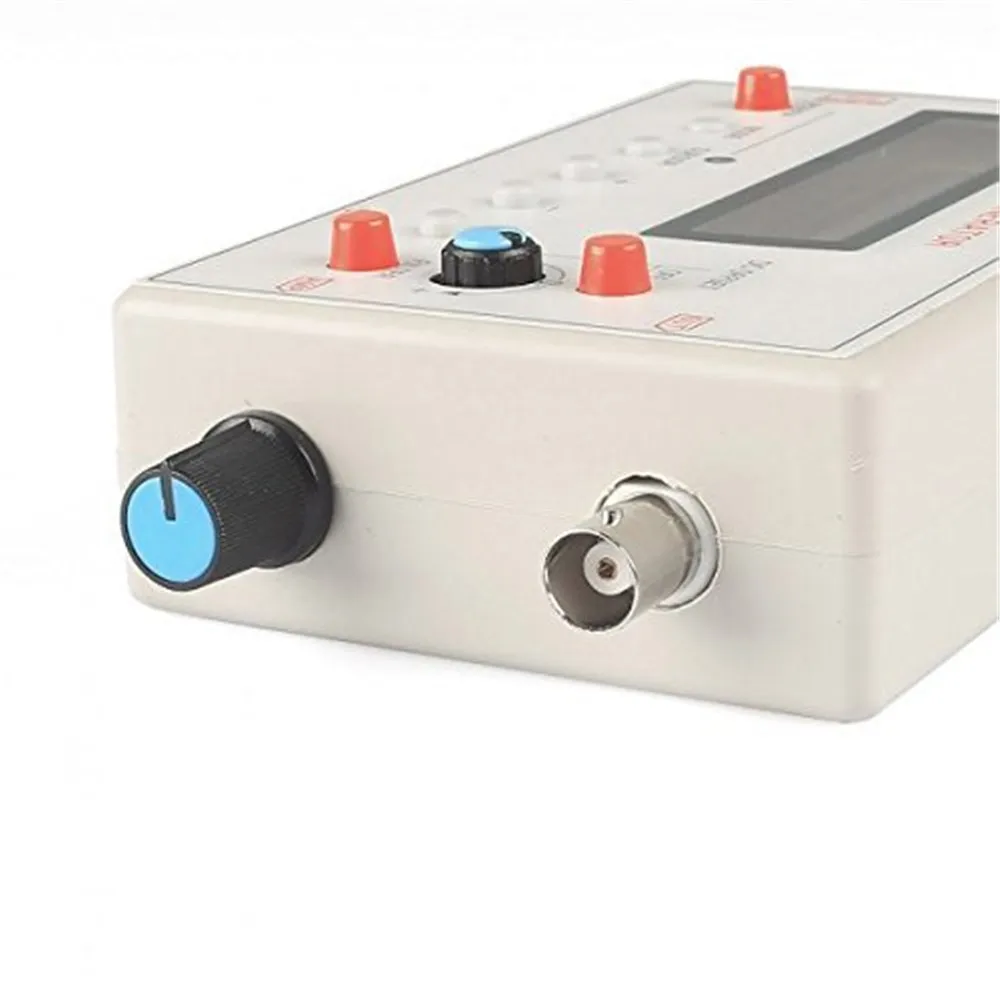

Счетчик частоты генератора сигнала FG-100 DDS 1 Гц-500 кГц модуль источника синусоидальный + квадрат треугольник

Products Description

SKU: 011581



Product Description

Small size, multiple functions, simple operation, easy to carry.

With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.

Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output also suit for oscilloscope attenuator and probe pulse adjustment, etc

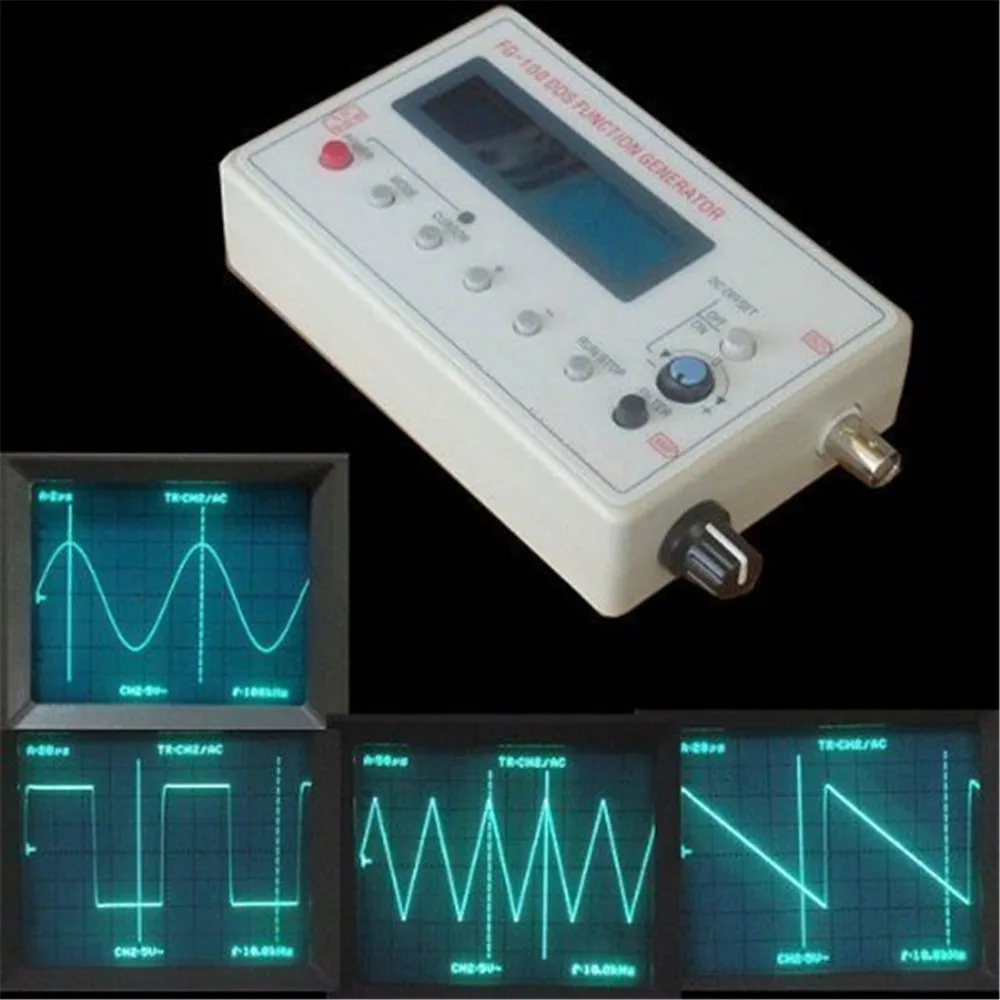

The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.



COLOR:white

Material:metal

Maximum output amplitude : +/- 10Vpp (no-load)

Output impedance : 50Ohm+/-10%

Dc bias : +/- 10V (no-load)

Display : LCD1602

Material:metal

Resolution : 1 Hz

Power supply : DC 3. 5-10V

Output frequency range :

Sine wave : 1Hz-500KHz

Square-wave : 1 Hz - 20kHz (the valid range)

Triangular wave : 1 Hz - 20KHz (the valid range)

Sawtooth wave : 1 Hz - 20kHz (the valid range)

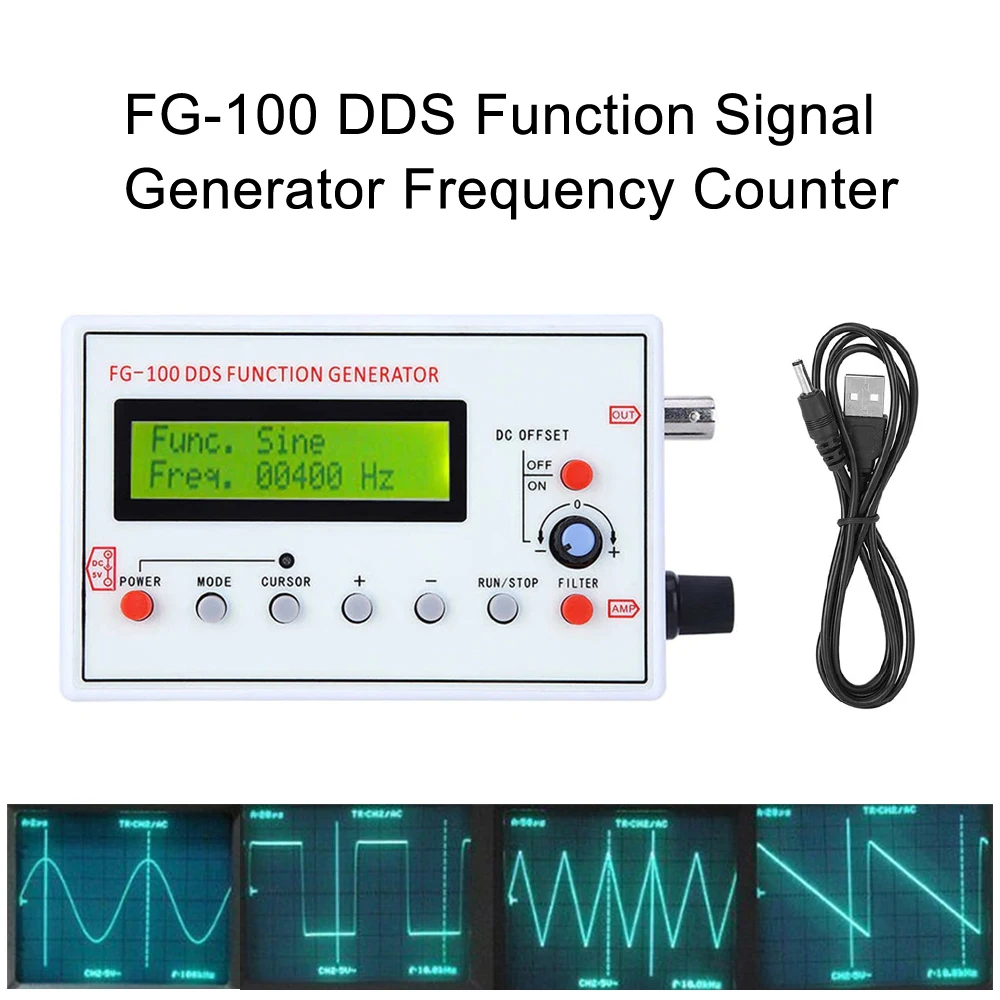

Package includes:

1 x FG-100 DDS Function Signal Generator

1 x USB power adapter cable



Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
