Поддержка цветного изготовления на заказ самосверлящие пластиковые якоря для гипсокартона нейлоновый пластиковый расширительный анкер Настенная заглушка
- Категории: Anchors >>>
- Поставщик: Nantong,Intlevel,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

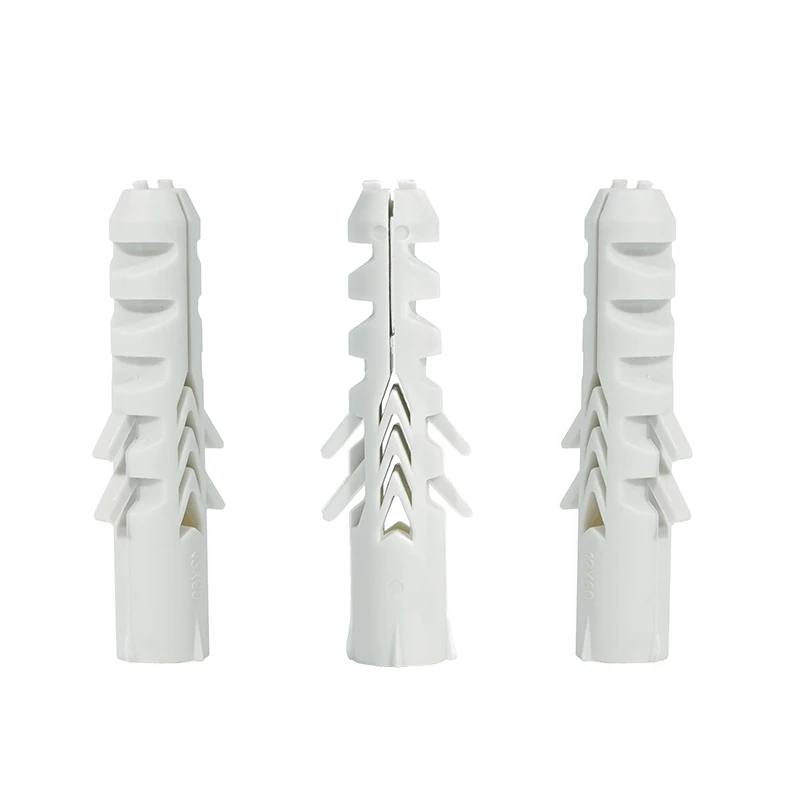

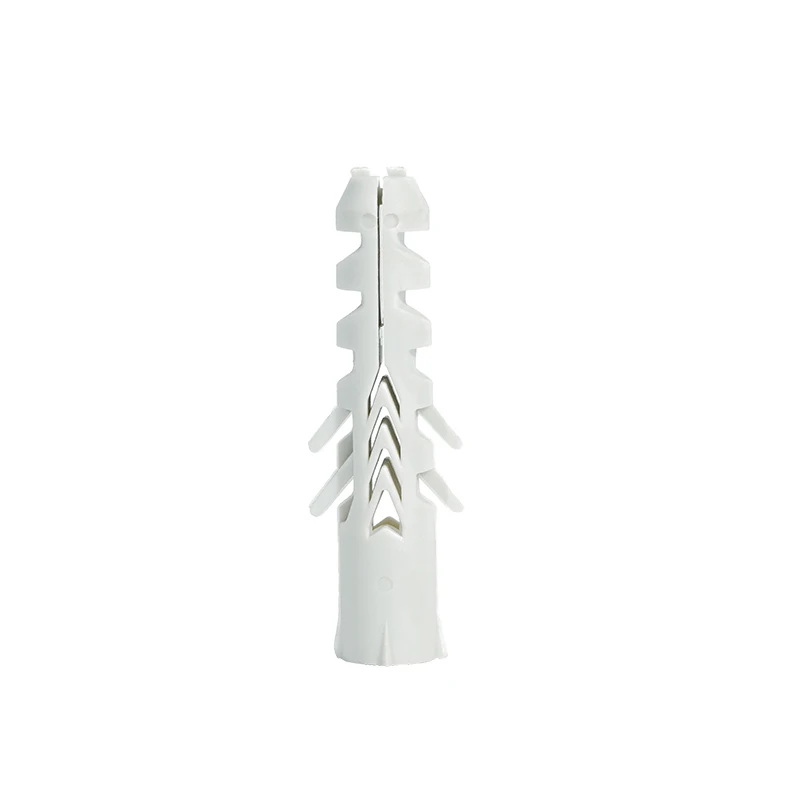

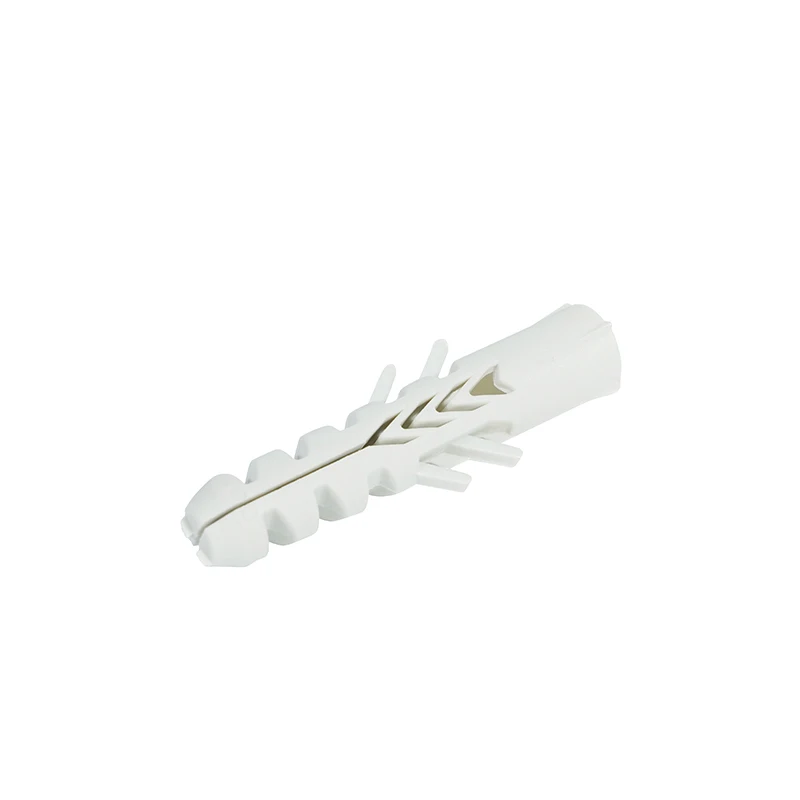

Wall Plug Without Lip
* 【PREMIUM MATERIAL】Drywall anchors self drilling hollow wall anchors made from Nylon 6(PA)/PE, compared with ordinary nylon, it has better strength and wear resistance;
* 【PRODUCT FEATURES】 These drywall anchors have a sharp end point, no need to pre-drill holes in the drywall, they can be screwed directly into the wall with a screwdriver, insert the screw, and the anchor will fit snugly into the wall. The installation process is simple and convenient;
* 【Wide Application】 This Kit is ideal for hanging bathroom and kitchen accessories, shelving, light fixtures, mirrors, picture frames, curtain rods and small decorative shelves, and more. Not only for gypsum wall board but also for lightweight concrete, hollow bricks or other softer materials;
* 【Wide Application】 This Kit is ideal for hanging bathroom and kitchen accessories, shelving, light fixtures, mirrors, picture frames, curtain rods and small decorative shelves, and more. Not only for gypsum wall board but also for lightweight concrete, hollow bricks or other softer materials;
Product Paramenters
Anchor Size (mm) | Drill Dia (mm) | Plug Length(mm) | Screw Size(mm) |
5X25 | 5 | 25 | 2.6-4.0 |
6X30 | 6 | 30 | 3.5-5.0 |
7X35 | 7 | 35 | 4.0-5.5 |
8X40 | 8 | 40 | 4.5-6.0 |
10X50 | 10 | 50 | 6.0-8.0 |
12X60 | 12 | 60 | 8.0-10.0 |
14X70 | 14 | 70 | 10.0-12.0 |
Product packaging
First Package way: Small box + Master carton + Pallet
White small box
You can send us the OEM design box with your brand name, logo and other information. We can supply the OEM design for your confirmation.
Small box then in master carton
Different sizes with different boxes quantity in one master carton. You can send us the labels for master carton, then we will send to your confirmation.
Master carton then in pallet
The master cartons will be on the pallets after pack the cartons, then ship to your port by sea.
Second Pakage way: Bulk in carton + Pallet
Finished products
They are the finished products from the machines, we will put them into a gunny bag and waiting for packing.
Bulk in master carton
We will pack with a master carton with 9kgs-12kgs, then we will put the master carton into pallets directly.
Master carton then in pallet
Generally speaking, 18ctns into one pallet, different sizes with differnt carton into one pallet.
Produce Process
Raw Maerials
Prepare the mold
Mold into machine
Finished the products

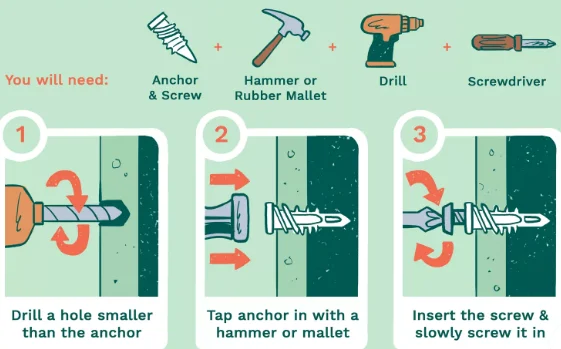

Installation Instructions
How to install the plastic wall anchor?
Step 1
Mark the intended location of the plastic anchor with a pencil. Use two anchors to hang larger pictures and provide greater holding power and stability. You can also use one anchor-and-screw combo as the primary holder, and add a smaller anchor to hold the object steady.Step 2
Drill a hole in the wall for each anchor. Use an electric drill for concrete or wood walls and a drill or an awl for drywall. An awl has the advantage of creating less drywall dust. When using a drill, select a bit with a diameter that is slightly smaller than the diameter of the wall anchor for a tight fit.
Drill a hole in the wall for each anchor. Use an electric drill for concrete or wood walls and a drill or an awl for drywall. An awl has the advantage of creating less drywall dust. When using a drill, select a bit with a diameter that is slightly smaller than the diameter of the wall anchor for a tight fit.
Step 3
Push the plastic wall anchor as far as it could go into the hole. Tap it gently with a hammer until the anchor is flush with the wall surface. If the anchor bends as you hammer it in, remove it with a pair of pliers and insert another anchor.
Push the plastic wall anchor as far as it could go into the hole. Tap it gently with a hammer until the anchor is flush with the wall surface. If the anchor bends as you hammer it in, remove it with a pair of pliers and insert another anchor.
Step 4
Place a screw in the center of the wall anchor. Anchors are often sold in packages that contain screws in the correct sizes. If you purchased the anchors separately, select the screw matches with the anchor. If the screw size isn't listed on the package, you may need to try a few before you find the one that fits perfectly.
Place a screw in the center of the wall anchor. Anchors are often sold in packages that contain screws in the correct sizes. If you purchased the anchors separately, select the screw matches with the anchor. If the screw size isn't listed on the package, you may need to try a few before you find the one that fits perfectly.
Step 5
Tighten the screw in the plastic wall anchor with a screwdriver. As you turn the screw, the anchor will expand to grip the sides of the hole. Do not insert the screw completely into the anchor in order to hang the object.
Tighten the screw in the plastic wall anchor with a screwdriver. As you turn the screw, the anchor will expand to grip the sides of the hole. Do not insert the screw completely into the anchor in order to hang the object.

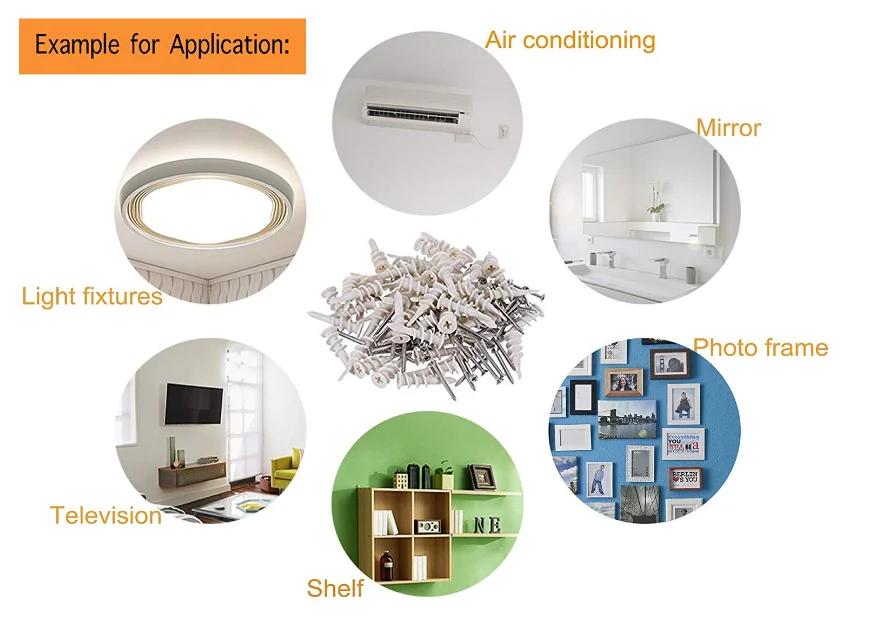

Application
Company Profile
Nantong Intlevel Trade CO. Ltd., is located in Nantong City, Jiangsu Province which is about 100KM from Shanghai.
“Excellent Quality, Perfect Services and Competitive Prices”is our eternal faith. We always do our utmost to create value for our customers.
Intlevel owns three manufactories of steel hardware and 3,000 square meters logistics warehouse, intlevel is specialized in construction stampings, fasteners and anchors. Our products reach the international quality standard, such as DIN, BS, ANSI, JIS and so on.
“Excellent Quality, Perfect Services and Competitive Prices”is our eternal faith. We always do our utmost to create value for our customers.
Exhibition
We will attend the 2020 International Hardware Fair Cologne on 1th to 4th, March. Booth number, Hall4, C-033. Hope you can come visit our booth.
2018 INTERNATIONAL HARDWARE FAIR COLOGNE
2018 FEICON AT BRAZIL
2019 FASTENER FAIR STUTTGART
2019 EXPO NACIONAL FERRTERA MEXICO
Certificates
FAQ
A: Yes, we do. We have several skilled engineers who can offer a control planning with process tolorance and inspections after
seeing the drawings.
Q: Could you issue the drawing?
A:Yes, we can issue the CAD, PDF, Solidwork drawing as per customer’s request or samples.
Q: How do you ensure the quality?
A:100% inspection. We use the Height Gage, Coordinate Measuring Machine, Hardness Tester, Video Measuring Machine, Roughness
Tester, Torsion Tester, Salt Spray Tester and so on to test our goods.
Q: How about your purchase & sourcing?
A: We have in-house facility for purchase & sourcing. We have a system for vendor approval process which can keep our list of
approved vendors current.
Q: Could you pls tell me your manufacturing system?
A: Of course. We have adequate in-house production facilities, adequate machine condition/capability, adequate process
reliability. Our preventive equipment maintenance system also makes effort to manufacturing.
Q: Does your company have a quality manual? Will your company share production techniques and processes for the purpose of
developing a comprehensive quality?
A: Yes, we can provide our customers with a quality mannal or PPAP Files if required. We're willing to share the techniques and
process with our customers in order to achieve the products.
