Product Description
Product Details

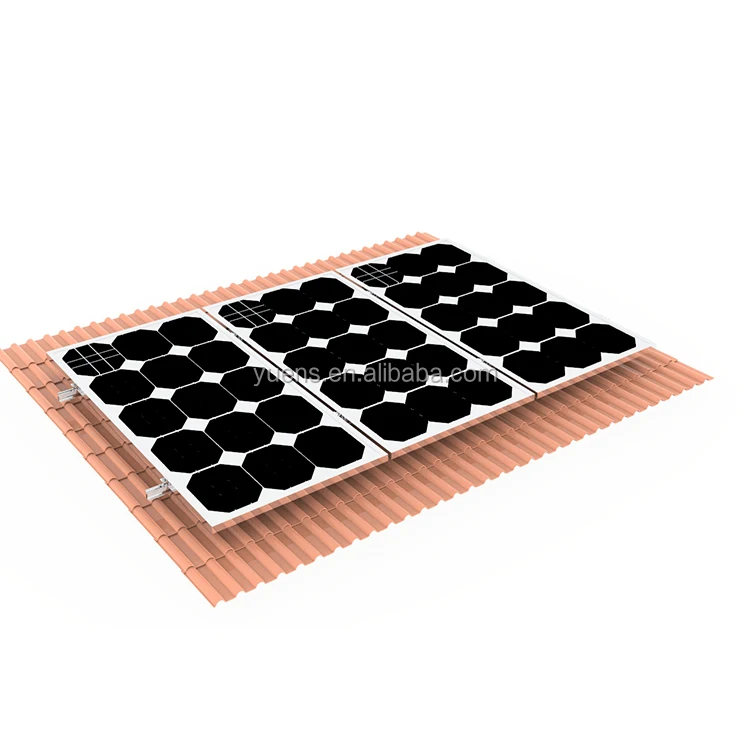

Mounting Solar Systems Solar Panel Tile Roof Mounting Solar Roof Hook

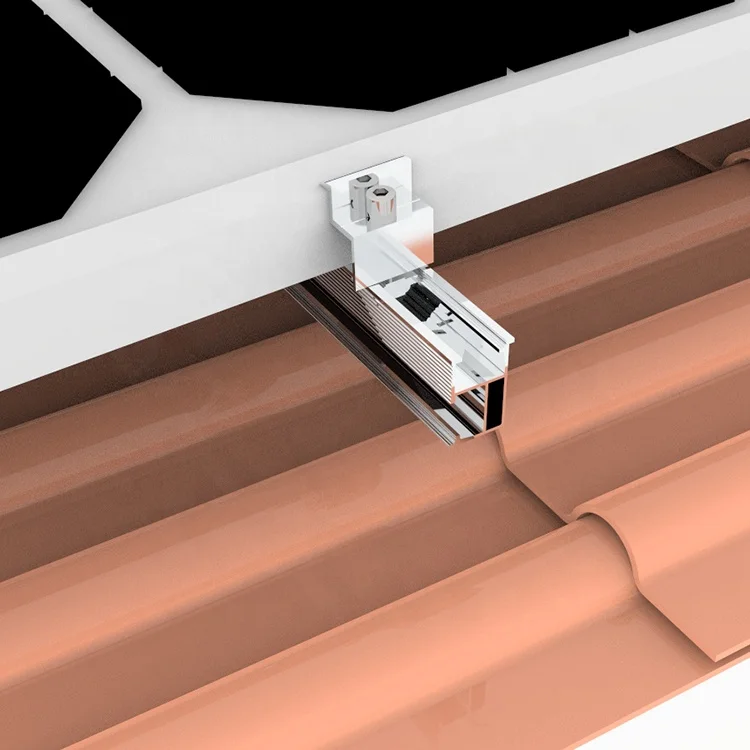

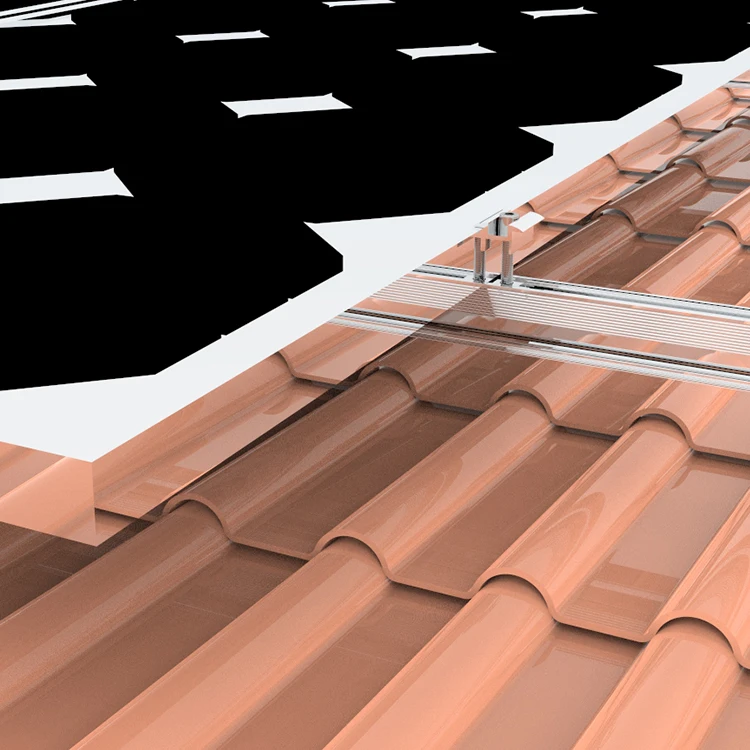

RP-1 Pitched Tile Roof Mounting is suitable for installing framed and frameless modules on the pitched roof with high strength and excellent stability. Different hooks are compatible with various tile roofs.
Application Case
Technical Parameter
Install Site: | Pitched Tile Roof |
Max. Wind Speed: | 60m/s |
Snow Load: | 1.4kN/m2 |
Material: | AL 6005-T5 & Stainless Steel 304 |
Main Components
Click below pictures to get more details.
Contact us to get sample and catalog :-)

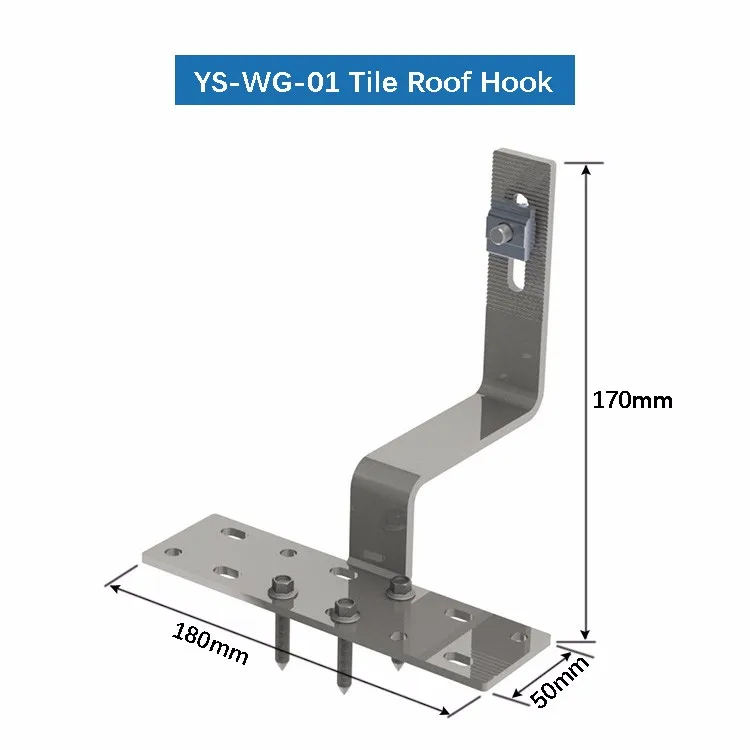

Optional Roof Hooks
Installation Steps
Contact us to get the detail installation manual :-D

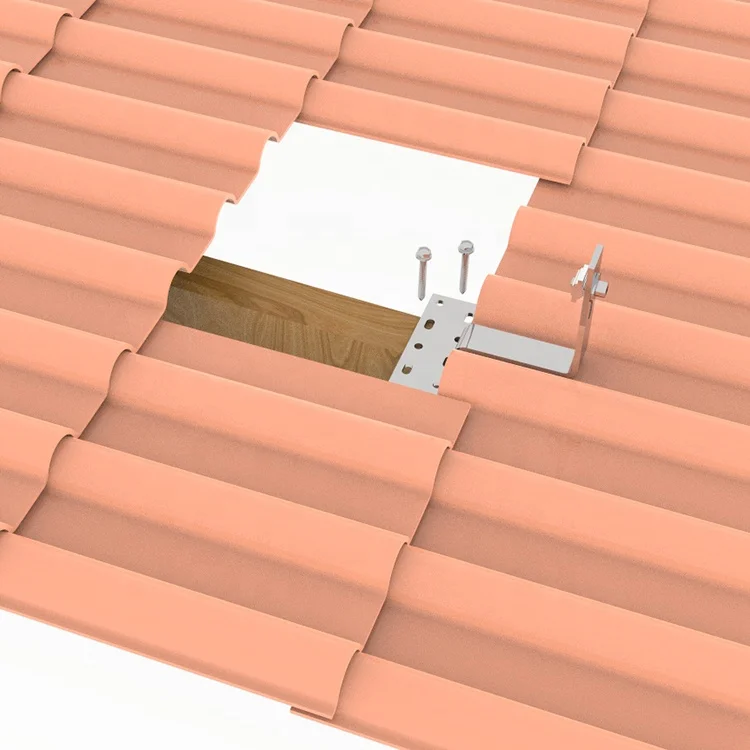

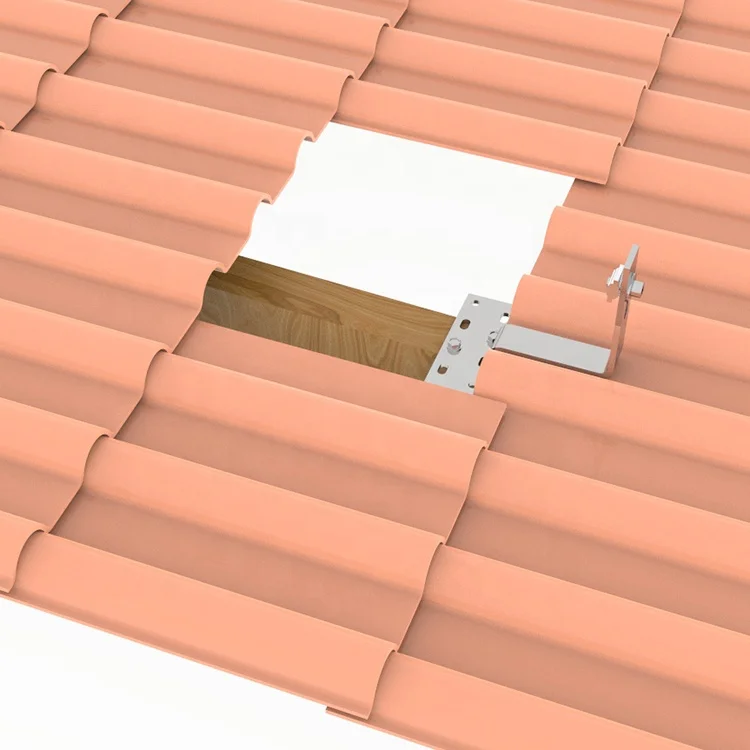

1. Tight tile hooks up with wood screw on the beam.

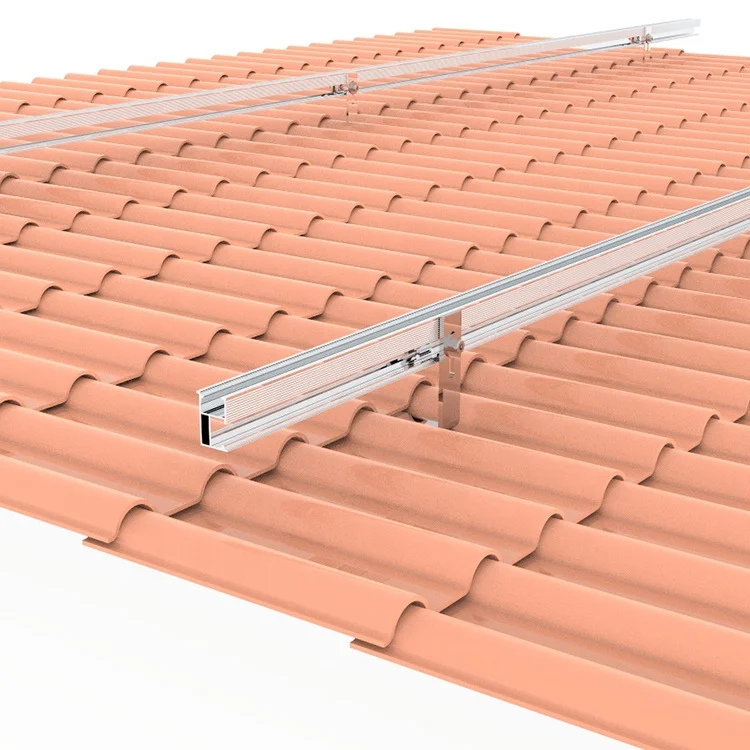

2. Fix the rail on tile hook.

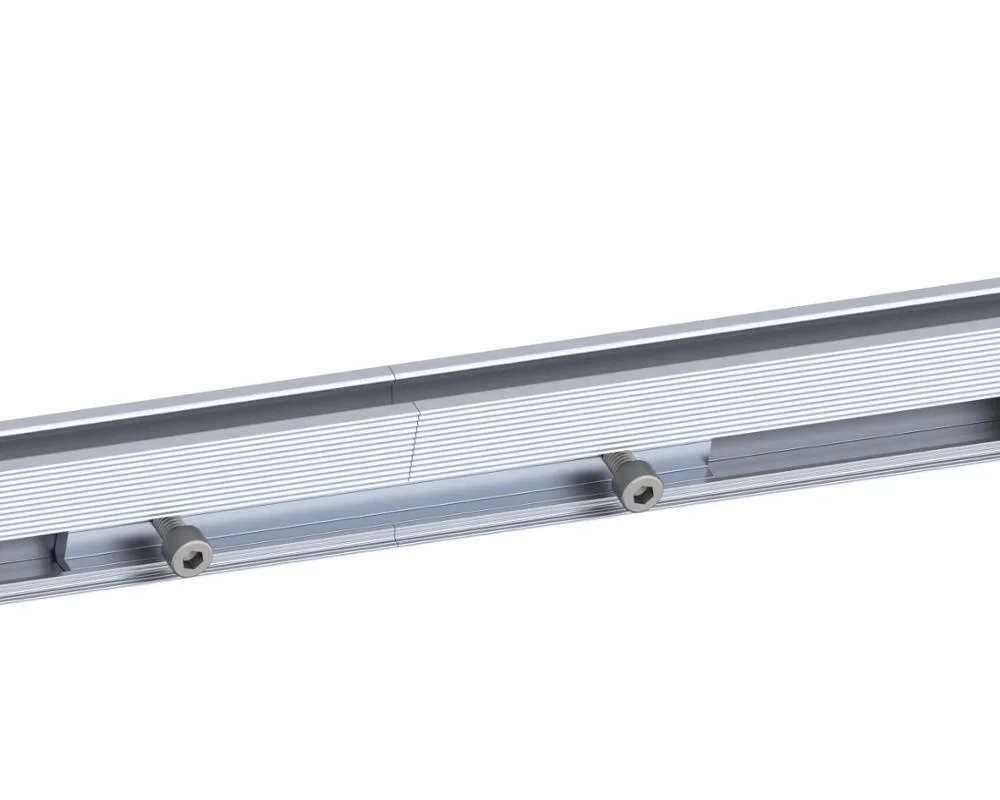

3. Connect two rails with rail splice if the rails are not long enough.
4. Fix panel on the rail at the end of panel by end clamp.
5. Fix panel on the rail in the inner part by mid clamp.
6. Well done! You have installed the pitched tile roof mounting system successfully.

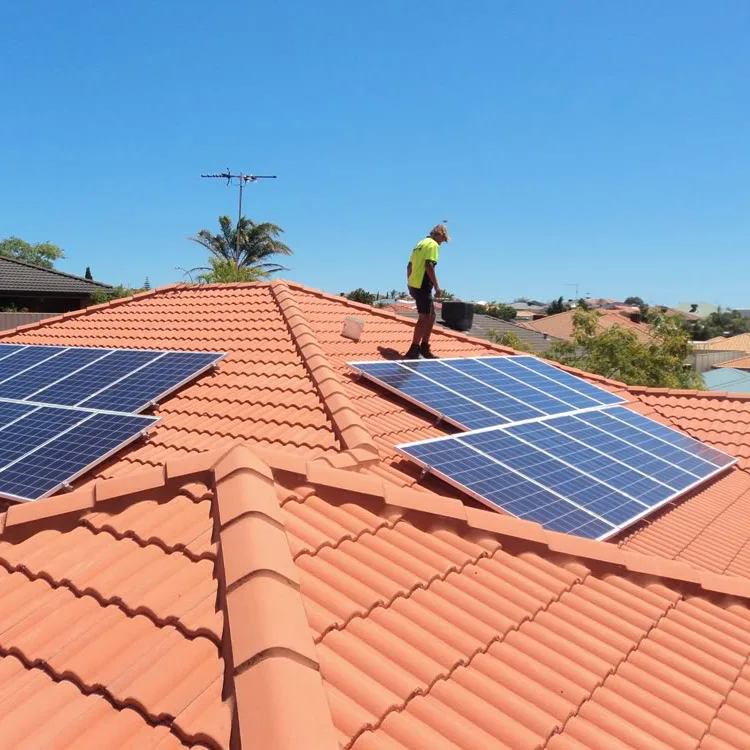

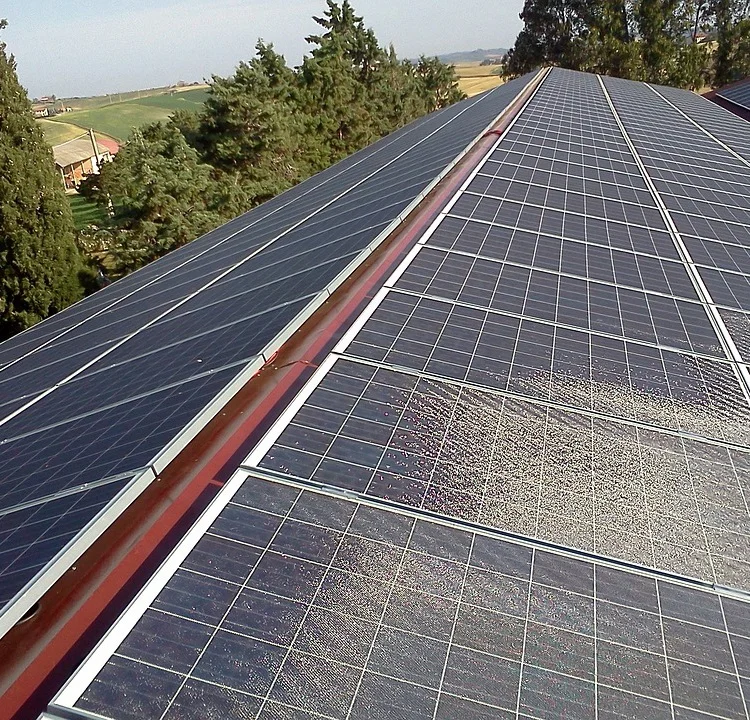

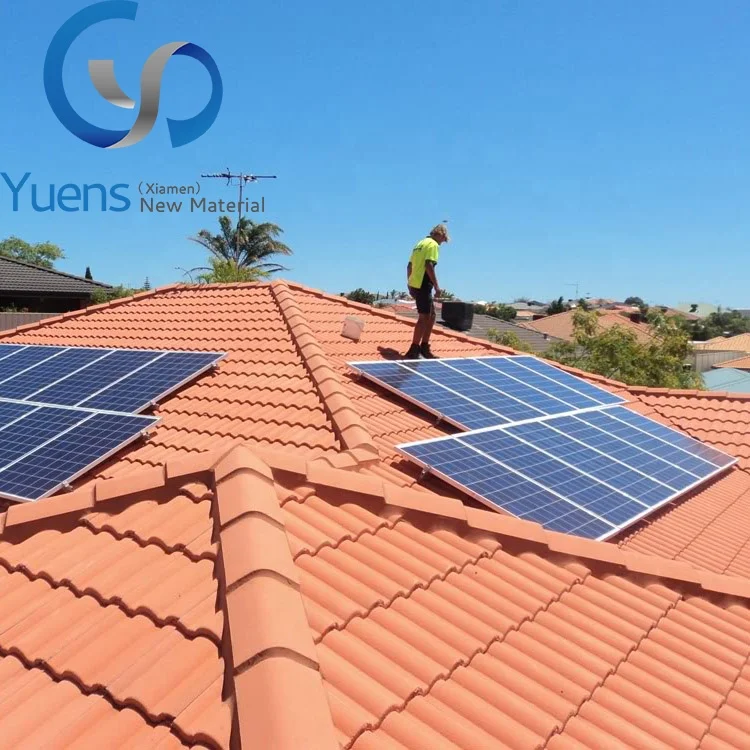

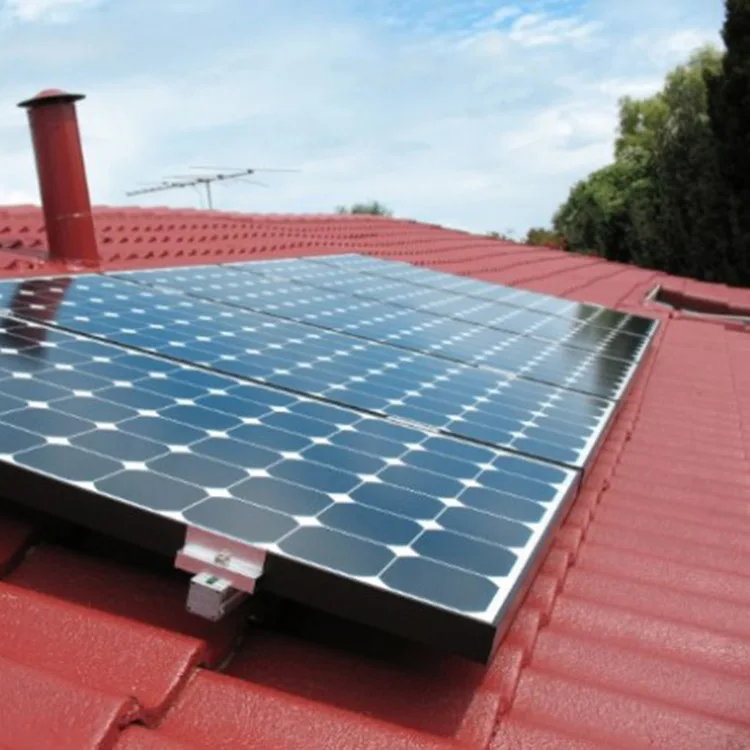

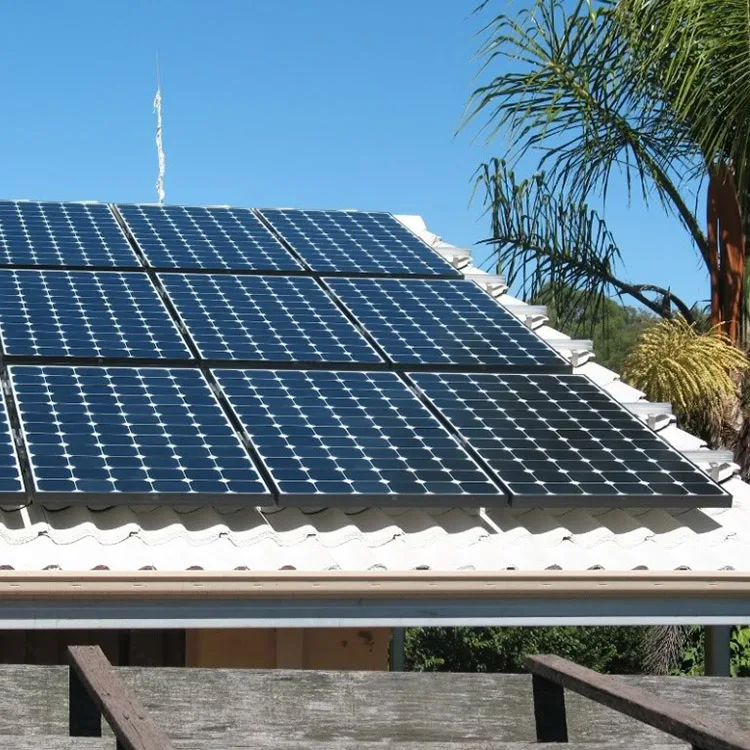

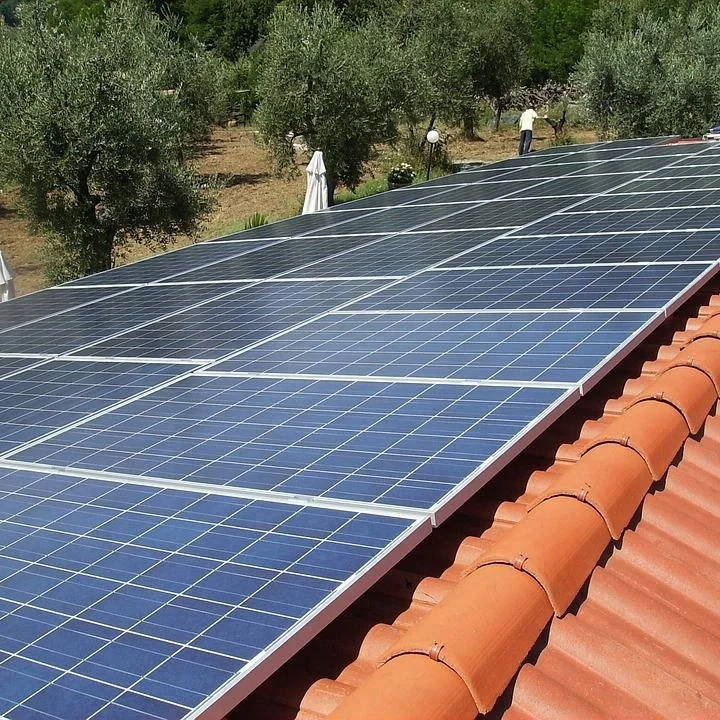

\t\t\t\t\t\t\t\t\tProject Photo \t\t\t\t\t\t\t
Roof Drawing Design
Free bom list and drawing design pls contact me on Email evelyn@yuen-s.com/ whatsapp +86 18965191192.
Pls provide below datas for design, drawing sample as below
1. The dimension of your common solar panel?(L*W*T) | ||||||||
2. The PV array or installation roof area? | ||||||||
3. Max Wind speed & Snow Load in your area? | ||||||||
4. Optimal tilt angle for your area? | ||||||||
Solar Show
Yuens attended the Solar Show in Vietnam, Malaysia, German, Egypt etc.
Free bom list and drawing design pls contact me.
Yuens
is a professional company, engaged in research, manufacturing, and marketing of aluminum products for the solar mounting system, curtain wall system, and other architectural constructions. We have been committed to providing high-level quality products and related technical support service.
