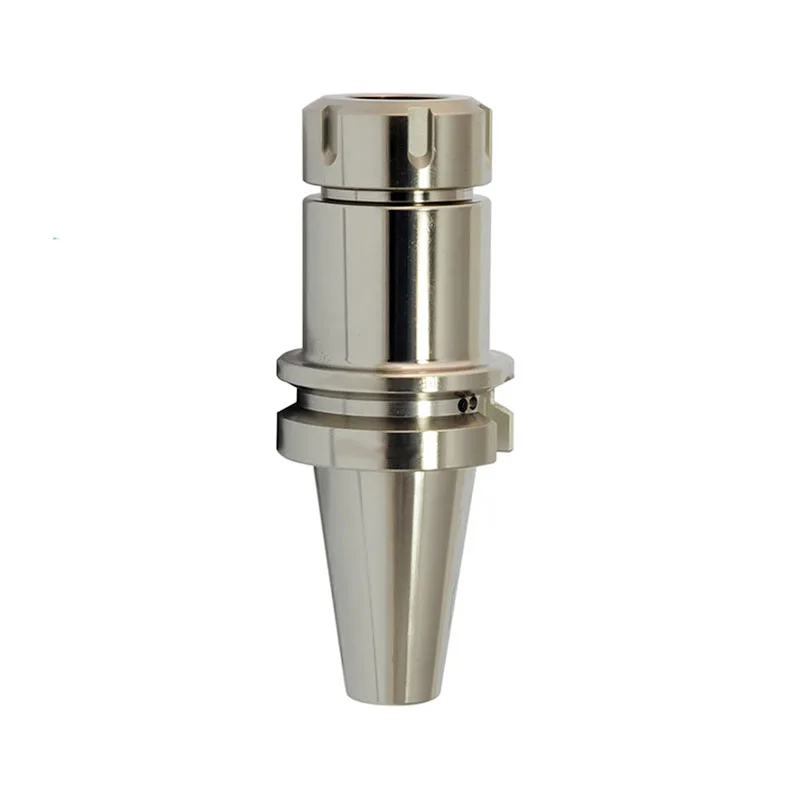

bbt er spindle collet chucks bbt30 bbt40 bbt50 cnc tool holders
Materail: 20CrMnTi
Max run out: <0.003mm
Taper tolerance:<AT3
Surface Roughness: >0.01mm
When Order, please specify balancing G6.3 or G2.5

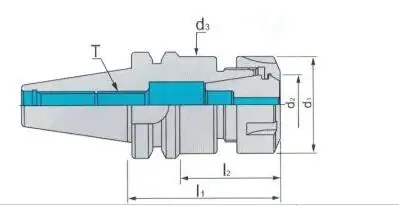

| Model | l1(mm) | l2(mm) | d1 | d2 | d3 | T |
| BBT30-ER16-50 | 50 | 27 | 28 | 16 | 28 | M10*1.5P |
| BBT30-ER16-60 | 60 | 35 | ||||
| BBT30-ER16-70 | 70 | 40 | ||||
| BBT30-ER16-100 | 100 | 70 | ||||
| BBT30-ER16-120 | 120 | 93 | ||||
| BBT30-ER20-70 | 70 | 45 | ||||
| BBT30-ER32-70 | 70 | 48 | 50 | 32 | 50 | M16*2.0P |
| BBT30-ER32-100 | 100 | 78 | ||||
| BBT30-ER40-80 | 80 | 58 | 63 | 40 | 63 | |
| BBT40-ER16-70 | 70 | 40 | 28 | 16 | 28 | M10*1.5P |
| BBT40-ER16-100 | 100 | 63 | ||||
| BBT40-ER16-125 | 125 | 88 | ||||
| BBT40-ER16-150 | 150 | 103 | ||||
| BBT40-ER16-180 | 180 | 143 | ||||
| BBT40-ER20-70 | 70 | 40 | 34 | 20 | 34 | M12*1.75P |
| BBT40-ER20-100 | 100 | 63 | ||||
| BBT40-ER20-135 | 135 | 98 | ||||
| BBT40-ER20-150 | 150 | 113 | ||||
| BBT40-ER32-70 | 70 | 40 | 50 | 32 | 50 | |
| BBT40-ER32-100 | 100 | 70 | ||||
| BBT40-ER32-150 | 150 | 118 |
COMPANY PROFILE
Dezhou Haotian Imp&Exp Co.,Ltd locate in the largest production base of machine tool accessories in China.we are specialized in researching,producing and developing many kinds of collets,CNC tool holders, ER nuts,ER spanners,machine vises,fasteners etc. With high quality and full varieties.all of our products are deeply trusted by customers both at home and abroad.welcome to inquiry and visit us!
FAQ2
1.Are you factory or trade company?
A: We are industry and trade integration.Our engineers most have been in this field for more than 20 years.
2.Could you supply samples?
A: Yes,we can supply but don’t pay for the cost of freight.
3.Where do you export?
A: The whole world.
4.Could you produce non-standard products?
A: Yes,we can.Please supply samples or drawing.
5.What’s your delivery time?
A: Most of all are in stock, others 5-20 days after order confirmed.
6. If you have other questions ,pls feel free to contact us as below:
