Products Description
1.GENERAL
1.1 Description
In particular, the GDM-010 can process an incoming video signal with HD, Full HD and 4K resolution that is then processed by the H264 encoder and distributed as a FULL HD digital terrestrial signal to ensure compatibility with most TVs in a system, capable of tuning HD digital terrestrial channels.
The GDM-010 equipped with HDMl input and HDMl through output can also pass 4K signals to the main TV ensuring maximum resolution to the TV connected directly to the modulator.
The GDM-010 can adjust the compression ratio to the available bandwidth, acting on DVB-T modulation parameters.
In addition to DVB-T modulation features, the GDM-010 modulator can handle 'HDMl source audio even if in DOLBY format, without
having to change the AUDIO source settings.

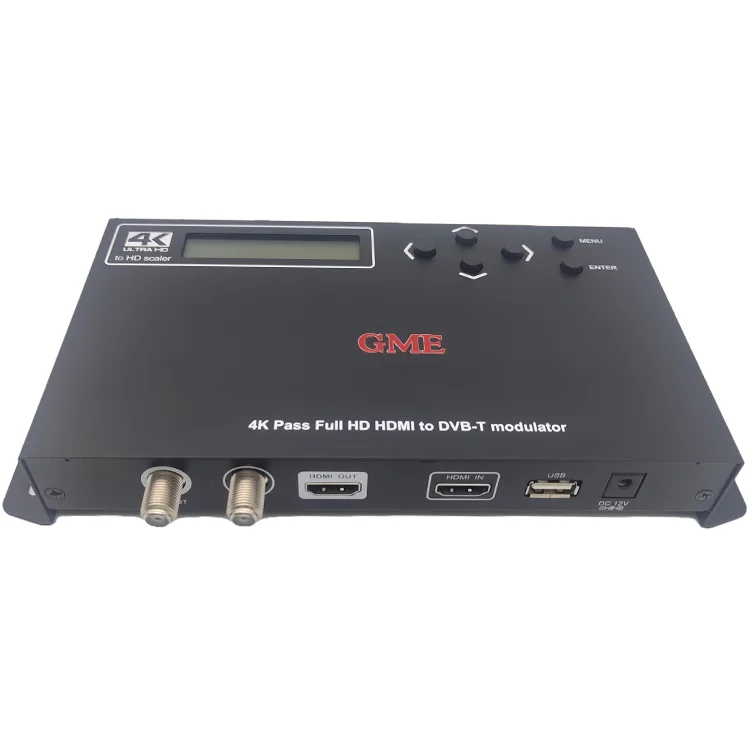

The DiProgress GDM-010 is a digital modulator capable of generating a signal in DVB-T digital terrestrial format, from an HDMl
audio-video source.
audio-video source.
In particular, the GDM-010 can process an incoming video signal with HD, Full HD and 4K resolution that is then processed by the H264 encoder and distributed as a FULL HD digital terrestrial signal to ensure compatibility with most TVs in a system, capable of tuning HD digital terrestrial channels.
The GDM-010 equipped with HDMl input and HDMl through output can also pass 4K signals to the main TV ensuring maximum resolution to the TV connected directly to the modulator.
The GDM-010 can adjust the compression ratio to the available bandwidth, acting on DVB-T modulation parameters.
In addition to DVB-T modulation features, the GDM-010 modulator can handle 'HDMl source audio even if in DOLBY format, without
having to change the AUDIO source settings.
1.2 What’s in the Box
One DVB-T Modulator with IR return path
One power adaptor
One power adaptor
2. INSTALLATION
2.1 Connection diagram examples
3. OPERATING INSTRUCTIONS
3.1 Description of controls and components
Description of the different elements
Specification
Place of Origin:Guangdong,China | ||||||
Model Number:GDM-010(GTM-8604KD) | ||||||
ITEM | TYPICAL | Q.C LIMIT | TEST CONDITIONS | |||
1. RF Output | ||||||
Connector | Female TYPE-F | |||||
Impedance | 75 ohms | |||||
Output Frequency Range | CH5~CH69 | 177.5 MHz ~858MHz | ||||
Low Band CH5~CH12 | 177.5 MHz ~226.5MHz | |||||
High Band CH21~CH69 | 474MHz~858MHz | |||||
RF Out Level | 97dBµV | 97dBµV ± 5dBµV | ||||
RF Out Level ADJ | 0dBm~-30dBm | |||||
MER | >30dB | |||||
2. RF Input | ||||||
Connector | Female TYPE-F | |||||
Impedance | 75 ohms | |||||
FREQ. RANGE | 50~ 950 MHz | |||||
INSERTION LOSS | - 4.8dB | - 4.8 dB MAX. | ||||
3.HDMI INPUT | ||||||
Connector | HDMI JACK | |||||
Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P/4K | Support dolby | ||||
4.HDMI OUTPUT | ||||||
Connector | HDMI JACK | |||||
Needing the image and sound to export | There can’t be mosaic and The Sound is distorted | Support dolby | ||||
Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P/4K | |||||
5.Front Panel Function | ||||||
Buttons | MENU | |||||
ENTER | ||||||
▲UP | ||||||
▼Down | ||||||
◀ Left | ||||||
▶ Right | ||||||
Display | LCD | |||||
6．USB2.0 | ||||||
Connector | USB2.0 JACK | |||||
Signals | Firmware Update | |||||
7. General Data | ||||||
Software | Software Version | |||||
Supply Voltage | AC100V~240V 50Hz/ 60Hz OUTPUT:DC12V/1A | |||||
Power Consumption Max | 10W | 10W Max in AC input | ||||
Working Temperature | +5℃ to + 40℃ | |||||
Storage Temperature | -20℃ to + 65℃ | |||||
Environmental | ||||||
Temperature | 0℃ to + 40℃ | |||||
Humidity | 40RH to 90RH | |||||
Mechanical Specification | ||||||
Dimensions | 220*120*34mm | |||||
Weight | 0.6Kg approximate | |||||
