Автоматический датчик Электрический роликовый затвор сверхмощный C несколько универсальных серводвигателей используемых для
- Категории: Gate Operators >>>
- Поставщик: Wuxi,Jianda,Door,Industry,Co.,Ltd.Wuxi,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Parameter of motor
Rated Output | 750W | 1500W |
Speed | 2000 rpm | 2000 rpm Rated |
Rated Maximum Torque | 80 Nm | 160 Nm |
Heating Rate | ＜30℃ | ＜30℃ |
Operating Temperature Range | -35℃-60℃ | -35℃-60℃ |
Torque Management System | Torque Servo System | Torque Servo System |
Maximum Operating Area | ＜16 ㎡ | ＜30 ㎡ |
Limit Mode | Absolute Encoder | Absolute Encoder |
Manual release | Hand Crank | Hand Crank |
Weight | 10kg | 10kg |
Parameter of control box
Rated Output | 750W | 1500w | |
Speed | 2000 rpm | 2000 rpm | |
Rated Maximum Torque | 80 Nm | 160 Nm | |
Heating Rate | ＜30℃ | ＜30℃ | |
Operating Temperature Range | -35℃-60℃ | -35℃-60℃ | |
Torque Management System | Torque Servo System | Torque Servo System | |
Maximum Operating Area | ＜16 ㎡ | ＜30 ㎡ | |
Limit Mode | Absolute Encoder | Absolute Encoder | |
Self Locking Mode | Electro Mechanical Brake | Electro Mechanical Brake | |
Manual Release | Hand Crank | Hand Crank | |
Weight | 10 KG | 10 KG | |
Rated Power Supply | AC 220±10％ | AC 220±10％ | |
Rated Voltage | 220V | ||
Speed Control | Closed Loop Speed Control | ||
Position Control | Closed Loop Position Control | ||
Protective Function | Over-current Protection, Over-voltage Protection Under-voltage Protection, Overheating Protection and Overloading Protection | ||
Installation Site | Indoor, away form direct sunlight, dust, corrosive gas, oil and water vapor ect. | ||
Operating Temperature Range | -35℃~60℃ | ||
Weight | 7.5 KG | ||
Installation Method | Wall Mounted | ||

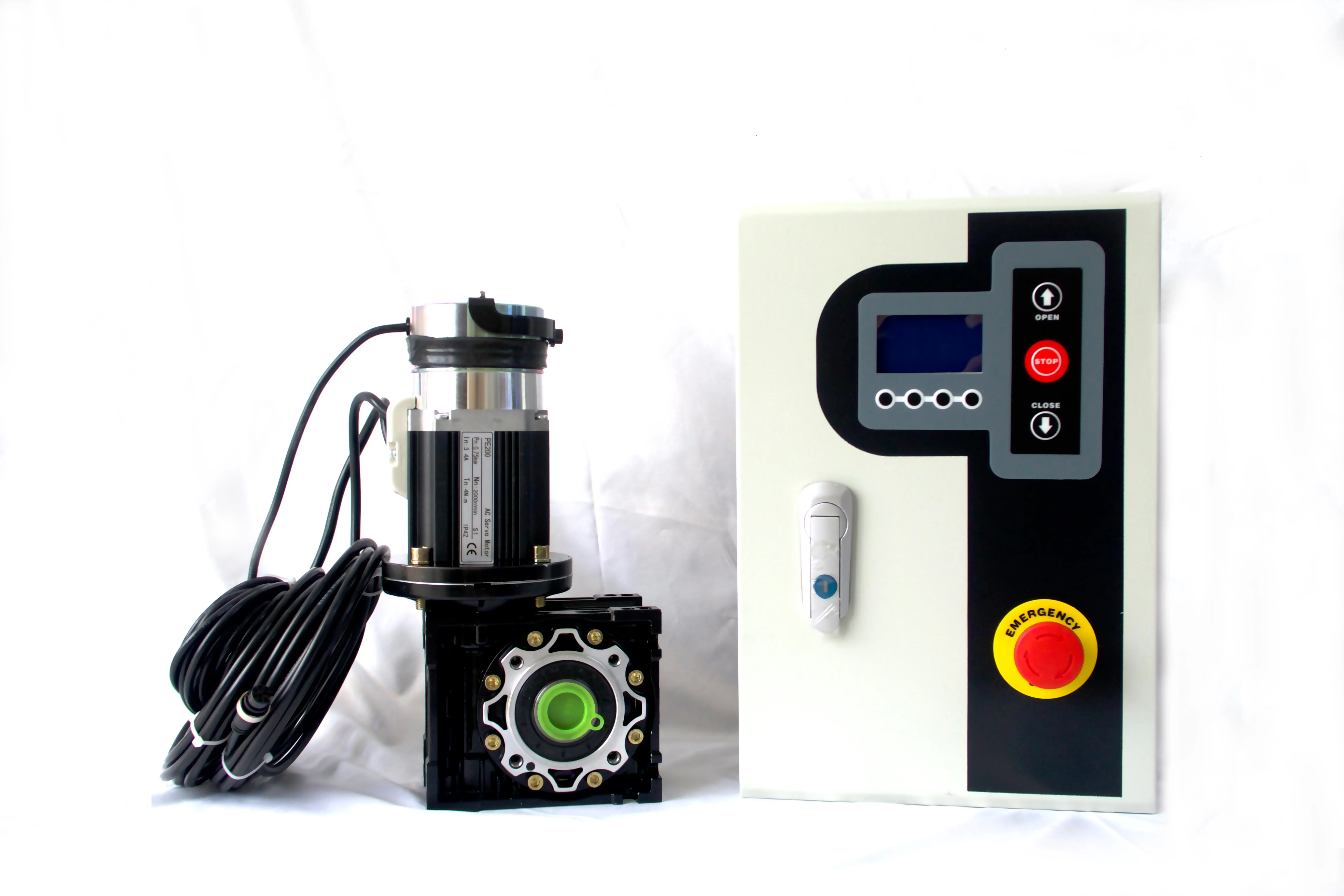

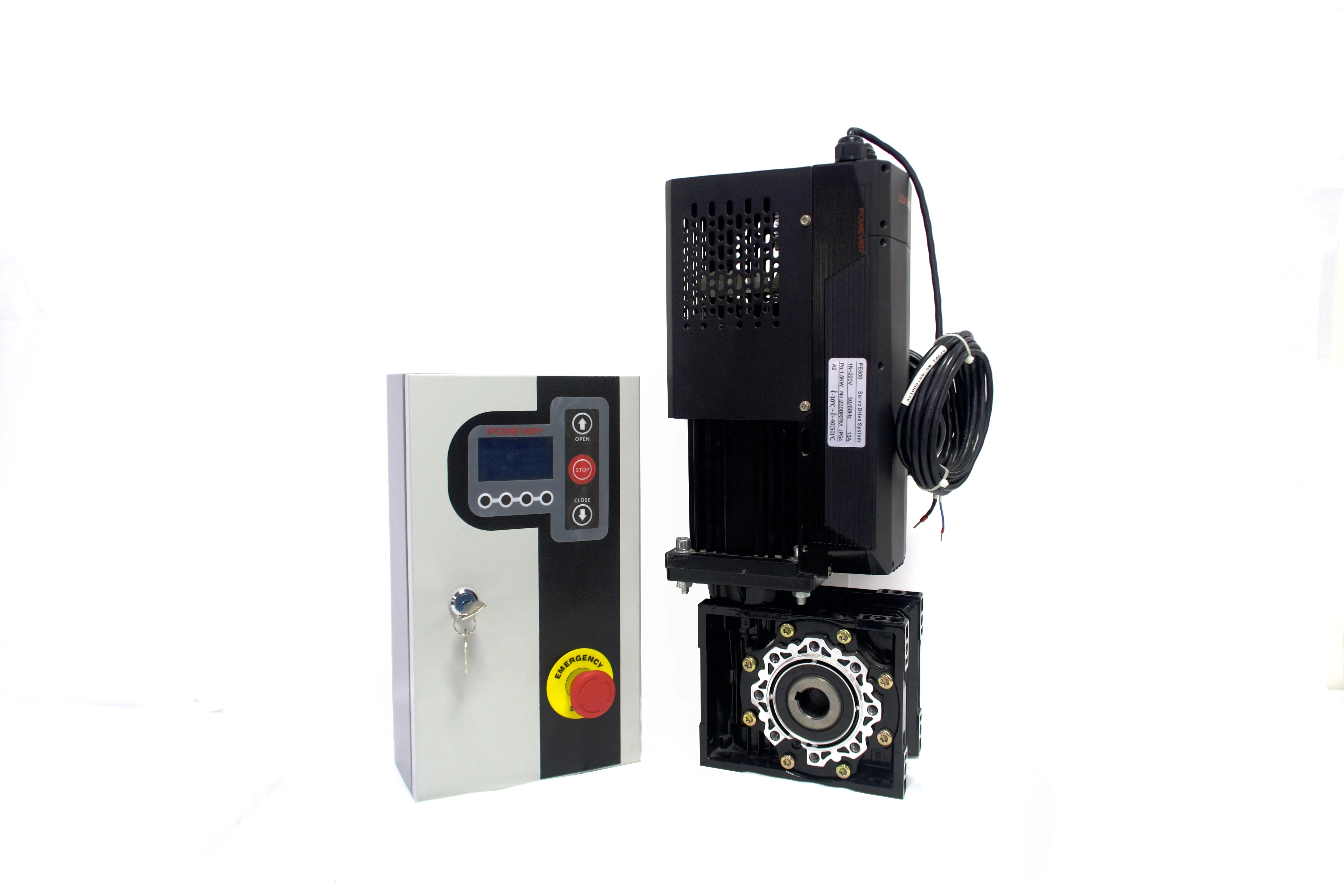

Details Images

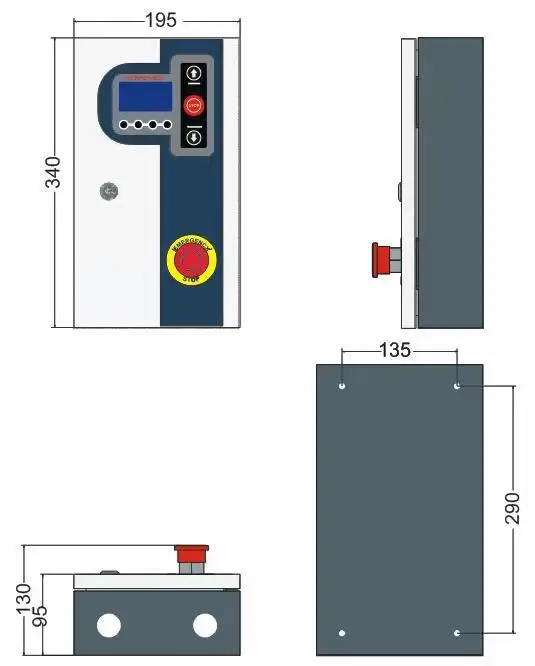

Drawing

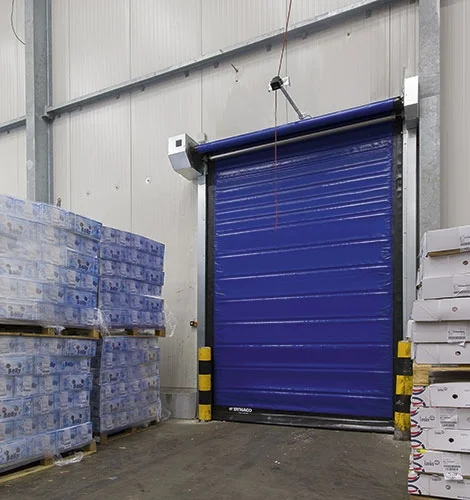

Application

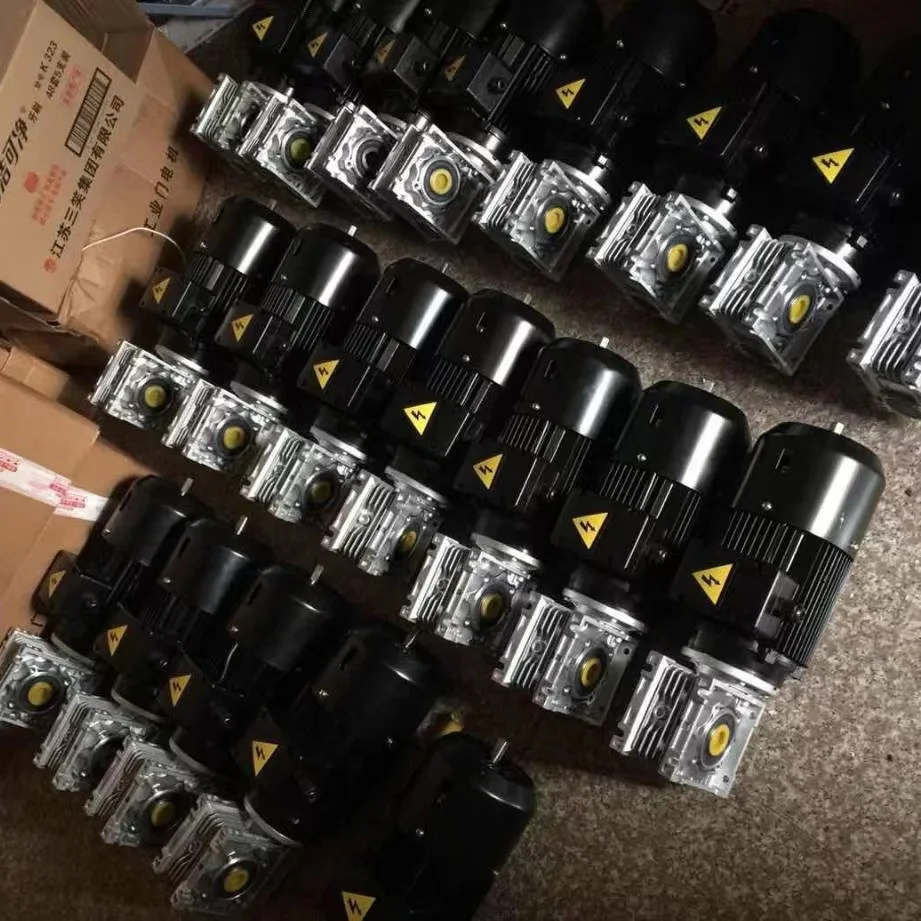

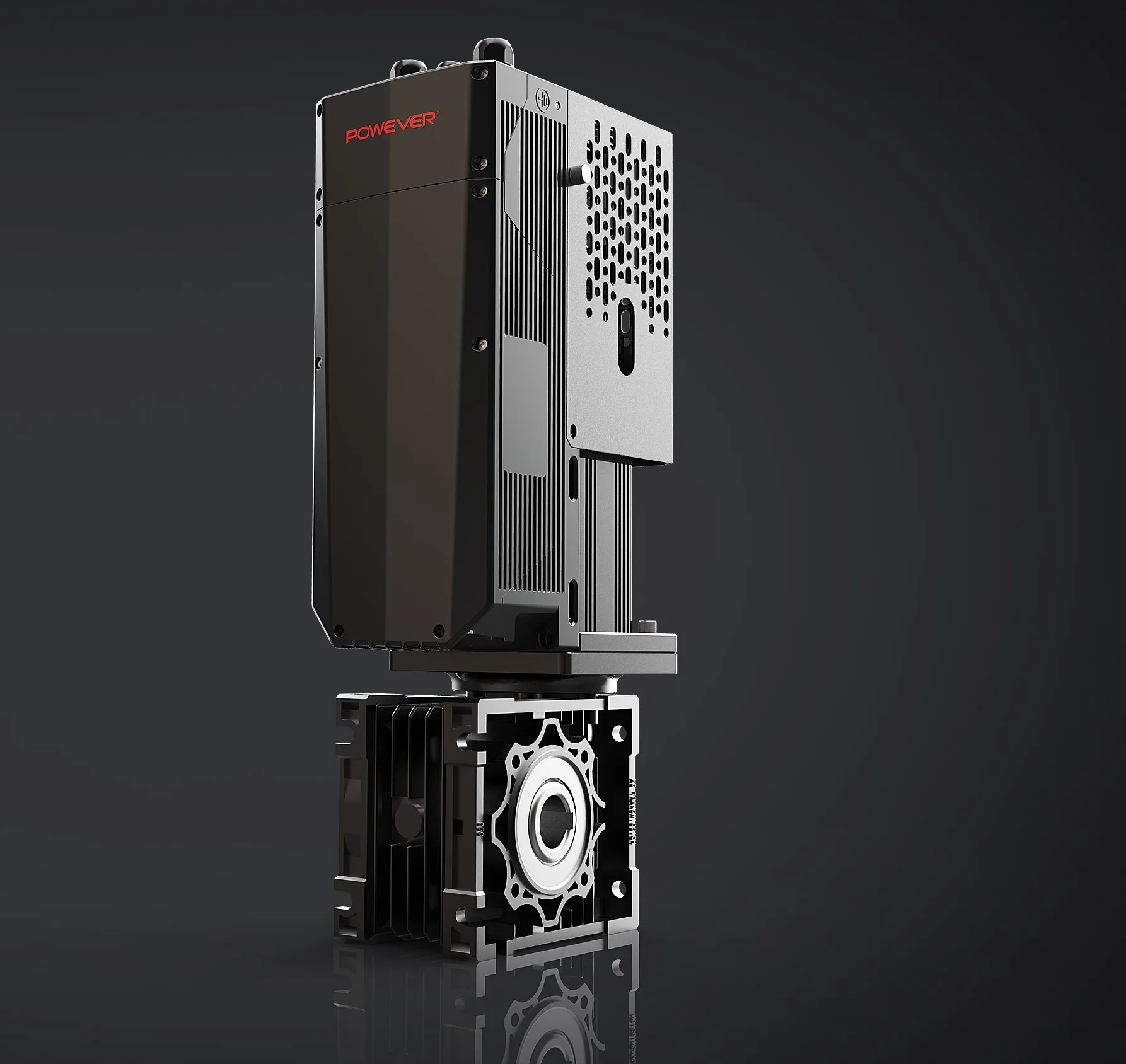

Other motor for choice

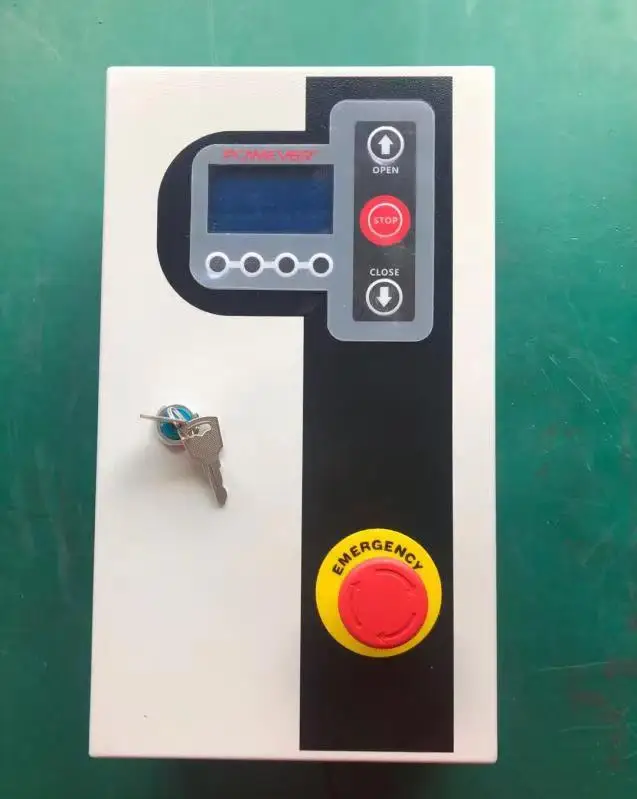

Control system for choice
Operation way and safety device
Manual mode：push button
press “up” button--door open--forklift go through--press “down”button--door close
Auto mode：radar，loop detector，light curtain sensor，etc
Semi-auto mode：pull cord，magnetic card，remote control
Product packaging
Less than one container loading（LCL）
Packed with plywood wood case
Full cotainer loading（FCL)
bubble film+ carton
FAQ
Q1. How to install your product, is it difficult?
A: Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our
salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if
necessary.
Q2.What is your main market?
A: Covered over 60countries on all the five continents.
Q3. Can you accept OEM？
A:Sure，we had done for many client within their own logo and design.
Q4. How about your delivery time?
A：Within 10-15 days for trial order，for full container，depends on the quantity.
Q5. What is your payment term?
A: T/T, L/C at sight, Western Union or PayPal.
Q6. What is your MOQ？
A: We can accept only one set，but the more you buy，the more discount you can enjoy.
