120A Hf пилотный дуговой плазменный резак трехфазный портативный режущий 120 140A
- Категории: Plasma Welders >>>
- Поставщик: Taizhou,Lingba,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

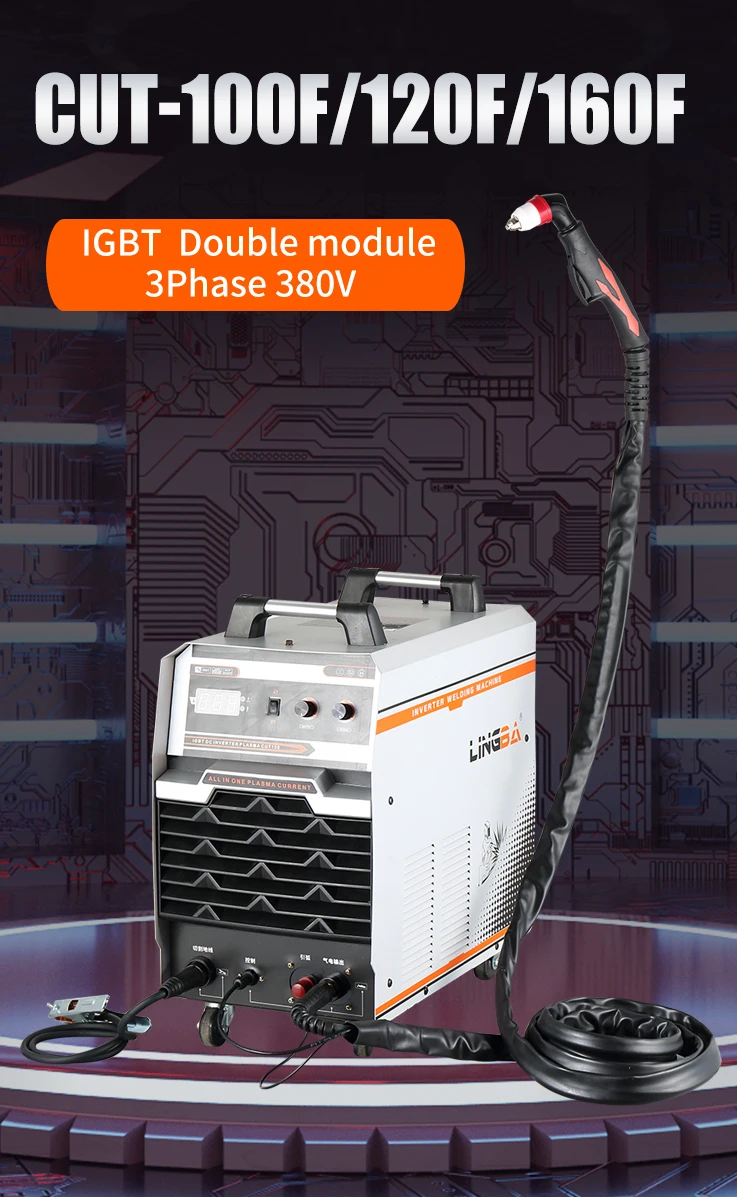

120A Hf pilot arc plasma cutter three phase portable cutting 120 140A 160A plasma cutter CNC
| Model | CUT-100F | CUT-120F | CUT-160F |
| Type | IGBT Double module | IGBT Double module | IGBT Double module |
| AC Input Voltage(V) | 380V 3phase | 380V 3phase | 380V 3phase |
| Output current range(A) | 0-100A | 0-120A | 0-160A |
| Rated Input Power Capacity(KVA) | 6.2 | 10 | 9 |
| Input Frequency(Hz) | 20~40 | 20~60 | 30~100 |
| Non-load Voltage(V) | 300 | 300 | 300 |
| Rated Duty Cycle(%) | 0.6 | 0.6 | 0.6 |
| Efficiency(%) | 0.85 | 0.85 | 0.93 |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Qualified cutting (mm) | 25mm-30mm | 25mm-30mm | 25mm-30mm |
| Quick joint Size (mm) | 35-50 | 35-50 | 35-50 |
| GW/NW(KG) | 29KG | 34KG | 53KG |

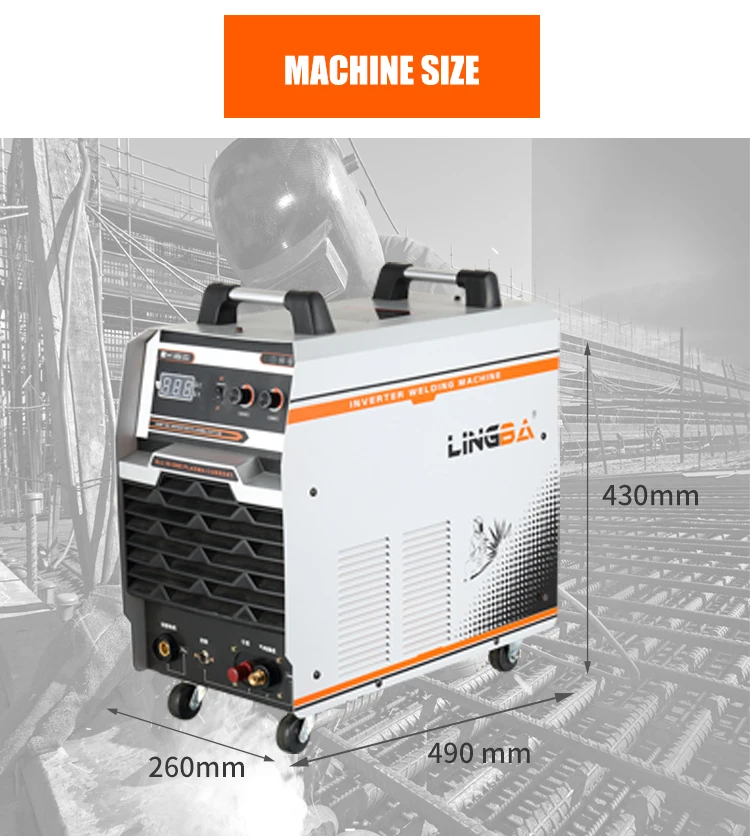

| Machine Size(LxWxH mm) | 490*260*430mm | 550*300*570 | 550*300*570 |

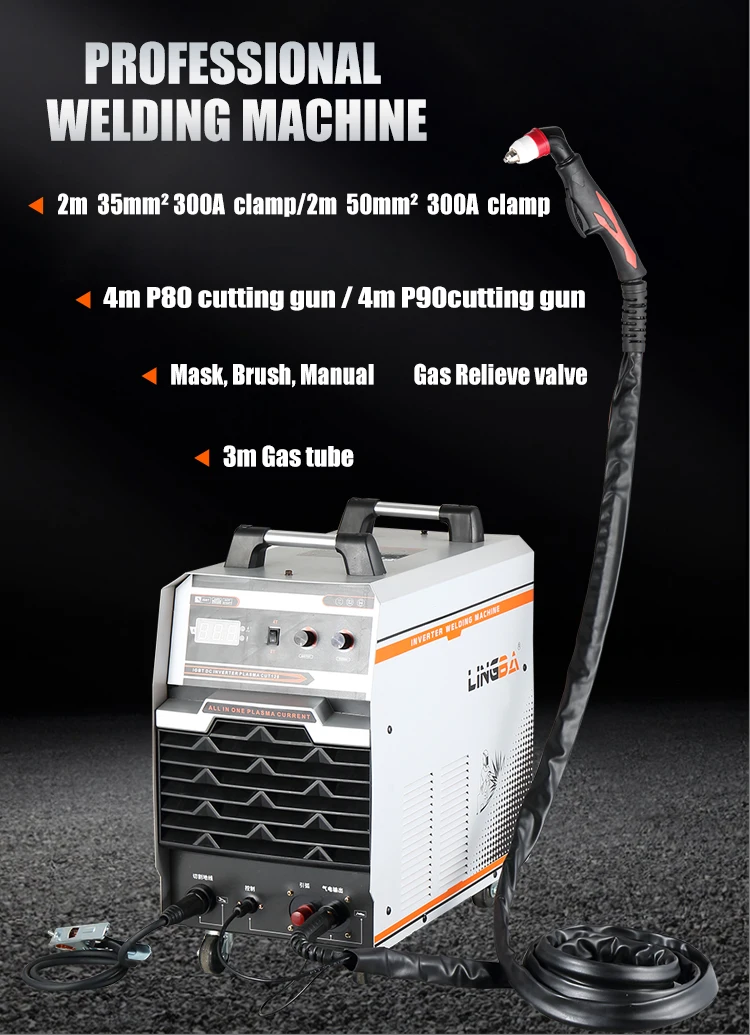

| 2m 35mm2300A clamp | 2m 35mm2 300A clamp | 2m 50mm2 300A clamp | |

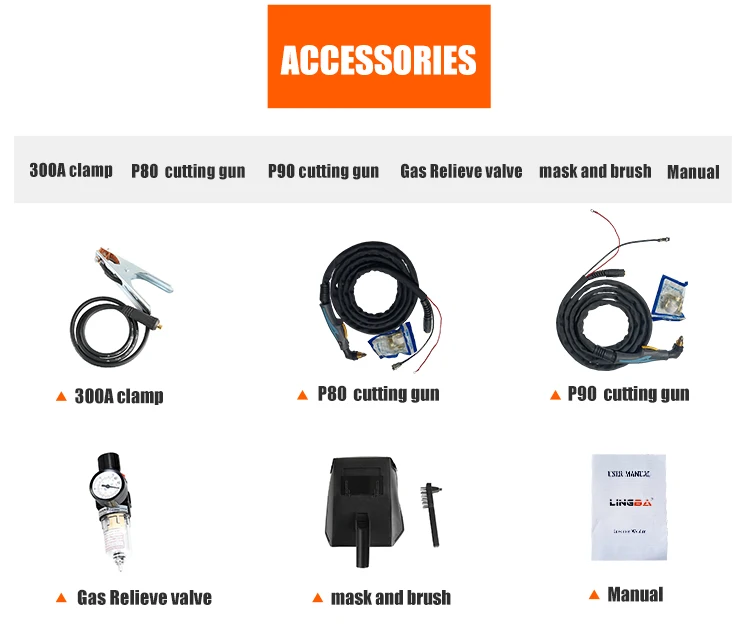

| Accessories | 4m P80 cutting gun | 4m P80 cutting gun | 4m P90cutting gun |
| Mask, Brush, Manual Gas Relieve valve | Mask, Brush, Manual Gas Relieve Valve | Mask, Brush, Manual Gas Relieve valve | |
| 3m Gas tube | 3m Gas tube | 3m Gas tube |
