Product Description

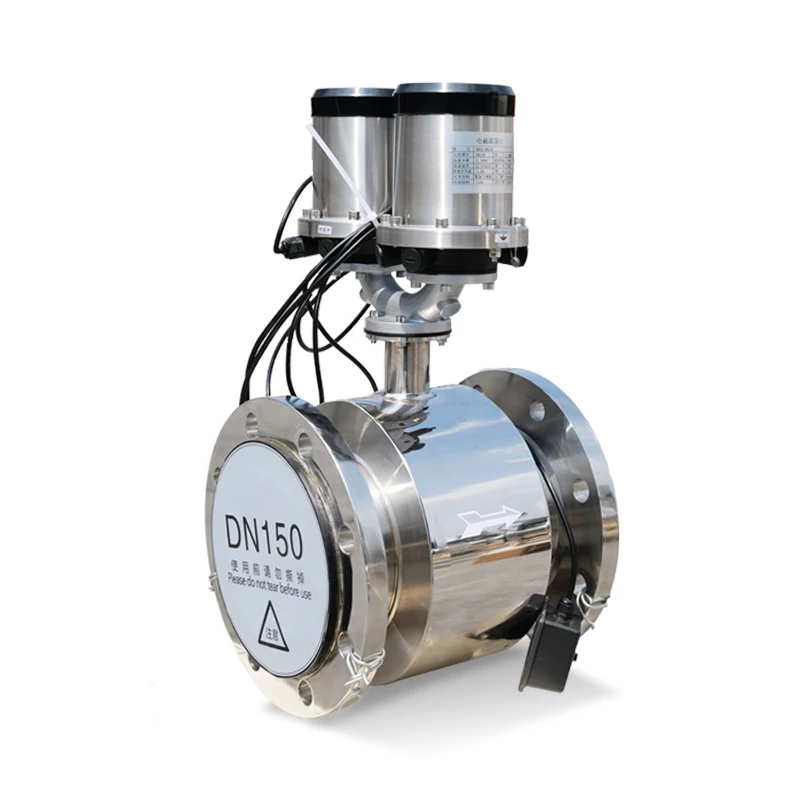

Electronic magnetic salt water flow meter battery powered electromagnetic flow meter
1.Battery powered,three years' service life, it can connect with GPRS module,achieve remote meter reading;
2.There are 12 months warranty of our products from the date of original delivery, "three guarantees" service (return,
replacement, warranty);
3.Your OEM orders are welcome. Customer's logo is available;
Specification
Diameter | DN6-3000mm |
Power supply | 220VAC/ 24VDC/3.6V |
Connection | Flange, Clamp, Thread |
Liner Material | PTFE/PFA/F46/Neoprene/Polyurethane |
Electrode material | 316L, HB, HC, Ti, Ta, WC, Pt |
Accuracy | 0.5% |
Output signal | Pulse / 4~20mA / RS485 Modbus / HART |
Pressure | 0.6-4Mpa (high pressure customizable) |
Protection grade | IP65 / IP 68(optional) |
The battery powered electromagnetic flow meter is powered by an internal battery. It is suitable for situations where the on-site grid cannot reach and the grid is difficult to lay. It is especially suitable for monitoring, calculation and settlement of tap water supply system. With GPRS and CDMA wireless data transmission function; with RS485modbus protocol (external power supply or battery power supply) communication function to achieve remote data acquisition and management. It adopts stainless steel casing and infrared remote control to achieve IP68 sealing protection design, which can be used in wet places such as underground.
Production process
Application fields
1. Drinking water supply, water supply, reservoir and pumping station etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc.
6.Control of metal industrial pump,cooling water and the flow of water.
7. The textile industry of water, pigments, chemicals, bleaching chemicals etc.
Packing & Delivery
1. Plastic film
2. Wooden case
3. Carton box
4. As customer requirements
2. Wooden case
3. Carton box
4. As customer requirements
Each of our instruments has been factory calibration and 100% inspection, and there is a perfect after-sales system.Different products have different packages because of their different sizes.We will ensure that each flow meter, safe and complete to your hands.
Company Profile
Our company has CE, ISO certification, Explosion-proof certification, more than 30 real-type new patents. The company’s main products are electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, turbine flowmeters, open channel flowmeters, orifice flowmeters, metal rotor flowmeters, thermal gas mass flowmeters, etc., which can meet the needs of different occasions.And can design and produce special customized products according to user requirements.
