Поделиться:

Цена:150,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


Model Number
1606-XLS480E-3
Input Voltage
380-480V AC
Output Power
480W
Output Current
20A
Input Phase
3-Phase
Terminals
Spring Clamp
Signal
DC-OK
Output Voltage
Adjustable
Heat Generation
Minimal
Ripple and Noise, Max [mVPP]
100 mV
Power Reserves
50%


Packing & Delivery

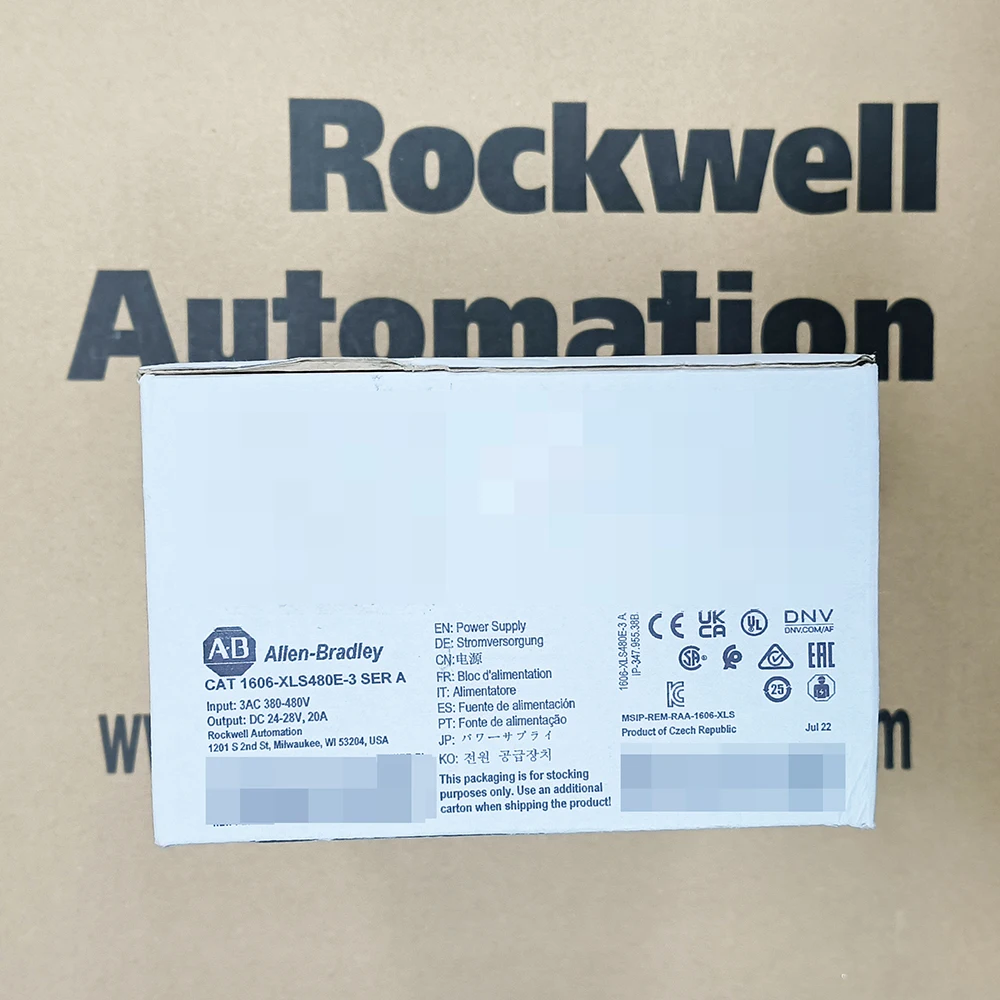

The product will be wrapped in bubble wrap, and then packed in a carton, which is covered with plastic film.


Company Profile

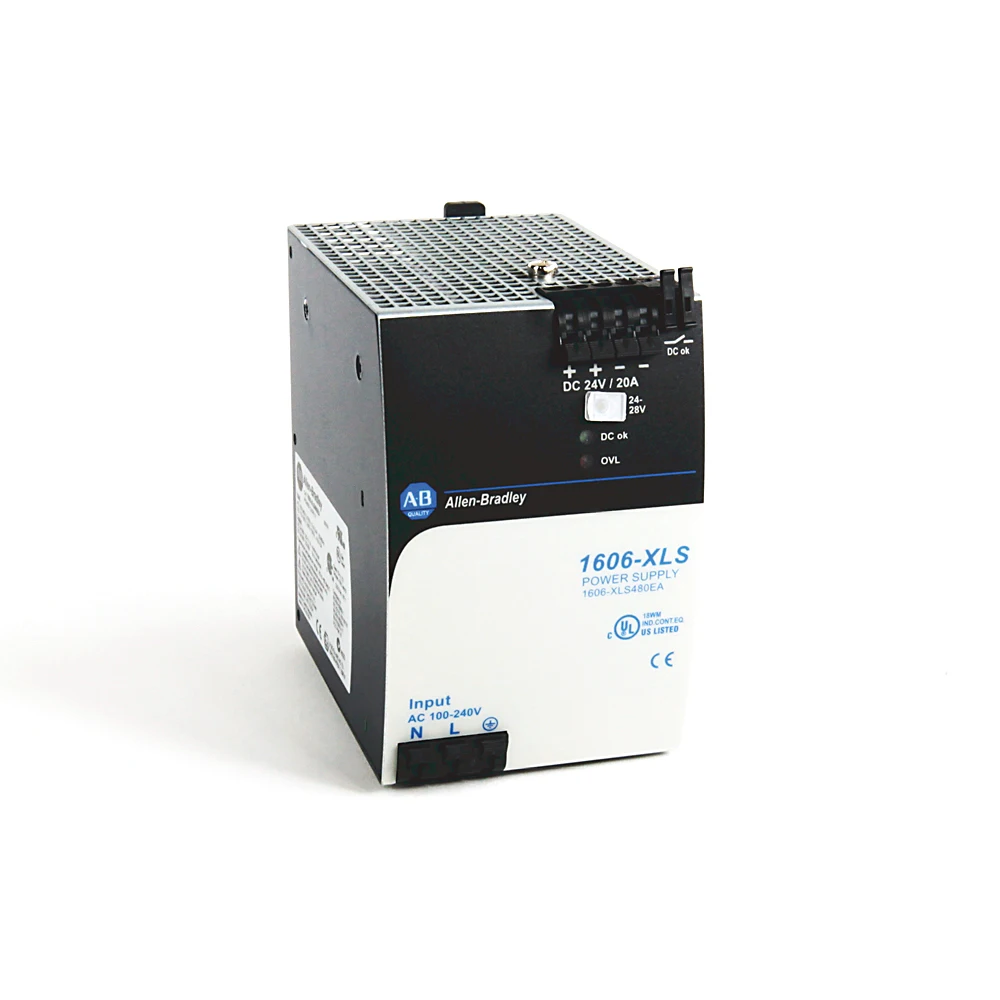

The 1606-XLS480E-3 is a Performance Power Supply. This power supply has a compact, small form factor design which deliver an output voltage of 24-28VDC, output current of 20 A and output power of 480 Watts. To operate this power supply, it requires an input supply voltage of 3-Phase, 380-480VAC.

The 1606-XLS480E-3 has a typical power factor of 0.94 with an active input inrush current limiter. It has an efficiency of 95% and typical power loss of 25.3 Watts. It has a Mean-Time Between Failure (MTBF) of 690 kh and minimum lifetime of 105 kh at an operating temperature of +40 deg. Celsius.

The 1606-XLS480E-3 is a DIN rail mounted device. Additionally, it supports single or parallel operation for use in applications that require high-availability. For redundancy, it can be installed with Diode Redundancy Modules with catalog number 1606-XLPRED.

The 1606-XLS480E-3 can be used to provide power to a wide variety of devices. It can be used as power supply to energize electrical and automation components such as Human Machine Interface (HMI) as well as control voltage for providing power to sourcing and sinking modules, 24VDC relays, buzzer, horns, pilot lamps and other devices.


FAQ


Q1：How can you guarantee the quality of Industrial Controls?
We can guarantee that our products are original，you can confirm by video chat.

Q2: How about the packing when they are sent out?
In order to save the freight and reduce your budget, we choose the packaging for environment-friendly. The product will be wrapped in bubble wrap, and then packed in a carton, which is covered with plastic film.

Q3：How about your inventory? And how long is the delivery time?
We have over 10,000 industrial control products in stock. We’ll arrange the delivery after you order. Warmly welcome you to vist our company.
