Product Overview
Asphalt Mixing Plant
An asphalt mixing plant is a plant that are used for the production of asphalt concrete. In general, an asphalt batch plant can be used to produce bituminous mixture, modified bituminous mixture, colored bituminous mixture. It’s and eccential equipment used in the Construction of highways, grade highways, municipal roads, airports, ports.
As a China construction machinery manufacturer and supplier,SDCADI provides quality asphalt batch mix plants and sells them in reasonable price. In recent years, our asphlat mixing plants for sale have been exported to many overses countries such as Myanmar, Algeria, Brazil, Sri Lanka, Botswana, Pakistan, Ukraine, Tajikistan, Kyrgyzstan, Cook islands etc.
As a China construction machinery manufacturer and supplier,SDCADI provides quality asphalt batch mix plants and sells them in reasonable price. In recent years, our asphlat mixing plants for sale have been exported to many overses countries such as Myanmar, Algeria, Brazil, Sri Lanka, Botswana, Pakistan, Ukraine, Tajikistan, Kyrgyzstan, Cook islands etc.
FEATURES AT A GLANCE
Highlights: Stationary plant, batch mixing, precise batching，most cost-effective。
Mobile Asphalt Capacity: 20 ~ 80 t/h.
Mobile Asphalt Capacity: 20 ~ 80 t/h.
Stationary AsphaltCapacity:80~ 400 t/h.

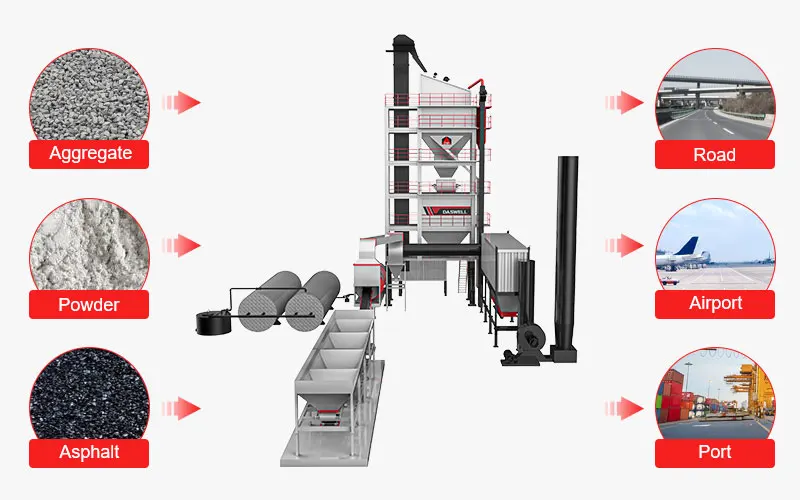

Applications: highways, city roads, airports, ports, squares, town construction, etc.
Full Process Solution Provider
40T Mobile Asphalt mixing plant
80T Asphalt mixing plant
160T Asphalt mixing plant

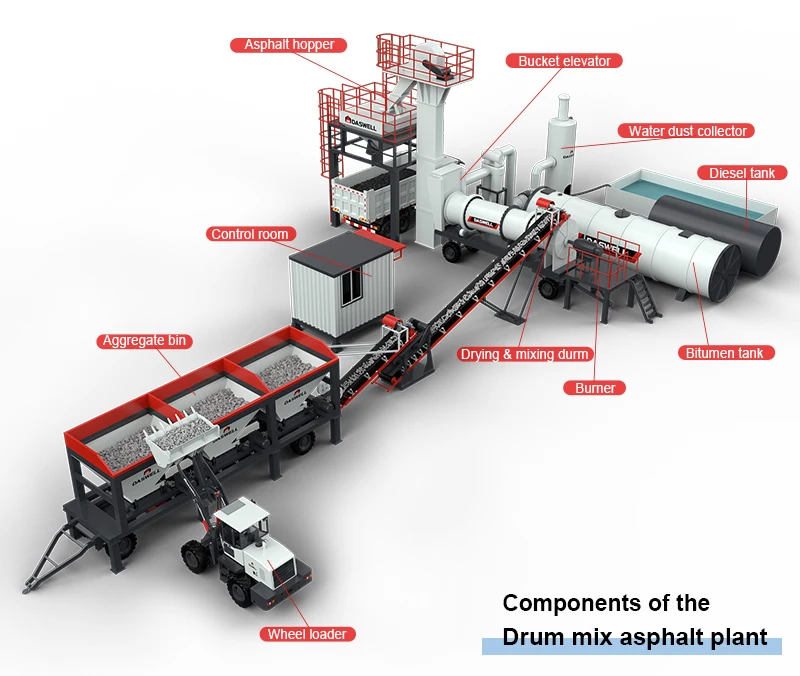

Advantages Of SDCADI Mobile Drum Mix Asphalt Plant For Sale
1.Modular design, the main modules are equipped with trailer and chassis, which can realize rapid relocation and installation;
2.High-precision screening, accurate metering, batch mixing, high quality of finished asphalt;
3.Optimized design of drying drum and mixing tank, better equipment performance; key components are made of wear-resistant materials and have a longer service life;
4.Simple design and small floor coverage.
5.PLC system, intelligent control, easy to operate.
6.Each module is equipped with a separate power distribution cabinet. The cables are arranged before leaving the factory, which is convenient and safe.
2.High-precision screening, accurate metering, batch mixing, high quality of finished asphalt;
3.Optimized design of drying drum and mixing tank, better equipment performance; key components are made of wear-resistant materials and have a longer service life;
4.Simple design and small floor coverage.
5.PLC system, intelligent control, easy to operate.
6.Each module is equipped with a separate power distribution cabinet. The cables are arranged before leaving the factory, which is convenient and safe.

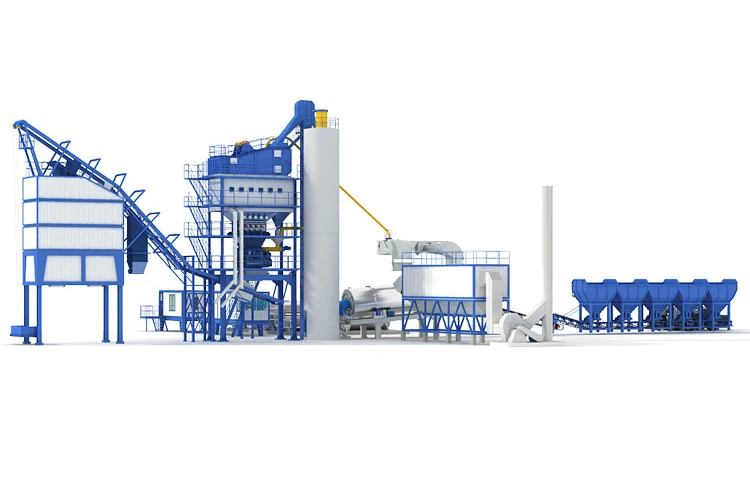

Advantages Of Aimix Stationary Forced Type Asphalt Batch Mix Plant For Sale
1.Compact modular design ，the layout is more reasonable, and the disassembly-transport-installation is faster and more convenient.
2.Skirt-type feeding belt to ensure more stable and reliable feeding.
3.Advanced self-developed combustion heating technology improve efficiency and reduce energy consumption.
4.The plate chain type hot aggregate and powder lifting design improves the service life of the hoist.
2.Skirt-type feeding belt to ensure more stable and reliable feeding.
3.Advanced self-developed combustion heating technology improve efficiency and reduce energy consumption.
4.The plate chain type hot aggregate and powder lifting design improves the service life of the hoist.
5.Fully automatic/manual control system with fault self-diagnosis feedback program, make it simple and stable to operate.
6.Optimized design and high-energy conversion rate hardened gear reducer for high energy efficiency.
7.The core components adopt internationally renowned brand products，which reduce the equipment failure rate and extend the service life of the equipment.
8.The products have passed the CE certification of the European Union and the GOST certification of Russia.
6.Optimized design and high-energy conversion rate hardened gear reducer for high energy efficiency.
7.The core components adopt internationally renowned brand products，which reduce the equipment failure rate and extend the service life of the equipment.
8.The products have passed the CE certification of the European Union and the GOST certification of Russia.
PRODUCT CONFIGURATION

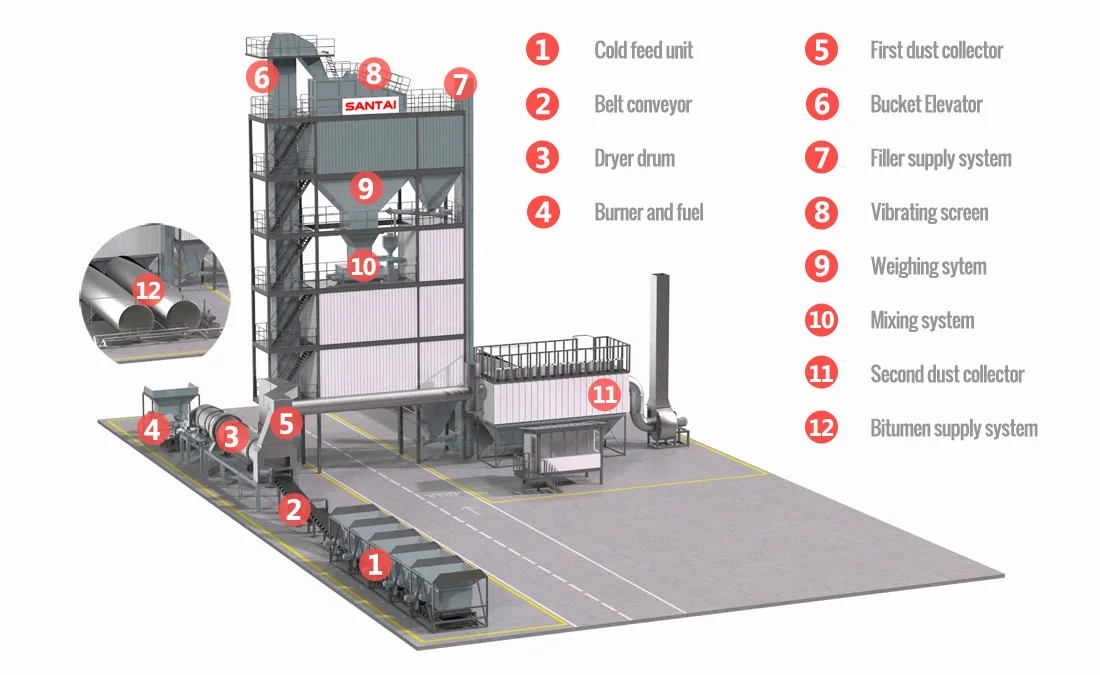

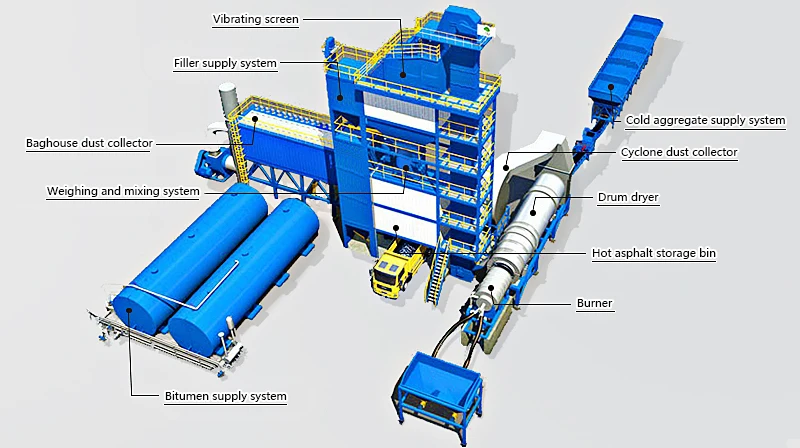

Main Components of Stationary Asphalt Batching Plant
Similar with other type of asphalt mixing plant, stationary asphalt mixing plant also consists of cold aggregate supply system,drying and heating system, dust collecting system, hot aggregate elevating system, mixing system, finished product storage system,control system, etc. Some components adopts technical innovation.
Similar with other type of asphalt mixing plant, stationary asphalt mixing plant also consists of cold aggregate supply system,drying and heating system, dust collecting system, hot aggregate elevating system, mixing system, finished product storage system,control system, etc. Some components adopts technical innovation.
Finished product storage system
① The storage silo has heating device to keep the temperature and quality of final mixture;
② The silo has anti-blocking device to keep asphalt quality.
① The storage silo has heating device to keep the temperature and quality of final mixture;
② The silo has anti-blocking device to keep asphalt quality.
Aggregate supplying system
① To make the supplying smoother, vibrators are equipped below each hopper;
① To make the supplying smoother, vibrators are equipped below each hopper;
② Adds belt cleaners and pinch rollers to make the aggregates supplying more fluent and accurate;
③ Small vibrating screen is added between belts, to further screen oversize aggregates;
④ The supplying system has insufficient material alarm system, ensuring a safe and smooth production.
Control system
① Fancy control room for operator, nice operating environment and good sound insulation effect;
② Control room is equipped with split-type air conditioner, aluminium alloy sliding windows, wood floor and so on;
③ All operations are integrated in one room, auto and semi-auto control makes it easy to operate.
② Control room is equipped with split-type air conditioner, aluminium alloy sliding windows, wood floor and so on;
③ All operations are integrated in one room, auto and semi-auto control makes it easy to operate.
Drying system
① The rolling rings and rollers are applying high strength wear-resisting material.;
② The cylinder adopts boiler steel and stainless steel skin, which gives it high temperature resistance and non-deformability;
③ The cylinder employs thermal insulating rock wool material that can maintain the temperature inside, reducing heat loss.
① The rolling rings and rollers are applying high strength wear-resisting material.;
② The cylinder adopts boiler steel and stainless steel skin, which gives it high temperature resistance and non-deformability;
③ The cylinder employs thermal insulating rock wool material that can maintain the temperature inside, reducing heat loss.
Mixing system
① The mixer, mixing blades and liner plates are all using the best materials with high hardness and high abrasion performance;
② The cycloidal pin gear speed reducer has better transmission efficiency and simpler structure.
① The mixer, mixing blades and liner plates are all using the best materials with high hardness and high abrasion performance;
② The cycloidal pin gear speed reducer has better transmission efficiency and simpler structure.
Dust collecting system
① Double dust collecting systems, including the primary volute collector that gets rid of large size dust and secondary baghouse collector that further gets rid of the rest;
② Famous brand induced draft fan is employed, guaranteeing high efficiency yet low power comsumption.
① Double dust collecting systems, including the primary volute collector that gets rid of large size dust and secondary baghouse collector that further gets rid of the rest;
② Famous brand induced draft fan is employed, guaranteeing high efficiency yet low power comsumption.
Finished product storage system
Aggregate supplying system
Control system
Drying system
Mixing system
Dust collecting system
PRODUCT SPECIFICATIONS
Model | MLB1000 | DLB1000 | DLB1500 | DLB2000 | DLB3000 | DLB4000 | ||
Theoretical Capacity (t/h) | 40 | 80 | 120 | 160 | 240 | 320 | ||
Mixer | capacity(kg) | 600 | 1000 | 1500 | 2000 | 3000 | 4000 | |
Power(kW) | 2×11 | 2×15 | 2×22 | 2x30 | 2x37 | 2x55 | ||
Weight hopper capacity | Stone agg.(kg) | 600 | 1000 | 1500 | 2000 | 3000 | 4000 | |
Powder(kg) | 80 | 150 | 250 | 300 | 450 | 600 | ||
Asphalt(kg) | 60 | 120 | 180 | 240 | 360 | 480 | ||
Weighing accuracy | Sand-gravel agg. | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Powder | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
Asphalt | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ||
Temp. Control accuracy | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ||
Efficiency of dust collector(mg/nm³) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ||
Total loading volume(kW) | 200 | 270 | 370 | 400 | 620 | 884 | ||
Certificates:
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.
Our Markets:
Our products have been delivered to more than 60 countries. Our asphalt mixng plants equipment have been exported to Tajikistan,Kyrgyzstan, Ukraine, Pakistan, Algeria, Sri Lanka, Brazil, Myanmar and other regions etc.
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.
Our Markets:
Our products have been delivered to more than 60 countries. Our asphalt mixng plants equipment have been exported to Tajikistan,Kyrgyzstan, Ukraine, Pakistan, Algeria, Sri Lanka, Brazil, Myanmar and other regions etc.
After-sales service
We can help our customers design the most appropriate solution, including site planning, schematic drawings, etc., to maximize the productivity and return on investment of the asphalt plant.We provide a full range of after-sales service, including installation and commissioning, staff training and guidance, spare parts service, maintenance, one-year free warranty, etc.
We can provide you with high quality stationary asphalt mixing plants. There is always a specification for you. Please contact us today for more details.
Successful Project
Project in Malaysia
Project in Algeria
Project in Brazil
Project in Sri Lanka
Project in Kyrgyzstan
Project in Russia
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Are you a manufacturer or Trader?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the
deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the
deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
What is your MOQ?
1Sets
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
What is your MOQ?
1Sets
