SS304 316 316L лист из нержавеющей стали с PVD покрытием 4ft X 8ft 1 мм 2
- Категории: Stainless Steel Sheets >>>
- Поставщик: Tianjin,New,Star,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
SS304 316 316L Stainless Steel PVD Coated Sheet 4ft X 8ft 1mm 1.2mm 1.5mm Price
Products Description

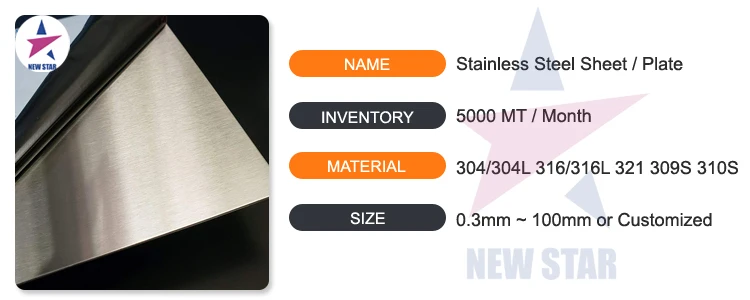

◇ Stainless Steel Sheet / Stainless Steel Plate Specifications
SS304 316 316L Stainless Steel PVD Coated Sheet 4ft X 8ft 1mm 1.2mm 1.5mm Price | ||
Commodity | stainless steel plate, stainless steel sheet, stainless steel coil, stainless 304 steel sheet, 304 316 stainless steel sheet, stainless steel sheet plate | |
Material & Grade | 304/304L, 316/316L, 309S, 310S, 321, 316Ti, 904L, 2205, 201, 430, 420, 420J1, 420J2, 410, ... | |

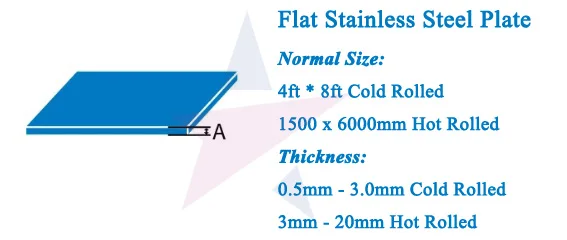

Size | Thickness: 0.3mm - 200mm Normal size: 1000x2000mm, 4*8ft (1220x2440mm), 5*10ft (1500x3000mm) Special size can be customized | |
Technique | Cold Rolled, Hot Rolled | |
Standard | ASTM , JIS, DIN, EN, GB | |
Surface | 2B, BA, HL, No.4, No.8, No.1, Brush, Mirror, Embossed, Checkered, Color, etc. | |
MOQ | 1 Ton / Size | |

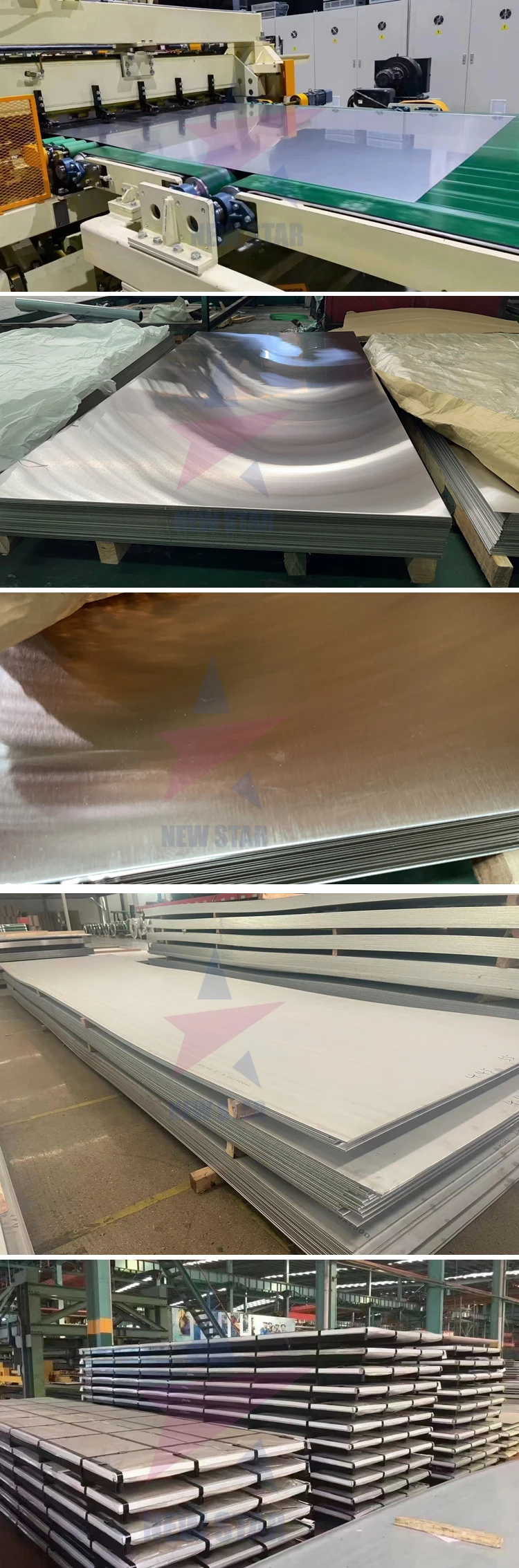

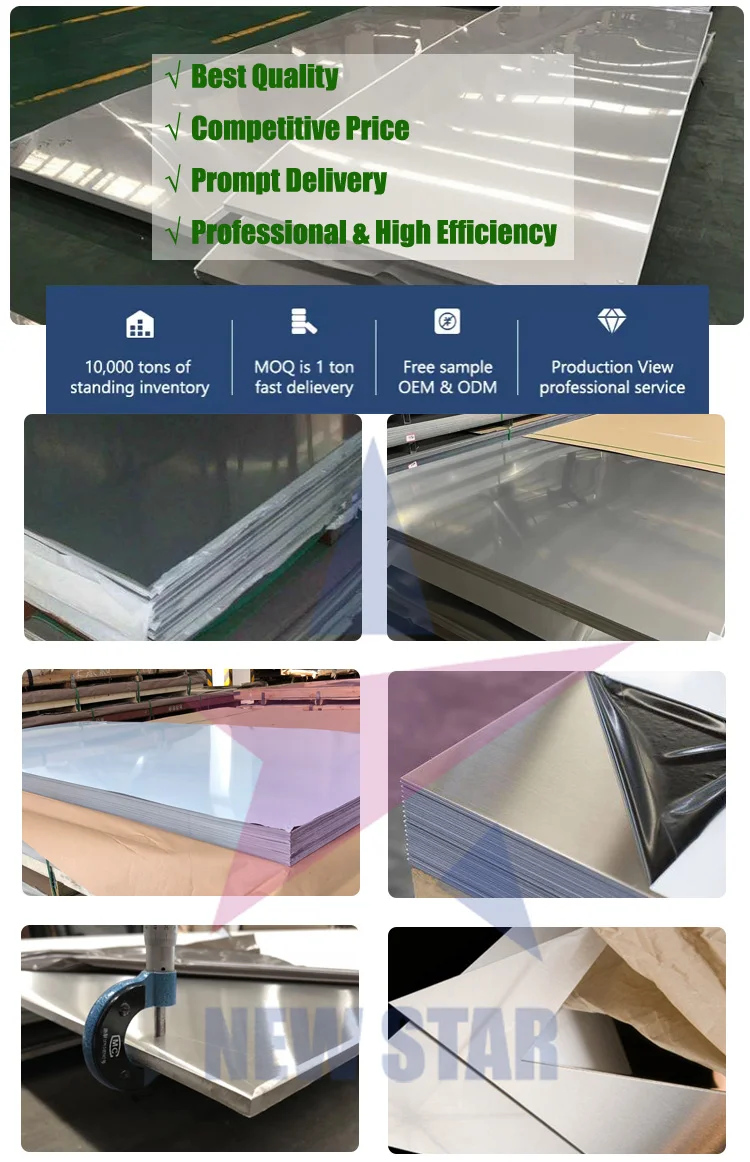

Details Images

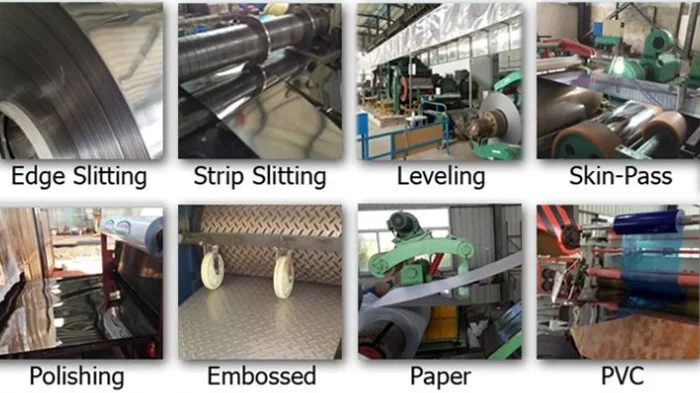

◇ Stainless Steel Sheet / Steel Plate Processing
◇ Stainless Steel Sheet / Steel Plate Material Grade
SS Grade | C | Si | Mn | P | S | Ni | Cr | Mo | ||||||||
201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.50 - 5.50 | 16.0 - 18.0 | - | ||||||||
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0 - 11.0 | 18.0 - 20.0 | - | ||||||||
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0 - 12.0 | 18.0 - 20.0 | - | ||||||||
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0 - 15.0 | 22.0 - 24.0 | - | ||||||||
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0 - 22.0 | 24.0 - 26.0 | - | ||||||||
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0 - 14.0 | 16.0 - 18.0 | 2.0 - 3.0 | ||||||||
316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 11.0 - 14.0 | 16.0 - 18.0 | 2.0 - 3.0 | ||||||||
◆ ◆ ◆ Tianjin New Star Co., Ltd always provide high quality stainless steel sheet to all customers ◆ ◆ ◆ | ||||||||||||||||
321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0 - 12.0 | 17.0 - 19.0 | - | ||||||||
630 / 17-4PH | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | 3.00 - 5.00 | 15.5 - 17.5 | - | ||||||||
904L | ≤2.00 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0 - 28.0 | 19.0 - 23.0 | 4.0 - 5.0 | ||||||||
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.03 | ≤0.02 | 4.5 - 6.5 | 22.0 - 23.0 | 3.0 - 3.5 | ||||||||
2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0 - 8.0 | 24.0 - 26.0 | 3.0 - 5.0 | ||||||||
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 19.0 - 22.0 | 24.0 - 26.0 | - | ||||||||
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5 - 13.5 | - | ||||||||
430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.04 | ≤0.03 | ≤0.60 | 16.0 - 18.0 | - | ||||||||

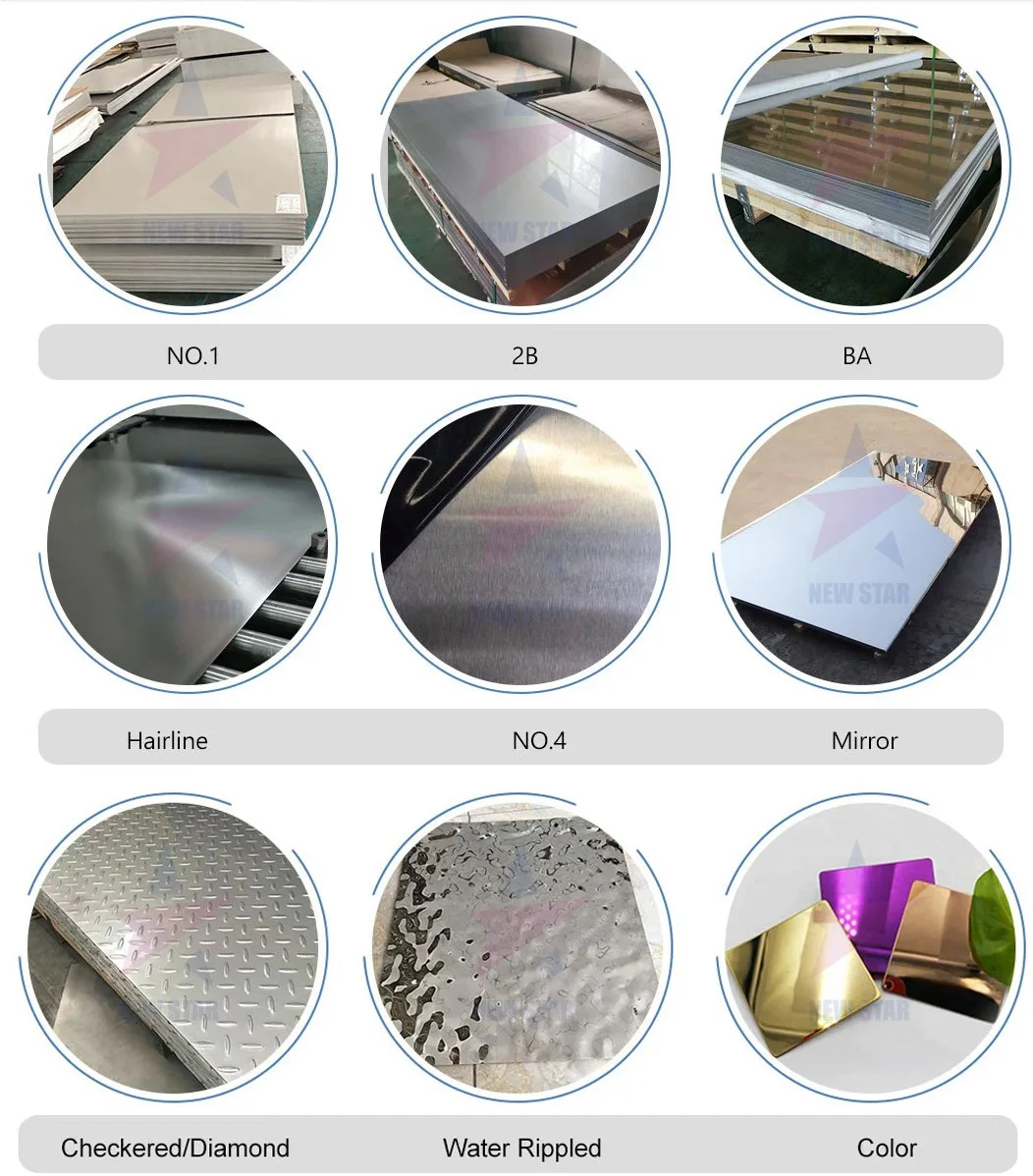

◇ Stainless Steel Sheet / Plate Surfaces
◇ Stainless Steel Sheet / Plate Applications
Stainless steel plates have a smooth surface, high plasticity, toughness, and mechanical strength, and are resistant to corrosion by acids, alkaline gases, solutions, and other media.
It can be widely used in fields such as architecture, decoration, chemical industry, medicine, electronics, mechanical manufacturing, etc.
Packing & Shipping

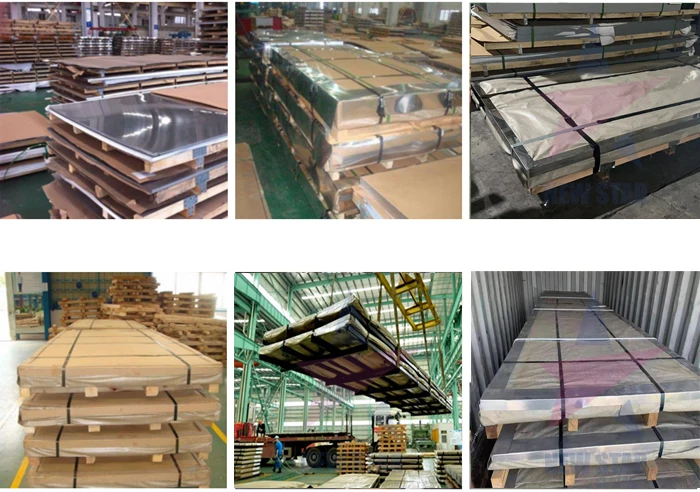

◇ Stainless Steel Sheet / Stainless Steel Plate Packing & Shipping Details
Packing Details: Export standard package, or as customers request.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 5-10 days or according to the order quantity or upon negotiation.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 5-10 days or according to the order quantity or upon negotiation.
