LCD Panel Charateristics | ||
Screen Size | 15.6'' LCD/LED Panel | |
Touchscreen Type(optional) | 4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch | |
Resolution | 1024(H)*(RGB)*768(V) | |
Aspect Ratio | 16:9 | |
Brightness | 300cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 700:1 |
Touchscreen Characteristics (Optional) | ||||||||||
Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch | |||||
Surface Hardness | 3H | 4H | 7H | 7H | 7H | |||||
Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times | |||||
Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |

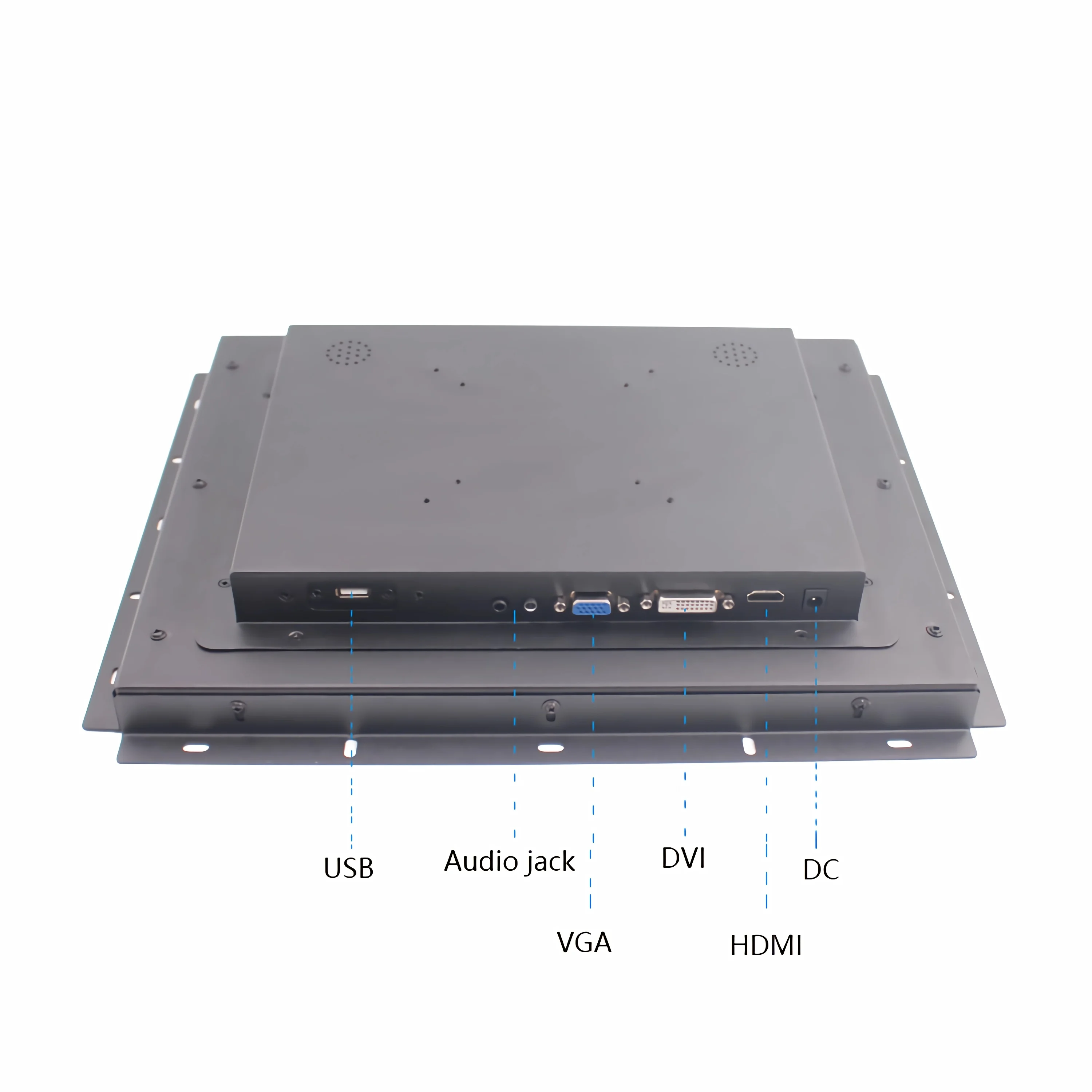

I/O Interface(optional) | ||
USB2.0(optional USB3.0) | 1 | |
HDMI | 1 | |
DC | 12V | |
Audio I/O | 1 | |
VGA | 1 |
Other Information(Optional) | ||
Frame Material | Aluminum Alloy/Stainless Steel/Metal | |
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |
Color | Default balck,also can choose white,silvery or other colour | |
VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | |
Weight | 3KG |
