Цена:3 500,00 $ - 3 700,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики









Model
VS-DS600
VS-DS800
VS-DS1000
VS-DS1200
VS-DS1400
VS-DS1600
Customized

Power
KW
22x2
30x2
37x2
45x2
55x2
75x2















Customizable models according tocustomer needs
HP
30x2
40x2
50x2
60x2
75x2
100x2

Speed of Revolution
8-20
rpm
8-20
rpm
8-15
rpm
8-12
rpm
8-12
rpm
8-12
rpm
zq500
zq650
zq750
zq750
zq850
zsy400


Reducer
zq500
zq650
zq750
zq750
zq850
zsy400
Different types of reducers can be selected based on the customer's feeding situation (three shaft reducers, four shaft reducers,hard tooth reducers, planetary reducers, etc.) ,which affects product prices

Blades Quantity
20mm-30
40mm-20
50mm-20
60mm-20
70mm-20
80mm-20
The thickness and quantity of blades can be customized based on the shredding material and shredding effect

Blades Diameter
220
mm
300
mm
400
mm
450
mm
500mm
600
mm
The blades diameter, blade tooth shape and number of teeth of the blade can be customized based on the shredding material and
shredding effect ,which affects product prices.

Blades Material
The material of the blades can be customized according to the customer's shredding materials(55sicr、5crsi、9crsi、skd11、m6v、h13) and actual usage, which affects the product price

Discharge
Size
20-80
mm
30-150
mm
50-200
mm
50-200
mm
80-300
mm
80-300
mm

Feeding Hopper Size
1x0.8
m
1.2x1
m
1.5x1
m
1.8x1.2
m
2x1.2
m
2.5x1.5
m
The size and appearance of the feeding hopper can be customized according to the customer's feeding situation
Weight(t)
2.5
4.5
6.5
8
10
13
Capacity(t/h)
0.5-0.8
0.6-1
1-3
1-3
2-5
2-5
Overall dimensions
2.8*1.6*1.8m
3.5*1.5*2.1m
4*1.7*2.4m
4.2*1.8*2.4m
4.5*2.2*2.4m
5.2*2.2*2.8m

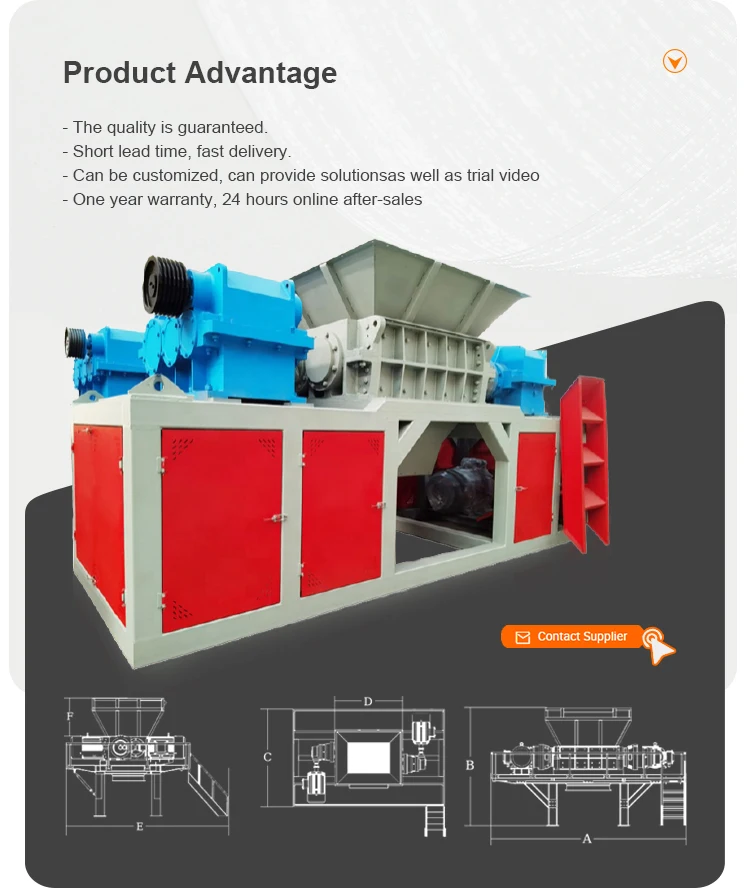

Large size hopper, larger volume, better protection, and we could customized the hopper shape and size according to you usage.
The blade box is made of high quality steel plate welding, excellent processing technology, strong protection of the main shaft and the stability of the reducer in operation.
Reasonable body structure design , Using high-quality thickened steel to ensure stability during long-term use.




The blade is made of alloy material (such as 55SiCr,HD13,SKD-11), which is more wear-resistant, long service life and low maintenance cost The diameter, width and number of teeth of the blade can be customized according to the material.
Rorging material, spline link, adapt to large torque, long service life.
Connecting shaft system adopts direct connection mode to protect the main shaft and reducer, effectively reduce
resistance,vibration and friction.




High-quality reducer, large torque, strong power.
Delxi PLC power control system is adopted to detect the running data and automatically control the positive and reverse functions of the machine to avoid machine card.
The motor adopts all-copper core motor, which reduces energy consumption and has a long service life.


















For over a decade, the company has always adhered to the business principle of "creatingvalue for customers" as the ulimate goal. market-oriented. and customer-oriented, aatherinoindustry elites to provide customers with comprehensive solutions. At the same time, ourproducts are exported to Japan, South Korea, China, Malaysia, Ecuador, Russia, thePhilippines,Indonesia, Ghana, Vietnam and other countries and recions. Receivedunanimous praise in the industrv with eading technology and excellent performance.
