Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Кабель FEICHUN низковольтный медный
- Категории: Control Cables >>>
- Поставщик: Anhui,Feichun,Special,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Rated Voltage | 0.6-1KV |
Max AC Voltage | 0.7-1.2KV |
AC Test Votage | 2.5KV |
Customized | Yes |

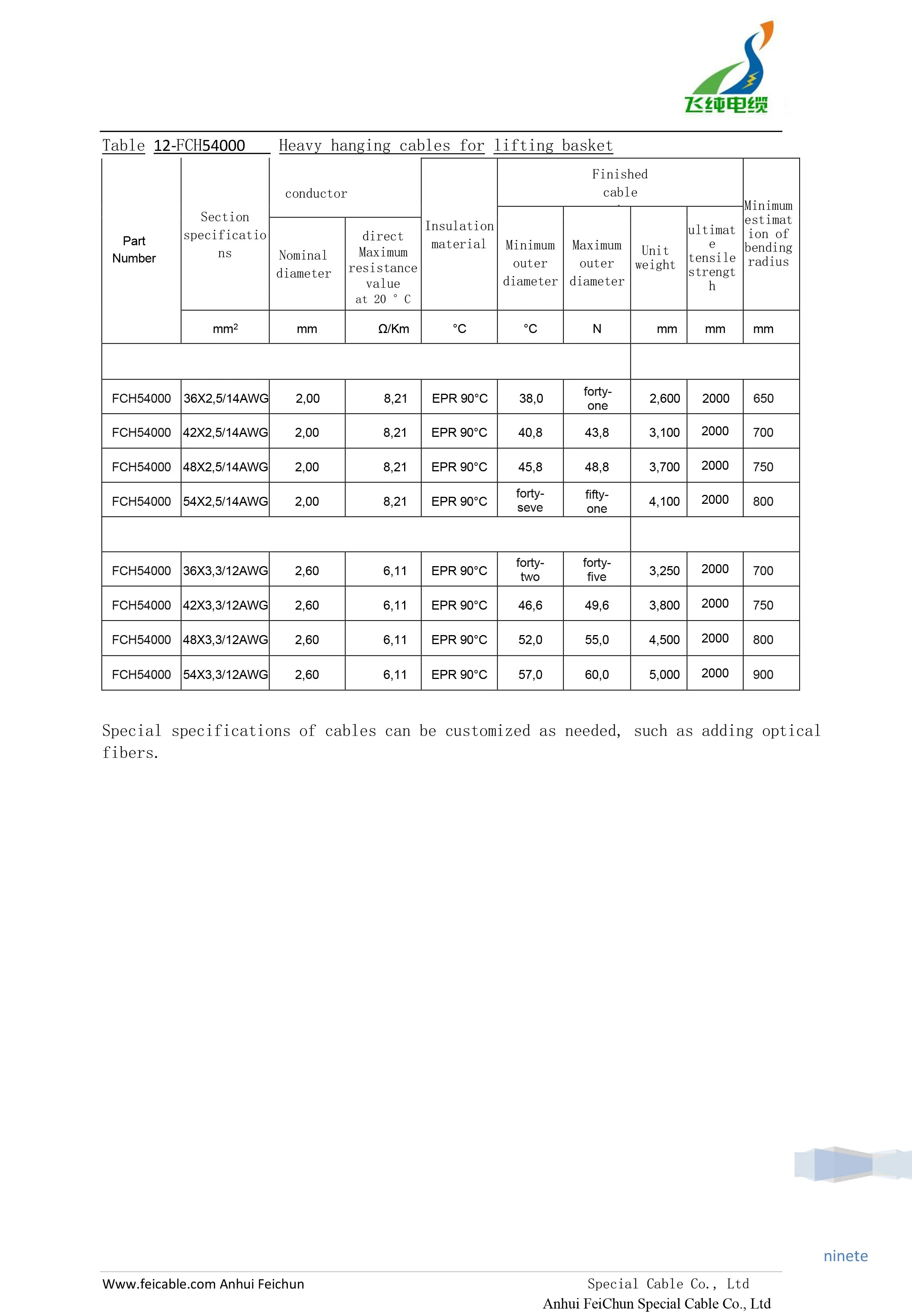

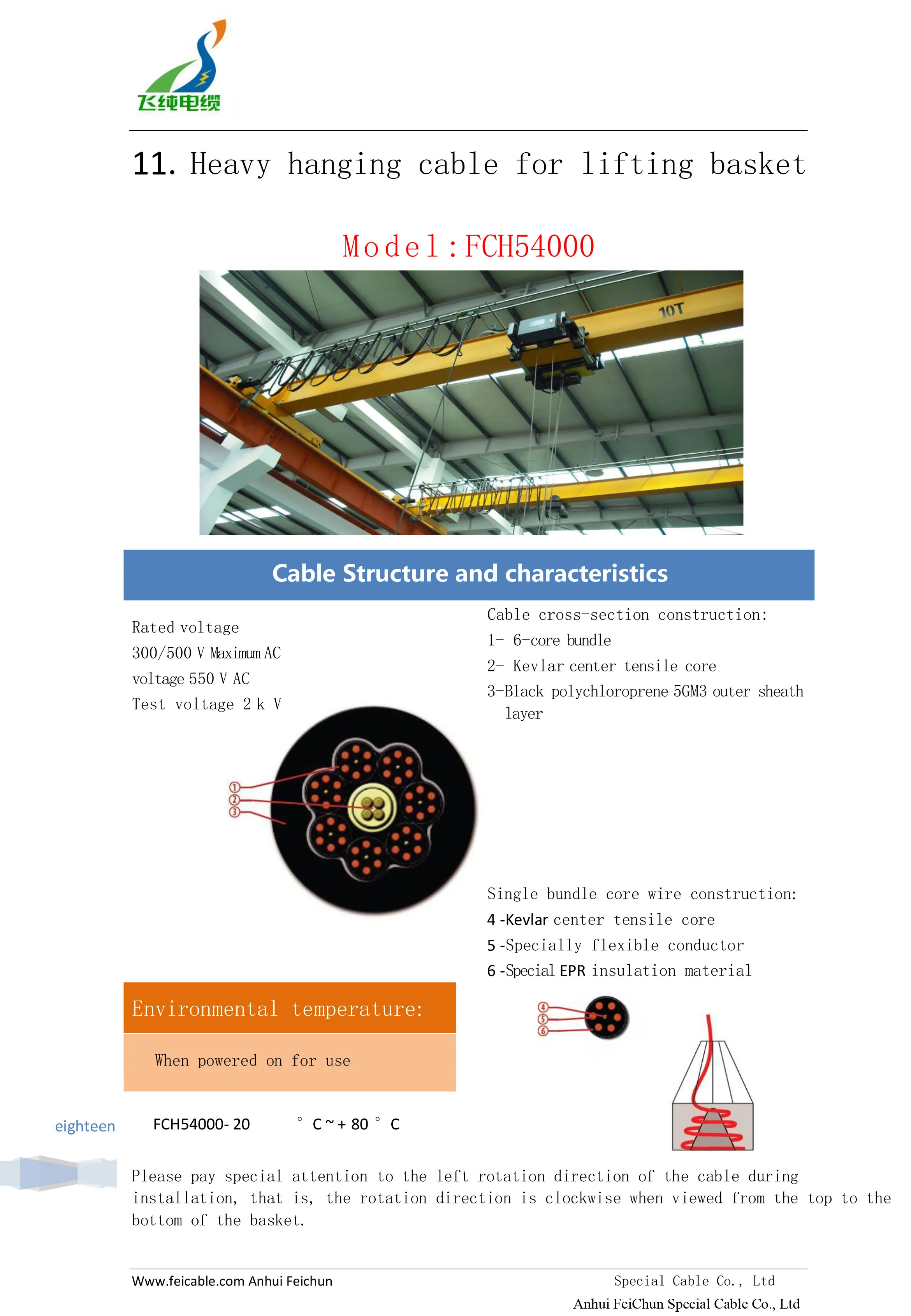

FCH54000 Heavy hanging cable for lifting basket | ||||||||||||||||||
Part Number | Intersecting Surface Area | Conductor Nominal Diameter | Conductor Maximum DC Resistance Value at 20°C | Insulation Material | Minimum outer diameter | Maxmium outer diameter | Unit Weight | Ultimate tensile strength | Minimum estimation of bending radius | |||||||||
mm² | mm | 0/km | °c | mm | mm | kg | N | mm | ||||||||||
FCH54000 | 36X2.5/14AWG | 2.00 | 8.21 | EPR90 | 38.0 | 41.0 | 2.600 | 2000 | 650 | |||||||||
FCH54000 | 42X2.5/14AWG | 2.00 | 8.21 | EPR90 | 40.8 | 43.8 | 3.100 | 2000 | 700 | |||||||||
FCH54000 | 48X2.5/14AWG | 2.00 | 8.21 | EPR90 | 45.8 | 48.8 | 3.700 | 2000 | 750 | |||||||||
FCH54000 | 54X2.5/14AWG | 2.00 | 8.21 | EPR90 | 47.0 | 51.0 | 4.100 | 2000 | 800 | |||||||||
42X2.5(6X7X2.5) | 2.15 | 8.21 | 90 | 250 | 6000 | 36.3 | 39.3 | 2.280 | ||||||||||
FCH54000 | 36X3.3/12AWG | 2.60 | 6.11 | EPR90 | 42.5 | 45.5 | 3.250 | 2000 | 700 | |||||||||
FCH54000 | 42X3.3/12AWG | 2.60 | 6.11 | EPR90 | 46.6 | 49.6 | 3.800 | 2000 | 750 | |||||||||
FCH54000 | 48X3.3/12AWG | 2.60 | 6.11 | EPR90 | 52.0 | 55.0 | 4.500 | 2000 | 800 | |||||||||
FCH54000 | 54X3.3/12AWG | 2.60 | 6.11 | EPR90 | 57.0 | 60.0 | 5.000 | 2000 | 900 | |||||||||

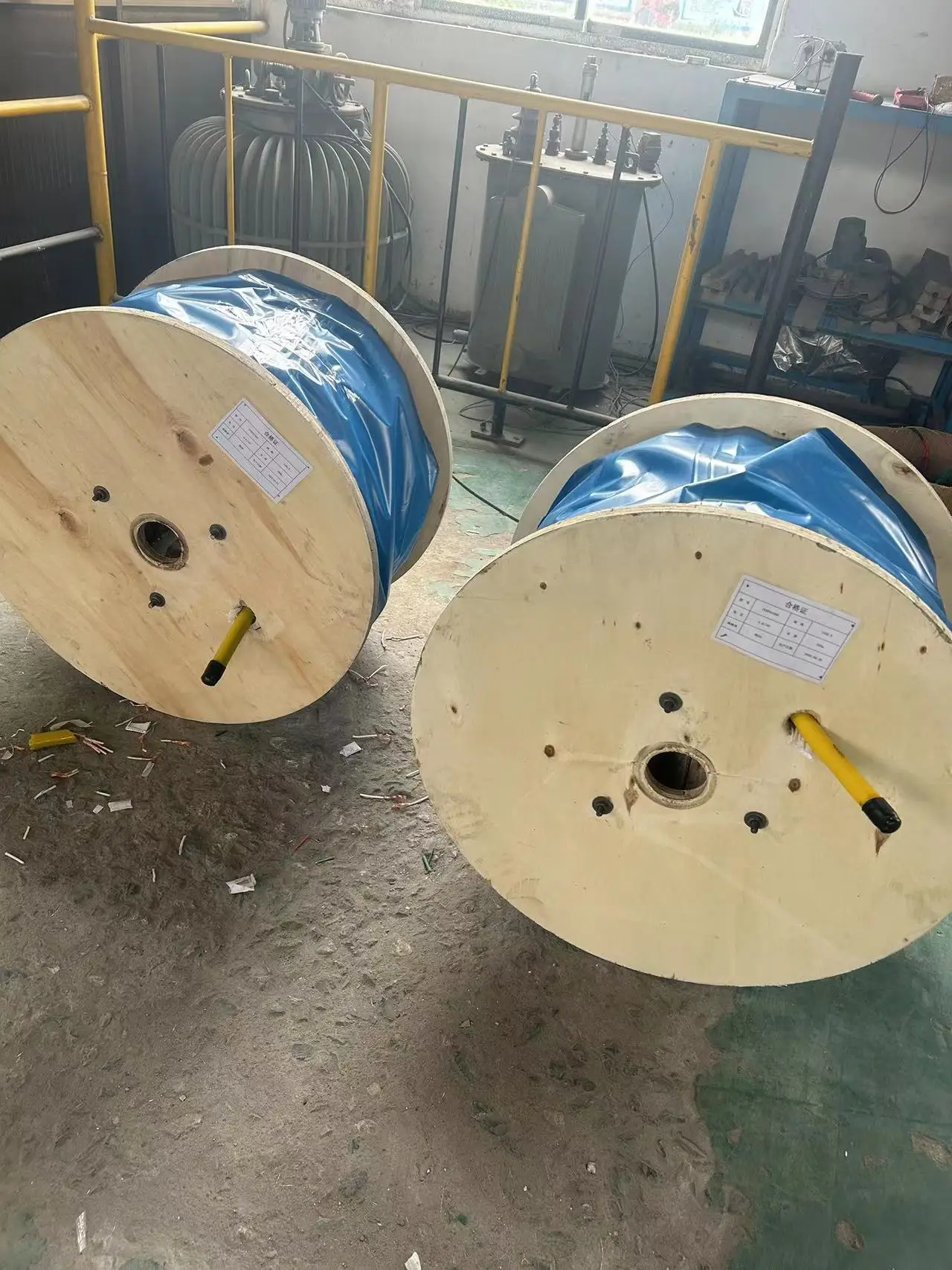

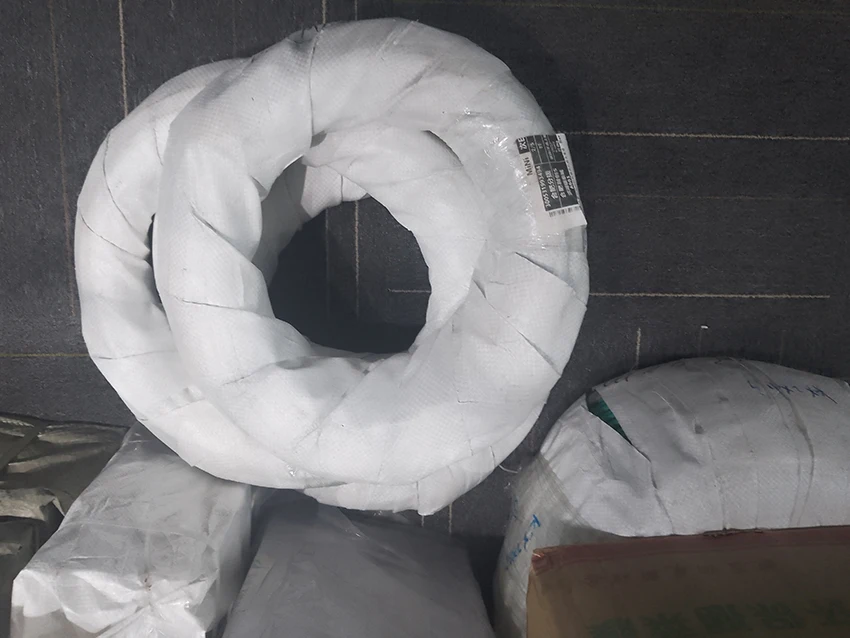

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Our features:
1)customized product
2)We supply a whole solution for the cable problem.
1)customized product
2)We supply a whole solution for the cable problem.
