Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Кабель управления 4x10 5x10 7x10 4x16 5x16 7x16 4x25 5x25 7x25
- Категории: Control Cables >>>
- Поставщик: Shaanxi,Baoli,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
YSLY PVC Control Cable
Application:
In dry and damp locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and
connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and
inspection of industrial plants, production lines and Machinery.
connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and
inspection of industrial plants, production lines and Machinery.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

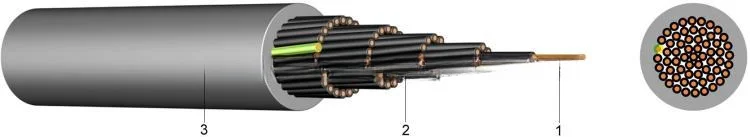

Construction:
1 ..... fine-stranded bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... outer sheath of polyvinylchloride (PVC), grey, increased oil resistant
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... outer sheath of polyvinylchloride (PVC), grey, increased oil resistant
Standards:
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification for coloured cores)
core identification JZ: 1 core green/yellow, other cores black with figures
core identification OZ: every core black with figures
HD 308 S2 (core identification for coloured cores)
core identification JZ: 1 core green/yellow, other cores black with figures
core identification OZ: every core black with figures

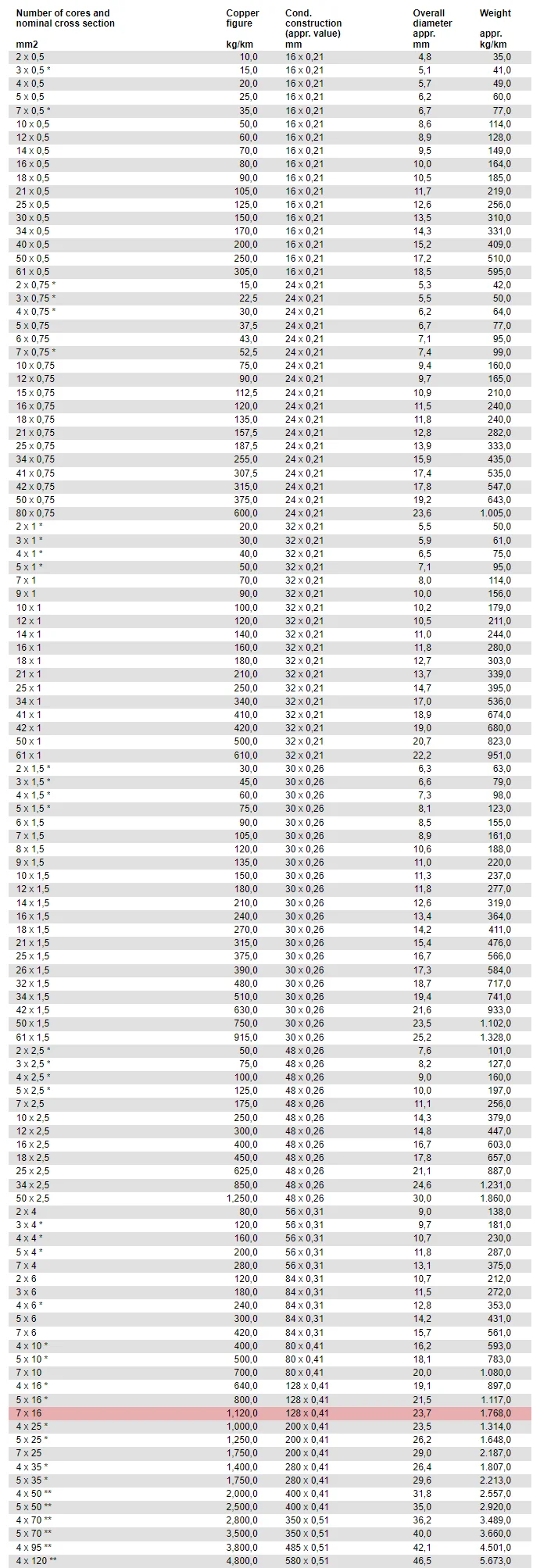

Specification
Nominal voltage Uo/U | [V] | 300 / 500 volt | |
Test voltage | [V]AC | 2000 | |
Temperature range | in motion | -5°C till +70°C | |
one time / fixed | -30°C till +90°C | ||
Operating temperature | short circuit | °C | 150 |
Short circuit time | max. | [sec] | 5 |
Bending radius | one time / fixed | x diameter | 6 |
in motion | x diameter | 15 | |
Flammability | standard | EN 60332-1-2 |

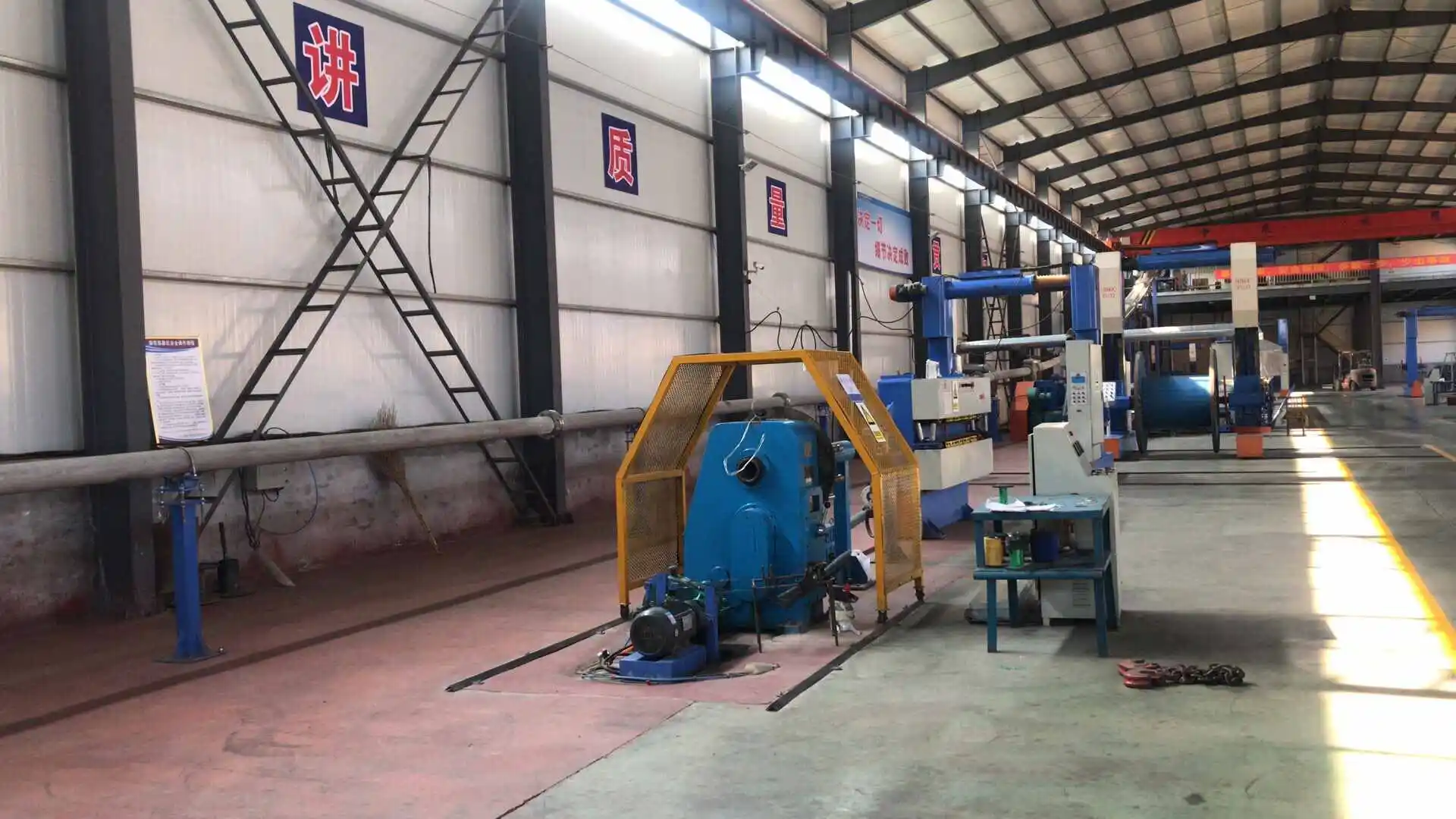

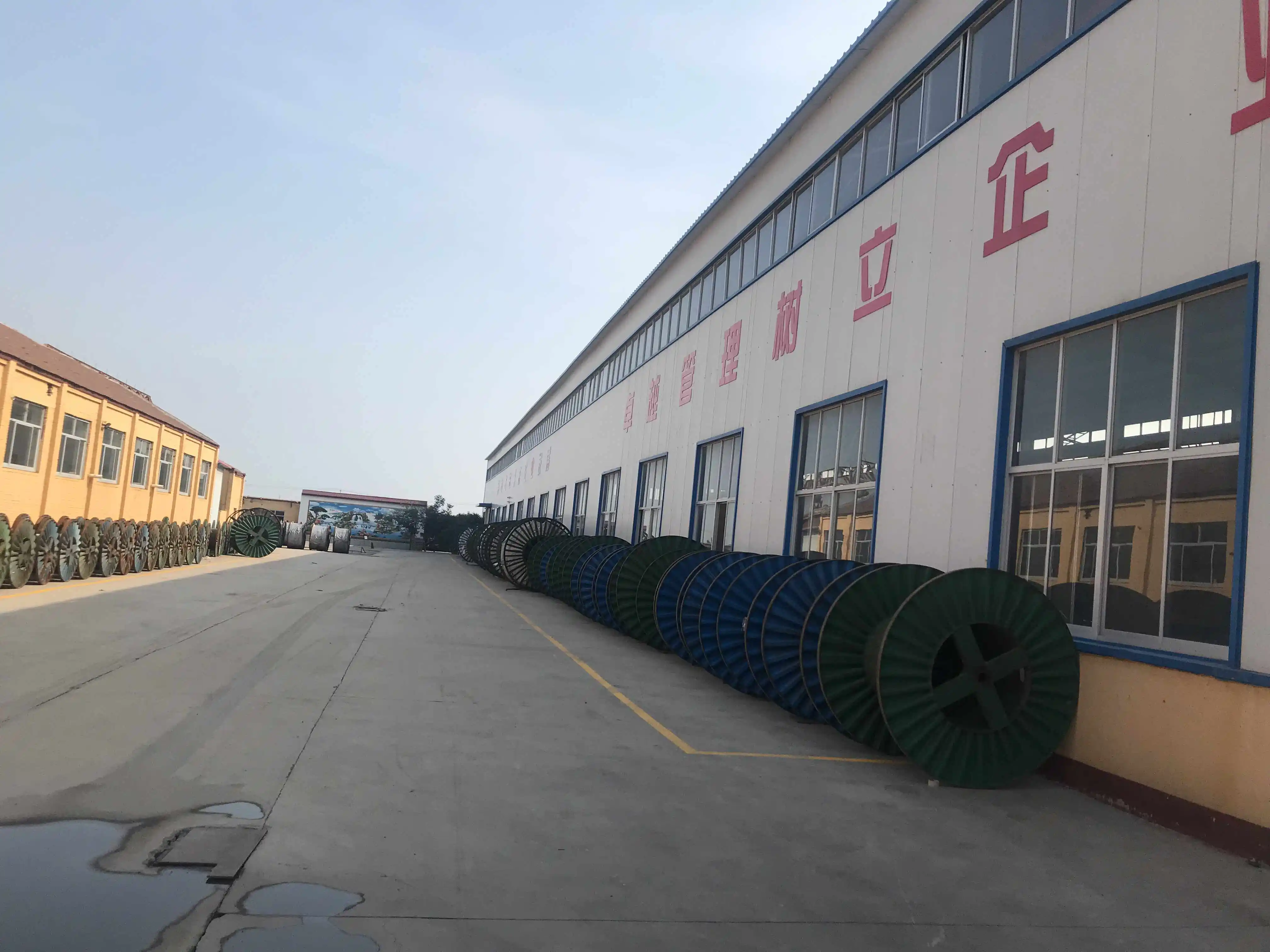

Company Profile

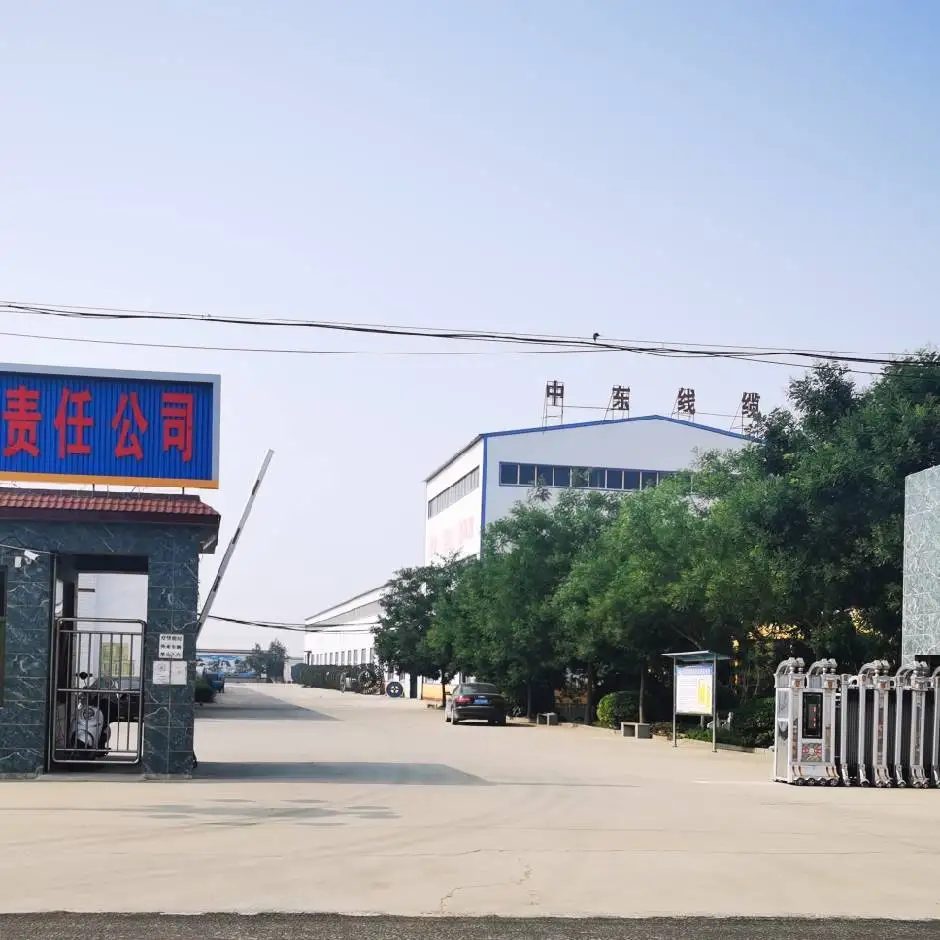

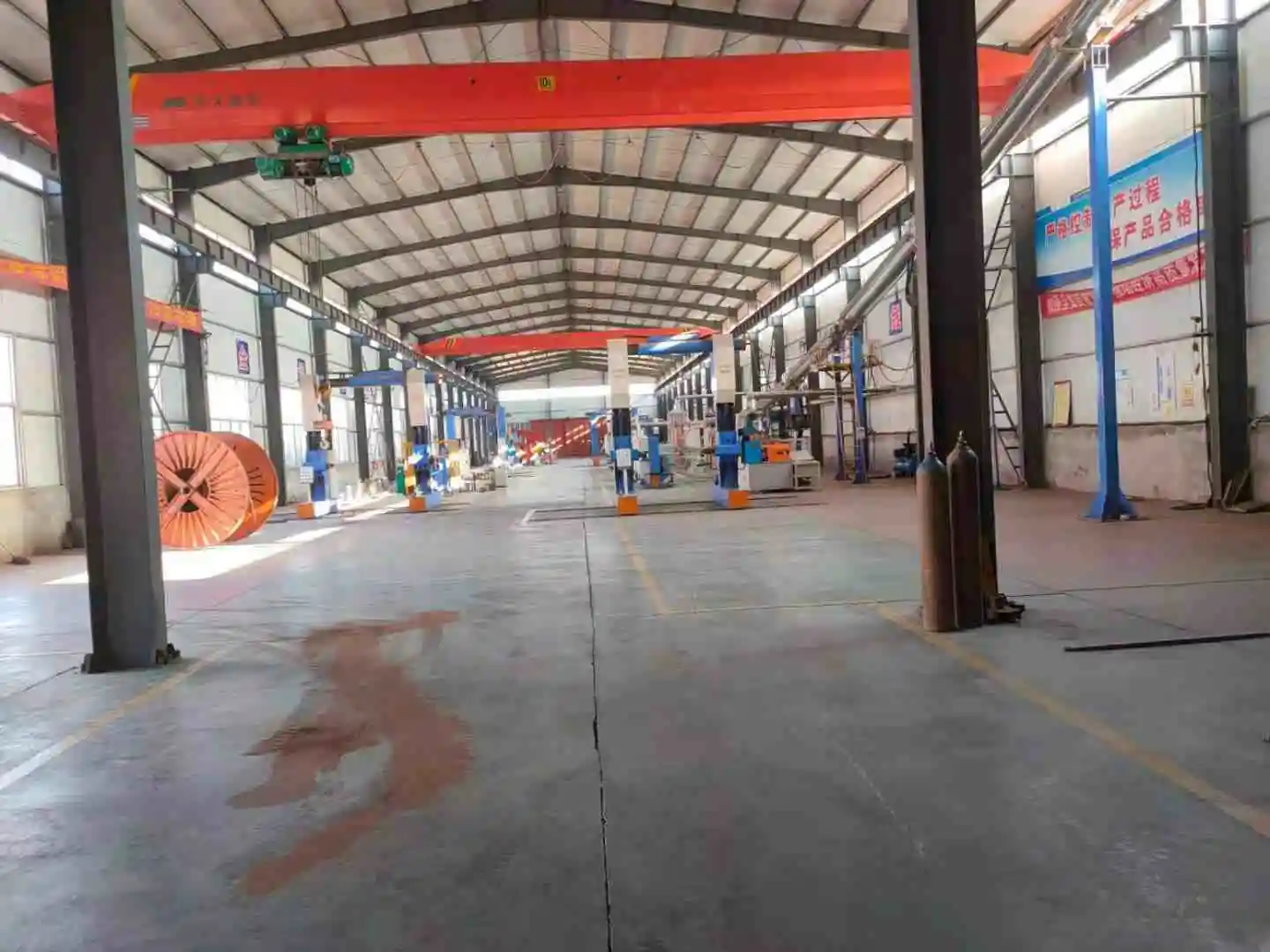

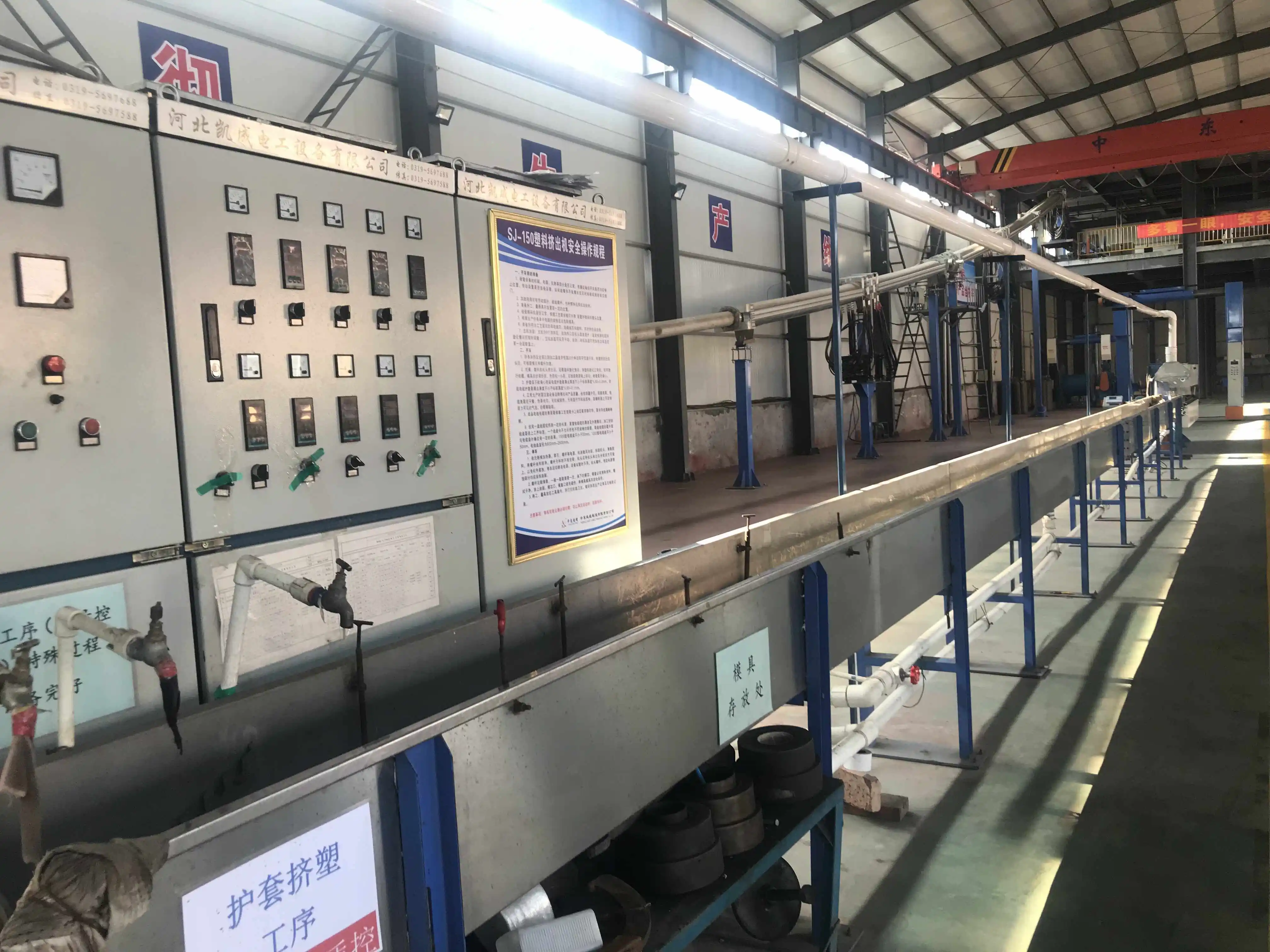

Shaanxi Baoli Cable Co., Ltd. is an import and export trading company in Xi 'an, Shaanxi Province. It is a branch of Middle East Cable Manufacturing Co., LTD. The factory covers an area of more than 40,000 square meters, specializing in the production of 0.6-35KV power cable, overhead insulated cable, aluminum alloy cable, plastic cable, rubber sheath cable, control cable, mining cable and all kinds of flame retardant, fire-resistant, waterproof, oil resistant, low smoke, no halogen environmental protection and other special wire and cable, we can provide in accordance with GB, IEC, BS, ICEA, ASTM, Cables to DIN, VED and JIS standards, and can be developed, designed and manufactured according to your requirements. Now you can send your inquiry by email and our sales manager will send you a quotation as soon as possible.
Packing & Delivery

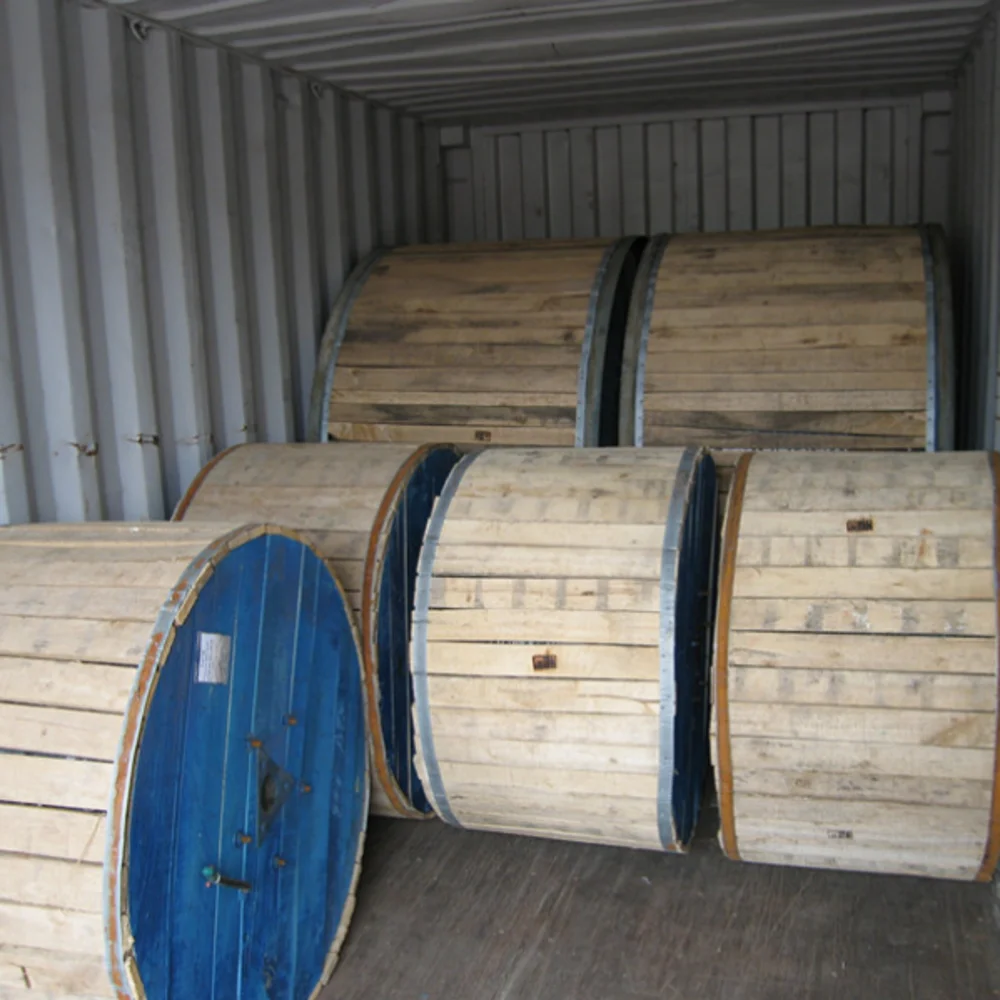

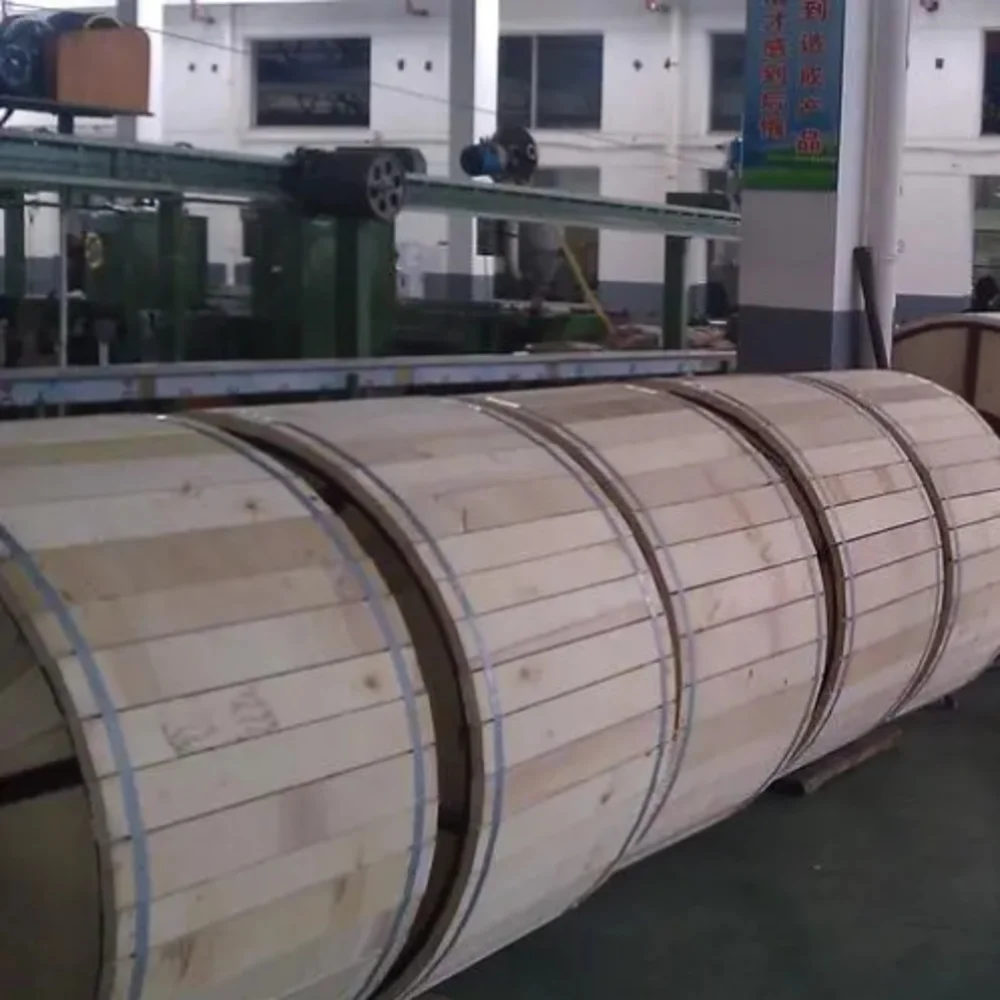

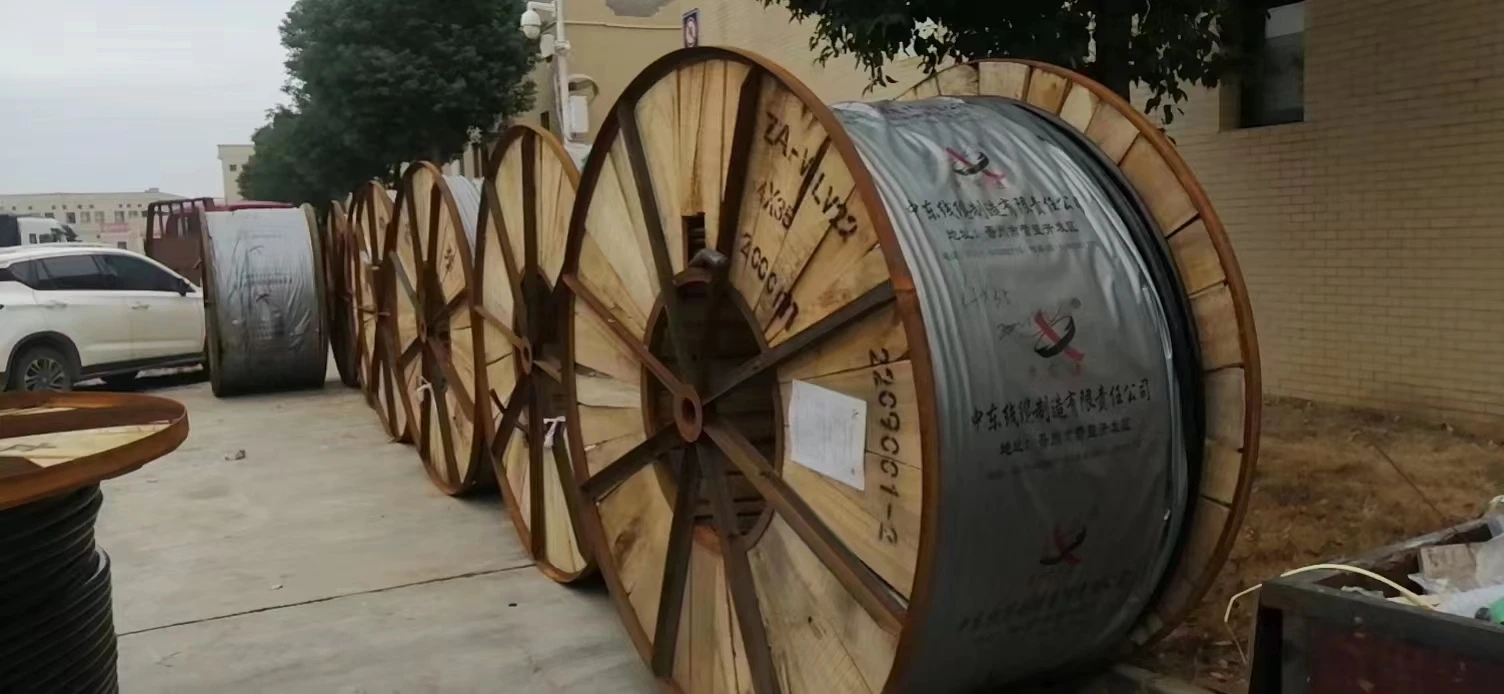

Package:
When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum
and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for
you, now, you can send us your wanted package and colors.
and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for
you, now, you can send us your wanted package and colors.
Delivery:
First of all, we will delivery on time. Especially in the busy season, we will word overtime to make sure delivery on time.
Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.Thirdly, we have cooperated
with profesional shipping agent and shipping company to keep you receive the intact on time.
Now you can send us the inquiry.
Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.Thirdly, we have cooperated
with profesional shipping agent and shipping company to keep you receive the intact on time.
Now you can send us the inquiry.

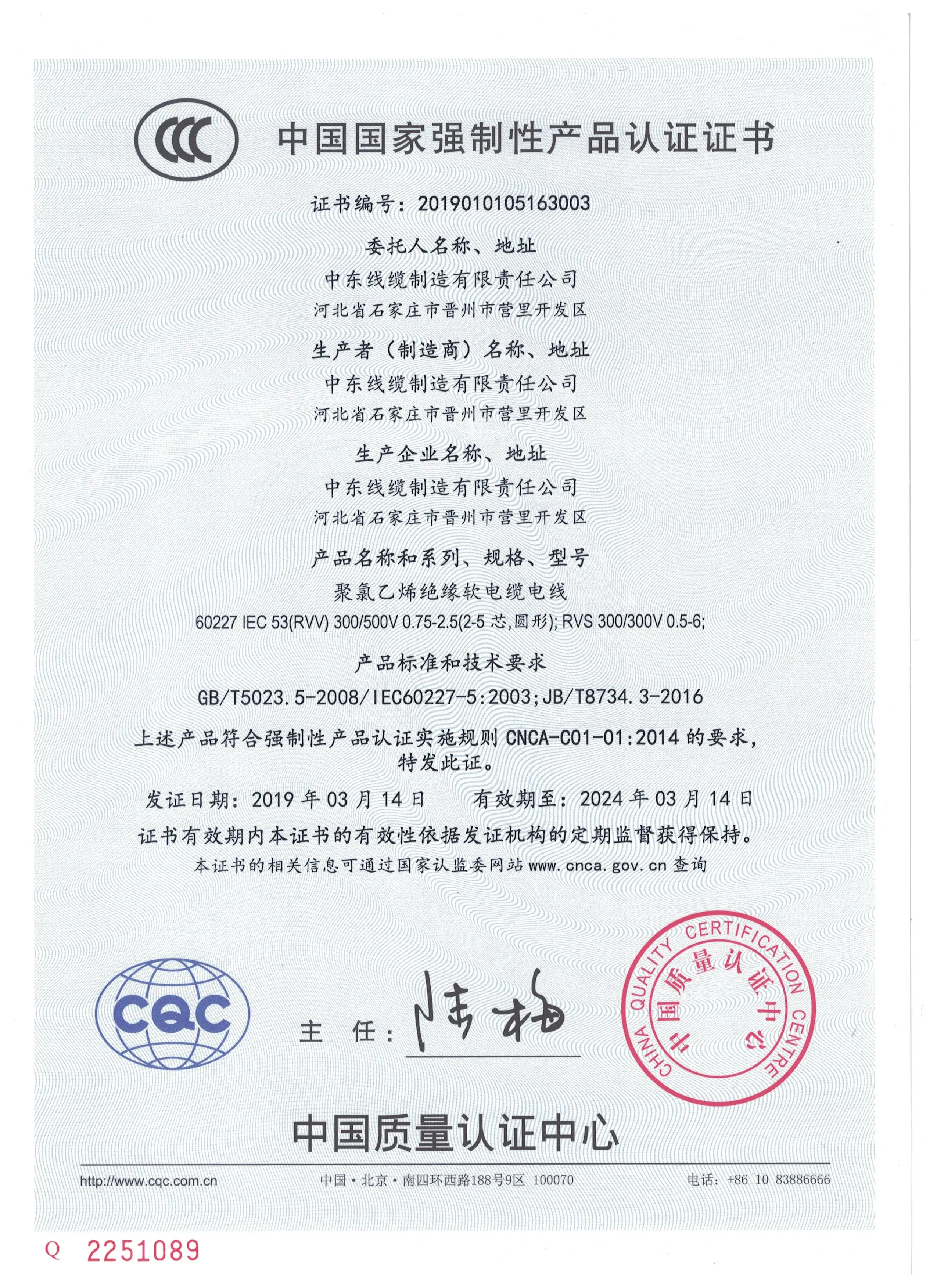

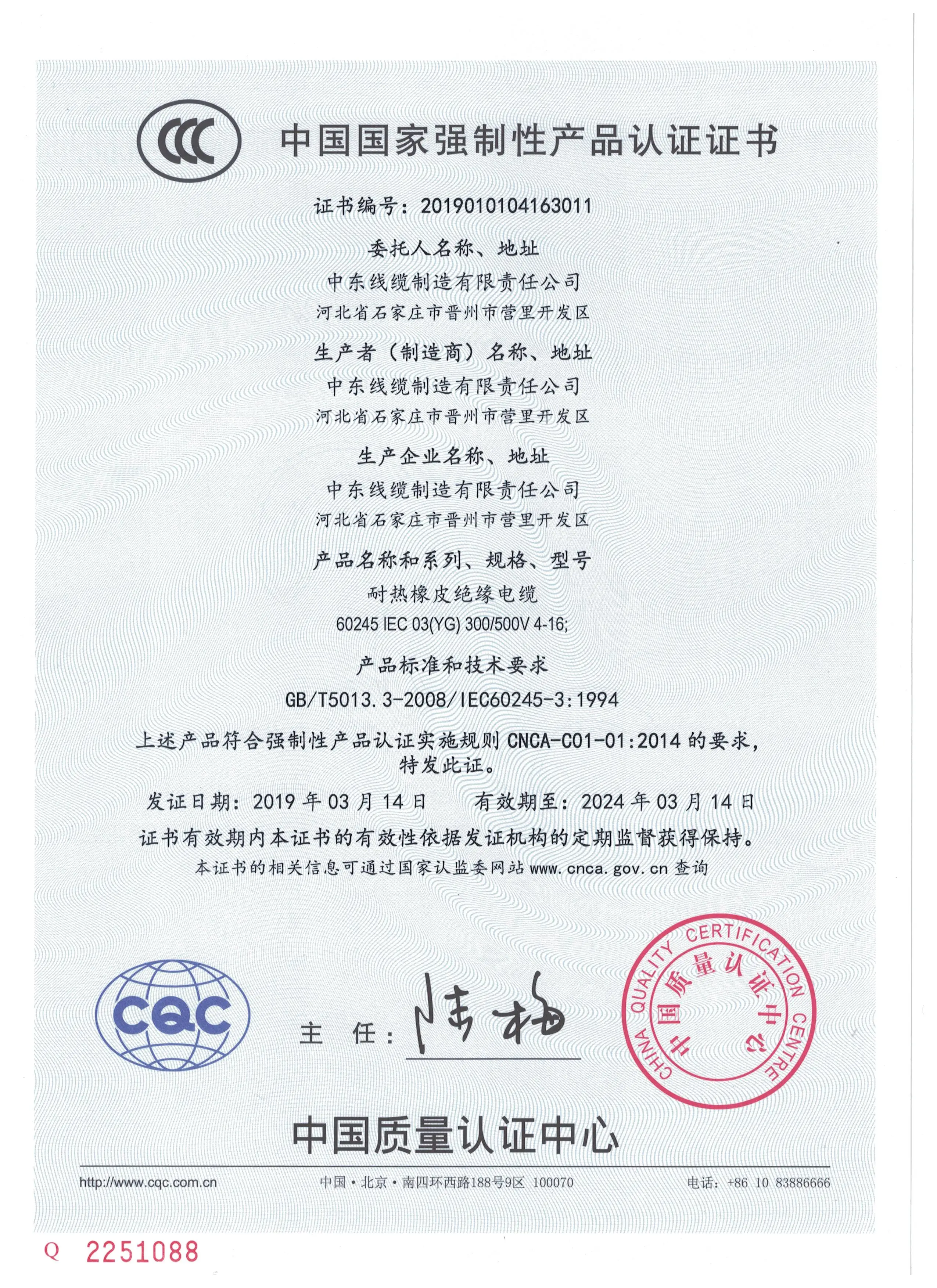

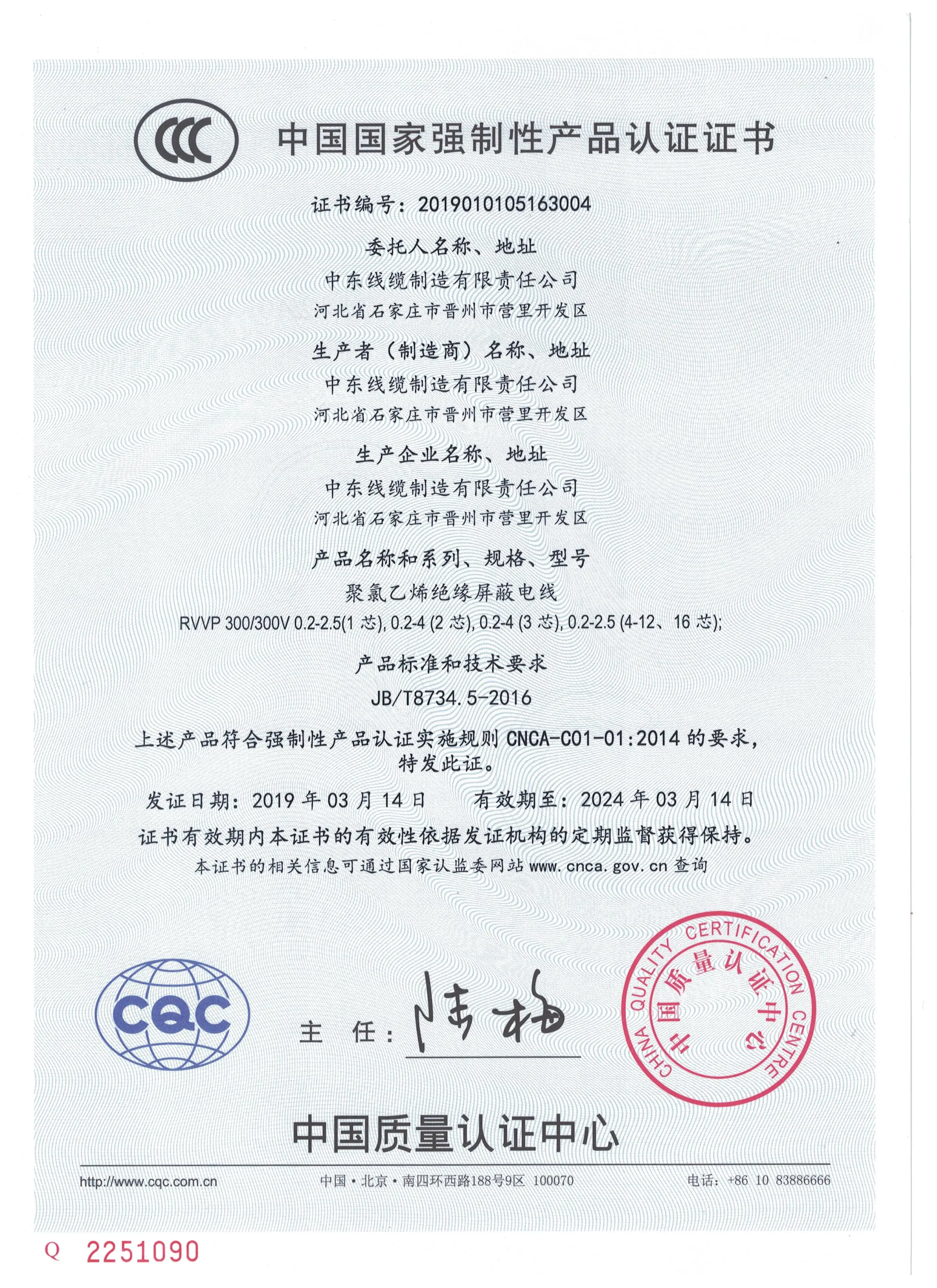

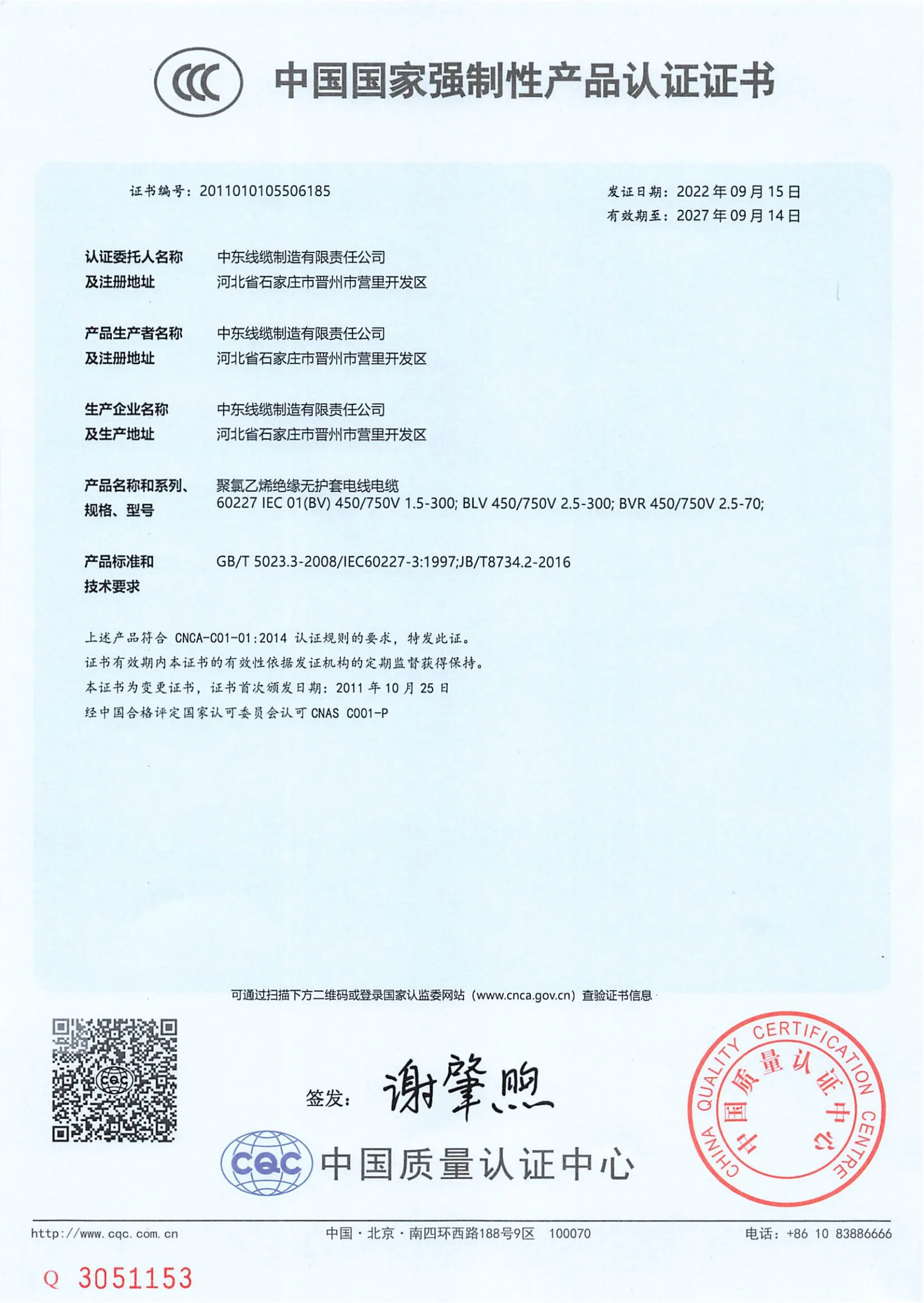

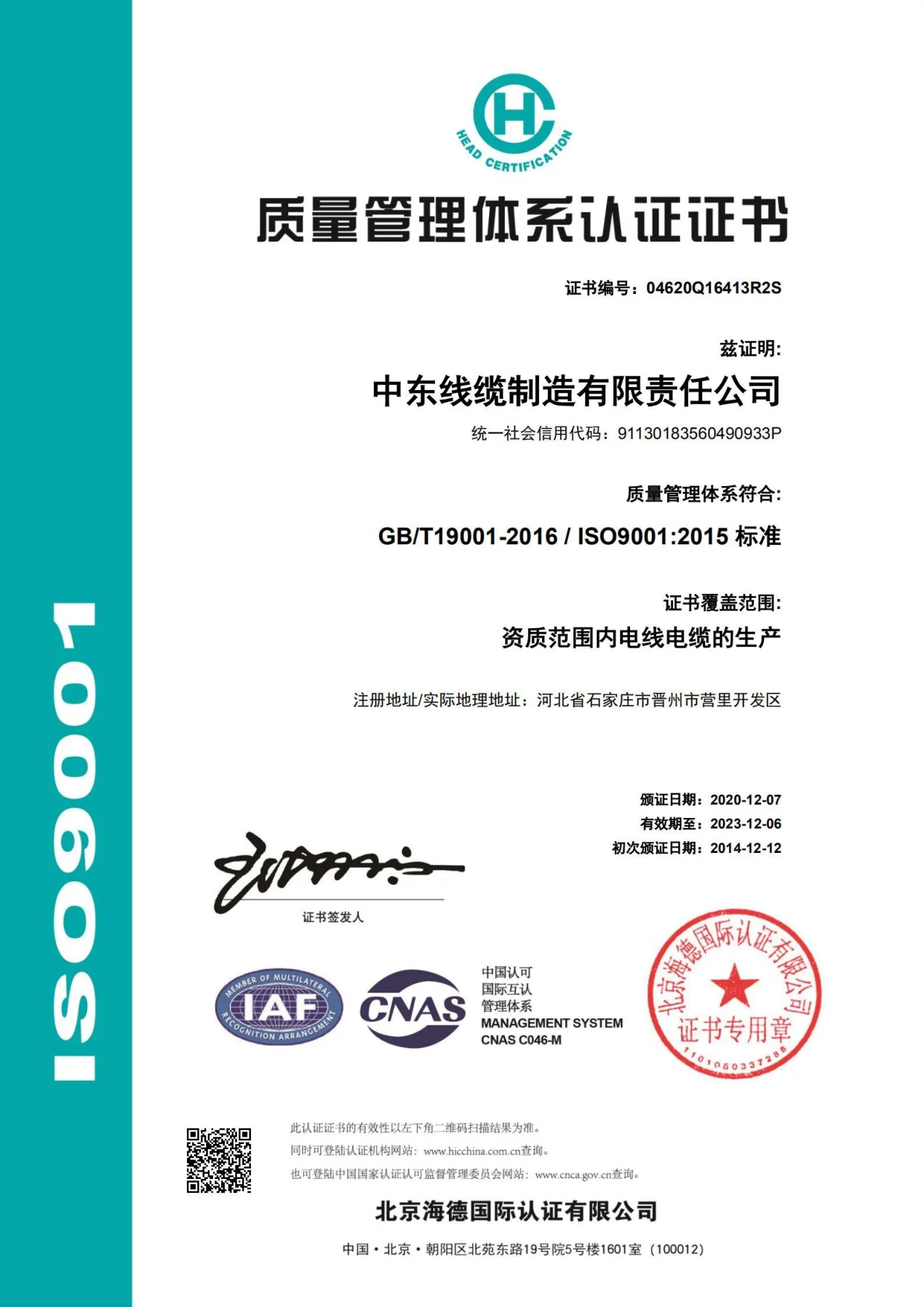

Certifications
FAQ
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
