Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
500 футов катушки 2C 18 AWG твердый термостат кабель
- Категории: Control Cables >>>
- Поставщик: Shenzhen,Sinet,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters

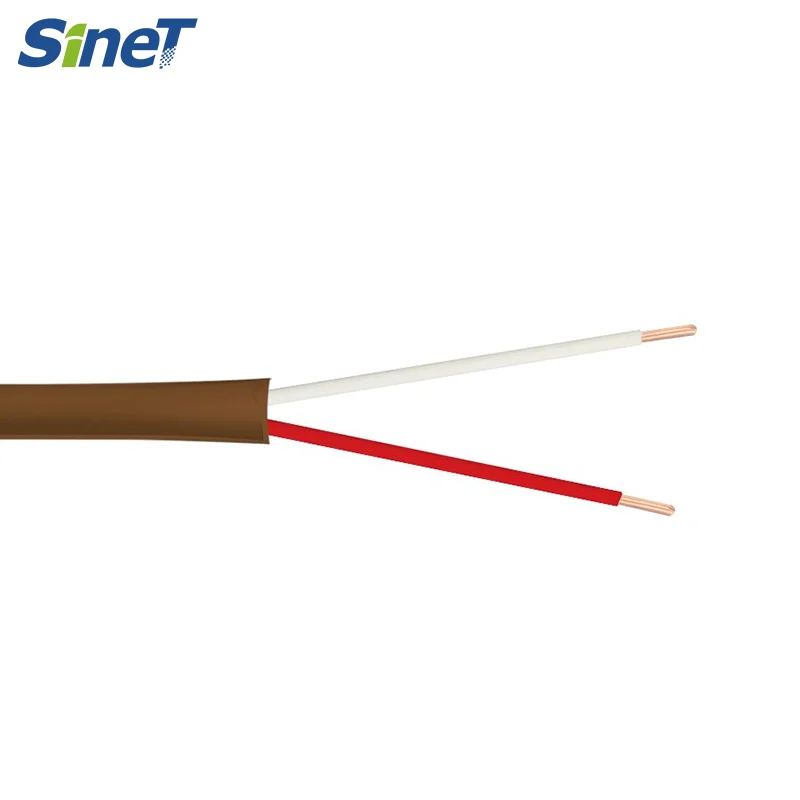

2C/18 AWG SOLID THERMOSTAT CABLE PVC BROWN - 500 FT SPOOL
Application:
Class 2 Power Limited Circuit Cable - Thermostat controls, HVAC, Doorbells, and other low voltage applications.
Construction:
This cable consists of solid bare copper insulated conductors with an overall sunlight resistant PVC jacket. Cables with more than 4 conductors are twisted prior to jacketing. Sequential foot markings printed on jacket.
Class 2 Power Limited Circuit Cable - Thermostat controls, HVAC, Doorbells, and other low voltage applications.
Construction:
This cable consists of solid bare copper insulated conductors with an overall sunlight resistant PVC jacket. Cables with more than 4 conductors are twisted prior to jacketing. Sequential foot markings printed on jacket.
No. Of Cores | Conductor Size (AWG) | Insulation Diameter | Overall Diameter |
2 | 18 | 0.057” (1.45mm) | 0.148” (3.76mm) |
3 | 18 | 0.057” (1.45mm) | 0.150” (3.81mm) |
4 | 18 | 0.057” (1.45mm) | 0.173” (4.40mm) |
5 | 18 | 0.057” (1.45mm) | 0.188” (4.80mm) |
6 | 18 | 0.057” (1.45mm) | 0.197” (5.00mm) |
8 | 18 | 0.057” (1.45mm) | 0.217” (5.50mm) |
10 | 18 | 0.057” (1.45mm) | 0.248” (6.30mm) |
12 | 18 | 0.057” (1.45mm) | 0.295” (7.50mm) |
2 | 20 | 0.048” (1.22mm) | 0.130” (3.30mm) |
3 | 20 | 0.048” (1.22mm) | 0.130” (3.30mm) |
4 | 20 | 0.048” (1.22mm) | 0.142” (3.61mm) |
5 | 20 | 0.048” (1.22mm) | 0.155” (3.94mm) |
6 | 20 | 0.048” (1.22mm) | 0.167” (4.24mm) |
8 | 20 | 0.048” (1.22mm) | 0.189” (4.80mm) |
10 | 20 | 0.048” (1.22mm) | 0.207” (5.26mm) |
12 | 20 | 0.048” (1.22mm) | 0.224” (5.69mm) |
