SD220 высокоскоростной Карманный пружинный матрас намоточный
- Категории: Furniture Making Machines >>>
- Поставщик: Guangzhou,Lianrou,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
LR-PS-S(D)220 | Pocket spring machine | ||||
Model | LR-PS-S220 | LR-PS-D220 | |||
Production Capacity | 220 springs/min. | ||||
Coiling Head | Single wire servo coiling head / Double wire servo coiling head | ||||
Working Principle | Servo control | ||||
Spring Shape | Standard versions: barrel and cylindrical | ||||
Air consumption | 0.35m³/min. | ||||
Air Pressure | 0.6-0.7Mpa | ||||
Power Consumption in total | 40KW | 43KW | |||
Voltage | 3AC 380V | ||||
Frequency | 50/60Hz | ||||
Input Current | 60A | 65A | |||
Cable Section | 3*16 m㎡ + 2*10 m㎡ | ||||
Working Temperature | +5℃ - +35℃ | ||||
Weight | Approx.6000Kg | Approx.7000Kg | |||
Consumption Material Date | ||||||
Non-woven fabric | ||||||
Fabric density | 65-90g/m2 | |||||
Fabric width | 260~680mm | |||||
Inner dia.of fabric roll | 75mm | |||||
Outer dia.of fabric roll | Max.1000mm | |||||
Steel wire | ||||||
Wirediameter | 1.3-2.3mm | |||||
Inner dia.of wire roll | Min.320mm | |||||
Outer dia.of wire roll | Max.1000mm | |||||
Acceptable weight of wire roll | Max.1000Kg | |||||
Working Range(mm) | ||||||
Wire Diameter | Spring Waist Diameter | Pocket Spring Height | ||||
Option1 | φ1.6-2.3mm | Φ48-75mm | 80-250mm | |||
Option2 | φ1.3-1.9mm | Φ38-65mm | 60-220mm | |||
Packing & Delivery
Extra-high speed /Twin O Structure /Excellent heat treatment

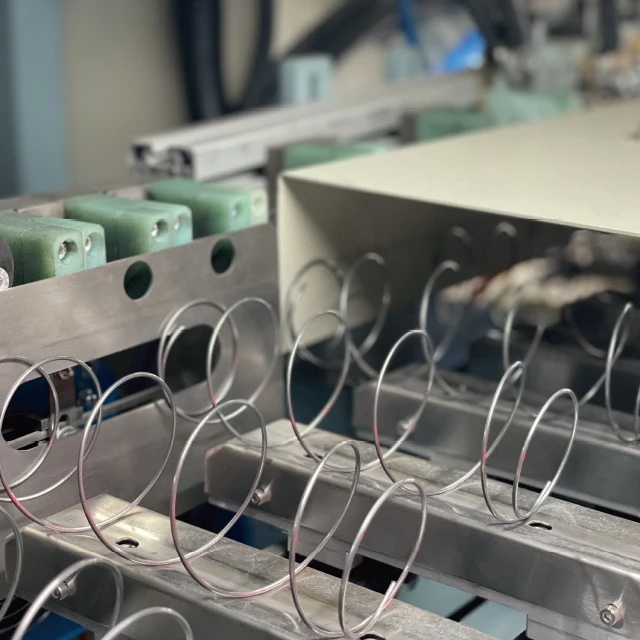

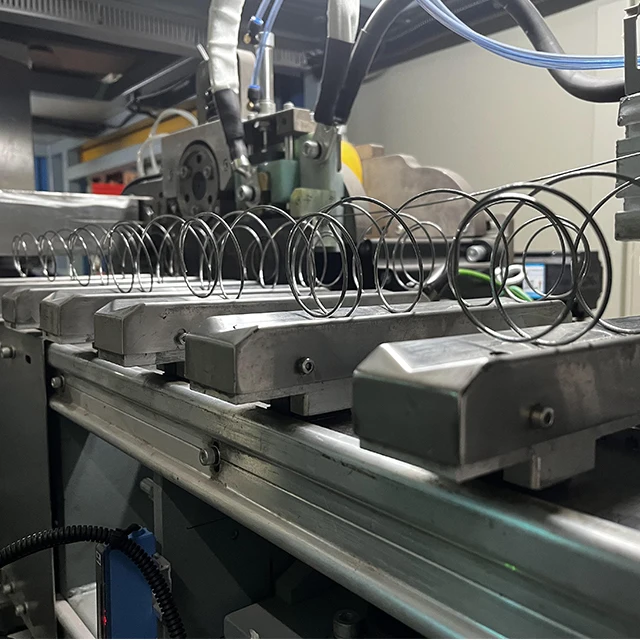

Twin O structure,over 60 magnetic conveying units,good cooling effect .
Real time monitoring of heat treatment,intelligent adjustment of temperature
Twin O structure,over 60 magnetic conveying units,good cooling effect .
Real time monitoring of heat treatment,intelligent adjustment of temperature
Company Profile
Guangzhou Lianrou Machinery and Equipment Co.,Ltd, as the first manufacturer of pocket spring production machines in China, has always keep in mind a brief of Technological Innovation, Quality First and Top Class Service, and has continually researched and developed a series of upholstered furniture manufacturing equipments,Pocket Spring Machine,Pocket Spring Assembly Machine,Automatic Mattress Packing Machine,Mattress Roll-packing Machine,Foam-roll Compressing Machine,ect.
FAQ
1. Can you make your products with our colors?
Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.
2. How to ensure the quality of your machines?
(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.
2. How to ensure the quality of your machines?
(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
