Product Description

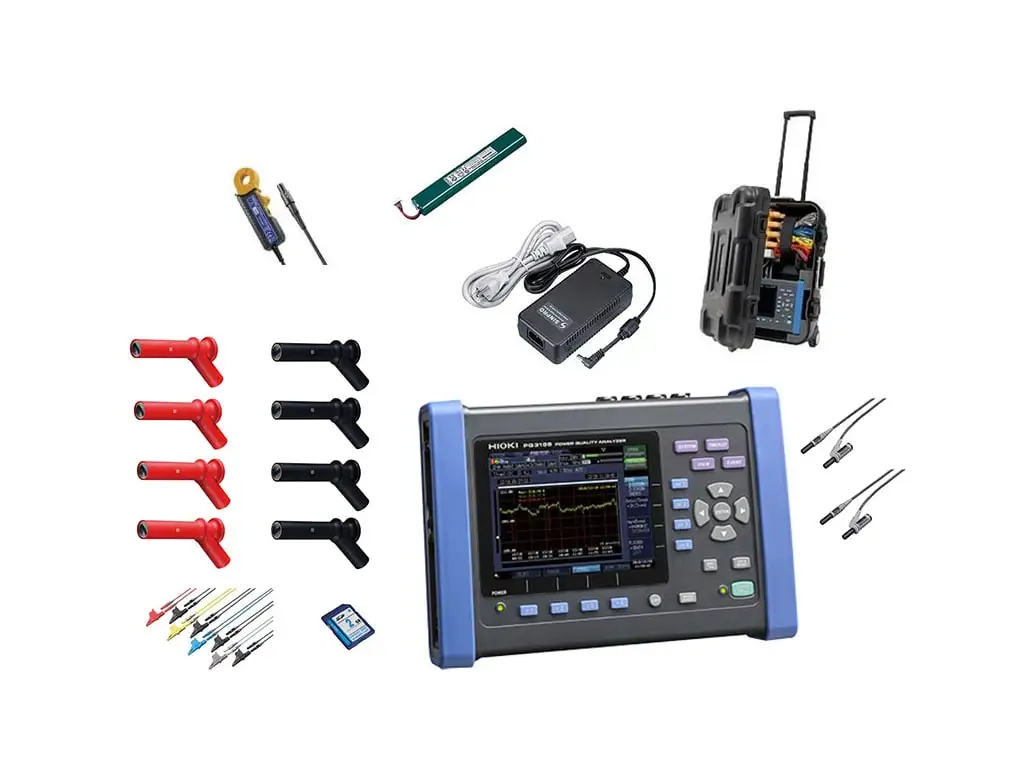

Investigate power characteristics and analyze the causes of problems simply and reliably with this power analyzer kit ideal for measuring single to three-phase lines with high precision and accuracy. In addition, this kit comes with four AC current sensors, magnetic adapters, patch cords, an 8 GB SD card, and a hard carrying case.
Maintain and manage power supplies and analyze problems more efficiently and reliably than ever before with this PQ kit. Provides robust support for field personnel analyzing power characteristics as measurement capabilities that reliably capture the full range of power anomalies and exceptional ease of use throughout the entire user experience, from connecting the instrument to recording data.
Features
* Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
* High accuracy and continuous gapless recording (V: ±0.1% of nominal voltage; A: ±0.1% rdg, ±0.1% f.s.; W: ±0.2% rdg, ±0.1% f.s.)
* Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz
* Maximum 6000 V peak transient voltage up to 700 kHz
* Measure up to 6000 A AC with optional current sensors (sold separately)
* Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
* Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and maimum 20 kHz carrier frequency
* Easily create reports with bundled PQ ONE application software
* Optional GPS BOX for synchronizing multiple devices (sold separately)
* Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
* High accuracy and continuous gapless recording (V: ±0.1% of nominal voltage; A: ±0.1% rdg, ±0.1% f.s.; W: ±0.2% rdg, ±0.1% f.s.)
* Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz
* Maximum 6000 V peak transient voltage up to 700 kHz
* Measure up to 6000 A AC with optional current sensors (sold separately)
* Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
* Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and maimum 20 kHz carrier frequency
* Easily create reports with bundled PQ ONE application software
* Optional GPS BOX for synchronizing multiple devices (sold separately)
Hioki PQ3198/100 KIT - Power Quality Analyzer Kit, 100 A
* Measure up to 100 A
* Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
* Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
* Easily create reports with bundled PQ ONE application software
* Optional GPS BOX for synchronizing multiple devices
* Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
* Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
* Easily create reports with bundled PQ ONE application software
* Optional GPS BOX for synchronizing multiple devices
The Hioki PQ3198/100 Power Quality Analyzer Kit, 100 A is for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.
Maintain and manage power supplies and analyze problems more easily and reliably than ever before
The critical importance of electrical power in today's society necessitates daily maintenance and management to ensure that problems don't occur. When they do, for example due to an equipment failure or abrupt surge in demand, engineers face the need to analyze the cause quickly. The POWER QUALITY ANALYZER PQ3198 and PQ3100 provide robust support for field personnel who need to analyze power characteristics in the form of measurement capabilities that reliably captures the full range of power anomalies and exceptional ease of use throughout the entire user experience, from connecting the instrument to recording data.
Analyze equipment power problems
Capture the full range of power supply anomalies, including momentary interruptions, voltage drops, and frequency fluctuations,
while recording trends to help investigate the causes of unexpected equipment malfunctions and sudden stoppages.
while recording trends to help investigate the causes of unexpected equipment malfunctions and sudden stoppages.
Record quality data for power systems
Record fluctuations in voltage, current, power, harmonics, and flicker when connecting a highly variable system such as a renewable energy source or EV charging station to the grid. Easily analyze the data with the included PQ ONE software.
Measure AC/DC power
Use AC/DC auto-zero current sensors to measure DC current accurately over extended periods of time. Since the sensors are powered by the instrument, there's no need to set up a separate power supply.
Specification
Single-phase two-wire Single-phase three-wire Three-phase three-wire or three-phase three-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement) | |
Voltage: 600 Vrms, 6.0000 kV peak (transient) Current: 100 A Power: 300 W to 3.0000 MW (determined automatically based on voltage and current range in use) | |
Voltage: ±0.1% of nominal voltage Current: ±0.1% rdg, ±0.1% f.s. + current sensor accuracy Active power: ±0.2% rdg, ±0.1% f.s. + current sensor accuracy | |
1. Transient voltage: 2 MHz sampling 2. Frequency cycle: Calculated as one cycle, 40 to 70 Hz 3. Voltage (½) RMS: One cycle calculation refreshed every half cycle; Current (½) RMS: Half-cycle calculation 4. Voltage swell, voltage dips, voltage interruption 5. Inrush current 6. Voltage waveform comparison 7. Instantaneous flicker value: As per IEC61000-4-15 8. 200 ms frequency: Calculated as 10 or 12 cycles, 40 to 70 Hz 9. 10 second frequency: Calculated as the whole-cycle time during the specified 10 second period, 40 to 70 Hz 10. Voltage waveform peak, current waveform peak 11. Voltage, current, active power, apparent power, reactive power, active energy, reactive energy, power factor, displacement power factor, voltage unbalance factor, current unbalance factor, and efficiency 12. High-order harmonic component (voltage/current): 2 to 80 kHz 13. Harmonic/harmonic phase angle (voltage/current); Harmonic power: 0 to 50 th orders 14. Harmonic voltage-current phase angle: 1 to 50 th orders 15. Total harmonic distortion factor (voltage/current) 16. Inter harmonic (voltage/current): 0.5 to 49.5 th order 17. K Factor (multiplication factor) 18. IEC flicker, Δ V10 flicker | |
Record | Repeated on: One year, maximum recording event: 9999 x 366 days (up to 9999 events per day) Repeated off: 35 days, maximum recording event: 9999 events |
Interfaces | SD/SDHC memory card, LAN (HTTP server function/FTP function), USB 2.0 (for communication) |
Display | 6.5" (165.1 mm) TFT color LCD (640 x 480) |
Power Supply | AC adapter: 100 to 240 V AC, 50/60 Hz, rated current 1.7 A Battery pack: Continuous use: 180 minutes; charging time: Maximum 5.5 hours with AC adapter |
Dimensions | 11.81 x 8.31 x 2.68" (300 x 211 x 68 mm) |
Weight | 5.7 lbs (2.6 kg) with battery pack |
