Product Presentation
VRF VC Pro Series Cooling Only
As the leading VRF product, VC boasts substantial benefits such as the single capacity can be up to 90HP which is leading in HVAC industry; EVI compressor significantly increases cooling under extreme conditions, EMS realizes that evaporating temperature (in cooling) is automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency. Besides, the intelligent control system adds more value to VC product.
Why Choose Us
1.Experience
Over 50-years Experience in Air
Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
scheme.
3.Professional selectoion
According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
4.Providing One-Stop Solution of HVAC System
We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
5.Technical Support
We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
Product Line
Product name | Midea 350-415v DC inverter VRF VC Pro Series Cooling Only Air Conditioner | ||||||
Power Supply | 380v-415v/3N/50(60)HZ | ||||||
Cooling1 | Capacity | 22.4KW-255KW | 86-921KBtu/h | ||||
Power input | 5.3-93KW | ||||||
EER | 4.75-2.85KW/KW | ||||||
Compressors | Type | DC inverter | |||||
Fan motors | Type | DC | |||||
Max.ESP | 20 default (Pa) | ||||||
Refrigerant | Type | R410A | |||||
Airflow rate | 11000-75000m³/h | ||||||
58-68dB(A) | |||||||
Ambient temp | Cooling | -5℃ to55℃ | |||||
1.Wide Capacity Range
For single unit, the capacity is up to 30HP. For combined units, maximum three 30HP units can be combined with capacity up to 90HP..

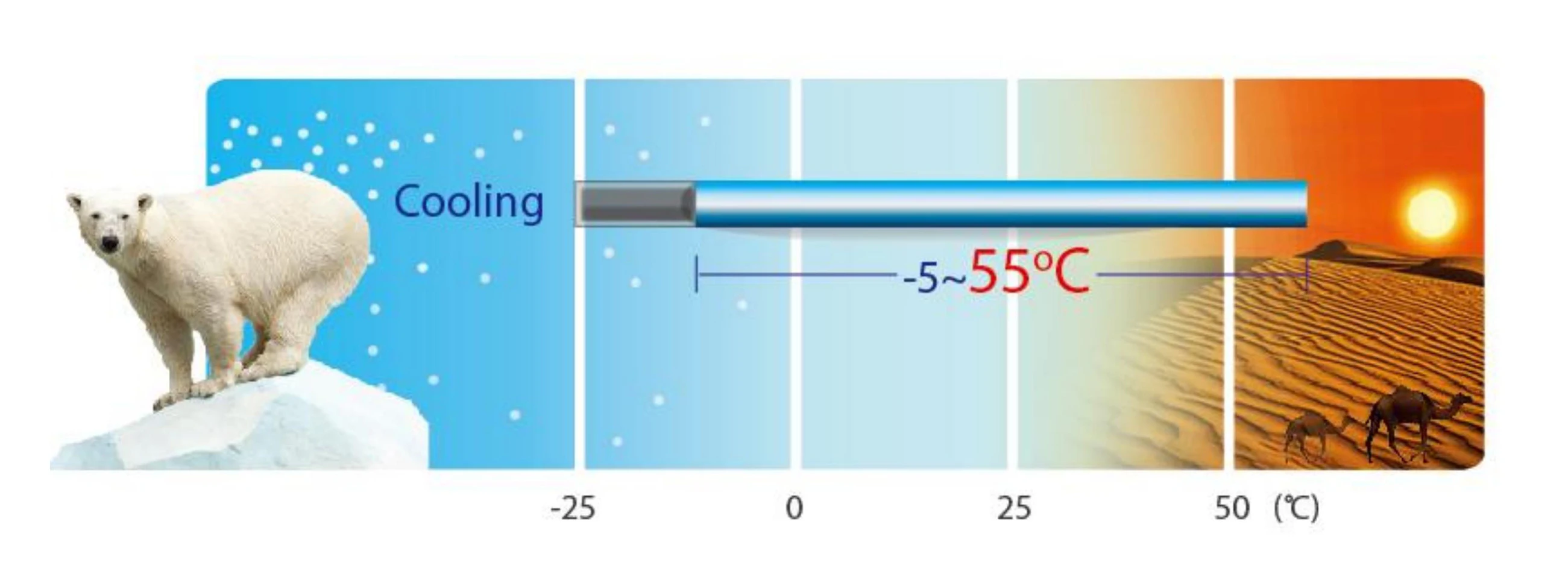

2.Wide Operating Temperature Range
The VC Pro VRF can operate stably in a wide ambient temperature range: from -5°C
* Cooling operation at -15°C is available as a customization option

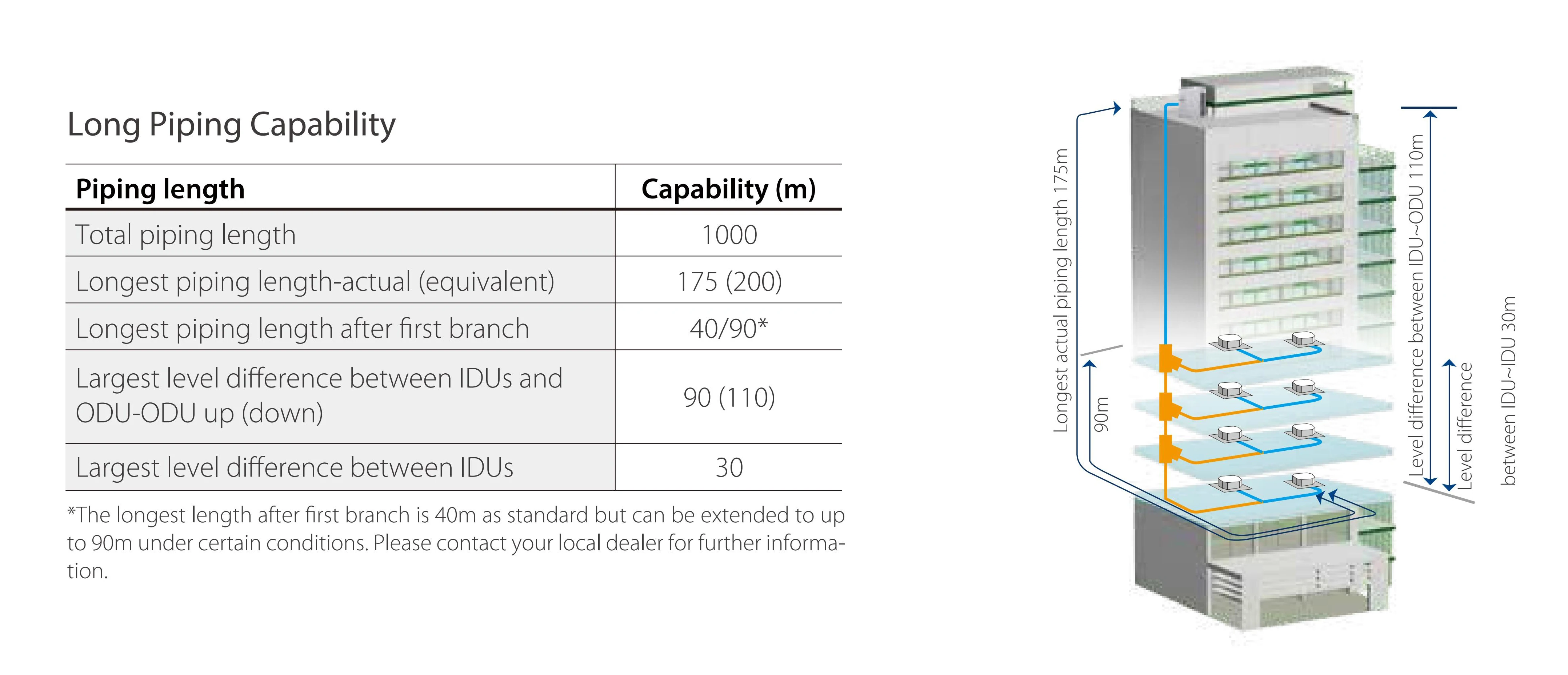

3.Long Piping Capability

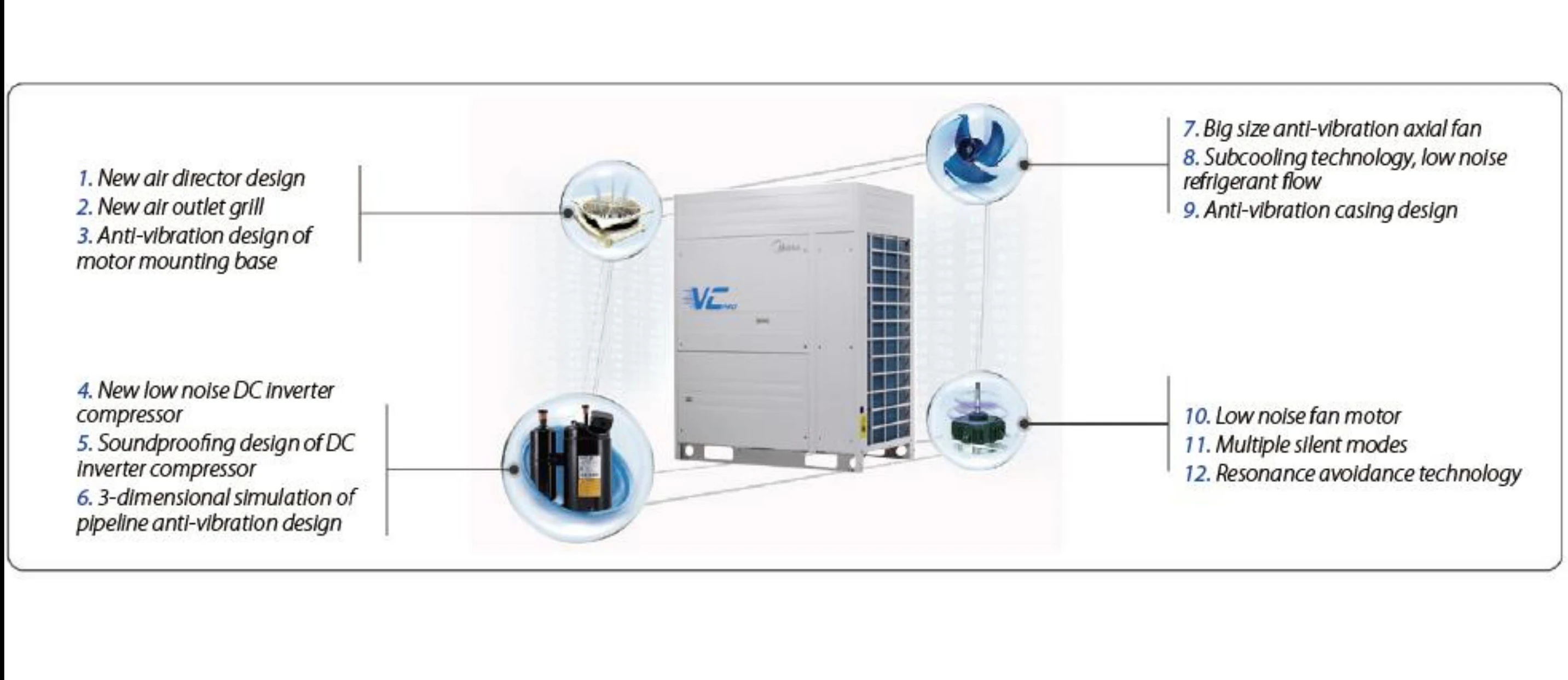

4.Advanced Silent Technoligy
Multiple noise reduction measures reduce the running noise of outdoor units.

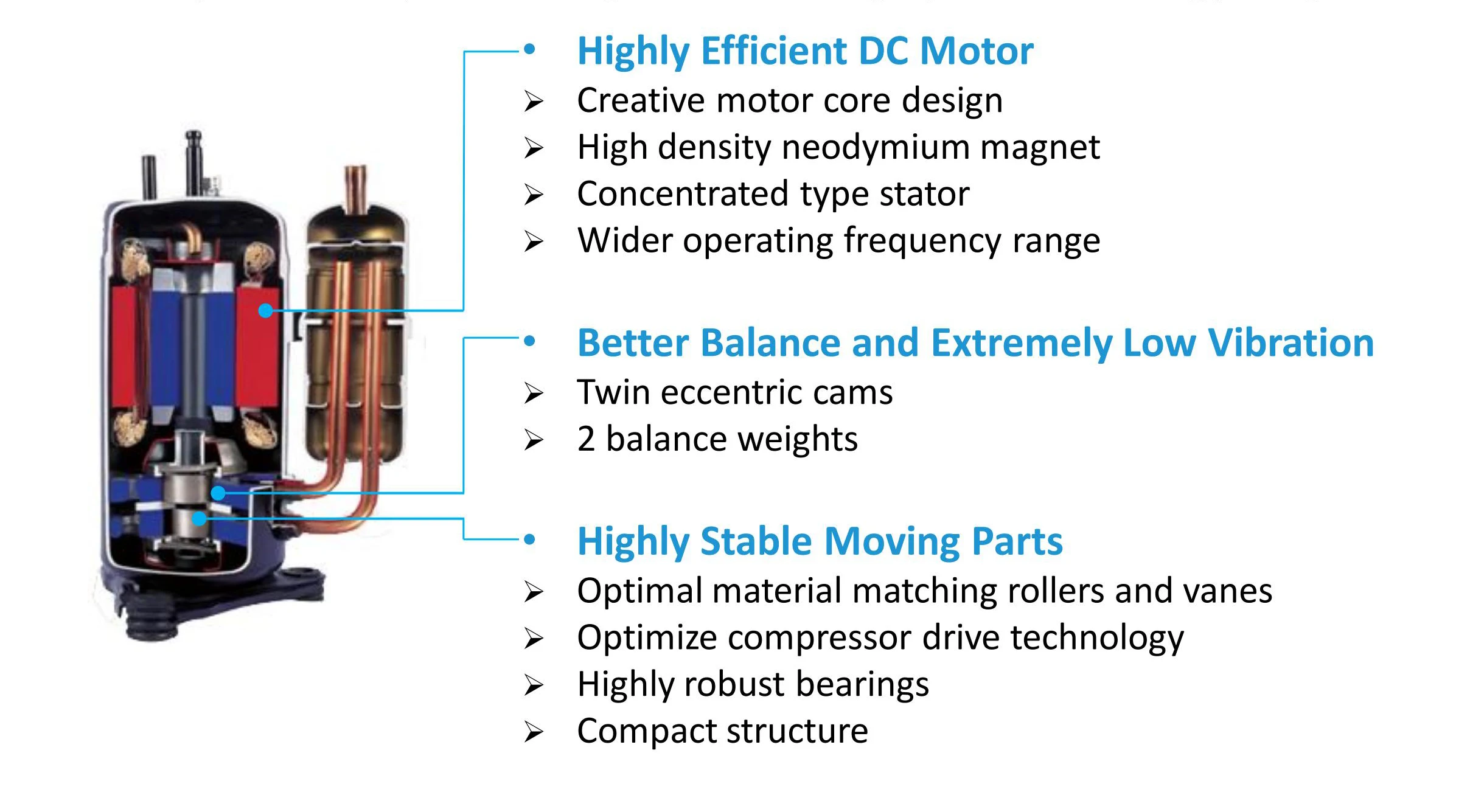

Powerful and efficient with the cutting-edge technology of DC Twin-Rotary compressor which ensures precise temperature regulation and highly efficient energy usage.
6.Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed Midea Group's management system before prepare quotation details for you.
1.Project name :building name or building type, such as ××× office project, residential house project etc.
2.Project accurate address;
3.Your company contact information ＆ address；
4.Please provide product list or engineer drawing with product type marked.
5.When you expect to process purchase ＆ logistics for this project?
6.Is it tender project or not? Because tender project you may need our authorization letter.
Product packaging
We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Midea Product Show
We have a lot of successful project experience, you can trust to give the project to us.
