Product Description
Introduction of polyester spiral mesh belt
Spiral mesh dryer belts have a specially designed spiral structure. The spiral meshes are produced from flat ribbon spirals, which are connected to a straight round rod. Due to the special structure of the polyester spiral mesh belt with continuous and seamless screen spiral, it is very suitable for applications with high mechanical load and unmeet the seam.
Do not have a seam
Glued edge
Each spiral mesh belt will be heat-setting before leaving the factory. Spiral meshes are available in polyester and PPS. The
maximum heat-setting temperature of the polyester spiral mesh belt is 200 °C, and it can be used for a long time at 150 °C. The spiral mesh belt made of PPS has a maximum temperature of 290°C for heat setting and can be used for a long time at 240°C.
maximum heat-setting temperature of the polyester spiral mesh belt is 200 °C, and it can be used for a long time at 150 °C. The spiral mesh belt made of PPS has a maximum temperature of 290°C for heat setting and can be used for a long time at 240°C.
The heat setting treatment ensures the structural stability of the spiral mesh belt, improves the surface flatness, improves the physical and mechanical properties of the fiber, and greatly enhances the service life of the mesh belt.
Polyester monofilament spiral loop
Threading for connection
Feature of polyester spiral dryer fabric
● Use hot air to set the shape, evenly heat, and improve the service life of the mesh belt.
● Selected raw yarn, smooth surface, not easy to stick, easy to clean.
● High-temperature resistance, polyester up to 150°C, PPS up to 240°C.
● Excellent chemical stability, BPA-free, Food grade certification.
● Seamless connection, no swelling at the joint, and the same air permeability in the whole filtering area.
● The width supports 10 cm to 10 meters, any length you need.
● Sealed edges for lasting, economical solutions.
● Easy to install, easy to repair.
Title goes here.
The subtle weaving of the spiral mesh dryer belt allows transporting the product over ventilated surfaces without product
abrasion. Ideal in filter belts, dryer belts or conveyor belts in product washing, or for industry drying, nonwoven forming, and thermal applications including drying of veneers, manufacture of gypsum plasterboard or for multi-stage dryers in foodstuff processing, etc.
abrasion. Ideal in filter belts, dryer belts or conveyor belts in product washing, or for industry drying, nonwoven forming, and thermal applications including drying of veneers, manufacture of gypsum plasterboard or for multi-stage dryers in foodstuff processing, etc.
● Food processing industry
● Pasta sector, for drying and pasteurization
● Ready-to-use produce sector, for washing vegetables
● Food processing industry, for drying of fruits
● Dairy industry, for filtration processes
● Fishing industry, for transportation

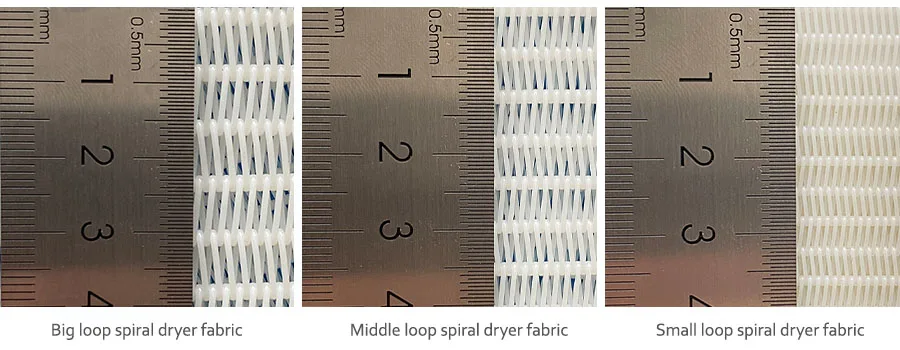

Polyester spiral mesh belt for nonwovens
Polyester spiral mesh belt for dryer
Specification
We can offer a wide range of options to suit your application to achieve your optimum air permeability, filtration efficiency,
throughput and tracking stability. Items to choose from include: various types of yarn diameters from 0.5mm to 1.2mm; small, medium and large spiral loops; flat or round yarn; and yarn material.
throughput and tracking stability. Items to choose from include: various types of yarn diameters from 0.5mm to 1.2mm; small, medium and large spiral loops; flat or round yarn; and yarn material.
Weaving type | Model | Thread Diameter | Air permeability (m³/m²h) | ||
(mm) | |||||
Warp | Weft | ||||
Large Loop | 4070 | 0.9 | 1.1 | 20000±500 | |
Medium Loop | 3868 | 0.7 | 0.9 | 18500±500 | |
Small Loop | 3252 | 0.52 | 0.7 | 15000±500 | |
Wire diameter | 0.70 mm – 0.90 mm | ||||||
Weave thickness | 2.3 mm | ||||||
Wires per cm | approximately 2.2×7/cm ( Mesh: approximately 5×18) | ||||||
Maximum temperature | approximately 110 °C | 230 °F ( Depends on application) | ||||||
Color | blue, white, red, black or customized | ||||||

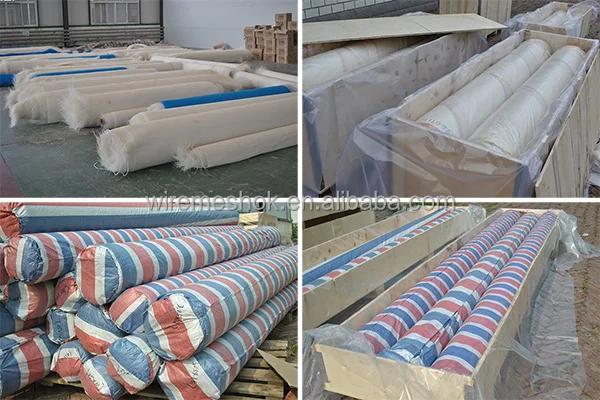

Packing & Delivery

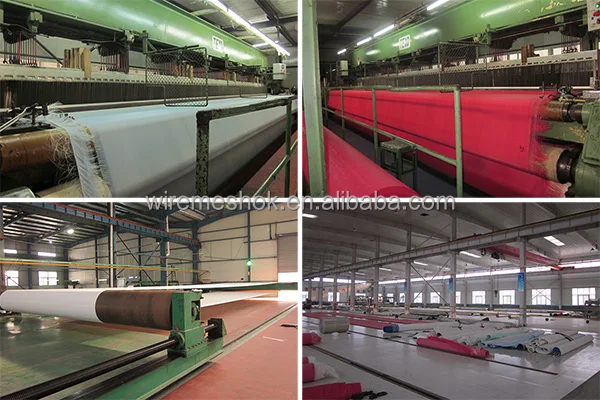

Company Profile
Founded in 1987, Anping County Resen Screen Co., Ltd. is located in the Industrial Park Zone, Anping County, which is the famous for Stainless Steel Wire Mesh in China. Our company has a registered capital of 15 million RMB, with a land area of 40,000 square meters, a construction area of 11,000 square meters, and 1500 square meters of 1W grade clean workshops. Resen is professionally engaged in production and sale of stainless steel wire mesh, polyester printing screen and stainless steel wire. In October of 2005, our company was listed as Hebei High-New Tech Enterprise. Our newly developed precise woven stainless steel wire mesh for new model computer monitor screen has passed the technical achievement identification by Hebei Province Scientific Technology Bureau.
