Огнеупорная изоляция печи глинозема силикатного волокна высокой температуры 1430c
- Категории: Ceramic Fiber Boards >>>
- Поставщик: Henan,Stable,New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Recommended by seller

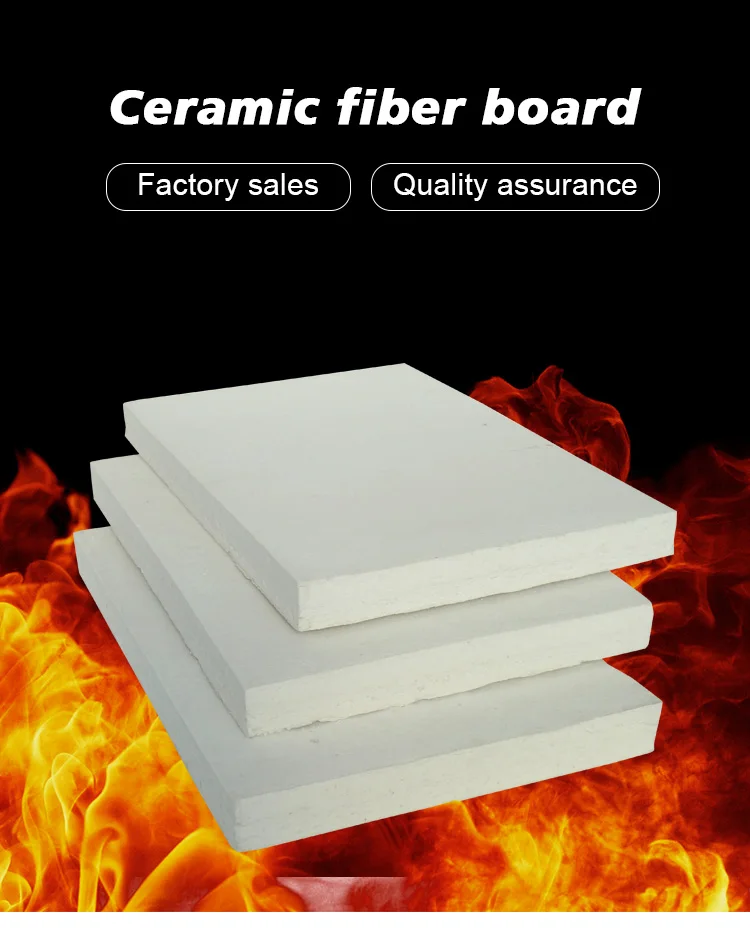

Product Description
Ceramic fiber fireproof board is made from refractory ceramic fiber,attending inorganic and suitable organic binders.The mixture is vacuum processed into boards that keep good mechanical streng then after heating.

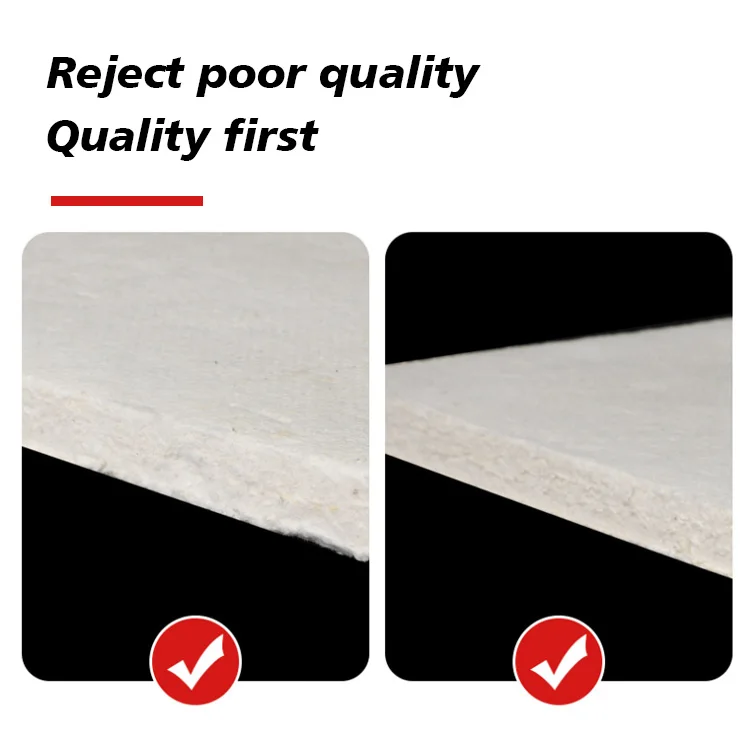

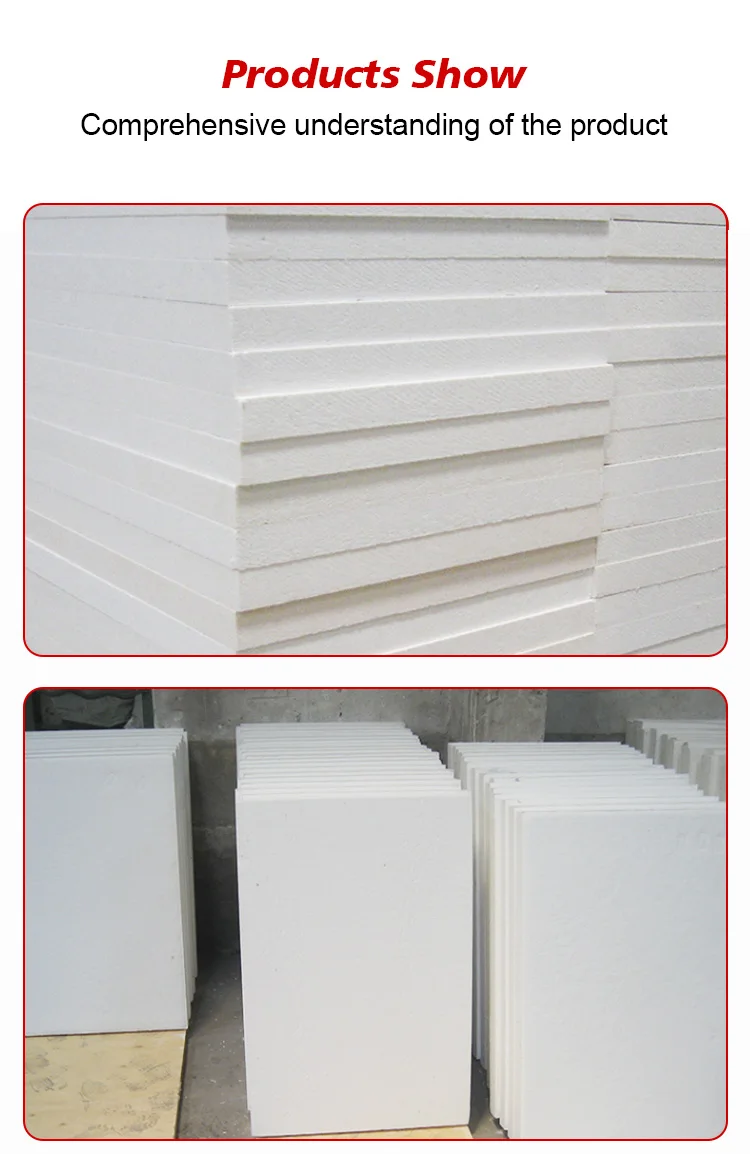

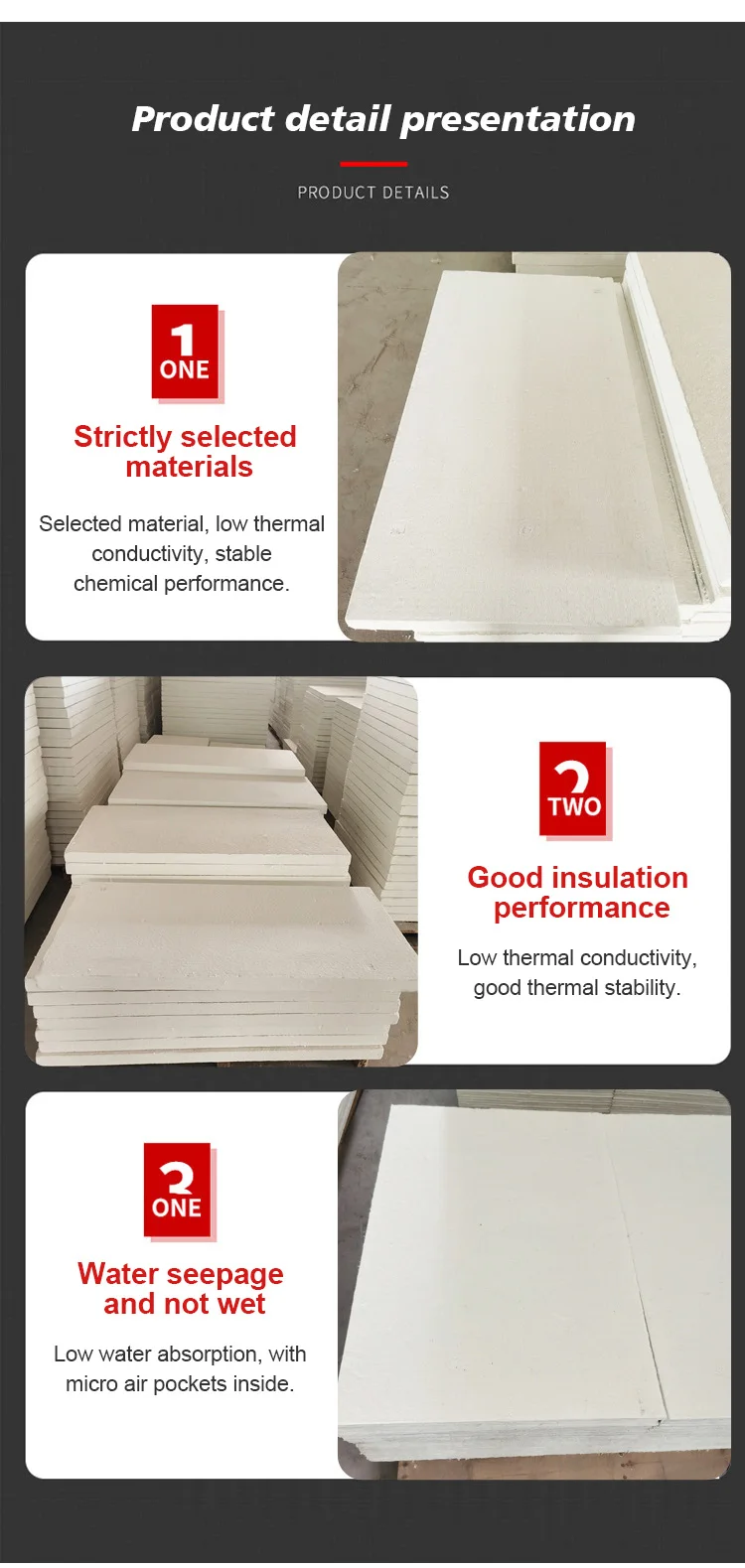

Details Images
Specification
Type | Common | Standard | High Pure | High alumina | Zirconium | ||||||
Classification temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1430 | ||||||
Working temperature (°C) | ≤1000 | 1050 | 1100 | 1200 | 1350 | ||||||
Color | White | Pure White | Pure White | Pure White | Pure White | ||||||
Density (kg/m3) | 260 320 | 260 320 | 260 320 | 260 320 | 260 320 | ||||||
Shrinkage on heating (%)(Temperature 24 hours, density as 320kg/m3) | -4 (1000°C) | -3 (1000°C) | -3 (1100°C) | -3 (1200°C) | -3 (1350°C) | ||||||
Thermal conductivity of various temperatures (w/m.k) (density 285kg/m3) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | ||||||
Compressive strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||
Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 | |||||
AL2O3+SIO2 | 96 | 97 | 99 | 99 | - | ||||||
AL2O3+SIO2+ZrO2 | - | - | - | - | 99 | ||||||
ZrO2 | - | - | - | - | 15-17 | ||||||
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||||||
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Dimensions (mm) | Common Specifications: 600*400*10-50; 900*600*10-50 1200*500*10-50; 1200*1000*10-50; 1000*600*10-50mm Other specifications can be available. | ||||||||||
Product Applications
Industry | Application |
Cement industry | kiln back lining-thermal insulation |
Ceramic industry | lining of various kilns for thermal insulation, Kiln door,kiln car and dilatation joint etc |
Petrochemical and metallurgy industries | Heat treatment furnace kiln back lining thermal insulation;mechanic and metallurgy heating furnace,thermal treatment furnace and others industrial furnace and hot face internal lining |
Glass industry | Glass kiln lining and back lining thermal insulation |
Aluminium industry | reduction cell firebricks back linings, High temperature reaction, heating device-wall lining and back linings |
Product packaging
Packing
1. Carton packaging .
1. Carton packaging .
2. packaging according to customer service requirements.
Shipping
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods!
Shipping
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods!

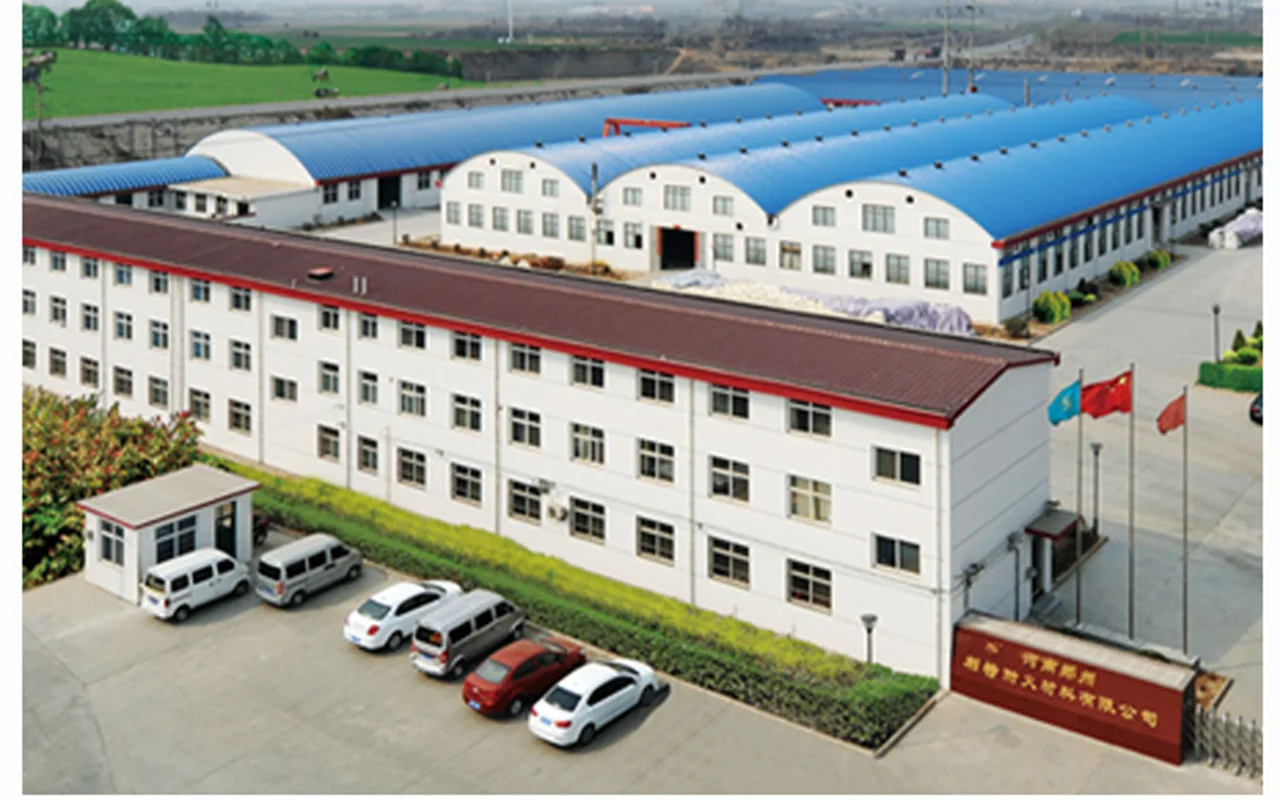

Company Profile
Henan Stable New Material Co.,Ltd. is a manufacturer of high temperature materials which follows the tradition of refractory and heat resistant manufacturing in Henan, China ,since 2008.
Our products include fire cement, fire bricks, refractory setting cements/mortars, plastic mouldables refractories, zircon refractory products, acid resistant cements and refractory castables for use in industries including steel plants, heat and power stations, foundries both ferrous and non-ferrous, cement producers, lime producers, glass works, ceramics, coke plants, incinerators, renewable energy, chemical works, sugar refineries and petrochemical industry.
Our products include fire cement, fire bricks, refractory setting cements/mortars, plastic mouldables refractories, zircon refractory products, acid resistant cements and refractory castables for use in industries including steel plants, heat and power stations, foundries both ferrous and non-ferrous, cement producers, lime producers, glass works, ceramics, coke plants, incinerators, renewable energy, chemical works, sugar refineries and petrochemical industry.
FAQ
Q1. How long is delivery time?
A1:The delivery time will be determined according to the quantity of the order.
Q2.How about your company's certification?
A2:ISO9001 and Test Report,also we could apply other necessary certification.
Q3.What are the payment terms?
A3:Usually T/T,but L/C,Western Union etc are available for us.
Q4.What's the MOQ of trial order?
A4:No limit,We can offer the best suggestions and solutions according to your condition.
Q5.How are the products' quality?
A5:The products will be strictly inspected before shipment, so the quality could be guaranteed.
